Wells (Middleby) MOD-400TDM/AF Steam Tables & Food Wells
Description

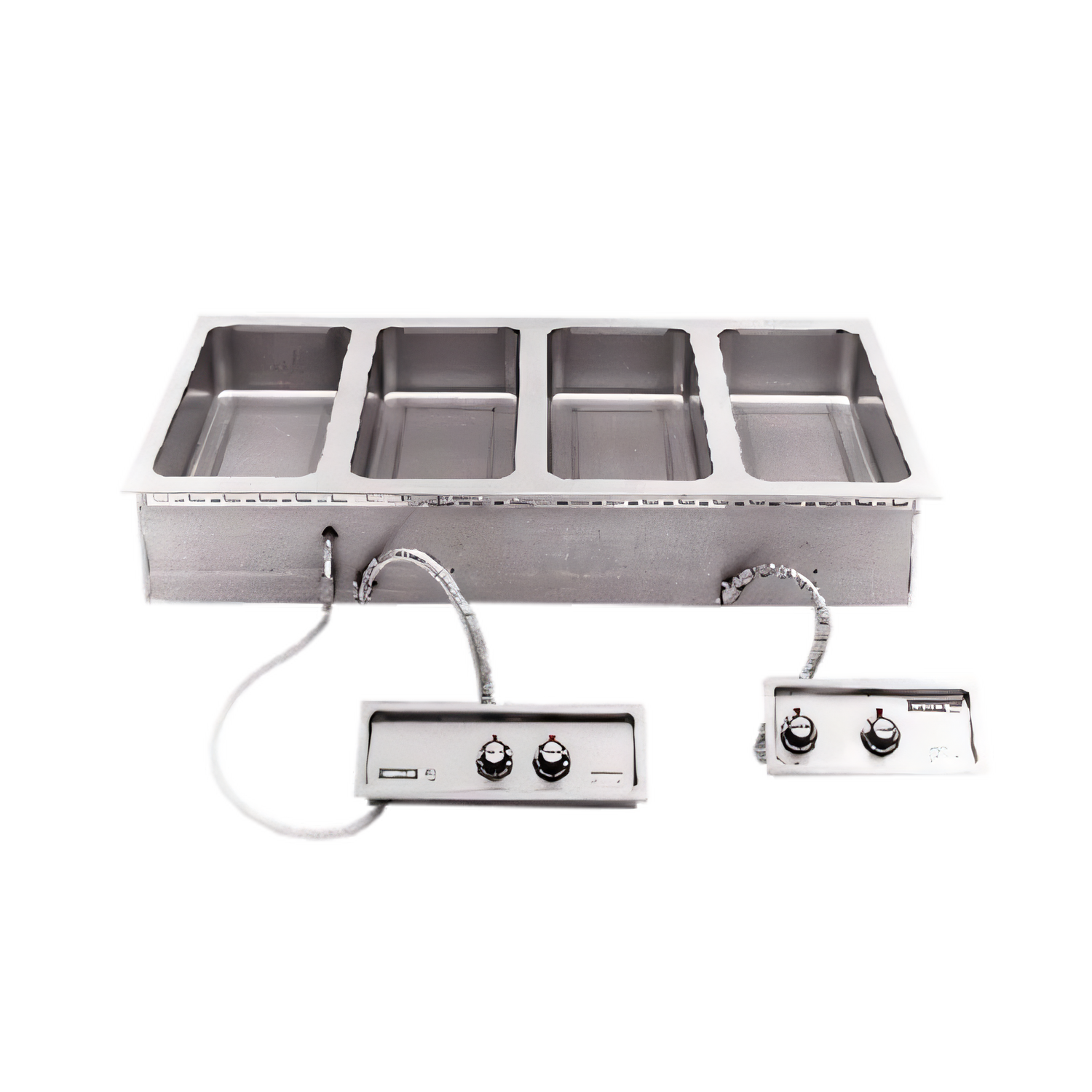

Wells MOD400TDMAF Four-Well Drop-In Food Warmer
Top-mount | Auto-Fill | Dual Control Panels | cULusKeep entrées, sides, and sauces at food-safe serving temperatures with the Wells MOD400TDMAF. This heavy-duty, built-in warmer combines the convenience of automatic water fill with the control of independent, thermostatically-regulated wells—delivering consistent results shift after shift.
Key Features
- Four 12" × 20" rectangular wells accept full-size pans or fractional equivalents.
- Auto-Fill system maintains the correct water level automatically—no manual refilling.
- Manifold drain with a single ½" NPT valve quickly evacuates all four wells.
- Wet or dry operation; wet is recommended for peak performance.
- Dual front-mounted control panels, each with two thermostatic controls and ready indicator lights.
- One-piece stainless steel top flange and deep-drawn stainless wells for easy cleaning and durability.
- Fully insulated aluminum-steel housing reduces heat loss and protects non-metal counters.
- High-limit safety protects against overheating.
- Ships 3-phase and is field convertible to 1-phase to simplify installation.
- NSF & cULus listed; 1-year limited parts & labor warranty.
At-a-Glance Specifications
| Model | MOD400TDMAF |
|---|---|

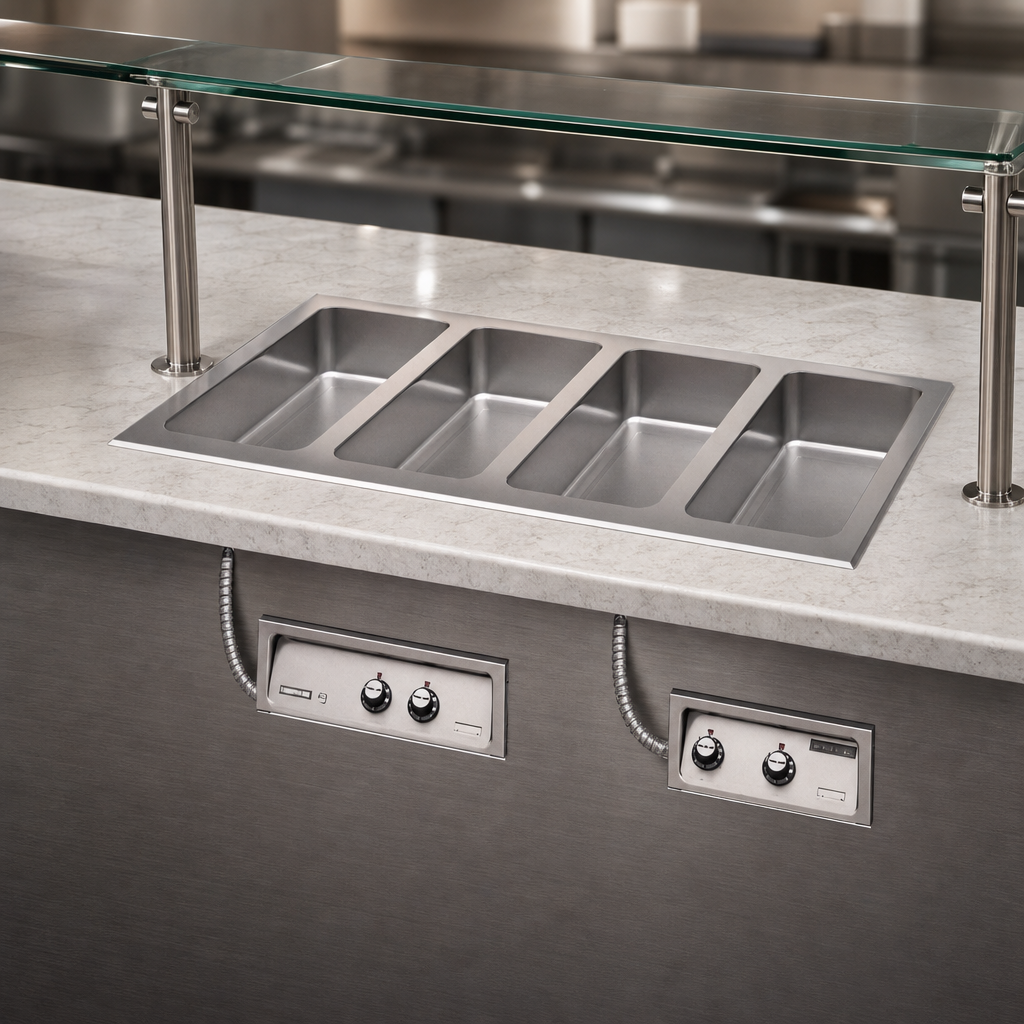

| Mounting Style | Top-mount, drop-in (includes WellsLok for quick install) |
| Wells | 4 × 12" × 20" (full-size) – 9.75" deep |
| Controls | Thermostatic, independent (2 per panel) |
| Operation | Wet or dry |
| Auto-Fill | Yes – ¼" NPT external water connection required |
| Drain | ½" NPT manifold with single valve |
| Electrical |
208 V / 3 Ø / 1240 W per well 240 V / 3 Ø / 1650 W per well (Convertible to 1 Ø in the field) |
| Overall Dimensions | 57.5" W × 23.6" D × 9.75" H (1461 × 600 × 248 mm) |
| Control Panel Heights | 18" & 14" (457 & 356 mm) |
| Shipping Weight | 112 lb (50.9 kg) |
| Certifications | NSF, cULus |
| Warranty | 1-year limited parts & labor |
Why Choose Wells?
- Over 90 years of foodservice engineering expertise.
- Energy-saving insulated design lowers utility costs.
- Every well has its own heating element for faster recovery and even heat distribution.
- Backed by a nationwide network of authorized service agencies.
