Wells (Middleby) MOD-400TD Steam Tables & Food Wells
Description

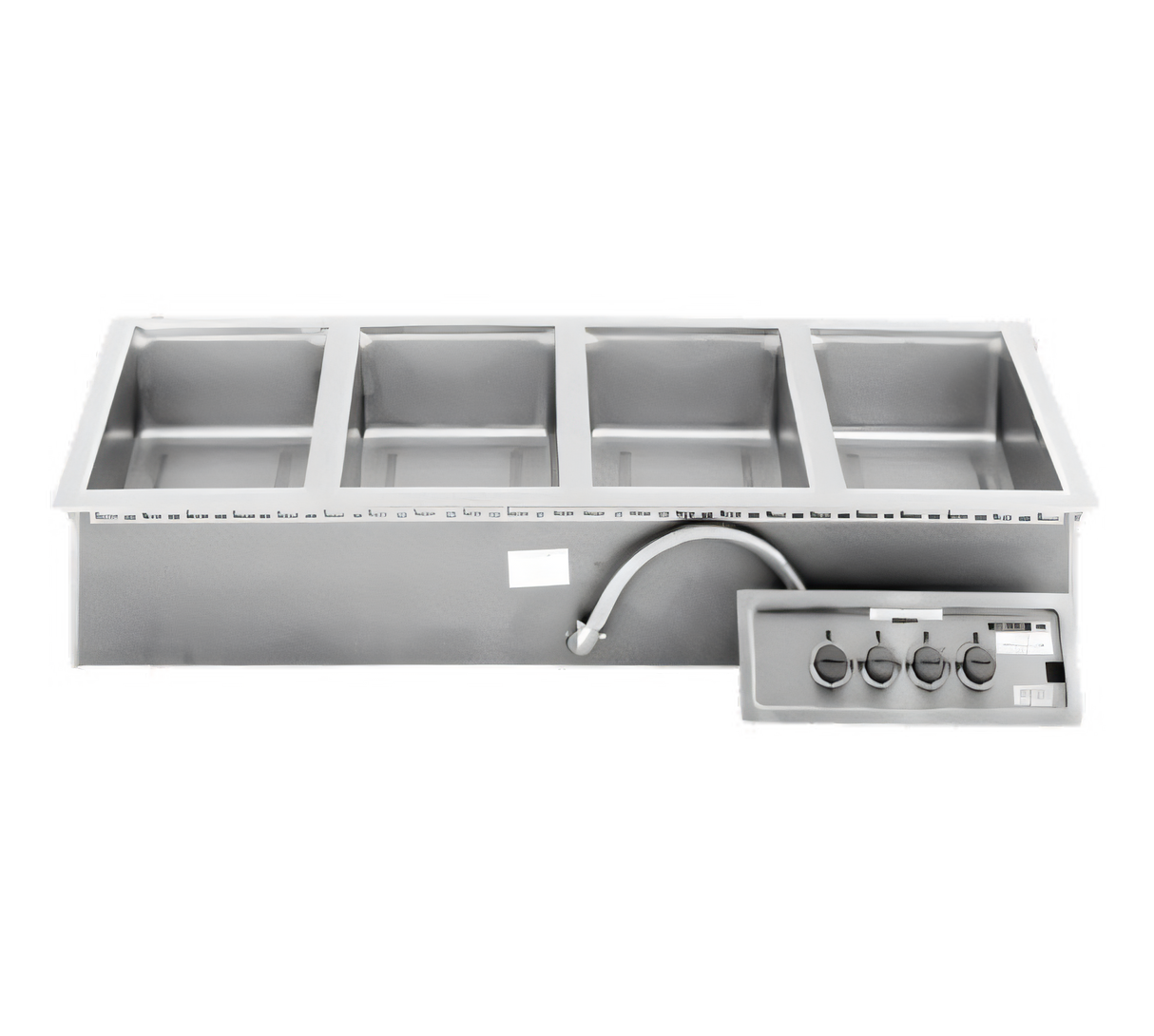

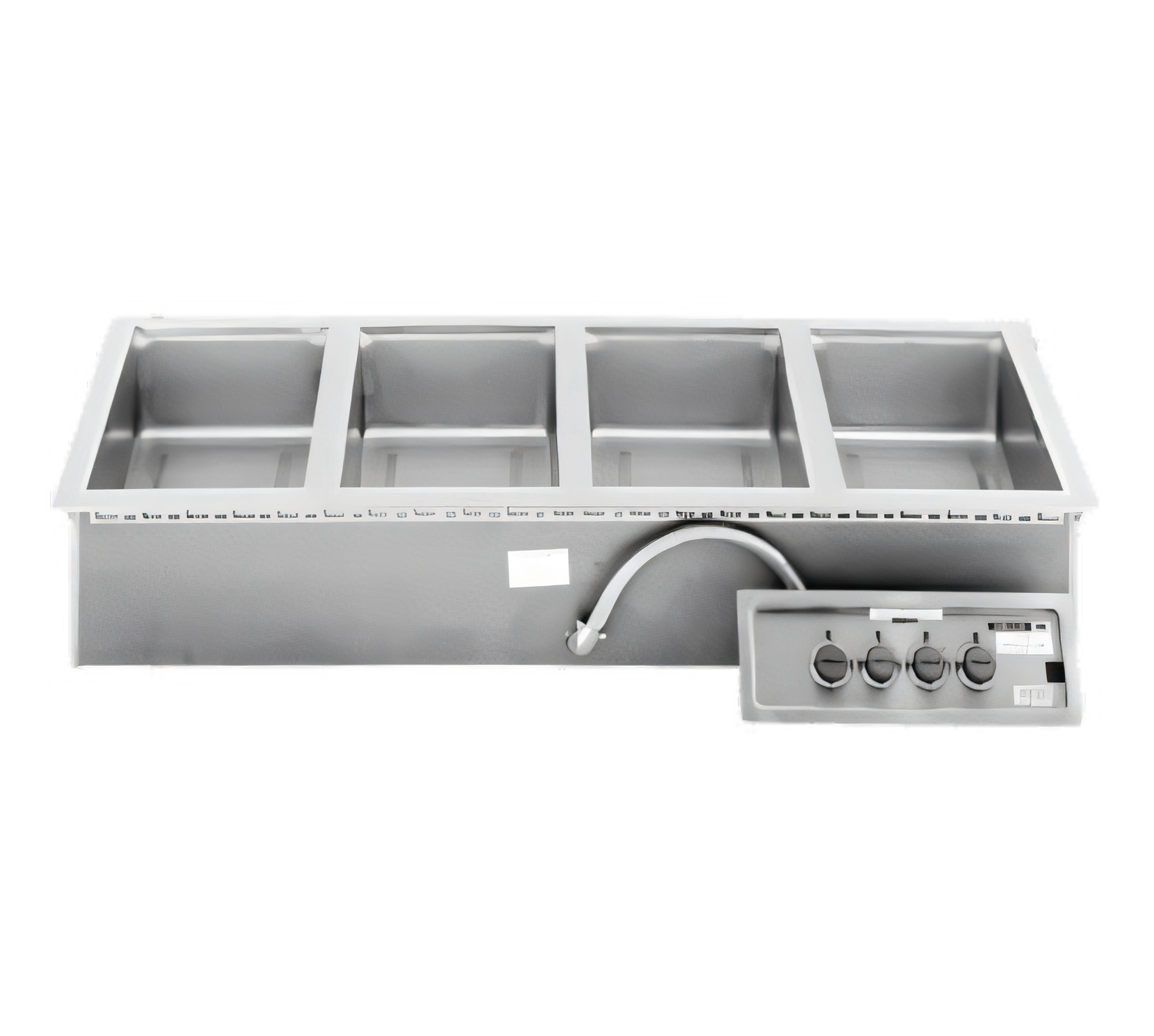

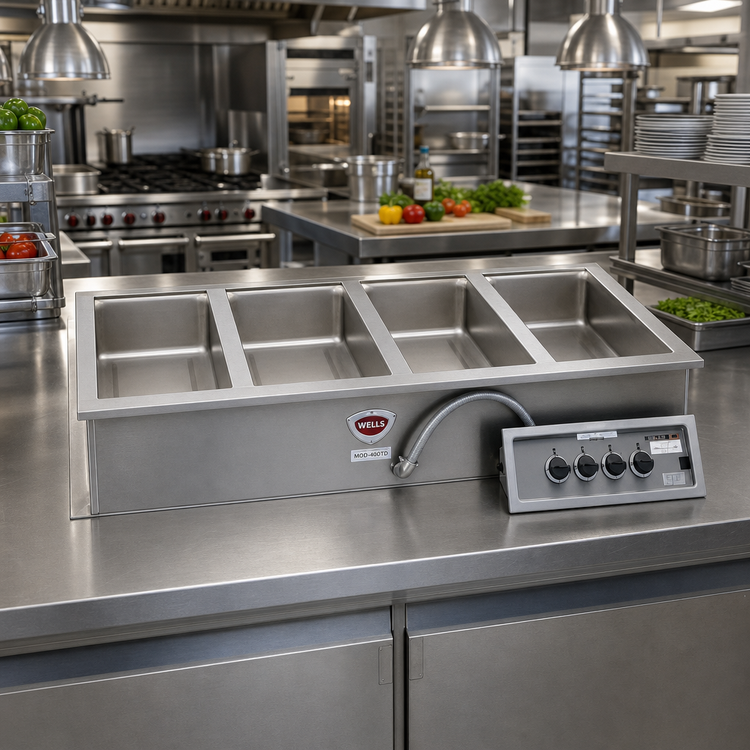

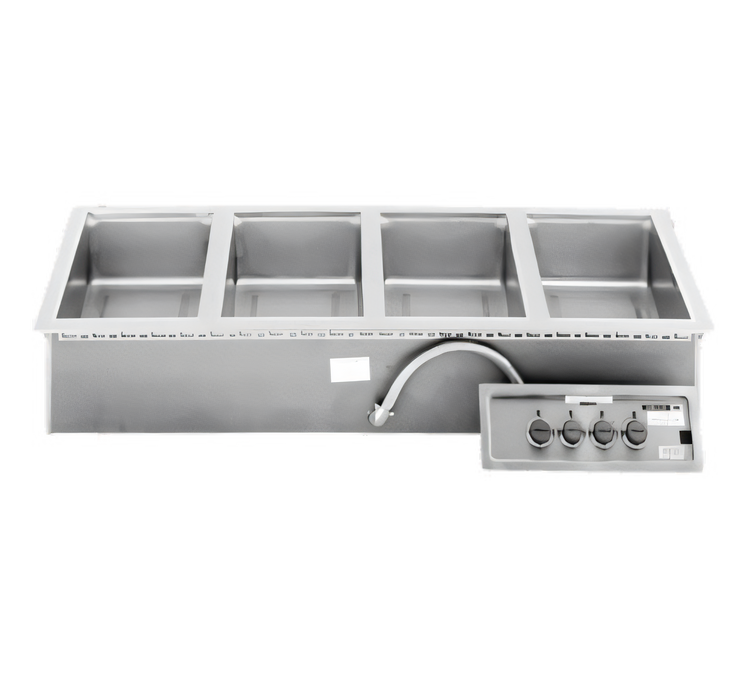

Wells MOD400TD 4-Well Drop-In Food Warmer
Top-mount | electric | thermostatic controls | wet or dryBuilt for demanding serving lines, the heavy-duty Wells MOD400TD drop-in warmer delivers precise, independent temperature control for four full-size hotel pans while taking up virtually no counter space. A one-piece stainless top, fully-insulated housing and individual drains make this cULus-listed unit a long-term performer in cafeterias, buffets, convenience stores and more.
Key benefits at a glance
- Holds (4) 12 × 20 in. pans or fractional equivalents
- Wet or dry operation – water bath recommended for best results
- Four recessed thermostatic controls with indicator lights & high-limit safety
- 1/2 in. drains for quick water removal and easier clean-up
- One-piece, deep-drawn stainless steel wells & top flange resist corrosion
- Energy-saving, fully-insulated aluminized-steel housing – ideal for non-metal counters
- Powerful tubular elements mounted beneath each well for even heat distribution

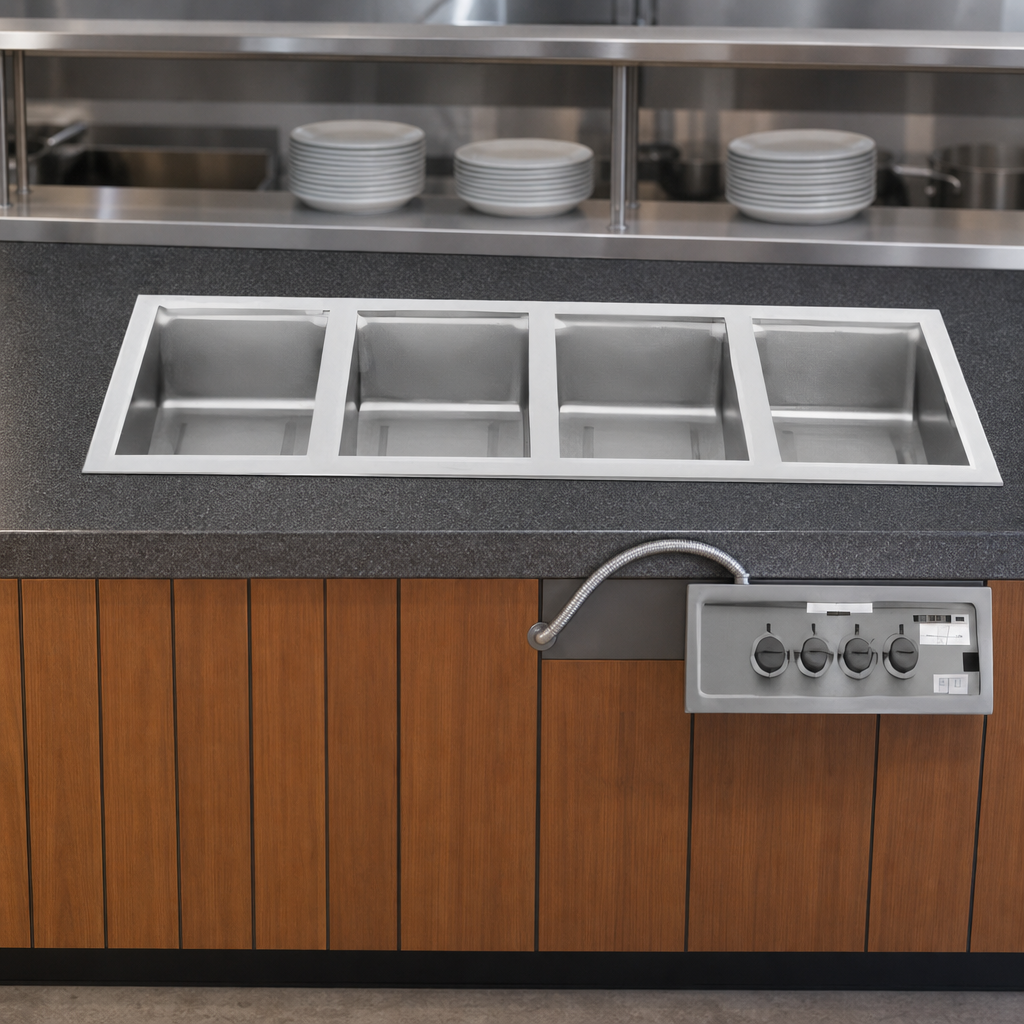

- Factory-installed WellsLok™ flange speeds drop-in installation
- Field-convertible from 3-phase to 1-phase to match site power
- 1-year limited parts & labor warranty backed by Wells’ nationwide service network
Technical specifications
| Manufacturer / Model | Wells MOD400TD |
|---|---|
| Capacity | (4) full-size 12 in. × 20 in. wells |
| Operation | Wet or dry; thermostatic controls (one per well) |
| Heat per well | 1,240 W @ 208 V | 1,650 W @ 240 V |
| Electrical | 208 / 240 V, 3 Ø (field convertible to 1 Ø) |
| Drain | ½ in. NPT (one per well, manifold included) |
| Overall dimensions | 57 ½ W × 23 ⅝ D × 9 ¾ H in. (1,461 × 600 × 248 mm) |
| Cut-out size | 56 ½ W × 22 ⅝ D in. (1,435 × 575 mm) (verify in installation manual) |
| Shipping weight | ≈ 105 lb / 47.7 kg |
| Construction | Stainless wells & top; insulated aluminized-steel housing |
| Certifications | cULus, NSF |
| Warranty | 1-year limited parts & labor |
Popular options & accessories
- Adaptor tops for round insets
- Inset pans with hinged lids
- 8 oz. soup ladles
- Drain valve extension kit or drain screens
- Auto-fill water system (factory option)
- 72 in. cord kit & WellsLok™ extensions for wood counters
Need easy monthly payments? Ask about Middleby Equipment Financing to keep cash flow strong while upgrading your serving line.
