Wells (Middleby) MOD-400DM Steam Tables & Food Wells
Description

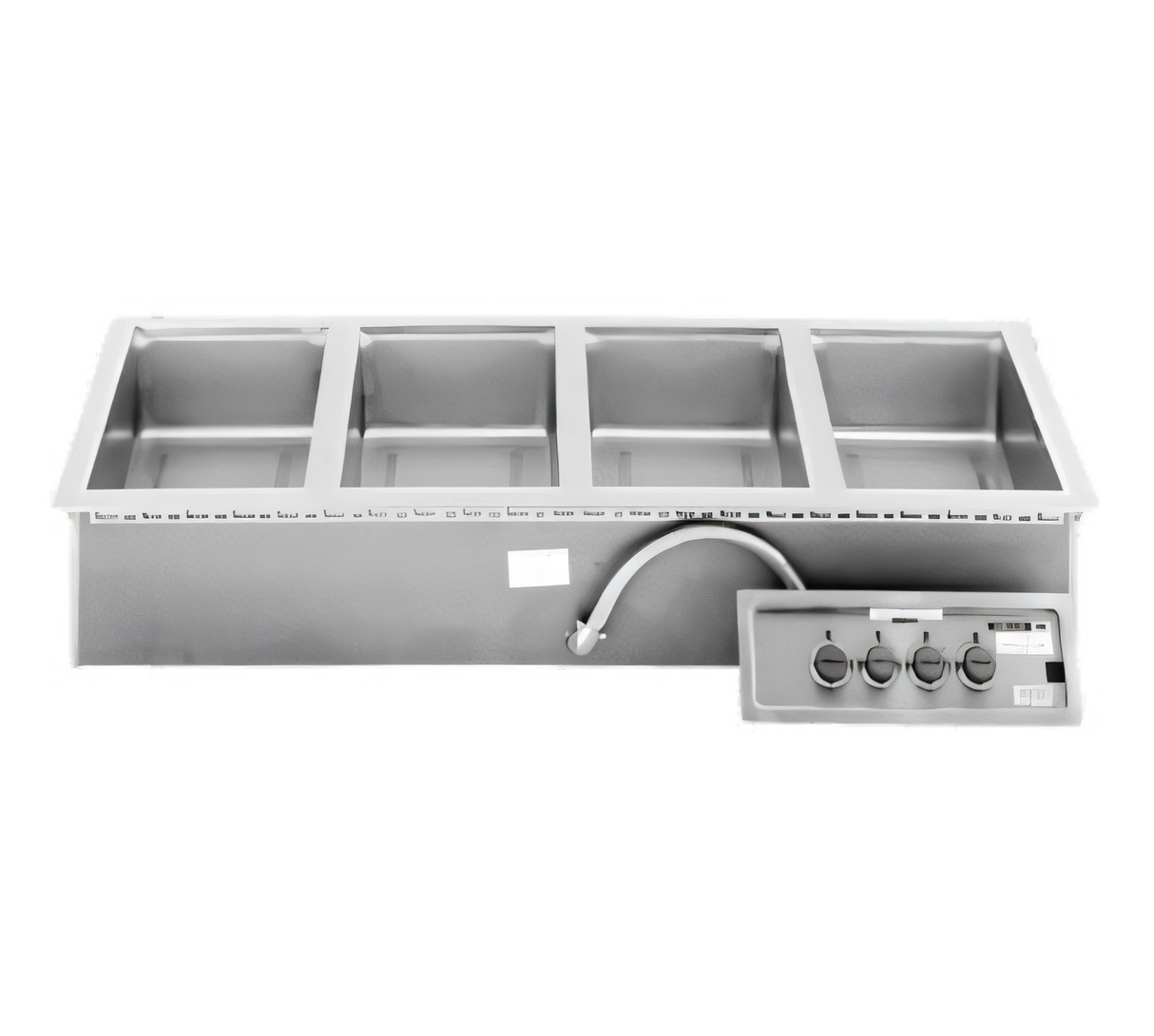

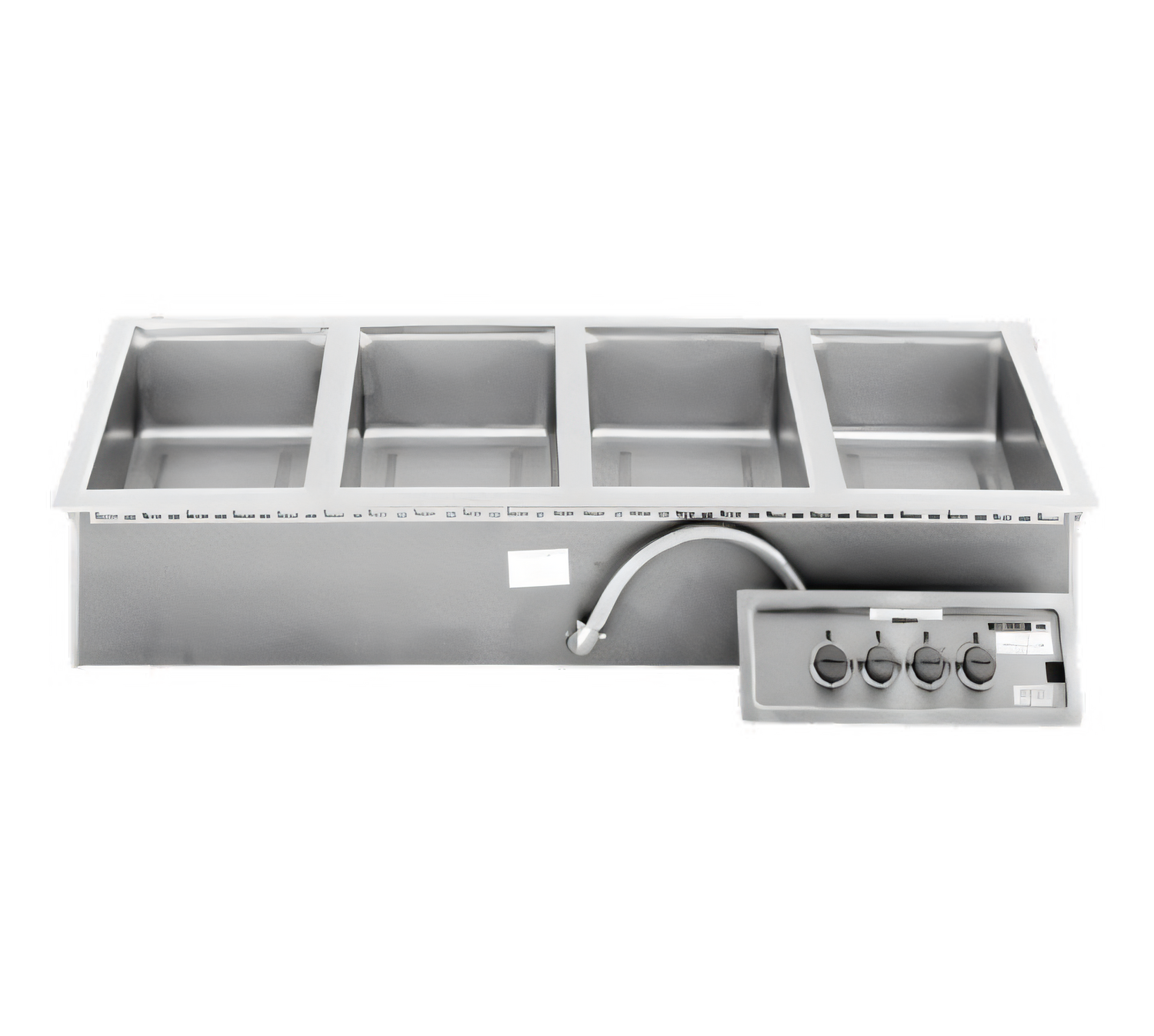

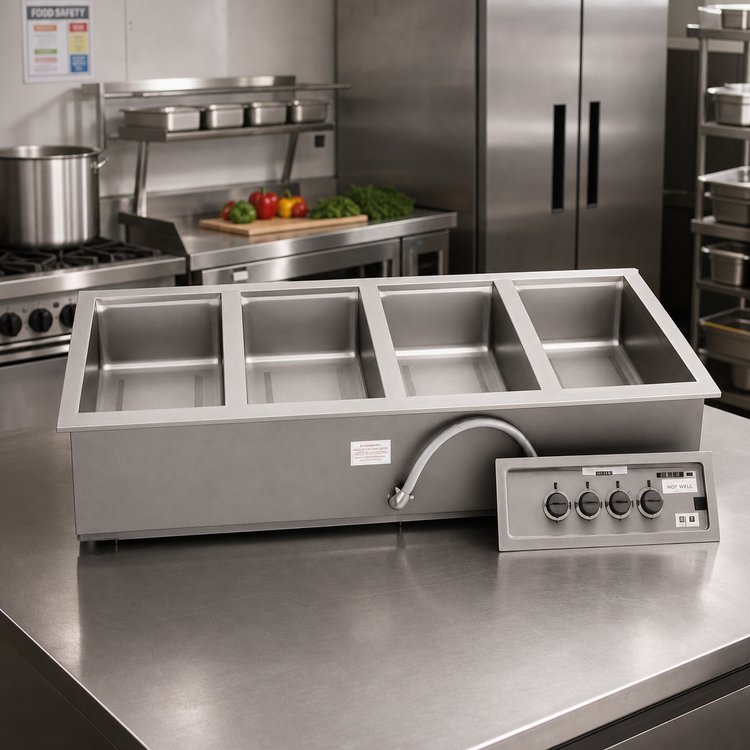

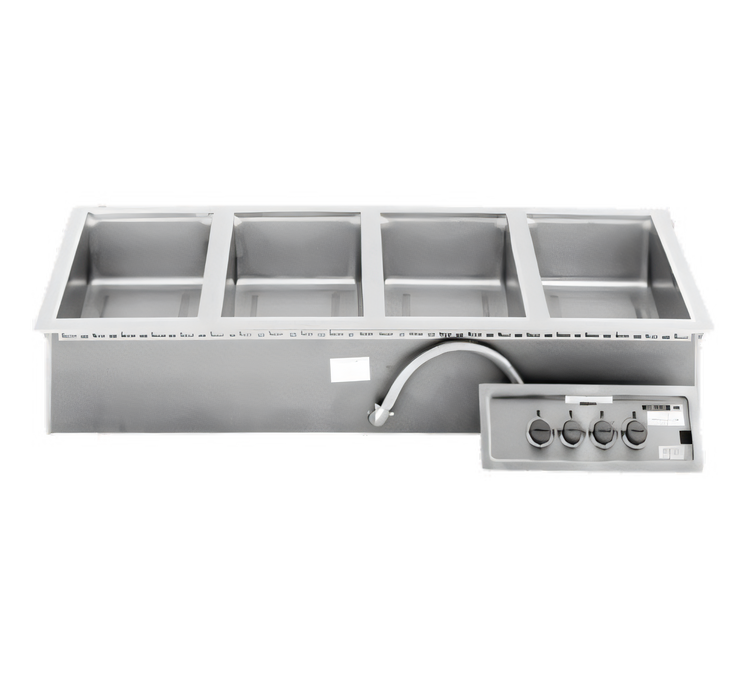

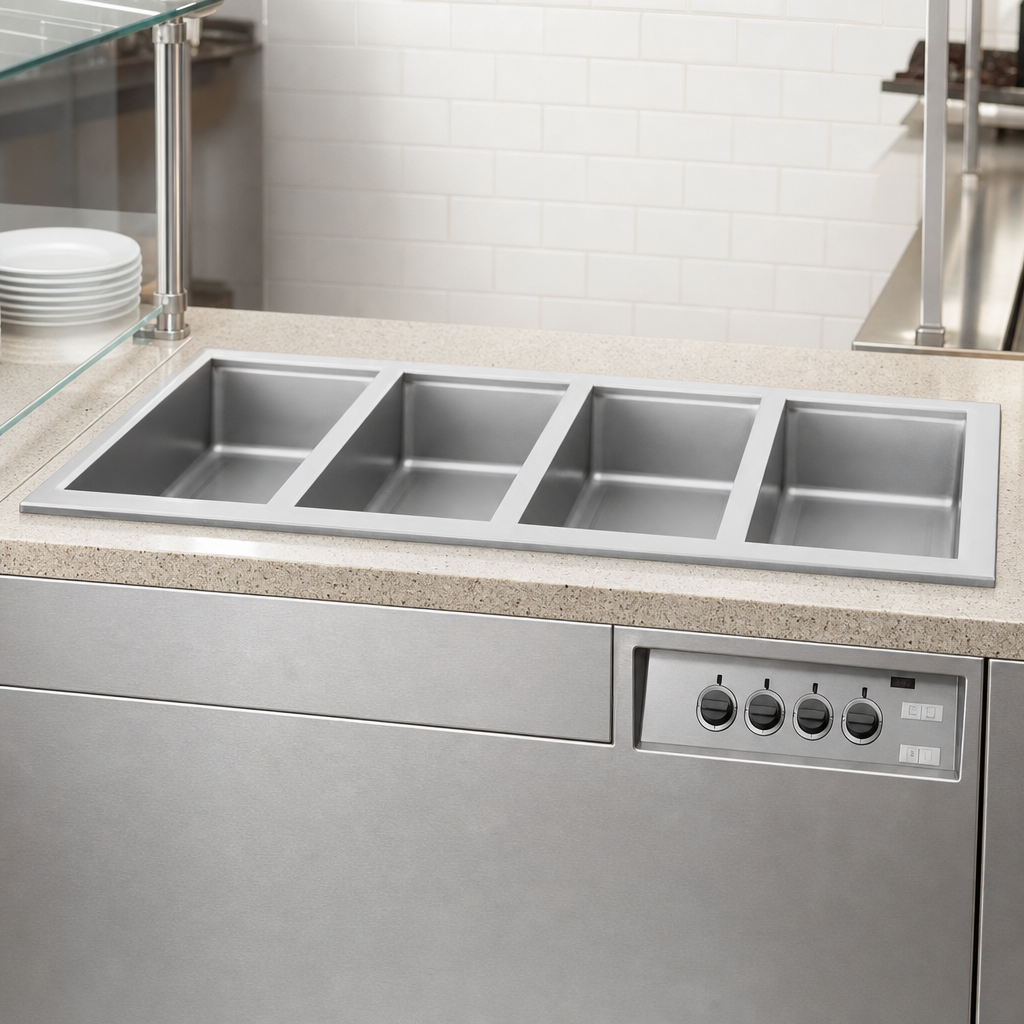

Wells MOD400DM 4-Well Drop-In Food Warmer
Top-Mount • Electric • Infinite Controls • Manifold DrainKeep entrées, sides and sauces hot, fresh and food-safe with the Wells MOD400DM. This heavy-duty, top-mount warmer drops neatly into your counter and delivers independent temperature control for four full-size steam-table pans—perfect for buffets, cafeterias and catering lines.
Key Features & Benefits
- Holds (4) standard 12" × 20" pans or fractional equivalents up to 6" deep
- Wet or dry operation (water bath recommended for peak food quality)
- Individual infinite controls let you set each well separately for maximum menu flexibility
- Integrated ½" NPT manifold drain with a single front-mounted valve—drain all wells at once, no mess
- One-piece, deep-drawn stainless steel wells stand up to daily commercial use and wipe clean fast
- Fully insulated aluminum-steel housing conserves energy and protects non-metal counters
- Powerful tubular heating elements provide quick pre-heat and even heat distribution
- Built-in high-limit protection prevents overheating for longer component life
- Wellslok mounting hardware included for fast, secure installation
- cULus & NSF listed for sanitation and electrical safety
- Backed by a 1-year limited parts & labor warranty
Technical Specifications
| Model | MOD400DM |
|---|---|
| Capacity | (4) full-size 12" × 20" × 6" pans |
| Overall Dimensions | 57 1/2" W × 23 5/8" D × 9 3/4" H (1461 × 600 × 248 mm) |
| Cutout Size (min.) | 56 1/4" W × 22 1/8" D (1429 × 562 mm) |
| Control Panel Width | 18" (457 mm) front-mount |
| Wattage | 900 W per well @ 208 V | 1,200 W per well @ 240 V |
| Total Load | 3,600 W (208 V) | 4,800 W (240 V) |
| Electrical | 208 V or 240 V, 3-Phase (ships 3 Ø, field-convertible to 1 Ø) |
| Drain Connection | ½" NPT manifold with single shut-off valve |
| Shipping Weight | Approx. 98 lb. (44.5 kg) |
| Certifications | cULus, NSF |
Ideal Applications
- Buffet lines & self-serve hot bars
- Institutional & corporate cafeterias
- Supermarket prepared-food stations
- Catering & banquet operations
- Any commercial kitchen needing dependable hot holding
