Wells (Middleby)  |  SKU: MOD-327TDM

Wells (Middleby) MOD-327TDM Steam Tables & Food Wells

$5,459.00
Expected delivery date of , to your door
if ordered within hours and minutes
Not Shipping to ?
More Delivery Options
Documents
Cutsheet Middleby financial flyer Installation manual Warranty sheet
Related Searches
Food Holding & Warming Equipment Steam Tables & Food Wells

Reach out via chat, email, or phone—we're here to help make sure it's the right fit for your kitchen. Contact us for more information.

Description

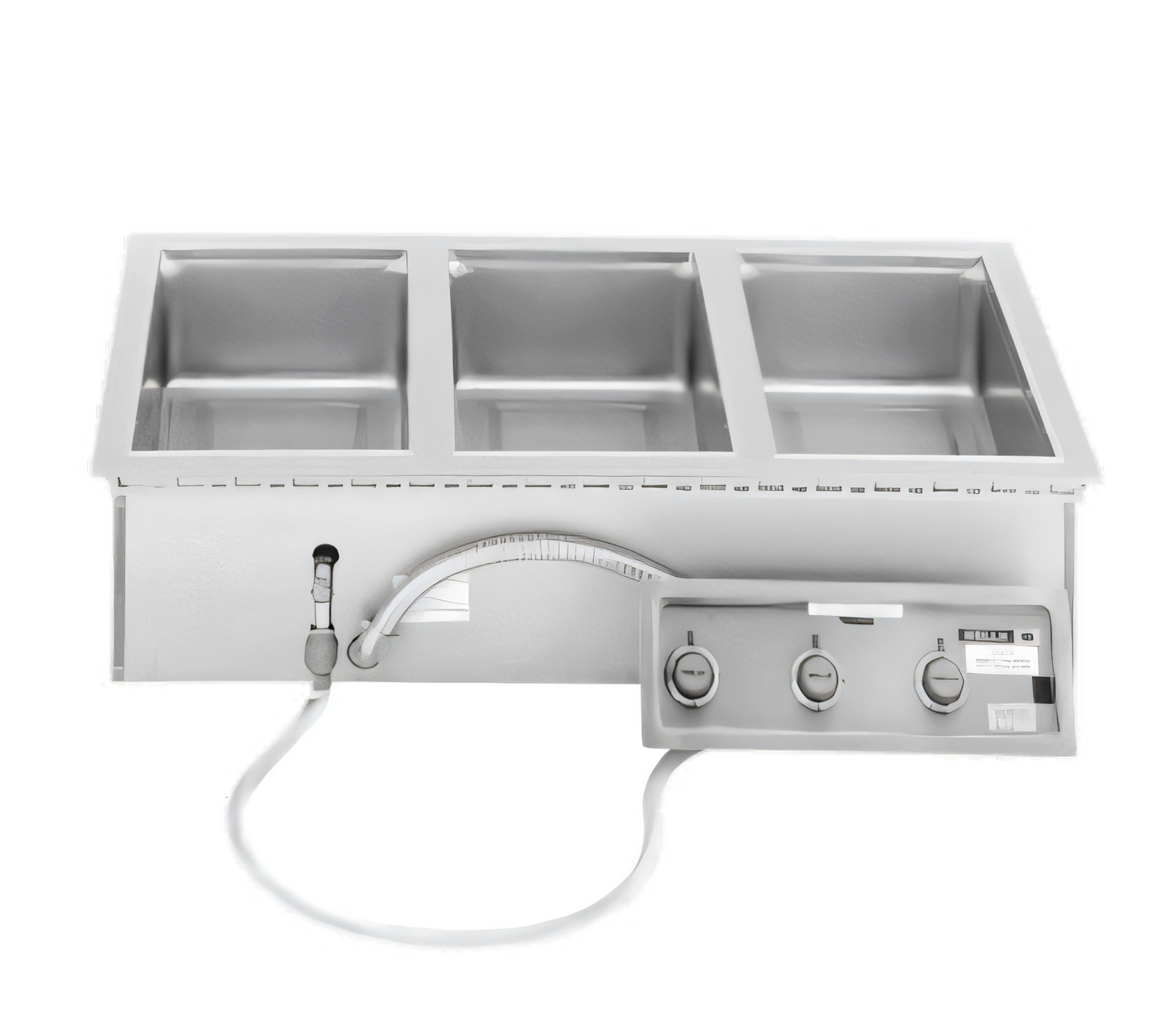

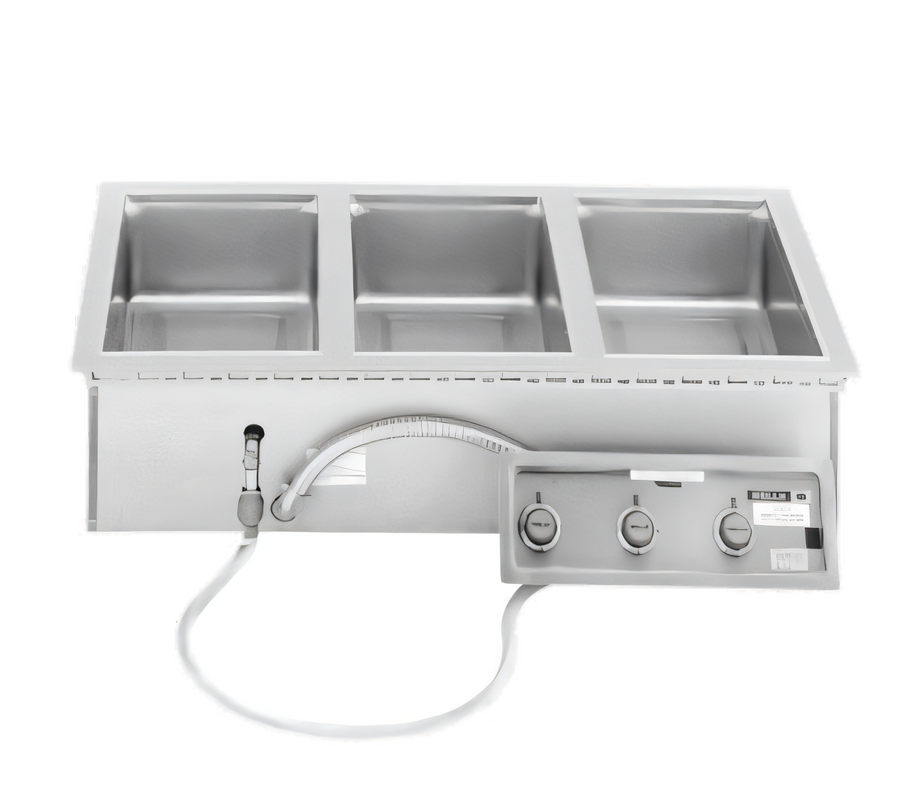

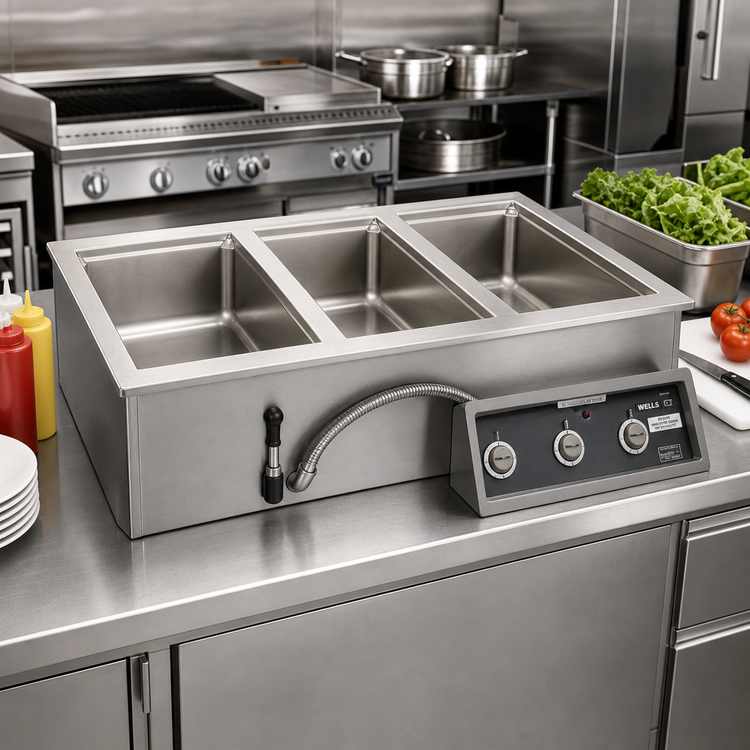

Wells MOD Series Extra-Deep 3-Well Drop-In Food Warmer

Model MOD327TDM – 4/3 Pan, Top-Mount, Wet/Dry, Manifold Drain

Designed for high-volume service lines that demand flexibility, the Wells MOD327TDM keeps entrées, sides and sauces hot, fresh and food-safe all day. Three extra-deep 12 × 27 in. wells each accept four 1/3-size pans (or equivalent fractions), giving you 12 pan positions in less than 44 inches of counter space.

Key Features & Benefits

  • Wet or dry operation – just add water for even heat and maximum holding quality
  • Manifold drain system with a single ½" valve for fast, mess-free emptying
  • Independent thermostatic controls & indicator lights on a recessed front panel
  • Extra-deep, heavy-gauge stainless steel wells handle 4 each 1/3 pans per well
  • Powerful tubular elements mounted beneath each pan for quick pre-heat and recovery
  • Fully insulated on all sides to reduce energy use and protect non-metal counter tops

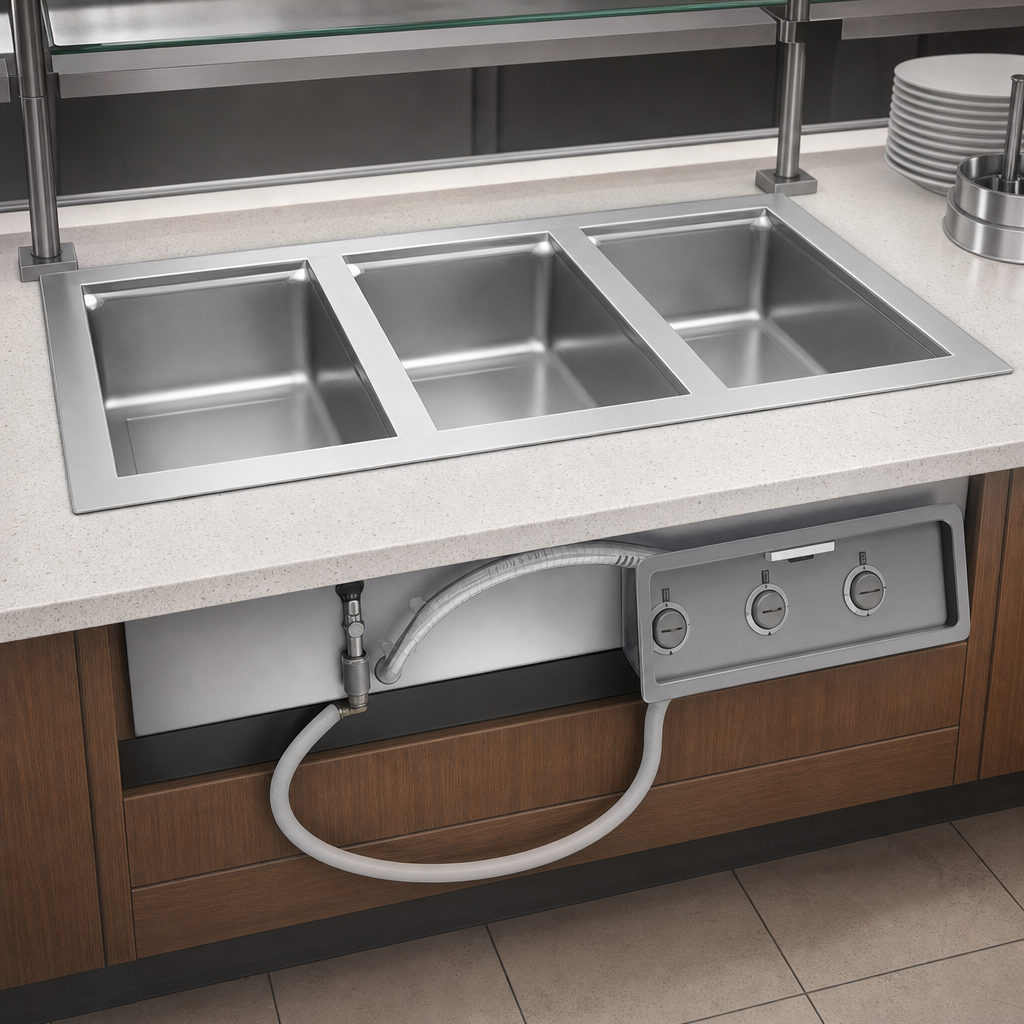

  • One-piece stainless steel top with WellsLok™ for easy, secure drop-in installation
  • High-limit safety shuts off heat to prevent dry-well damage
  • cULus & NSF listed for electrical and sanitation compliance
  • Backed by a 1-year limited parts & labor warranty

At-a-Glance Specs

Number of wells 3 extra-deep wells (12 × 27 in.)
Total pan capacity 12 × 1/3-size pans (4 per well)  – compatible with fractional equivalents
Operation Wet or Dry
Controls Individual thermostatic knobs with ready lights
Drainage ½" drains manifolded to one front-mounted valve
Overall dimensions 43 ½" W × 30 9⁄16" D × 9 ¾" H (1105 × 776 × 248 mm)
Electrical 208 V / 1240 W per well • 240 V / 1650 W per well
3-phase factory set – field convertible to 1-phase
Shipping weight ≈ 90 lb (41 kg)
Construction Stainless steel wells & top, aluminized steel housing
Certifications cULus, NSF
Warranty 1-year limited parts & labor

Ideal Applications

  • Institutional cafeterias & buffets
  • QSR & fast-casual make-lines
  • Convenience stores & deli service counters
  • Catering kitchens requiring flexible pan layouts
Installation Note: Unit ships ready for hard-wired connection and requires countertop cut-out per the Wells installation manual.
For wet operation, maintain water level as directed to avoid element damage.

Need financing? Middleby Equipment Financing offers fast credit decisions and affordable monthly payments to keep your cash flow strong. Learn more ›

Features & Specs

Manufacturer

Wells (Middleby)

Certifications

cULus

Height

9.75in

Width

43.5in

Depth

30.57in

Shipping Weight

90.0lbs

Pan Capacity

(3) 4/3 size (12" x 27")

Style

individual pans

Insulated or Non-Insulated

insulated

Construction

stainless steel top, corrosion resistant steel exterior

Controls

thermostatic controls

Drain

with drain

Wet or Dry operation

wet or dry

Specifications

Food Warmer, top-mount, built-in, electric, (3) openings to hold (4) 1/3 size pans, manifold drains with one valve, wet/dry operation, thermostatic control, stainless steel interior, aluminum steel housing, cULus
