Wells (Middleby) MOD-327TDM/AF Steam Tables & Food Wells
Description

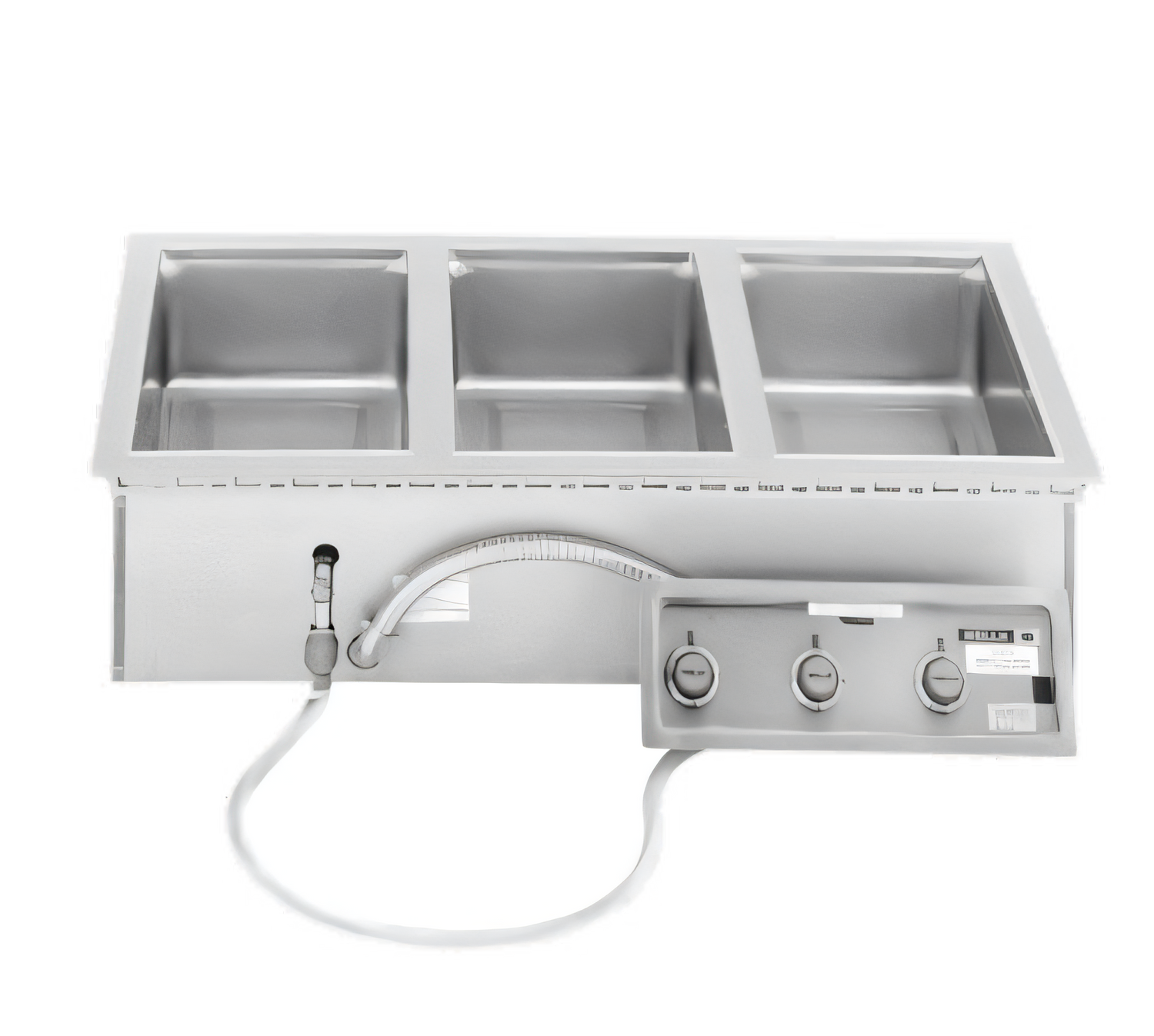

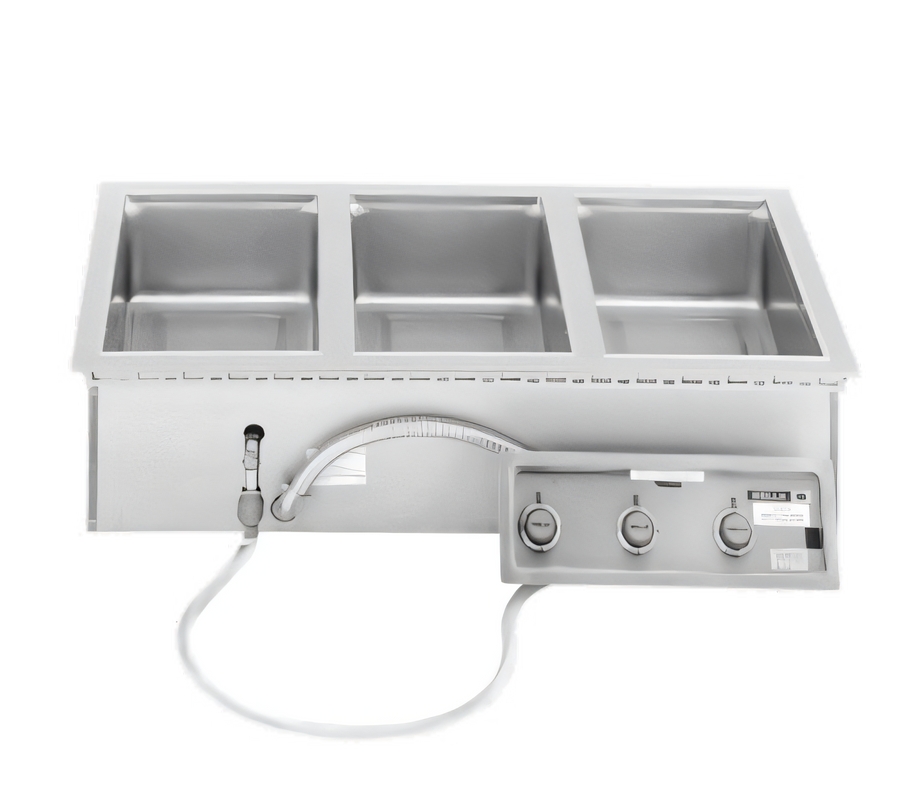

Wells MOD327TDMAF Extra-Deep 3-Well Auto-Fill Drop-In Food Warmer
43 ½" W x 30 9/16" D | Electric | Wet or Dry OperationKeep entrées, sides and sauces hot, fresh and food-safe with the Wells MOD327TDMAF. This heavy-duty, top-mount warmer features three extra-deep wells, each sized to hold four 1/3-size steam-table pans (12 pans total). A factory-installed Auto-Fill system maintains optimal water levels for consistent holding without constant monitoring, while a manifold drain with a single pull-handle simplifies cleanup at day’s end.
Key Features

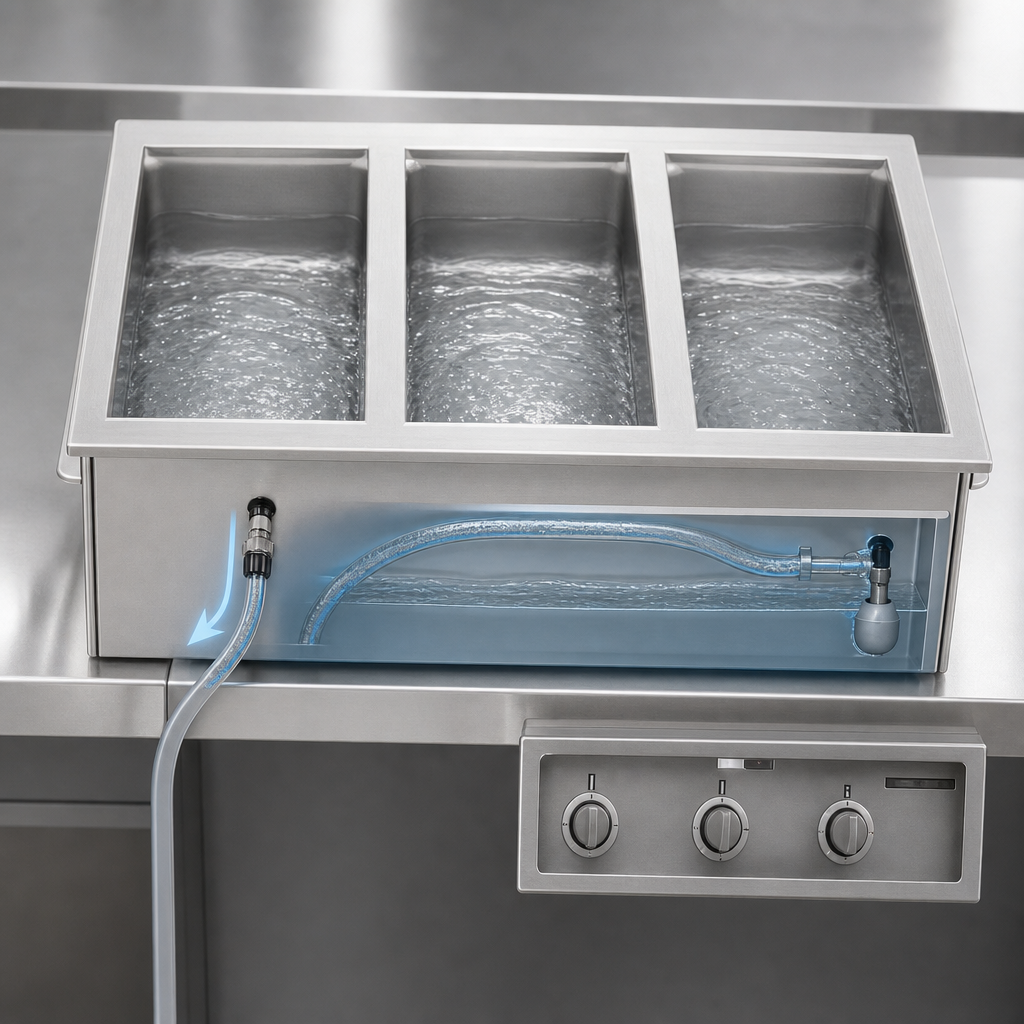

- Auto-Fill convenience – integrated water connection keeps wells at the ideal level; no manual refills.
- 3 independent wells – individual thermostatic controls and indicator lights for precise holding.
- 4/3-pan capacity per well – fits four 1/3-size pans (6" deep) or fractional equivalents.
- Wet or dry operation – versatile to your menu; wet operation recommended for best results.
- Manifold drain with one valve – empty all wells from a single point, saving labor and time.
- Extra-deep 12" x 27" wells – deep-drawn, one-piece stainless steel for durability and easy sanitation.
- Fully insulated cabinet – energy-saving design speeds pre-heat and recovery, ideal for non-metal counters.
- High-limit safety – automatically guards against run-dry overheating.
- Heavy-gauge aluminized steel housing with stainless steel top flange for a seamless drop-in fit.
- Powerful tubular heating elements ensure even heat distribution across the pan.
Perfect For
- Buffet and catering lines
- Supermarkets & C-stores
- Hotels, resorts and convention centers
- School & corporate cafeterias
Technical Specifications
| Model | MOD327TDMAF |
|---|---|
| Capacity | 3 wells – 4 × 1/3-size pans per well (12 total) |
| Overall Dimensions | 43 ½" W × 30 9/16" D × 9 ¾" H (1105 × 776 × 248 mm) |
| Cut-Out (flange not included) | Refer to installation manual |
| Electrical | 208/240 V, 3-Phase (field convertible to 1-Phase) • 3 × 1240/1650 W elements |
| Water Connection | Required for Auto-Fill (see manual for size & pressure) |
| Drain | ½" NPT manifold with single valve |
| Shipping Weight | ≈ 90 lb / 41 kg |
| Materials | Stainless steel interior & flange, aluminized steel housing |
| Certifications | cULus, NSF |
| Warranty | 1-Year Limited Parts & Labor |
What’s Included
- Factory-installed Auto-Fill kit
- Manifold drain & ½" valve
- Wellslok™ mounting system for quick drop-in installation
Popular Accessories (Sold Separately)
- Adaptor tops for round insets
- Stainless insets, lids & 8 oz soup ladles
- Drain screens & valve extension kit
- 72" wiring harness
