Wells (Middleby) MOD-327TD Steam Tables & Food Wells
Description

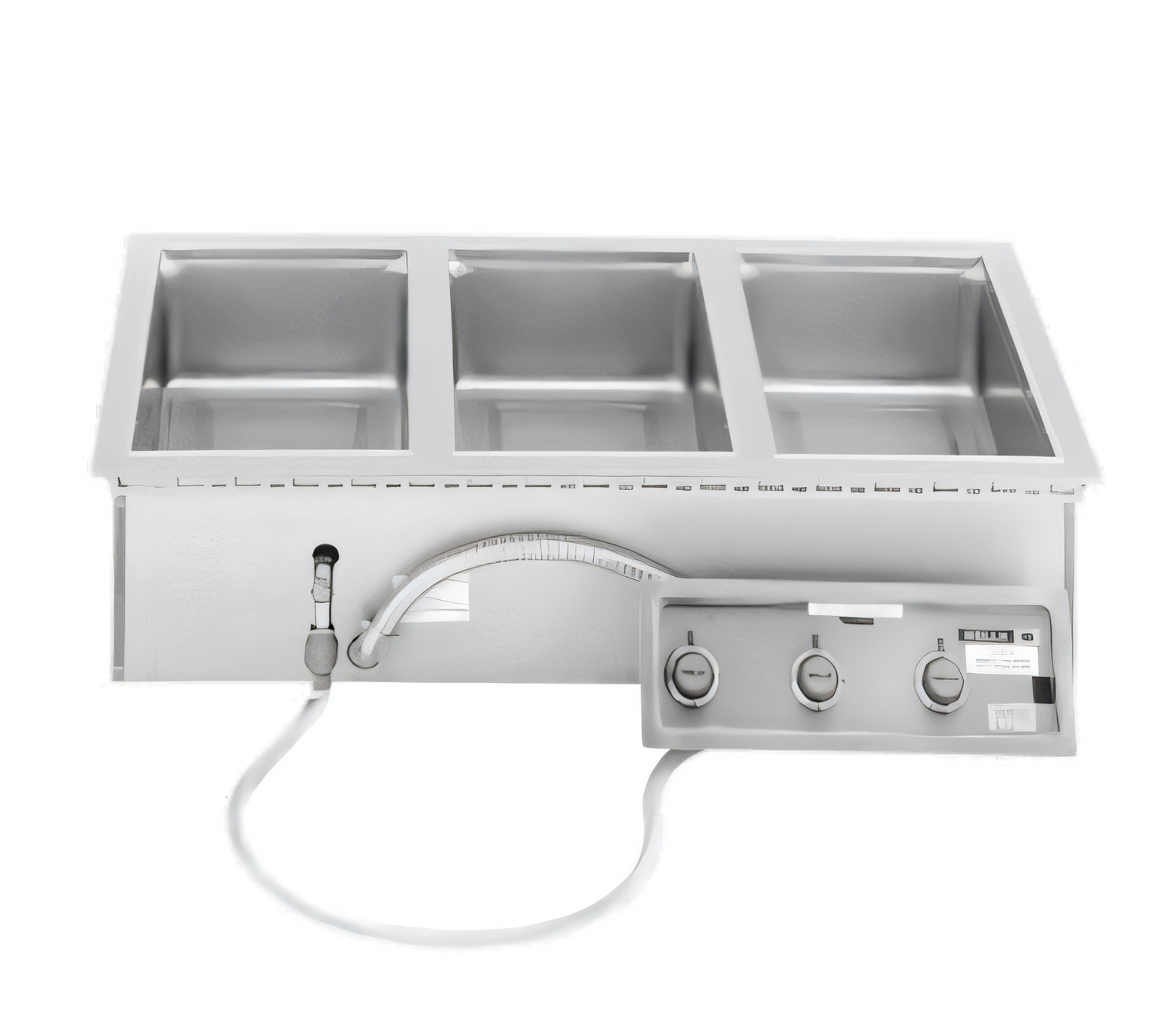

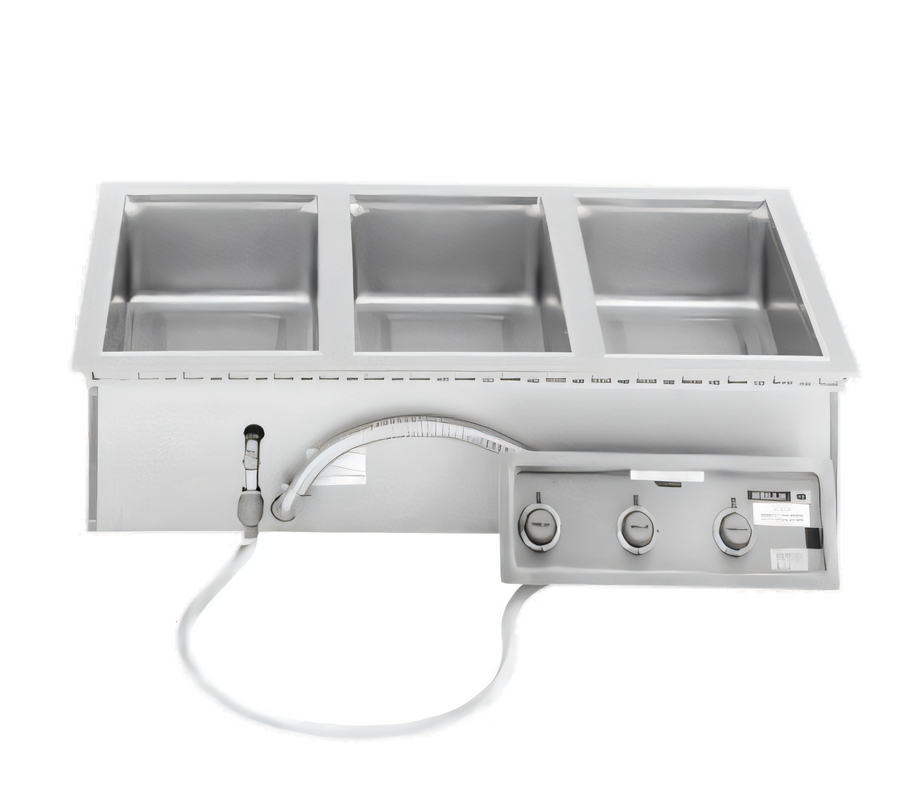

Wells Extra-Deep 3-Well Drop-In Food Warmer

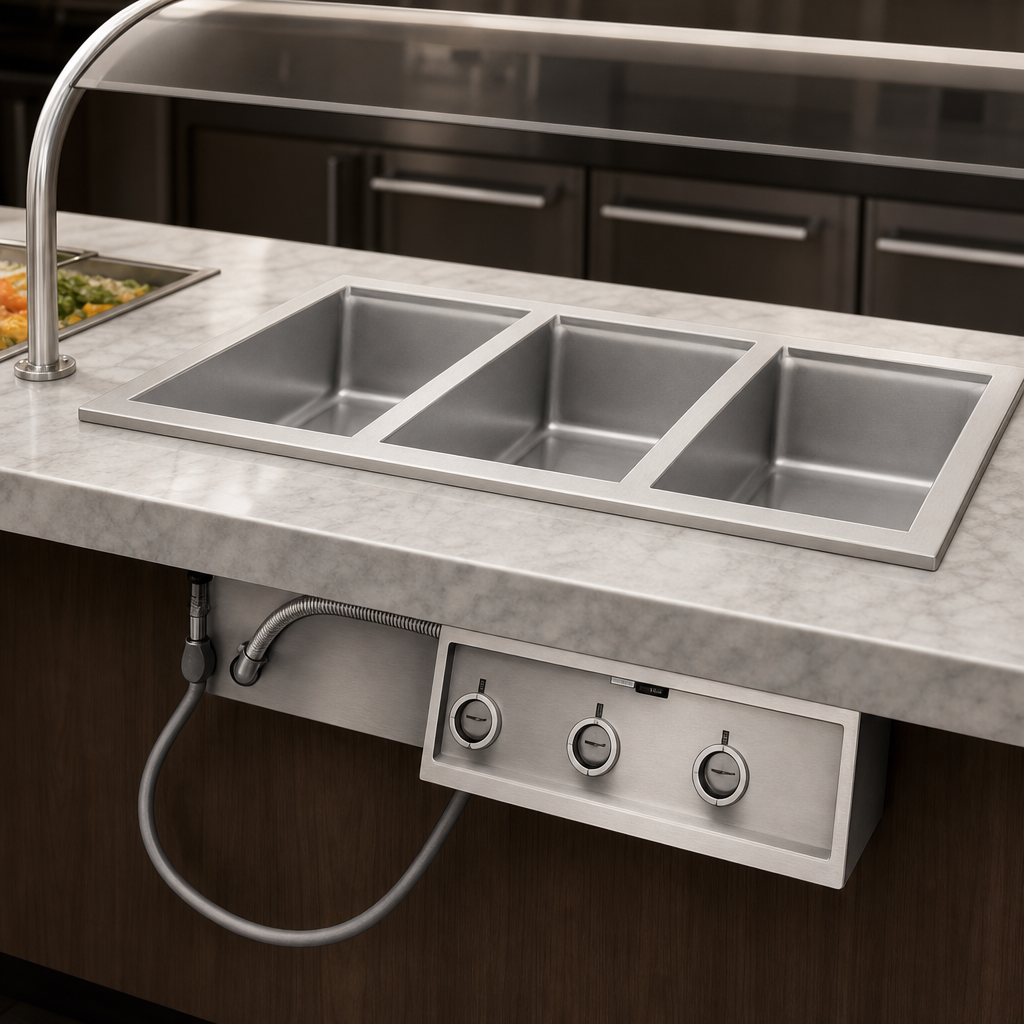

Top-Mount • Electric • 12" × 27" Wells with Drain & ManifoldKeep entrées, sides and sauces at perfect serving temperature with the heavy-duty Wells 3-well rectangular warmer. Designed for flush, built-in installation, this unit delivers the performance, durability and food-quality you expect from a brand backed by 90+ years of foodservice experience.
Key Features
- Three extra-deep 12" × 27" (4/3-pan) wells—each holds up to four 1/3-size pans or fractional equivalents.
- Wet or dry operation (wet recommended for best moisture retention).
- Independent recessed thermostatic controls with temperature-ready indicator lights.
- ½" drains factory-manifolded for fast, mess-free water removal.
- One-piece stainless steel top flange & deep-drawn stainless wells for maximum strength and easy cleaning.
- Fully insulated aluminized-steel housing saves energy and protects non-metal counters.
- Powerful tubular heating elements deliver quick pre-heat and even heat distribution.
- Built-in high-limit protection prevents overheating for safer operation.
- WellsLok mounting clips included—drop in, tighten, done.
- NSF and cULus listed for sanitation and electrical safety.
Perfect For
- Buffet & cafeteria lines
- Hotels, resorts & casinos
- C-stores & concession stands
- Catering & banquet holding stations
Specifications
| Number of Wells | 3 (extra-deep, 4/3-pan size) |
|---|---|
| Well Dimensions (each) | 12" × 27" (305 × 686 mm) |
| Overall Width | 43 1/2" (1105 mm) |
| Overall Depth | 30 9/16" (776 mm) |
| Overall Height | 9 3/4" (248 mm) |
| Electrical | 208/240 V, 3 × 1240/1650 W, 1- or 3-Phase* |
| Drain Connection | ½" NPT manifold |
| Controls | Individual thermostatic dials with indicator lights |
| Construction | Stainless wells & top / insulated aluminized-steel housing |
| Ship Weight | Approx. 90 lb (41 kg) |
| Certifications | NSF, cULus |
| Warranty | 1-Year limited parts & labor |
*Select models are field-convertible from 3-phase to 1-phase. Consult the installation manual for details.
Optional Accessories
- Adaptor tops for round insets
- Stainless inset pans & lids
- 8 oz soup ladles
- Drain screens & valve extension kit
- 72" wiring harness for remote control mounting
- Auto-Fill kit for automatic water level maintenance
Upgrade your service line with Wells’ proven reliability—order the Extra-Deep 3-Well Drop-In Warmer today and keep every plate looking and tasting its best.
