Wells (Middleby) MOD-300TDM Steam Tables & Food Wells
Description

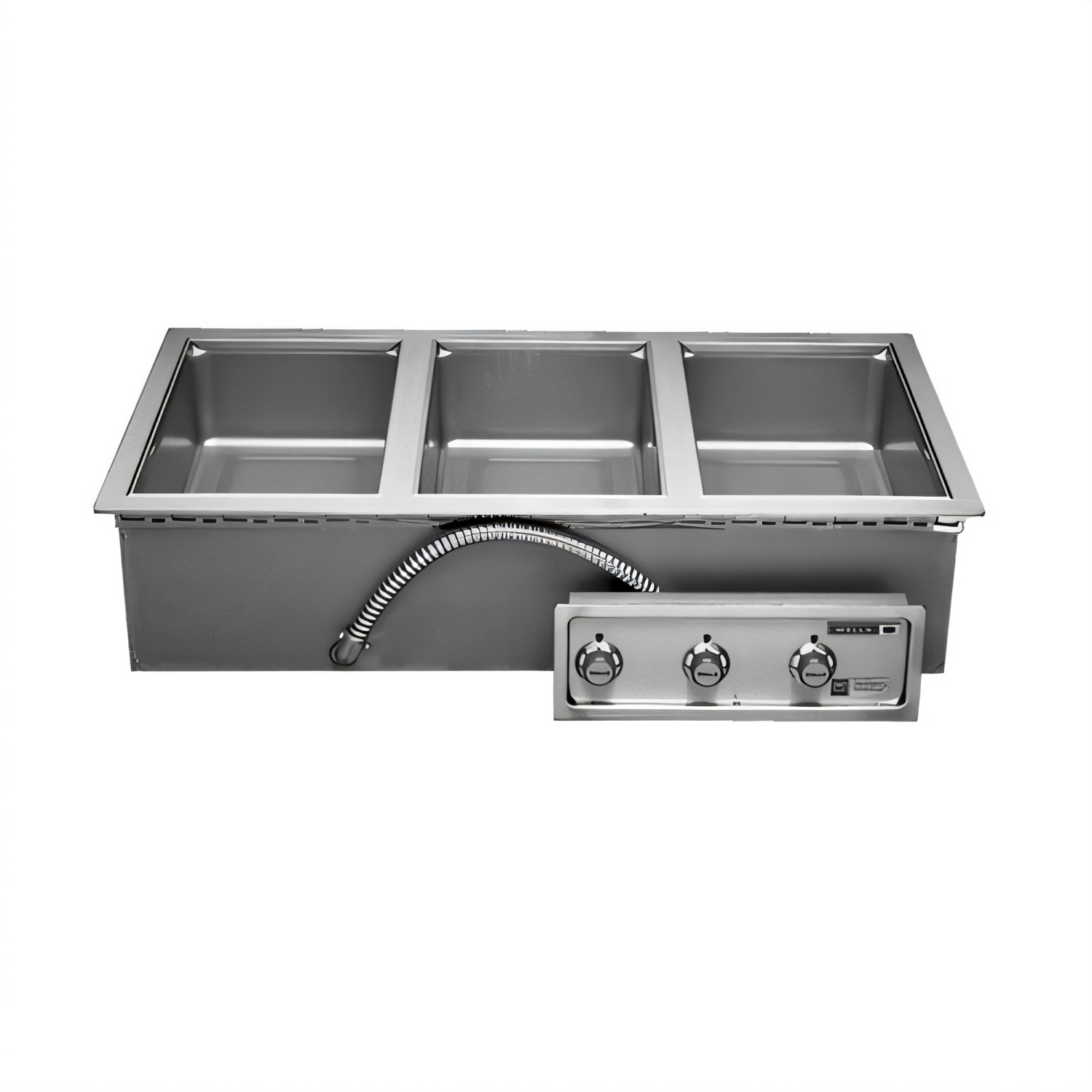

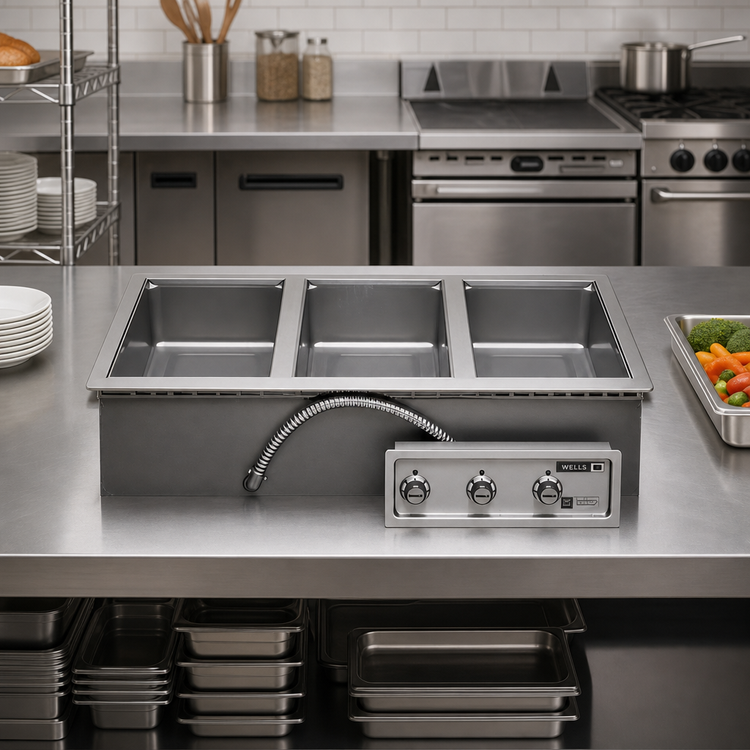

Wells MOD300TDM Three-Well Top-Mount Drop-In Food Warmer
(Middleby Essentials Item – 3 × 12" × 20" wells with manifold drain)Keep entrées, sides and sauces at the perfect serving temperature with the heavy-duty Wells MOD300TDM. This self-contained, drop-in warmer delivers consistent, energy-efficient holding performance while making clean-up and installation a breeze.
Key Features

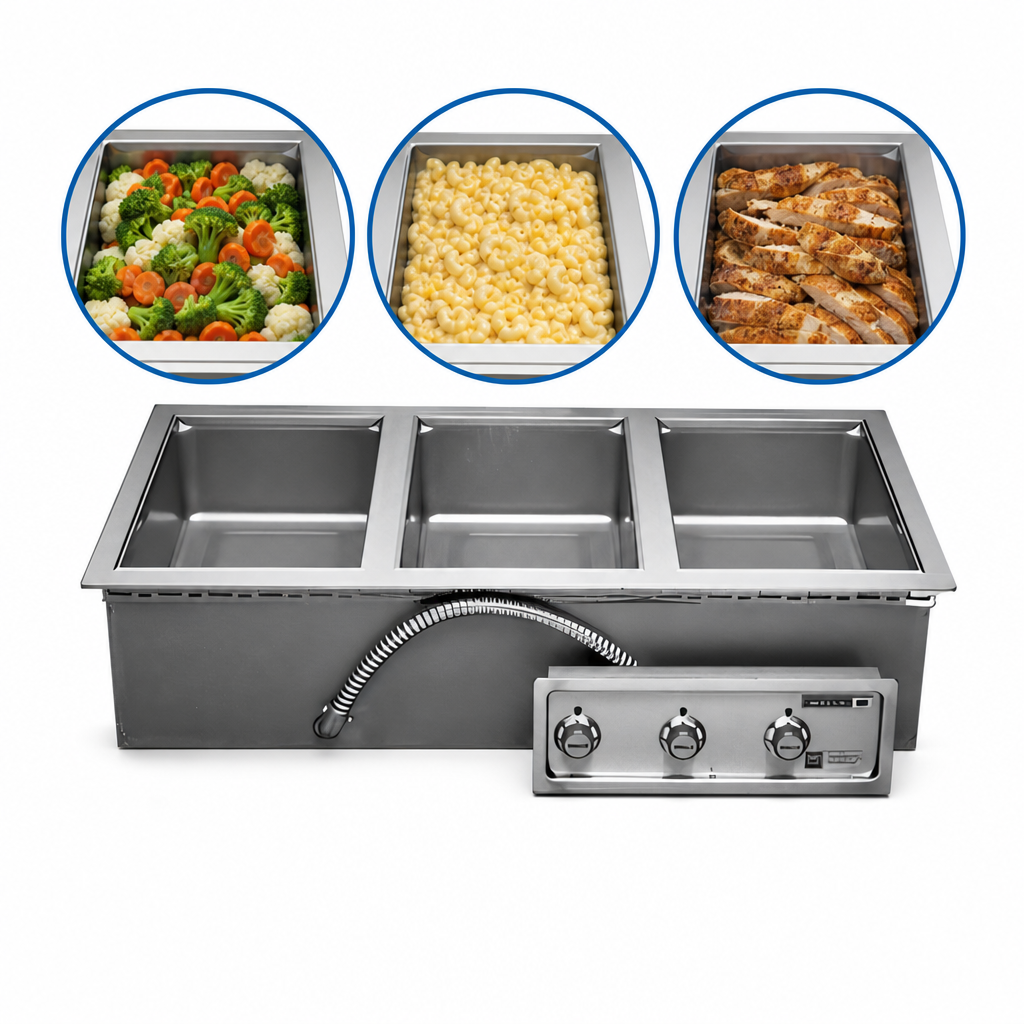

- Three deep-drawn stainless steel wells accommodate full-size 12" × 20" pans or fractional equivalents.
- Wet or dry operation – water bath recommended for optimum food quality.
- Individual thermostatic controls with “temperature-ready” indicator lights for each well.
- Fully insulated aluminum-steel housing speeds pre-heat, improves recovery and reduces energy loss – ideal for non-metal counters.
- 1/2" NPT manifold drain with a single front-mounted valve quickly empties all three wells at once.
- One-piece stainless steel top flange with exclusive WellsLok™ mounting system – drop it in, tighten, and you’re done.
- High-limit safety circuitry prevents overheating.
- Ships 3-phase and is field-convertible to 1-phase for maximum installation flexibility.
- UL & NSF listed; backed by a 1-year limited parts & labor warranty.
Specifications
| Model | MOD300TDM |
|---|---|
| Capacity | 3 wells (12" × 20" each) |
| Operation | Wet or dry, thermostatically controlled |
| Electrical | 208 V / 1240 W or 240 V / 1650 W • 3 Ø (field-convertible to 1 Ø) |
| Overall Dimensions | 43 1/2" W × 23 5/8" D × 9 3/4" H (1105 × 600 × 248 mm) |
| Control Panel Depth | 18" (457 mm) |
| Control Panel Height | 6 1/4" (159 mm) |
| Shipping Weight | 78 lb / 35.5 kg |
| Drain Connection | 1/2" internal NPT (manifold) |
| Certifications | UL, NSF |
Options & Accessories
- Adaptor tops for round insets
- Inset pans with lids & 8 oz. soup ladles
- Drain valve extension & drain screens
- WellsLok™ extension kits for wood counter installations
- 72" power wiring harness
Note: Auto-fill is not included on this model. Always review the installation manual for cut-out dimensions, clearance requirements and electrical connections before ordering.
