Wells (Middleby) MOD-300TDM/AF Steam Tables & Food Wells
Description

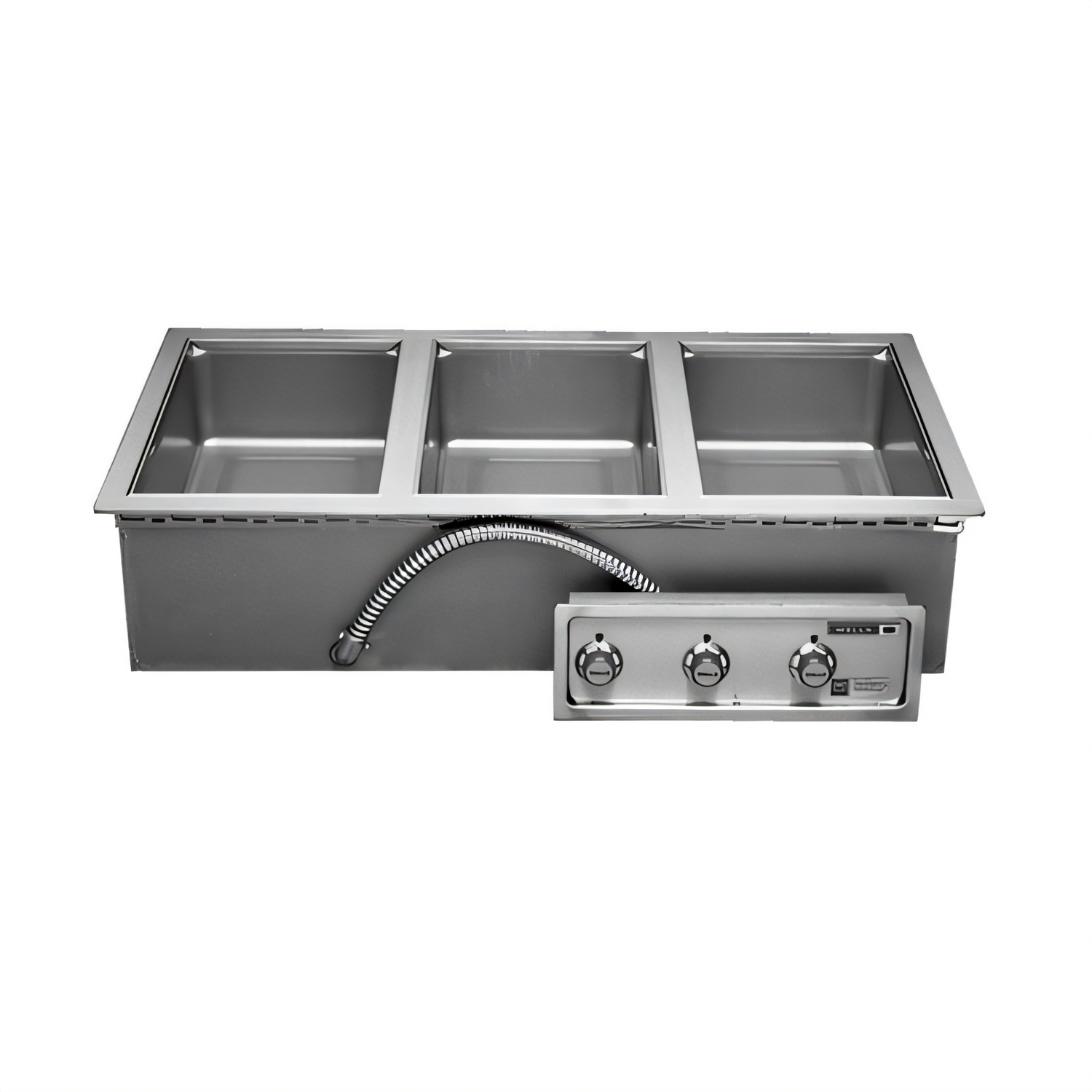

Wells MOD300TDMAF 3-Well Top-Mount Drop-In Food Warmer
Auto-Fill • Manifold Drain • Electric Wet/Dry HoldingDesigned for high-volume buffet lines, QSRs and catering operations, the Wells MOD300TDMAF keeps three full-size pans of food hot, fresh and ready to serve—all while slashing labor with automatic water fill and a single-handle manifold drain. Just drop it in, connect water and power, and enjoy rock-solid holding all day long.
Why You’ll Love It
- Accommodates (3) 12" × 20" full-size pans or fractional equivalents.

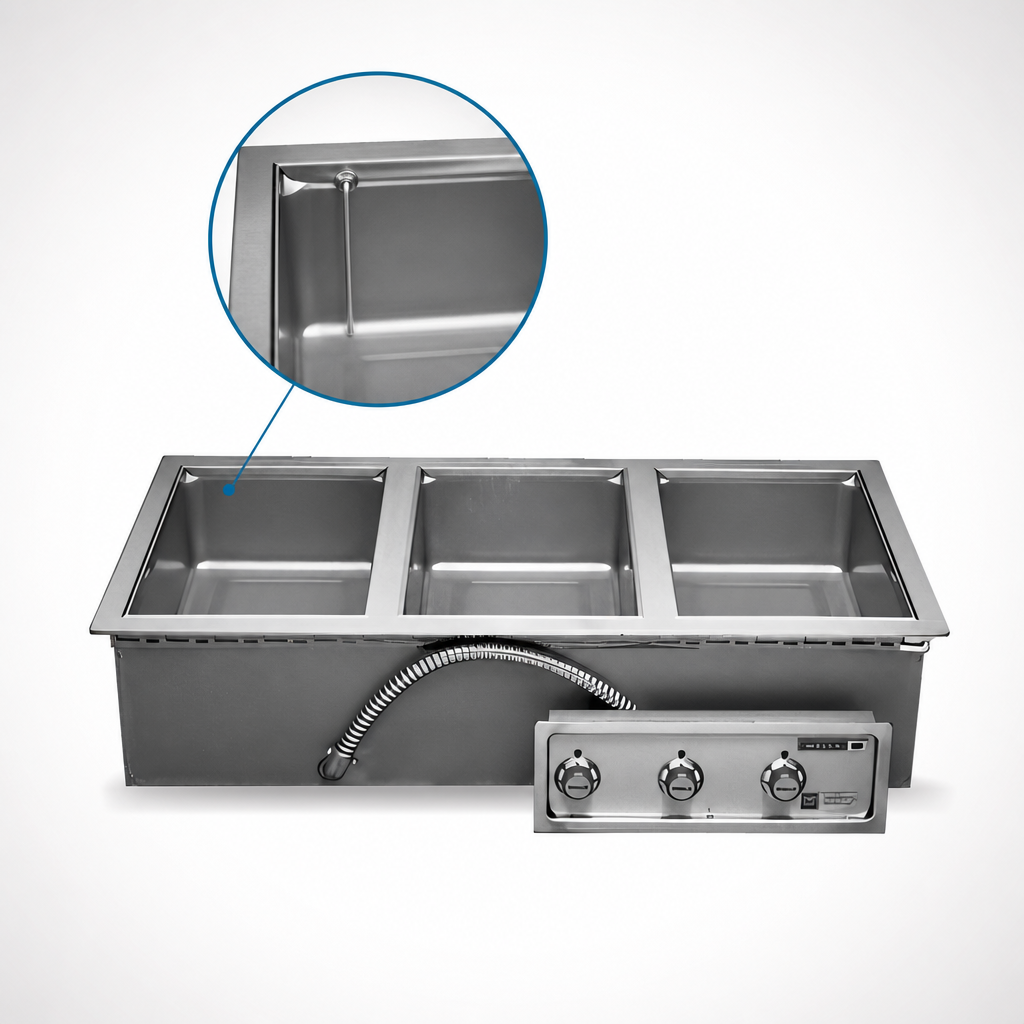

- Auto water-fill maintains the perfect water level for consistent heat and less staff oversight.
- Wet or dry operation; wet use recommended for best product quality.
- Individual recessed thermostatic controls with ready lights and high-limit protection.
- Manifold drain empties all wells through one front-mounted valve—no heavy lifting.
- One-piece deep-drawn stainless steel wells for maximum durability and easy cleanup.
- Fully insulated aluminum-steel housing speeds preheat, improves efficiency and protects non-metal counters.
- WellsLok™ self-securing flange simplifies drop-in installation and provides a tight seal.
- Field convertible from 3-phase to 1-phase to match existing electrical service.
- UL & NSF listed and backed by a 1-year limited parts & labor warranty.
Specifications
| Model | MOD300TDMAF |
|---|---|
| Capacity | (3) 12" × 20" wells (full size) or fractional pans |
| Overall Dimensions | 43 1/2" W × 23 5/8" D × 9 3/4" H (1105 × 600 × 248 mm) |
| Control Type | Independent thermostatic controls with indicator lights |
| Operating Mode | Wet or dry |
| Heating Elements | Tubular, located beneath each well for even heat distribution |
| Electrical |
208 V / 3 Ø, 1,240 W per well (3,720 W total) 240 V / 3 Ø, 1,650 W per well (4,950 W total) Ships 3-phase; field convertible to 1-phase |
| Water Connection | 1/2" NPT (auto-fill models) |
| Drain | 1/2" manifold drain with single front valve |
| Interior | Heavy-gauge stainless steel |
| Certifications | UL, NSF |
| Warranty | 1-year limited parts & labor |
Perfect For
- Buffet and cafeteria serving lines
- Convenience stores & delis
- Catering & banquet kitchens
- Quick-service & fast-casual restaurants
Auto-fill models require a plumbed cold-water line. Follow all installation and plumbing guidelines supplied with the unit to maintain UL & NSF compliance.
