Wells (Middleby) MOD-300TDAF Steam Tables & Food Wells
Description

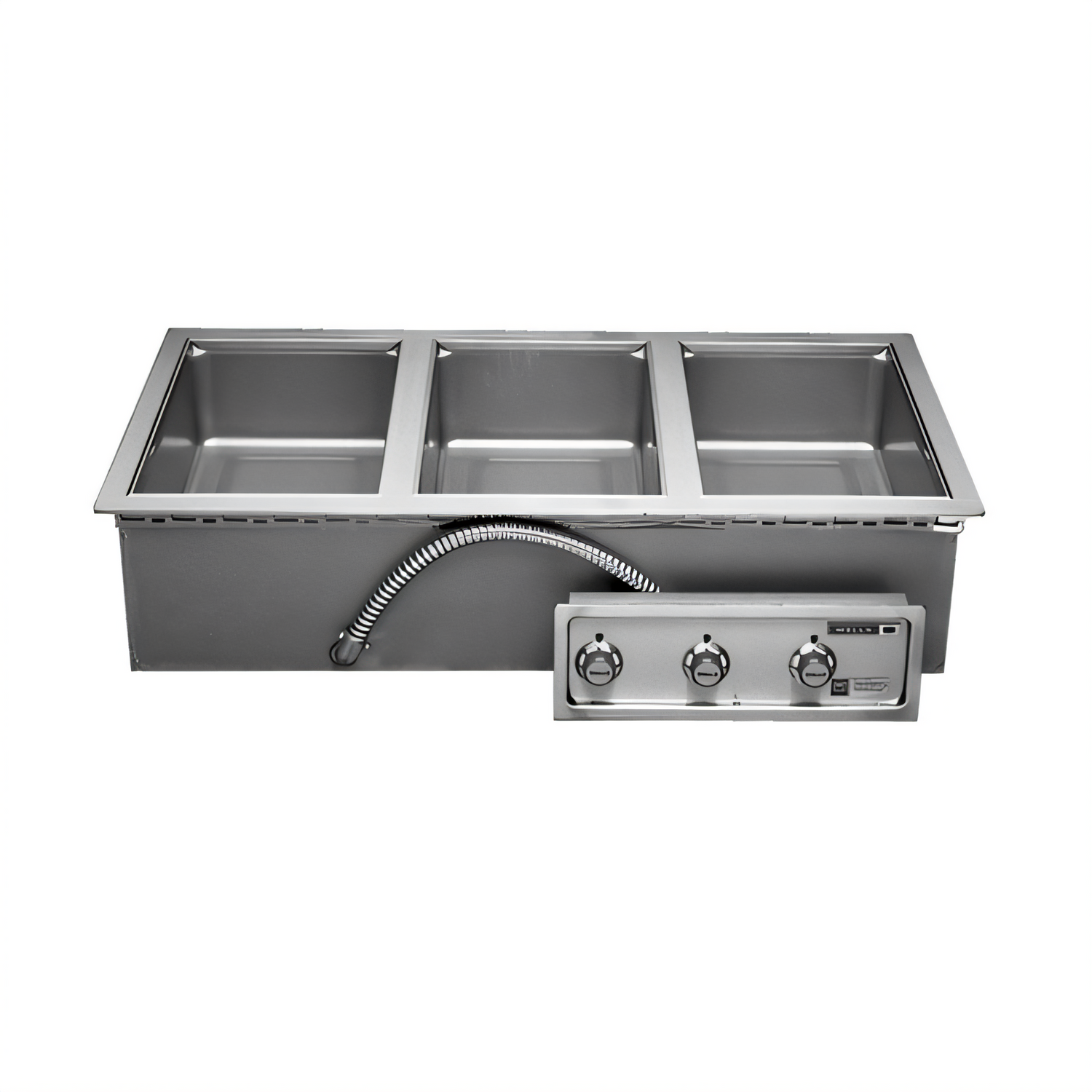

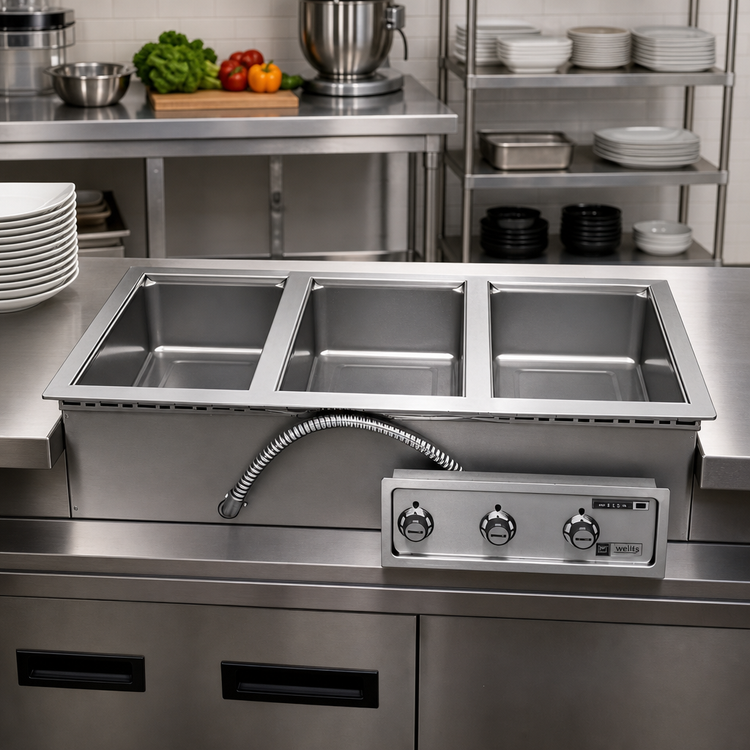

Wells MOD300TDAF 3-Well Top-Mount Drop-In Food Warmer
Auto-Fill • Thermostatic Controls • Wet/Dry OperationHold entrées, sides and sauces at food-safe temperatures with the reliability only Wells can deliver. The MOD300TDAF pairs automatic water fill with independent thermostatic controls to give you consistent results, faster service and lower labor costs—perfect for buffets, cafeterias and catering lines.
Key Features
- Three full-size 12" × 20" wells accommodate a wide variety of pan configurations.

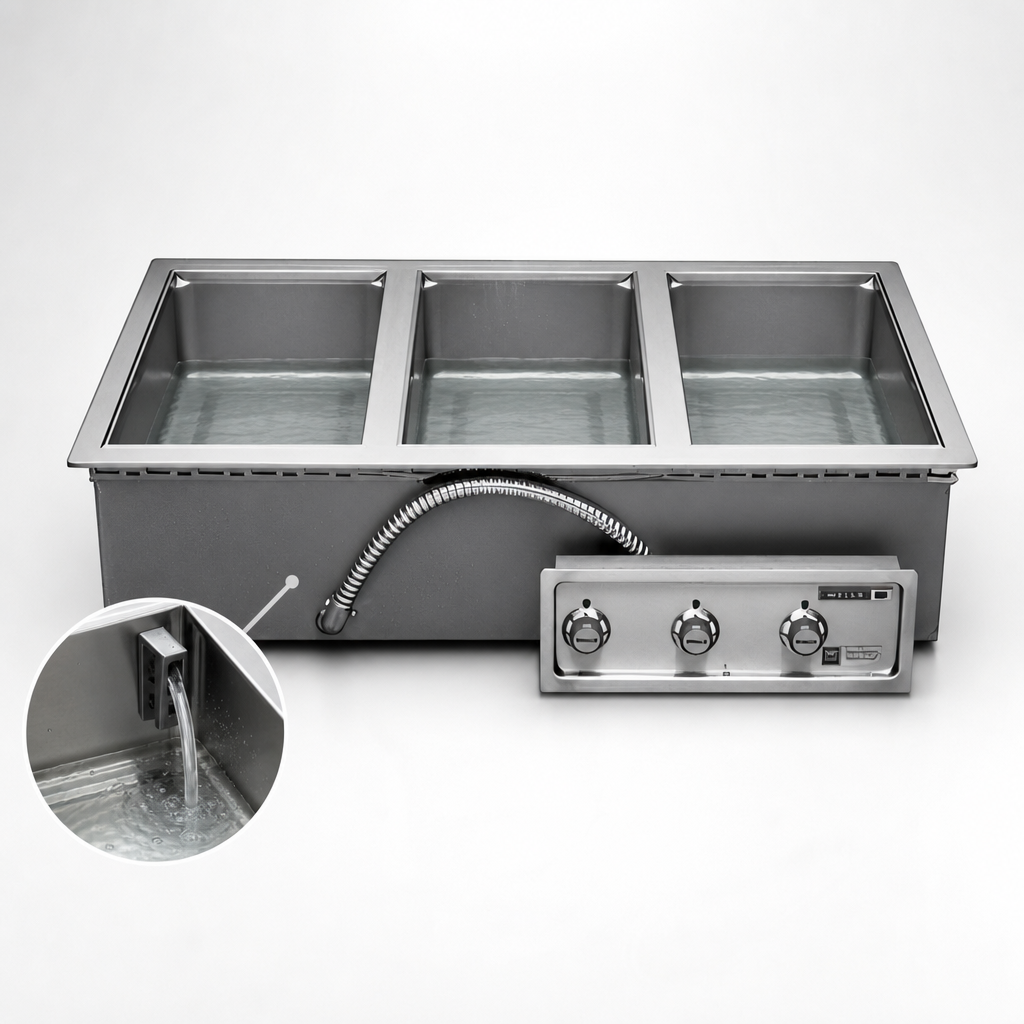

- Auto-fill system maintains the correct water level automatically—no more manual refills or element burnout.
- True wet OR dry operation for maximum menu versatility (wet recommended for best results).
- Individual recessed thermostatic controls with “ready” lights let you fine-tune each well.
- One-piece stainless steel top flange and deep-drawn wells clean up fast and resist corrosion.
- Energy-saving, fully insulated aluminum-steel housing speeds pre-heat and enhances efficiency.
- Exclusive WellsLok™ mounting system cuts installation time and guarantees a snug, flush fit.
- Integrated ½" NPT drain with single shut-off valve simplifies end-of-day cleanup.
- Built-in high-limit protection prevents overheating for added safety and longer element life.
- UL and NSF listed; backed by a 1-year parts & labor warranty.
At-a-Glance Specs
| Model | MOD300TDAF |
|---|---|
| Configuration | Top-mount, built-in, 3-well |
| Pan Capacity | (3) 12" × 20" full-size pans or fractional equivalents |
| Operation | Wet or dry |
| Auto-Fill | Yes – requires ½" NPT cold-water connection |
| Drain | Integrated ½" NPT drain, single valve |
| Controls | Individual recessed thermostatic, with indicator lights |
| Overall Dimensions | 43-1/2" W × 23-5/8" D × 9-3/4" H (1105 × 600 × 248 mm) |
| Electrical | 208 V or 240 V, 3-phase (field convertible to 1-phase) 3,720 W @ 208 V / 4,950 W @ 240 V |
| Construction | Stainless steel wells & flange, fully insulated aluminum-steel housing |
| Shipping Weight | ≈ 90 lb (41 kg) |
| Certifications | UL, NSF |
| Warranty | 1-year limited parts & labor |
Optional Accessories
- Adaptor tops for round insets
- Inset pans with lids
- 8 oz soup ladle
- Drain screens & valve extension kit
- WellsLok™ extension kits for wood counter installations
