Wells (Middleby) MOD-300DM Steam Tables & Food Wells
Description

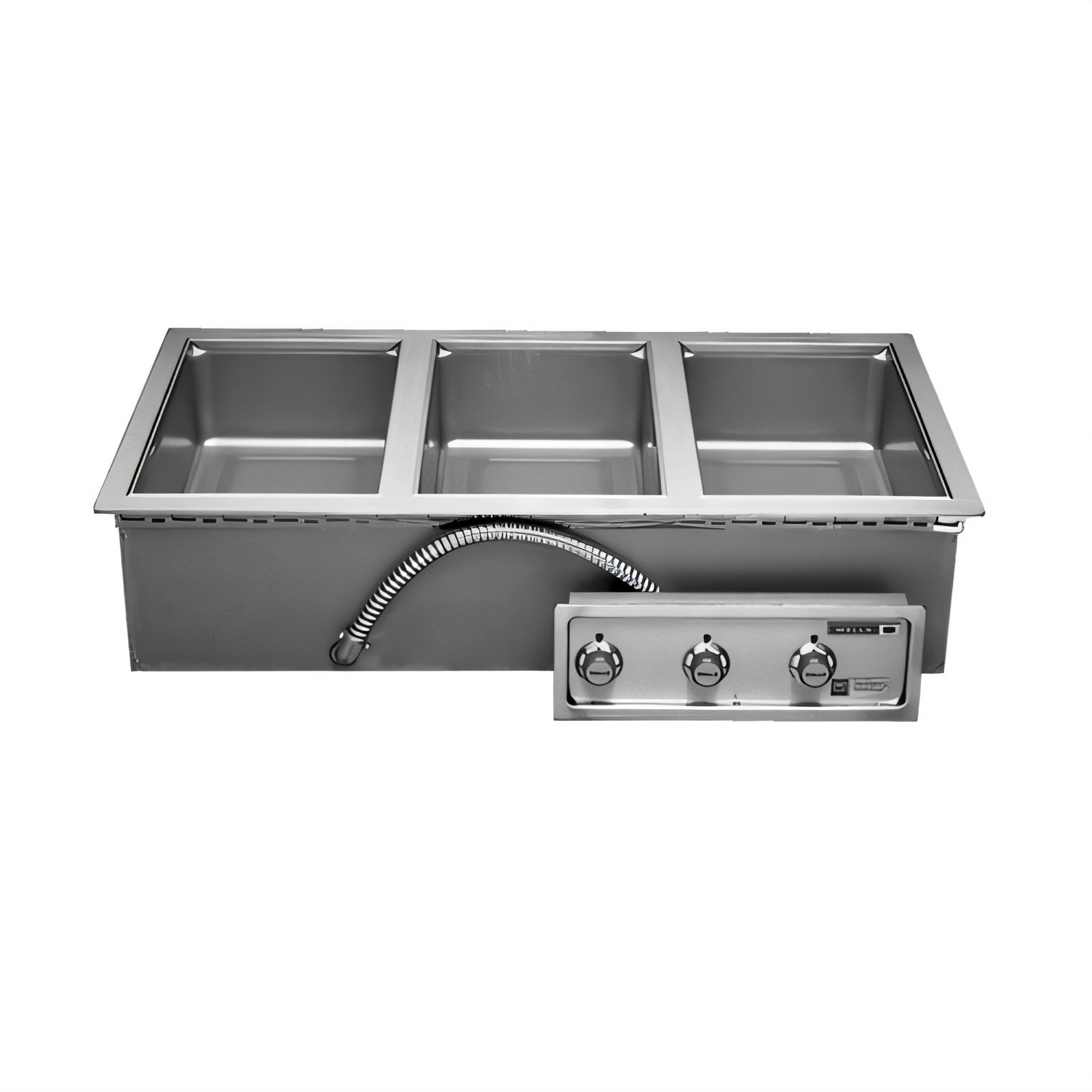

Wells MOD300DM 3-Well Drop-In Food Warmer
Top-Mount • Infinite Controls • Manifold Drain SystemKeep entrées, sides and sauces hot, fresh and ready for service with the Wells MOD300DM. Designed for demanding foodservice environments, this heavy-duty built-in warmer accommodates three full-size 12" × 20" pans while giving operators precise infinite control of each individual well. A factory-installed manifold with a single ½" valve makes draining effortless, and the exclusive WellsLok™ mounting system speeds up installation in virtually any counter surface.
Why You’ll Love It

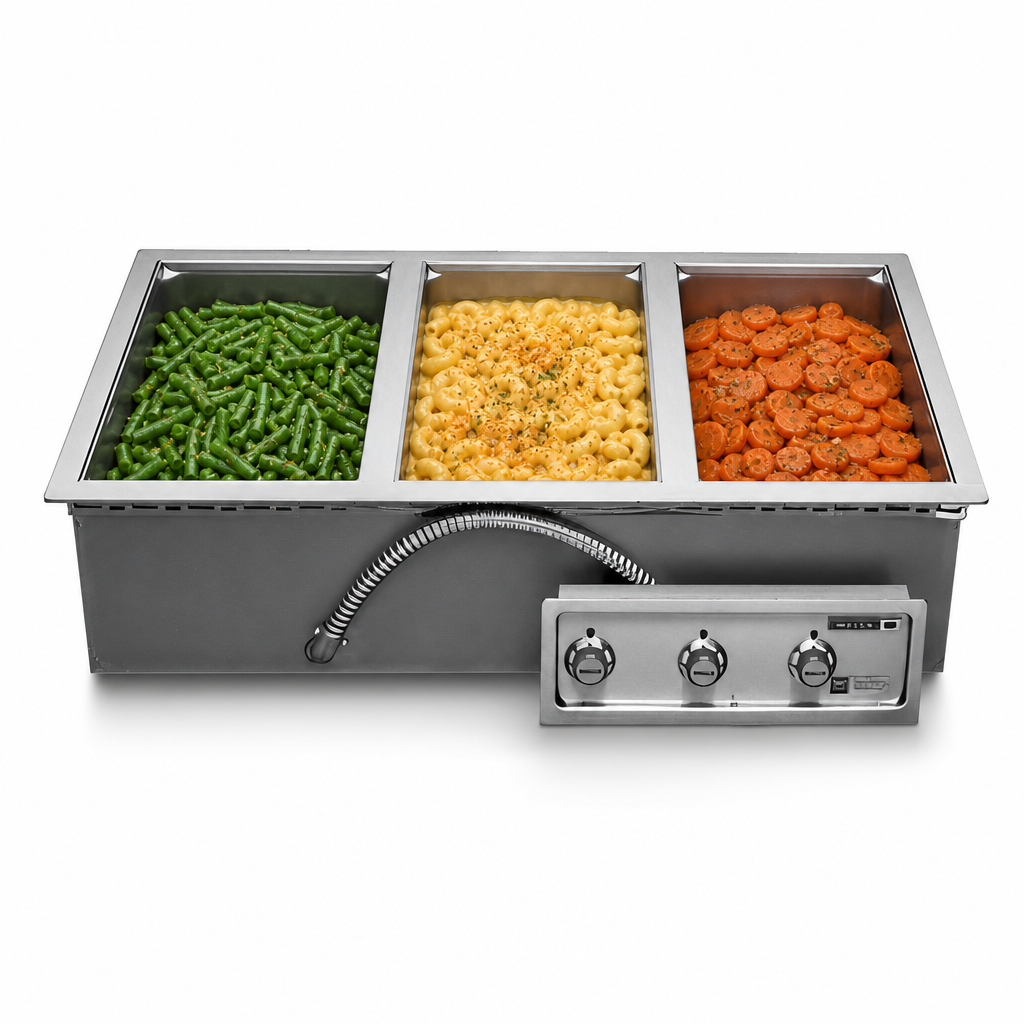

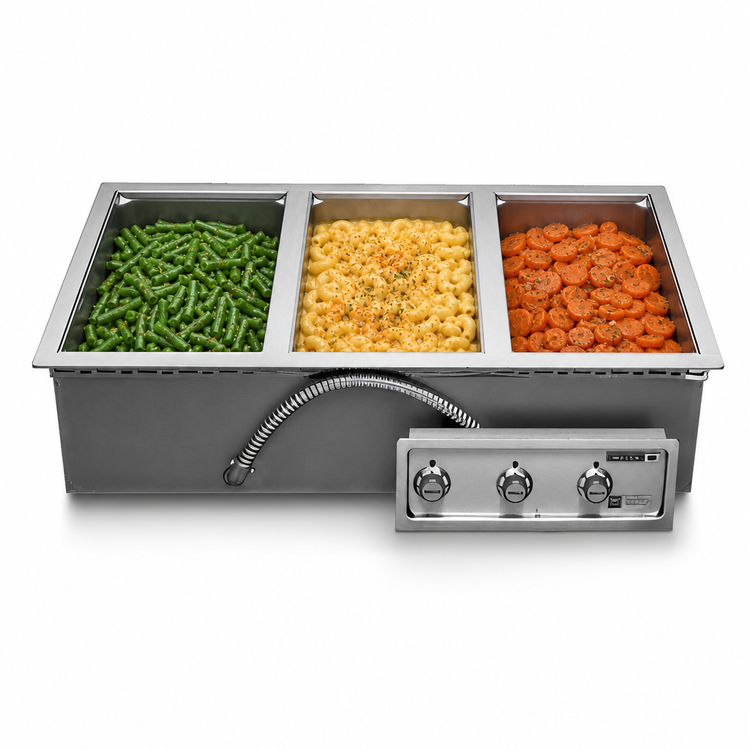

- 3 independent wells accept standard 12" × 20" or fractional pans.
- Wet or dry operation (water bath recommended for optimum food quality).
- Infinite controls with high-limit protection—fine-tune each menu item’s holding temp.
- Heavy-gauge, deep-drawn stainless steel wells & top flange for maximum durability.
- Fully insulated aluminized-steel housing saves energy and keeps surrounding counters cool.
- ½" NPT manifold drain with a single front-mounted valve—no more juggling individual drains.
- Powerful tubular heating elements deliver fast pre-heat and even heat distribution.
- Field-convertible from 3-phase to 1-phase to match your kitchen’s electrical service.
- WellsLok™ system clamps the unit securely in place—no extra hardware needed.
- NSF & UL certified; backed by a 1-year limited parts & labor warranty.
At-a-Glance Specifications
| Model | MOD300DM |
|---|---|
| Capacity | (3) full-size 12" × 20" wells | accepts fractional pans |
| Operation | Wet or dry | individual infinite controls with indicator lights |
| Wattage / Well | 900 W @ 208 V | 1,200 W @ 240 V (2.7–3.6 kW total) |
| Electrical | 208 / 240 V, 3-phase (ships 3Ø, field-convertible to 1Ø) |
| Overall Dimensions | 43 ½" W × 23 5⁄8" D × 9 ¾" H (1,105 × 600 × 248 mm) |
| Control Panel Depth | 6 ¼" (159 mm) |
| Drain System | ½" NPT manifold with single front valve |
| Shipping Weight | Approx. 78 lb / 35.5 kg |
| Construction | Stainless steel wells & flange, insulated aluminized-steel housing |
| Certifications | UL, NSF |
| Warranty | 1-year limited parts & labor |
Perfect For
- Buffet and self-serve lines
- Full-service & quick-service restaurants
- Cafeterias and institutional kitchens
- Catering and banquet holding stations
Provide 1" clearance on all sides and follow the included installation manual for cut-out and electrical requirements. Auto-fill kits, adapter tops, lids and other accessories are available—ask your foodservice representative for details.
