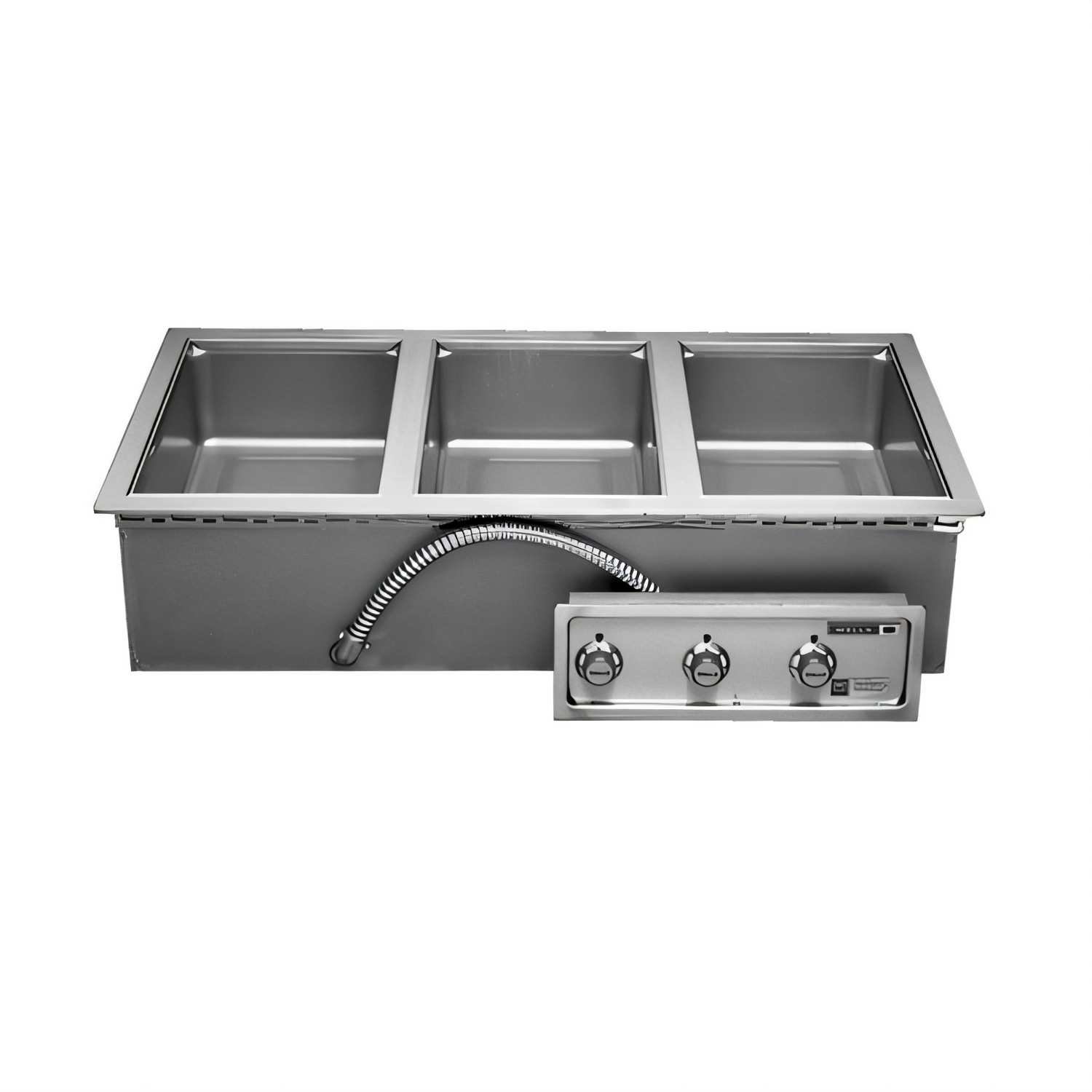

Wells MOD300D Three-Well 12 x 20 Inch Top-Mount Built-In Electric Food Warmer with Drains

Infinite Controls, Wet/Dry Operation, Stainless Steel, 208/240V

This heavy-duty drop-in food warmer keeps three full-size pans at serving temperature with independent infinite controls and flexible wet or dry operation.

  • Holds three standard 12 x 20 inch pans in individual wells for versatile serving-line use.
  • Designed for wet or dry operation; wet use is recommended for best results.
  • Independent infinite controls let each well be adjusted separately.
  • Fully insulated stainless steel construction helps improve efficiency and recovery.
  • WellsLok installation system simplifies top-mount drop-in setup.
  • Built-in drains and field-convertible electrical flexibility support easier installation and maintenance.

Overall Dimensions:

43.5"W x 23.6"D x 9.75"H

Product Weight:

74.0 lb

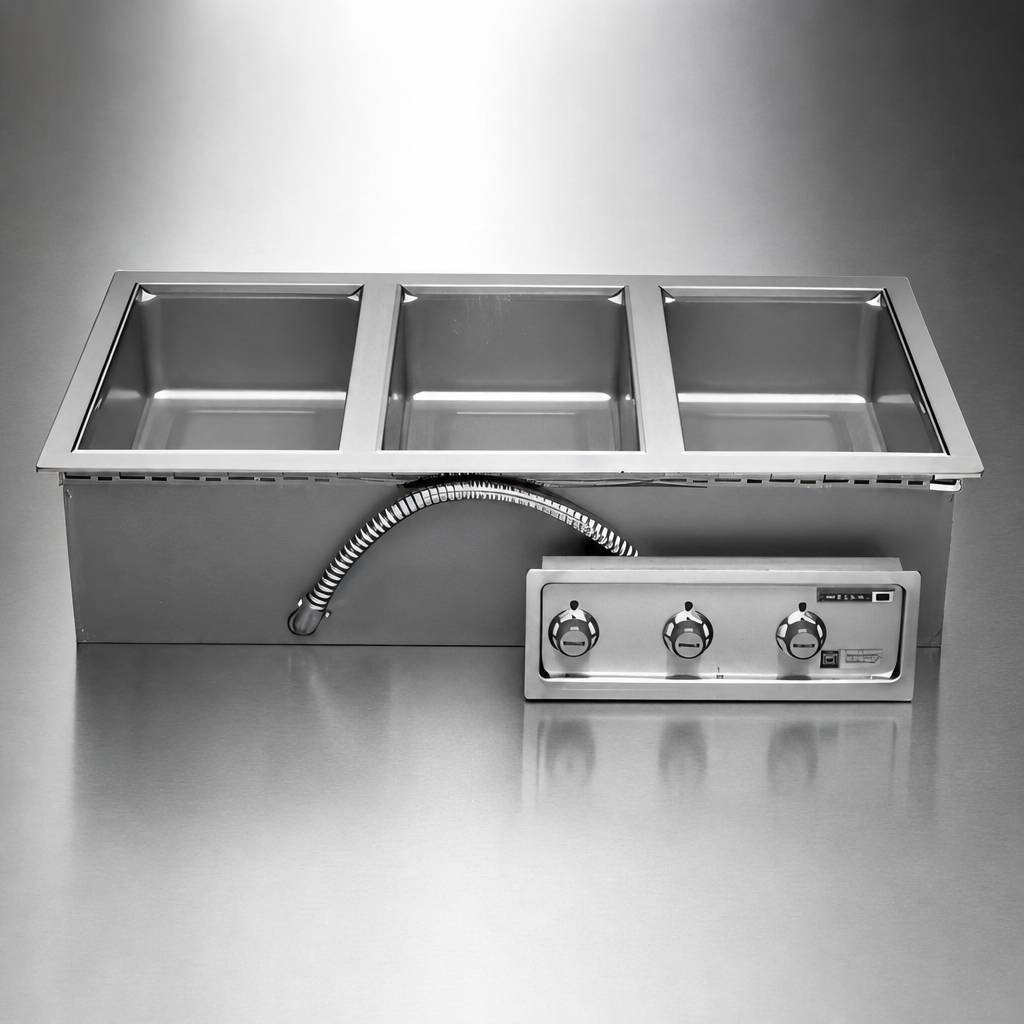

Three-Well Capacity

Accommodates three standard 12 x 20 inch food pans or equivalent fractional inset pans.

Wet Or Dry Operation

Designed for flexible holding applications, with wet operation recommended for best performance.

Independent Infinite Controls

Each well has its own infinite control for precise temperature adjustment and serving flexibility.

Fully Insulated Construction

Insulation on the sides, front, back, and bottom helps conserve energy and improve heat recovery.

Stainless Steel Top And Pans

One-piece stainless steel top flange and deep-drawn stainless steel warming pans support durability and easy cleaning.

WellsLok Installation System

Standard WellsLok hardware helps make drop-in installation quick and secure.

Drain Connection

D model drain configuration includes a 1/2 inch internal N.P.T. drain connection.

Safety And Status Indicators

High-limit protection helps prevent overheating, and temperature-ready indicator lights are standard.

Field-Convertible Electrical

Ships 3-phase and can be field converted to 1-phase.

Type Food Warmer
Style Individual Pans
Installation Type Drop-In
Controls Infinite
Pan Capacity 3 Full-Size 12 x 20 Inch Pans
Material Stainless Steel
Interior Finish Stainless Steel
Voltage 208/240 Volts
Watts 900 Watts Per Well at 208 Volts / 1.2 kW Per Well at 240 Volts
Phase 3-Phase
Drain Connection Required
Drain Connection Size 1/2 Inch Internal N.P.T.
Water Connection Not Required
Shipping Width 44 Inches
Shipping Depth 24 Inches
Shipping Height 10 Inches
Shipping Weight 74 Pounds
Selling Unit Each
Units Per Case 1

Certifications & Compliance

Certified badge of NSF Certified
NSF Certified
Certified badge of UL Certified
UL Certified

Warranty & Protection

1-year limited parts and 1-year limited labor

Documents

PDF Cutsheet PDF Download PDF Owner's manual PDF Download PDF Installation manual PDF Download PDF Middleby financial flyer PDF Download PDF Warranty sheet PDF Download

Frequently Asked Questions

It accommodates three standard 12 x 20 inch food pans or equivalent fractional inset pans.
Yes. The unit is designed for wet or dry operation, and wet use is recommended for best results.
No water connection is required for this model. Auto-fill versions in the series do require a water connection.
The series is offered in 208V or 240V configurations, and all models ship 3-phase and can be field converted to 1-phase.
The cutsheet lists a 1-year limited parts and 1-year limited labor warranty.
Yes. The D model includes drains and a 1/2 inch internal N.P.T. drain connection.
