Wells (Middleby) MOD-227TDM Steam Tables & Food Wells
Description

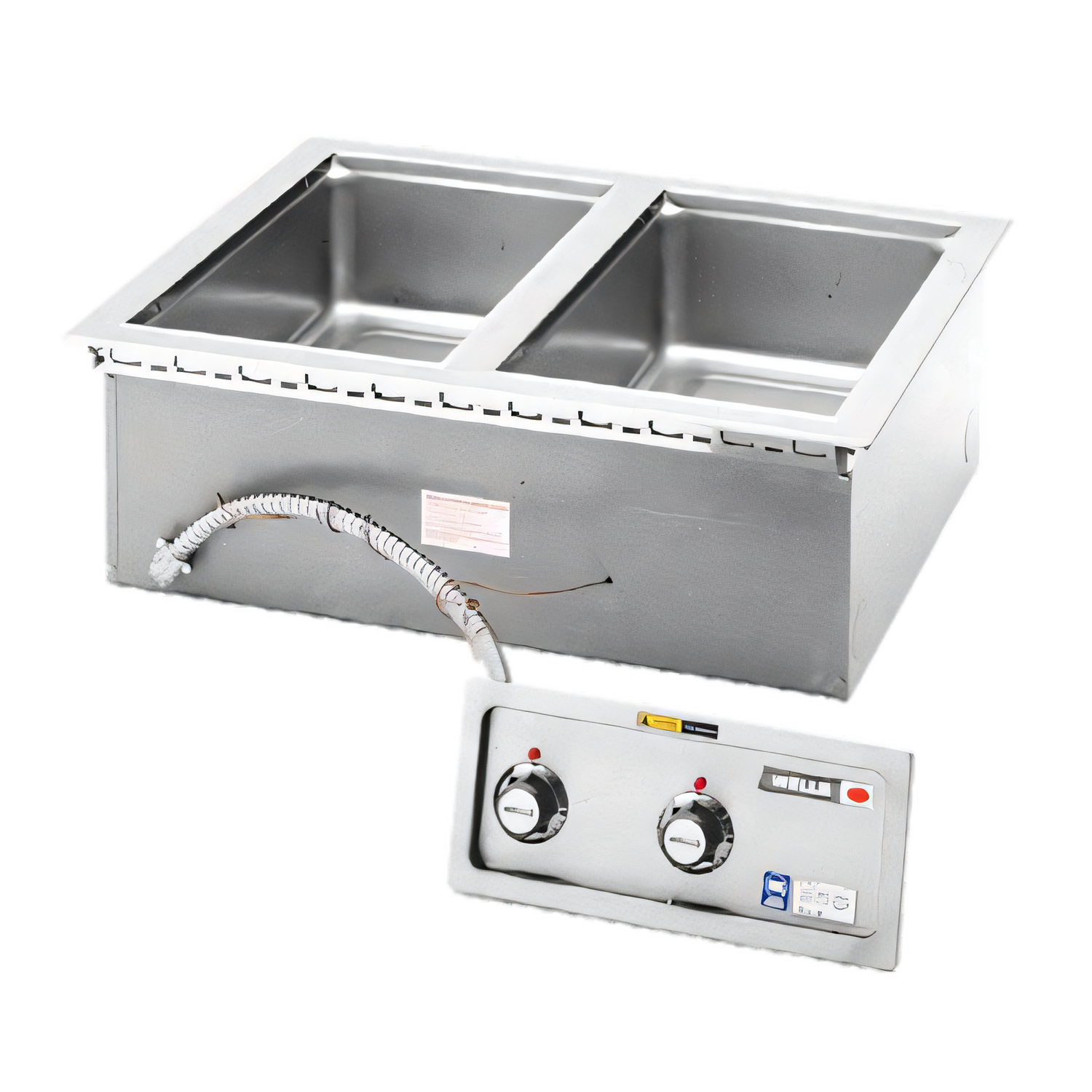

Wells MOD227TDM Two-Well Drop-In Food Warmer
Top-mount | electric | wet or dry | manifold drainKeep soups, sauces, vegetables and proteins hot, fresh and ready to serve—right in your counter. The Wells MOD227TDM is a heavy-duty, built-in warmer featuring two independent 12" × 27" wells, precise thermostatic control and an easy-to-use front drain, giving your operation professional holding power in a compact footprint.
Key Features
- Capacity: holds four 1/3-size pans (two per well) or equivalent fractional pans.
- Wet or dry operation—use water for maximum moisture or run dry for quick heat-ups.
- Independent recessed thermostatic knobs with high-limit protection guard against overheating.
- One-piece stainless-steel top flange and deep-drawn wells clean easily and resist corrosion.
- Fully insulated sides, back and bottom for faster pre-heat and lower energy use.
- ½" NPT manifold drain with a single front valve—empty both wells safely in seconds.
- WellsLok mounting system speeds installation and locks the unit firmly in place.
- cULus & NSF listed for sanitation and electrical safety.
Specifications
| Model | MOD227TDM |
|---|---|
| Openings / Wells | 2 |
| Pan Capacity | (4) 1/3-size pans total (2 per well) |
| Operation | Wet or dry |
| Controls | Separate thermostatic controls with indicator lights & high-limit safety |
| Electrical | 208/240 V, 1-phase, 1,240/1,650 W (hard-wired) |
| Overall Dimensions | 29-1/2" W × 30-9/16" L × 9-3/4" H |
| Control Panel Size | 14" W × 6-1/4" H |
| Drain | ½" manifold with single valve |
| Construction | Stainless-steel interior, aluminum-steel housing, full insulation |
| Certifications | cULus, NSF |
| Shipping Weight | ≈65 lb / 30 kg |
| Warranty | 1-year limited parts & labor |
Included
- (2) Extra-deep wells with manifold drain & valve
- WellsLok installation hardware
- Operator’s manual & warranty documentation
Popular Accessories (sold separately)
- Adaptor tops for round insets
- Inset pans with lids
- 8 oz soup ladle
- Drain-valve extension & drain screens
- WellsLok extension kit for wood counters
Installation note: This unit must be hard-wired by a qualified electrician. Follow the cut-out and clearance requirements in the installation manual.
