Wells (Middleby) MOD-227TDM/AF Steam Tables & Food Wells
Description

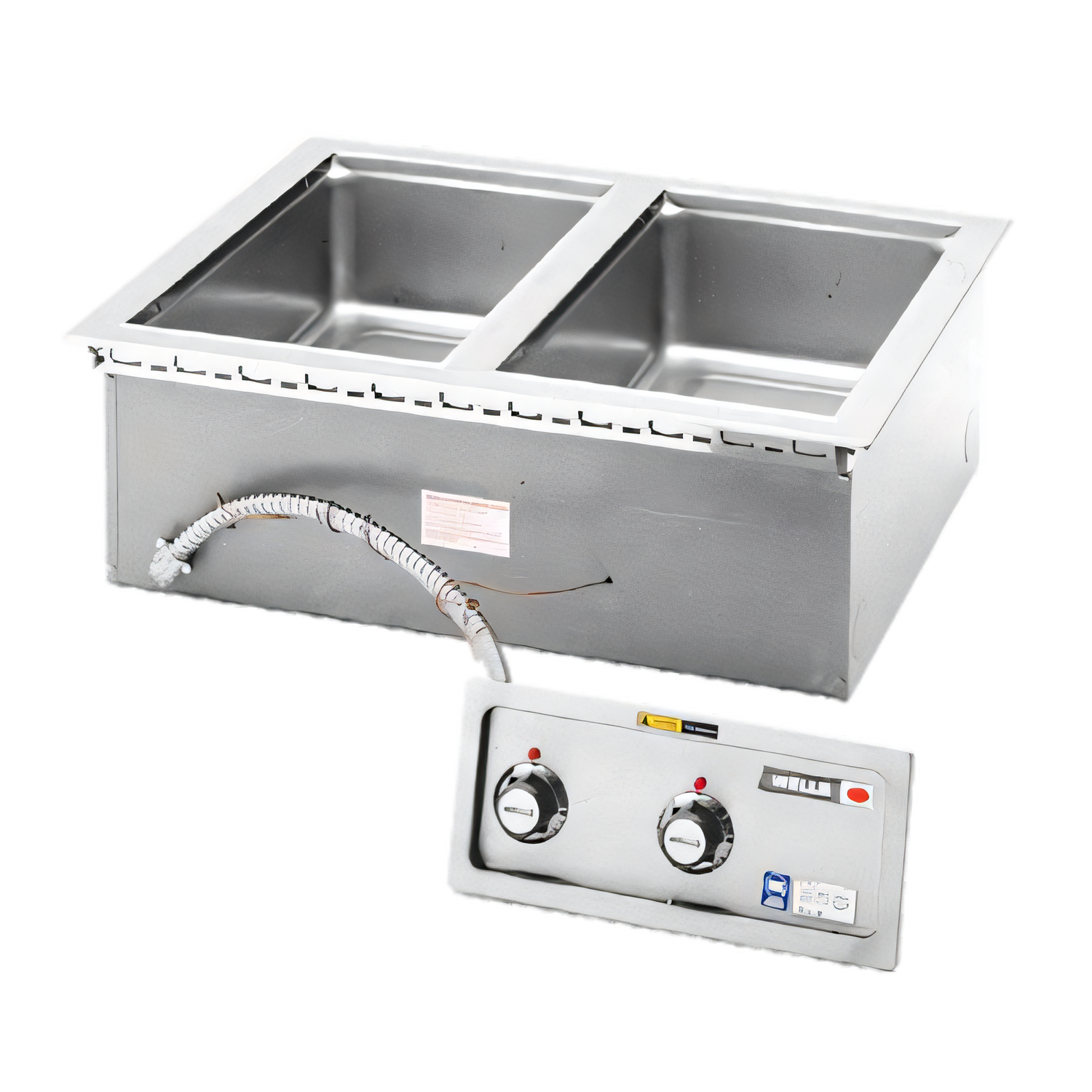

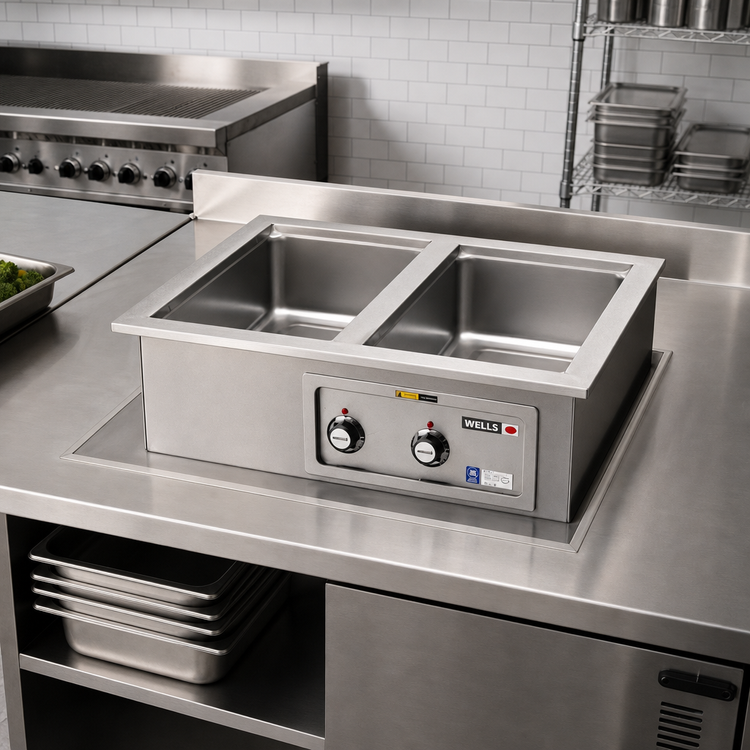

Wells MOD227TDMAF Extra-Deep 2-Well Drop-In Food Warmer
Auto-Fill • Manifold Drain • Wet or Dry OperationKeep soups, sauces and entrées hot and “just-made” fresh with the Wells MOD227TDMAF. This heavy-duty, top-mount warmer gives you two independent 12" × 27" extra-deep wells, each engineered to maintain precise holding temperatures while reducing labor thanks to the built-in auto-fill system and single-valve manifold drain.
Key Features

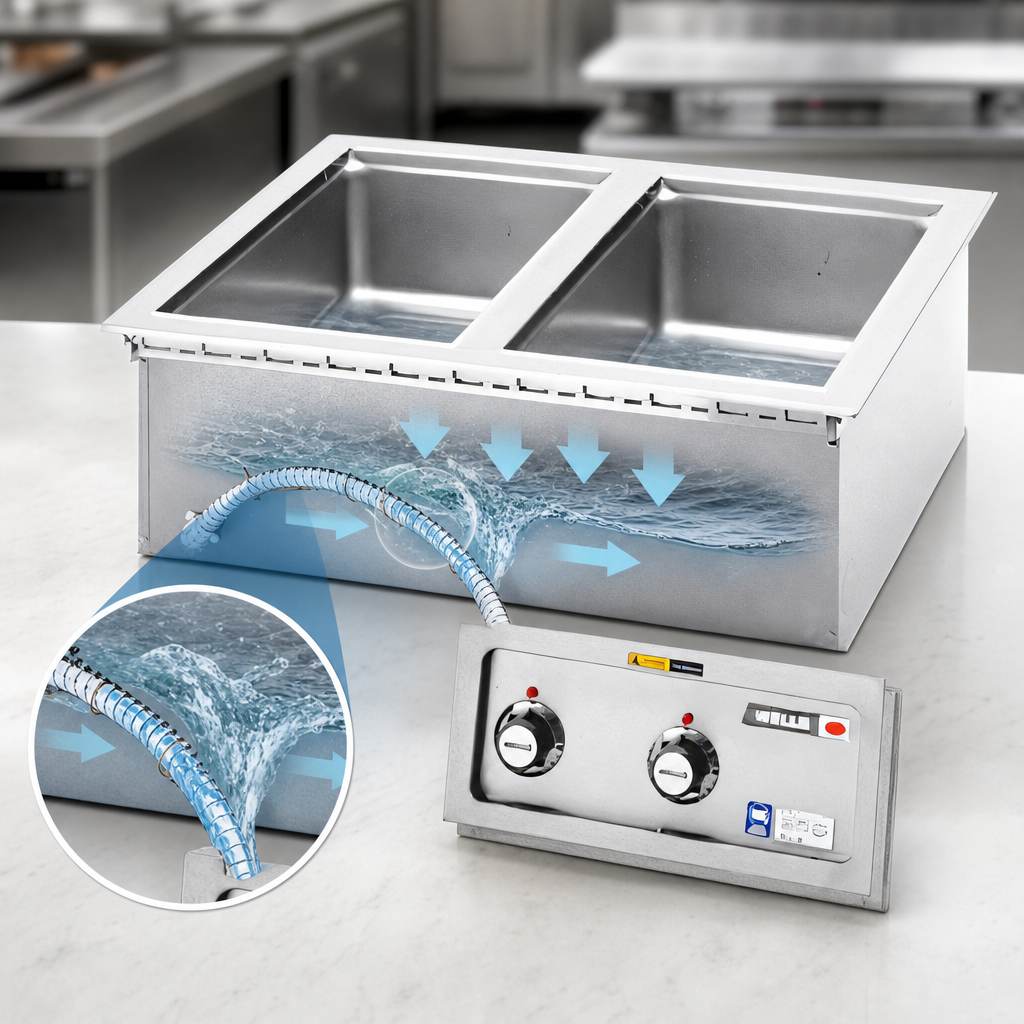

- Automatic water-level control—no more constant refilling.
- Wet or dry operation (wet recommended for optimum heat transfer).
- (2) extra-deep wells; each accepts up to (4) 1/3-size pans or equivalent fractional pans.
- Independent thermostatic controls with ready-temperature lights.
- ½" manifold drain with a single front valve for fast, mess-free cleanup.
- Heavy-gauge, deep-drawn stainless steel wells and stainless interior for long service life.
- Fully insulated sides, front, back and bottom for energy savings and cooler counter tops.
- Powerful tubular heating elements provide quick pre-heat and even heat distribution.
- High-limit protection prevents overheating and extends component life.
- NSF & cULus listed; backed by a 1-year parts & labor warranty.
Capacity Guide
| Number of openings | 2 extra-deep wells |
|---|---|
| Pan capacity (per well) | (4) 1/3-size, 6"-deep steam-table pans |
| Total pan capacity | (8) 1/3-size pans |
| Interior well size | 12" W × 27" L × 7.34" D |
Technical Specifications
| Model | MOD227TDMAF |
|---|---|
| Controls | Individual thermostatic dials with indicator lights |
| Operation | Wet or Dry |
| Auto-Fill | Yes – ¼" NPT cold-water connection required |
| Drain | ½" manifold with single valve |
| Voltage / Phase | 208 V or 240 V, 1-Phase (hard-wire) |
| Wattage | 2,480 W @ 208 V / 3,300 W @ 240 V |
| Overall dimensions | 29-1/2" W × 30-9/16" D × 9-3/4" H |
| Cut-out dimensions | Refer to installation manual |
| Shipping weight | Approx. 65 lb (29 kg) |
| Construction | Stainless steel wells, aluminized steel housing |
| Listings | NSF, cULus |
| Warranty | 1-Year limited parts & labor |
Looking for a different size? Wells MOD Series warmers are available in 1- to 5-well configurations—contact us for details.
