Wells (Middleby) MOD-200TDM Steam Tables & Food Wells
Description

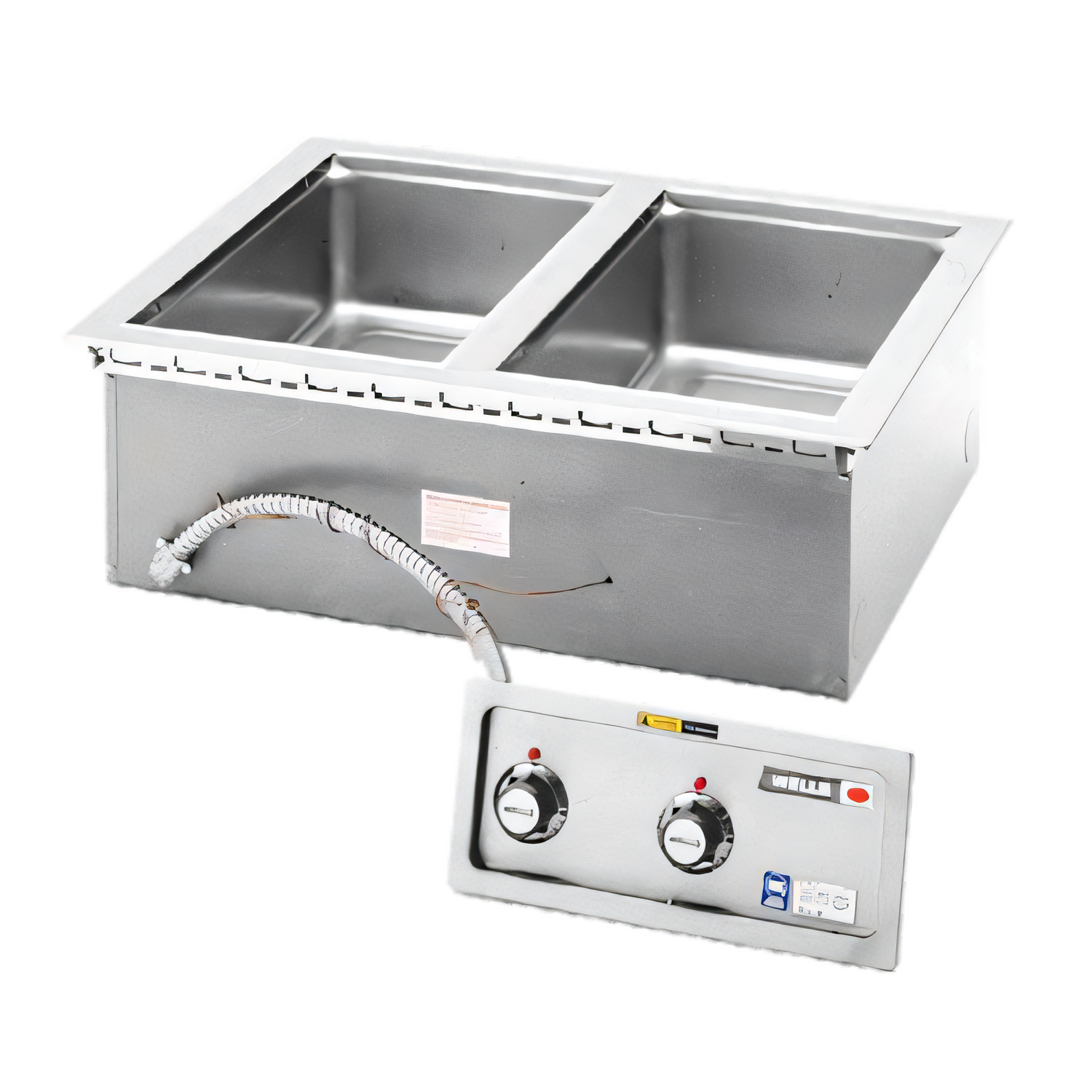

Wells MOD200TDM Two-Well Drop-In Food Warmer
Top-mount | Electric | Thermostatic controls | Manifold drainHold two full-size hotel pans—or any combination of fractional pans—at perfect serving temperature in one compact footprint. The MOD200TDM is a heavy-duty, fully-insulated, wet-or-dry warmer that drops flush into your counter and drains through a single front valve, streamlining both service and cleanup.
Why You’ll Love It
- Fits (2) 12 × 20 in pans or fractional equivalents
- Independent thermostatic controls with temperature-ready indicator lights
- Wet or dry operation—wet operation recommended for maximum food quality
- One-piece stainless steel top flange & deep-drawn wells for superior durability
- Fully insulated aluminized-steel housing—safe for non-metal counters
- Integral ½ in NPT manifold drain with single valve for fast water removal
- High-limit protection prevents overheating
- Patent-pending WellsLok system speeds installation
- NEMA 6-15P cord & plug (208/240 V) included—no hard-wiring required
- NSF & cULus listed; 1-year parts & labor warranty
Technical Specs
| Model | MOD200TDM |
|---|---|
| Number of wells | 2 (individually controlled) |
| Pans accommodated | (2) 12 × 20 in or equivalent fractional pans |
| Operation | Wet or dry |
| Voltage / Phase | 208 V or 240 V, 1 Ø (field-convertible to 3 Ø) |
| Wattage per well | 1 240 W @ 208 V • 1 650 W @ 240 V |
| Total wattage | 2 480 W @ 208 V • 3 300 W @ 240 V |
| Plug type | NEMA 6-15P (cord included) |
| Overall dimensions | 29.5 in W × 23.6 in D × 9.75 in H (749 × 600 × 248 mm) |
| Shipping weight | 56 lb (25.5 kg) |
| Drain | (2) ½ in NPT drains manifolded to one front valve |
| Certifications | NSF, cULus |
| Warranty | 1-year limited parts & labor |
What’s Included
- Factory-installed manifold drain & front shut-off valve
- NEMA 6-15P cord & plug (pre-wired)
- WellsLok mounting hardware
- Operator’s manual & warranty documentation
Popular Accessories (sold separately)
- Adaptor tops for 7 qt & 11 qt round insets
- Stainless insets with lids & 8 oz soup ladles
- Drain-valve extension & drain screens
- Wellslok extension kit for wood counters
- 72 in wiring harness (factory-installed)
