Wells (Middleby) MOD-200TDM/AF Steam Tables & Food Wells
Description

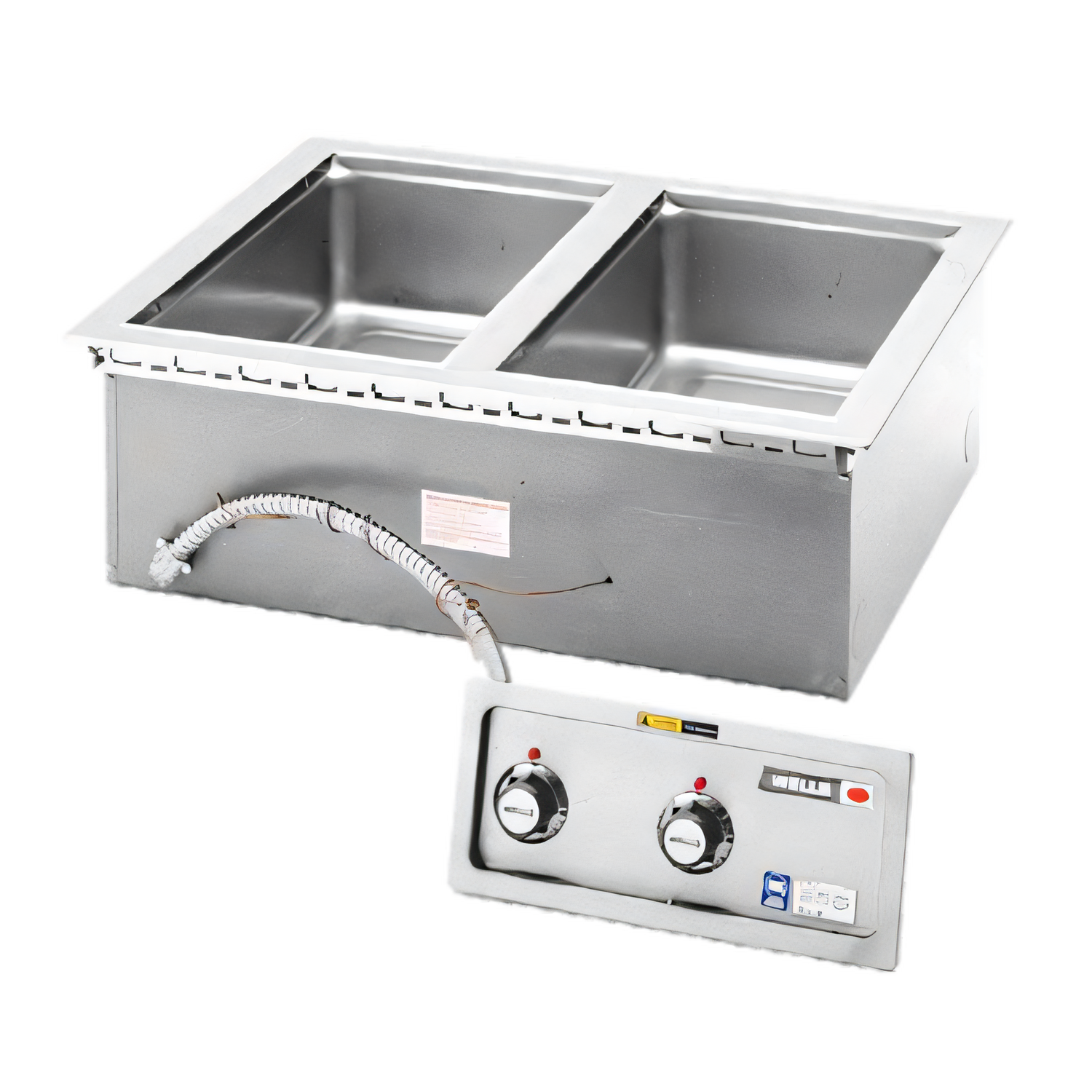

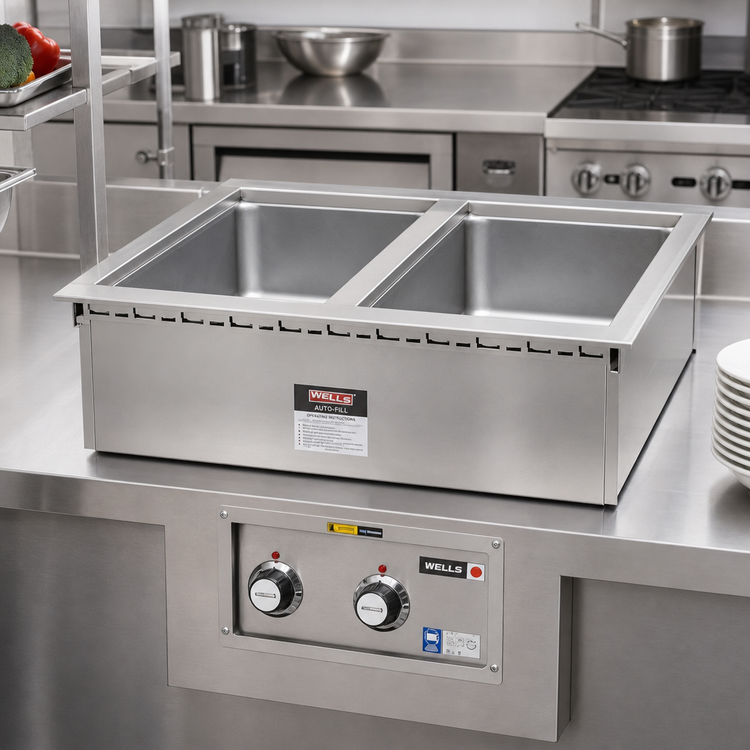

Wells MOD200TDMAF Two-Well Drop-In Food Warmer
Auto-Fill • Thermostatic Control • Manifold DrainKeep entrées, sides and sauces hot, fresh and food-safe with the Wells MOD200TDMAF. This heavy-duty, top-mount warmer combines automatic water fill, independent thermostatic controls and a mess-free manifold drain to deliver worry-free holding in even the busiest operations.
Key Features
- Holds two full-size 12" × 20" pans or fractional equivalents.

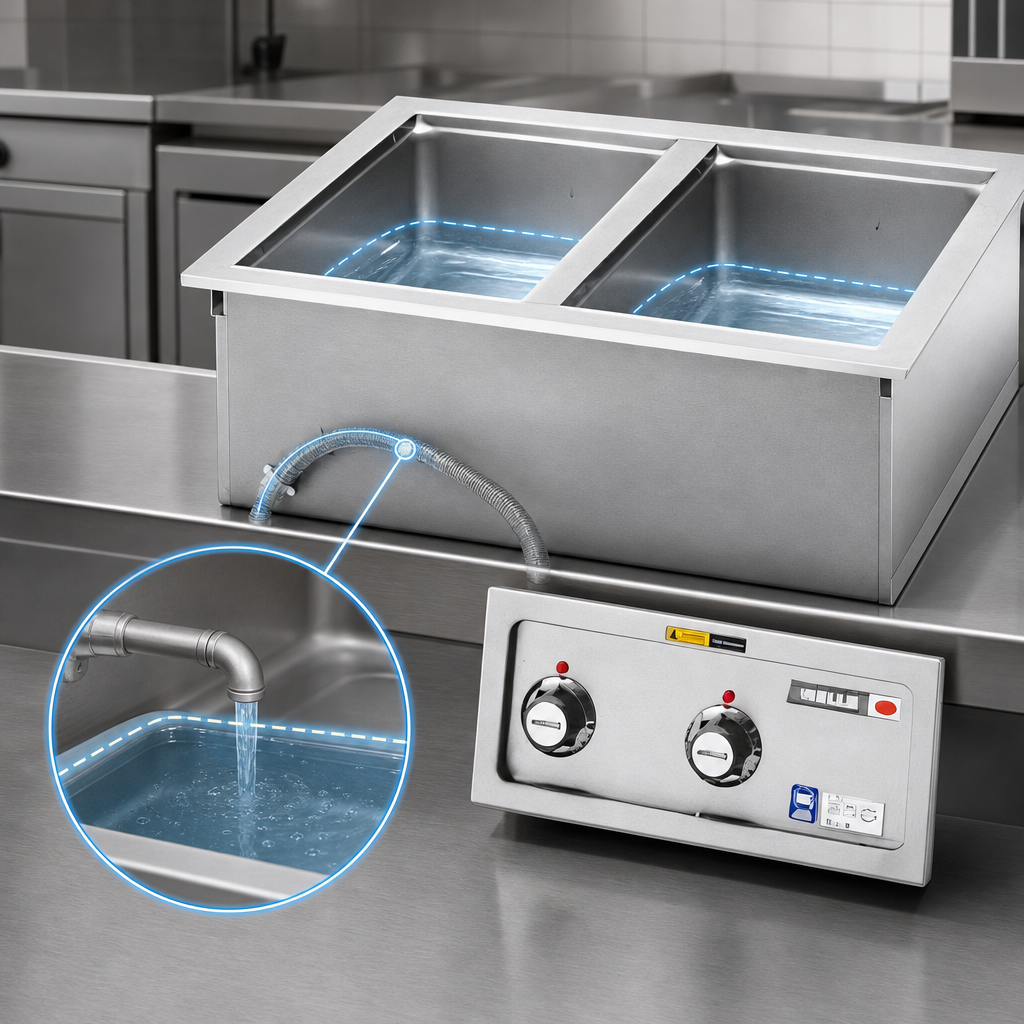

- Automatic water-fill maintains the correct level at all times—no manual checks required.
- Wet or dry operation; wet mode recommended for optimum heat transfer.
- Individual recessed thermostatic knobs with temperature-ready indicator lights.
- ½" NPT manifold drain empties both wells through a single front-mounted valve.
- Deep-drawn stainless steel wells & one-piece top flange for superior durability and easy cleaning.
- Fully insulated aluminized-steel housing saves energy and protects non-metal counters.
- Powerful tubular elements provide even, rapid heat distribution.
- High-limit protection prevents overheating and extends element life.
- Wellslok™ hardware and cord-and-plug (NEMA 6-15P) connection for fast, secure installation.
At-a-Glance Specs
| Model | MOD200TDMAF |
|---|---|
| Pan Capacity | 2 × 12" × 20" (6" deep) hotel pans |
| Overall Dimensions | 29-1/2" W × 23-5/8" D × 9-3/4" H (749 × 600 × 248 mm) |
| Control Panel | 14" W × 6-1/4" H (356 × 159 mm), front-mounted |
| Electrical | 208 V / 1240 W per well or 240 V / 1650 W per well, 1-Ph, NEMA 6-15P (field-convertible to 3-Ph) |
| Drain | ½" internal NPT manifold with single valve |
| Construction | Stainless steel wells & flange; insulated aluminized-steel housing |
| Certifications | cULus, NSF |
| Shipping Weight | ≈ 56 lb / 25.5 kg |
| Warranty | 1-Year Limited Parts & Labor |
Perfect For
- Quick-serve & fast casual lines
- Hotel and resort buffets
- Catering & banquet holding stations
- Convenience store food bars
- Campus & corporate dining
