Description

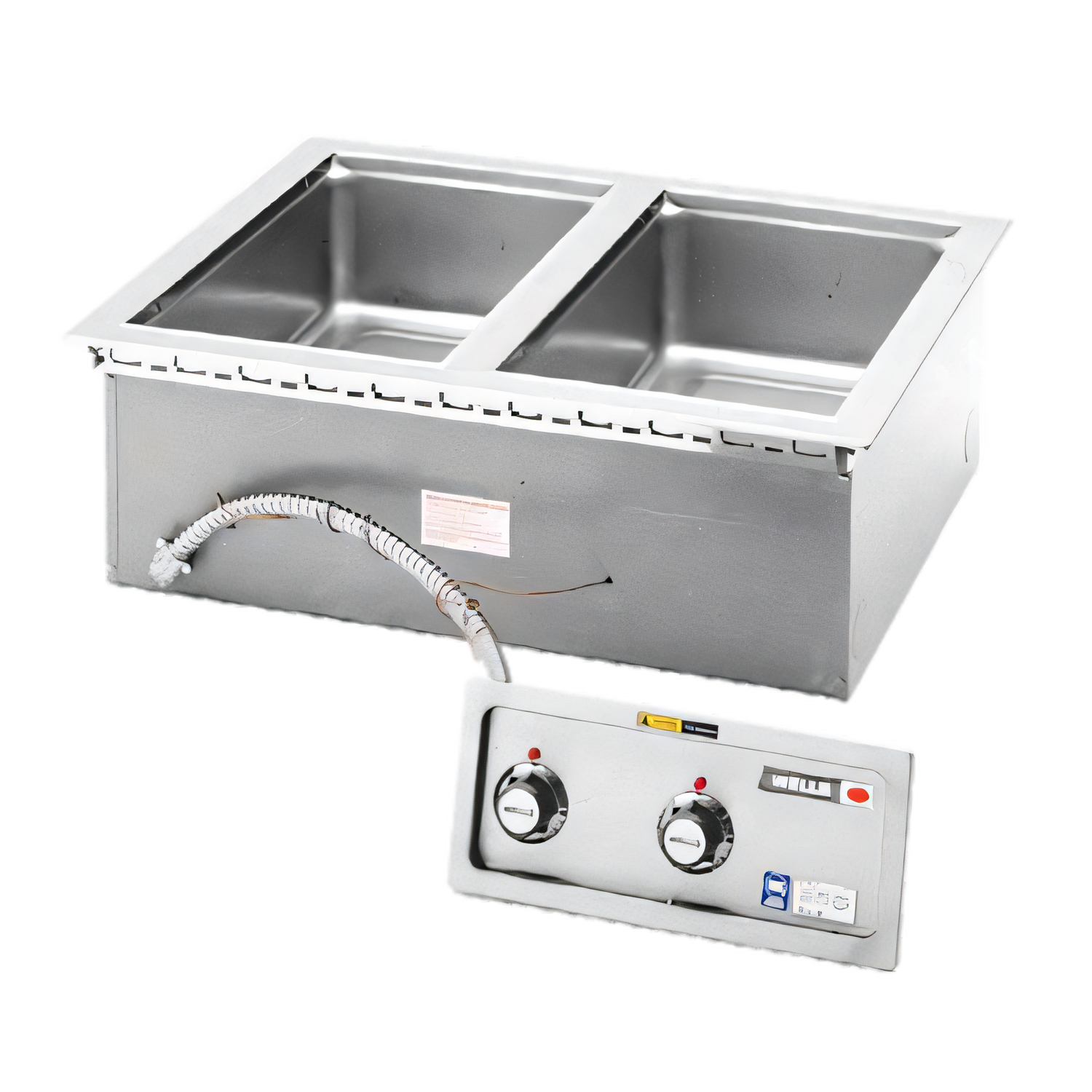

Wells MOD200 Drop-In 2-Well Food Warmer – Auto-Fill & Drain
Top-mount | Electric | Wet / Dry | Thermostatic ControlsPack more holding power into the same footprint with the Wells MOD200 Series. This heavy-duty, built-in warmer accommodates two full-size hotel pans, delivers precise thermostatic control, and features automatic water fill so your crew can stay focused on service—not refills.
Key Features & Benefits
- Two 12" × 20" wells accept standard or fractional pans—perfect for entrées, sides, soups, or sauces.
- Wet or dry operation (wet recommended) keeps menu items at consistent, food-safe temperatures.

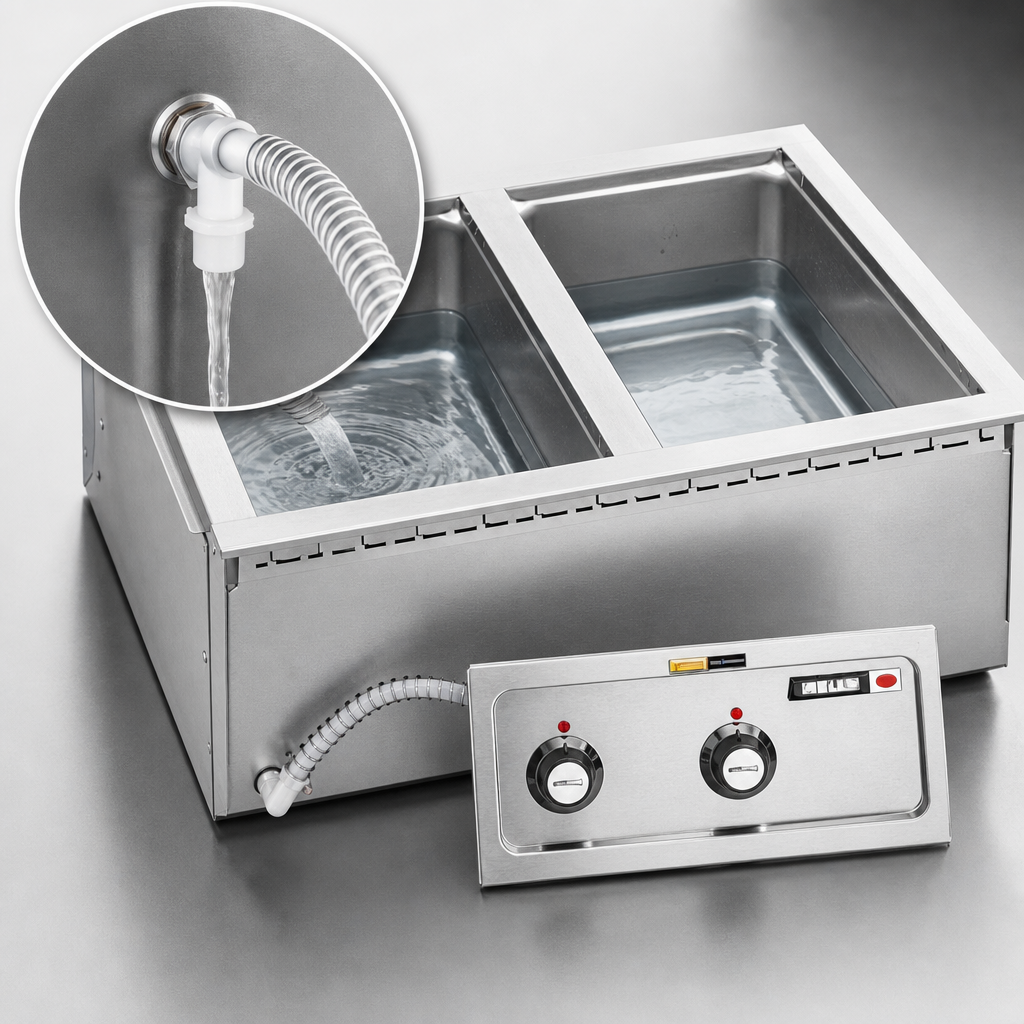

- Auto-Fill maintains the correct water level automatically—no more watching the clock.
- Independent thermostatic controls and indicator lights for each well give you pinpoint accuracy.
- One-piece stainless-steel top flange and deep-drawn wells for exceptional durability and quick wipe-downs.
- Energy-saving, fully insulated aluminum-steel housing keeps heat where it belongs and protects non-metal counters.
- ½" drain with single valve speeds end-of-shift cleanup.
- Powerful tubular heating elements provide rapid pre-heat and even heat distribution.
- Wellslok® mounting system makes drop-in installation fast and secure.
- NSF & cULus certified and backed by a 1-year parts & labor warranty.
At-A-Glance Specifications
Model | MOD200 (Auto-Fill, Drain, Thermostatic) |
---|---|
Capacity | 2 × full-size (12" × 20") pans — or fractional equivalents |
Overall Dimensions | 29 ½" W × 23 ⅝" D × 9 ¾" H (749 × 600 × 248 mm) |
Electrical | 208 V / 1240 W per well • 240 V / 1650 W per well • 1-Phase • NEMA 6-15P |
Water Connection | Auto-Fill requires cold-water hookup (see installation manual) |
Drain | ½" NPT with single shut-off valve |
Construction | Stainless-steel wells & flange, insulated aluminum-steel housing |
Shipping Weight | ≈ 56 lb (25.5 kg) |
Certifications | NSF, cULus |
Warranty | 1-Year Limited Parts & Labor |
For cutout dimensions, clearance requirements, and auto-fill plumbing details, please refer to the Wells installation guide supplied with the unit.
