Wells (Middleby)  |  SKU: MOD-200DM

Wells (Middleby) MOD-200DM Steam Tables & Food Wells

$2,935.00
Expected delivery date of , to your door
if ordered within hours and minutes
Not Shipping to ?
More Delivery Options
Documents
Cutsheet Owner's manual Middleby financial flyer Installation manual Warranty sheet
Related Searches
Food Holding & Warming Equipment Steam Tables & Food Wells

Reach out via chat, email, or phone—we're here to help make sure it's the right fit for your kitchen. Contact us for more information.

Description

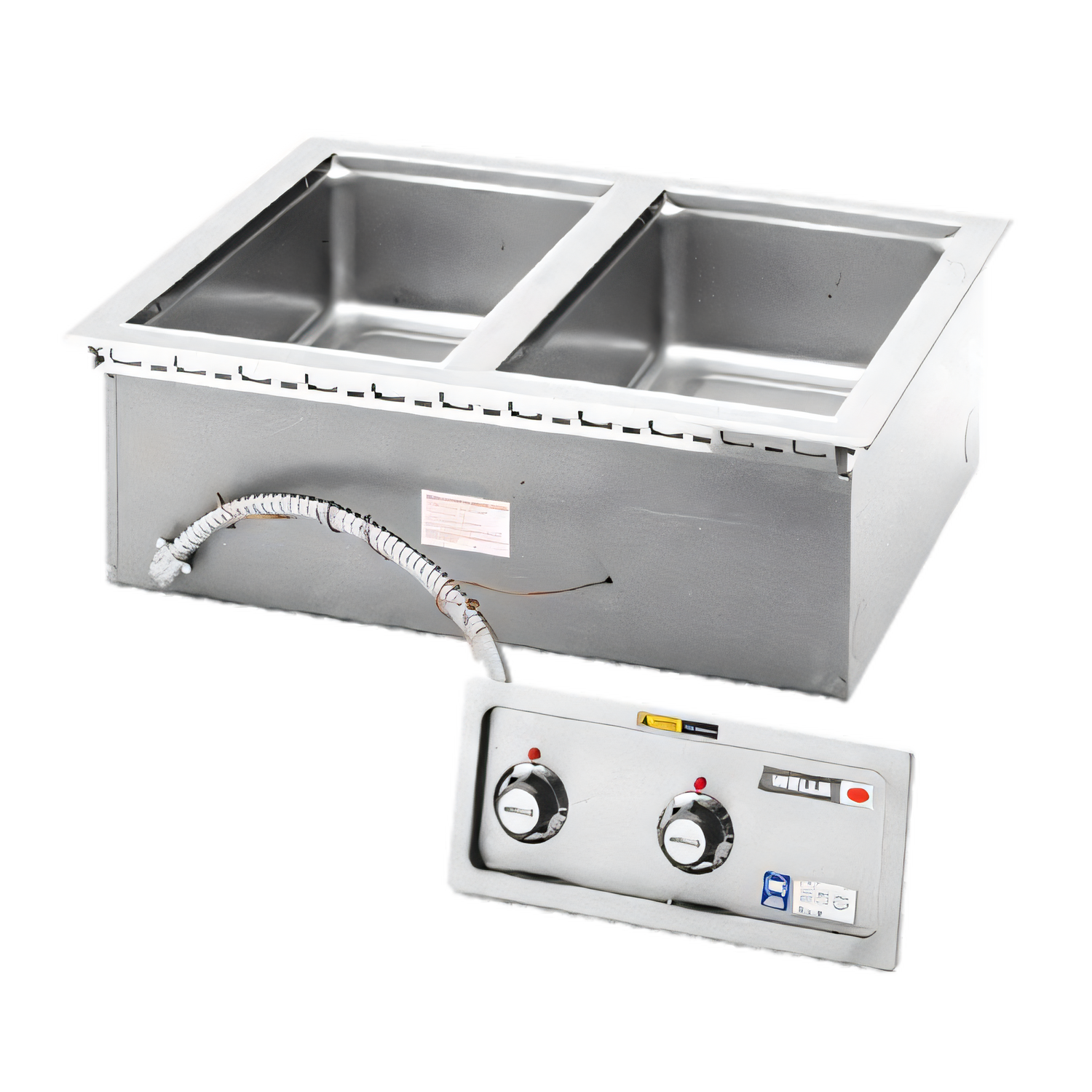

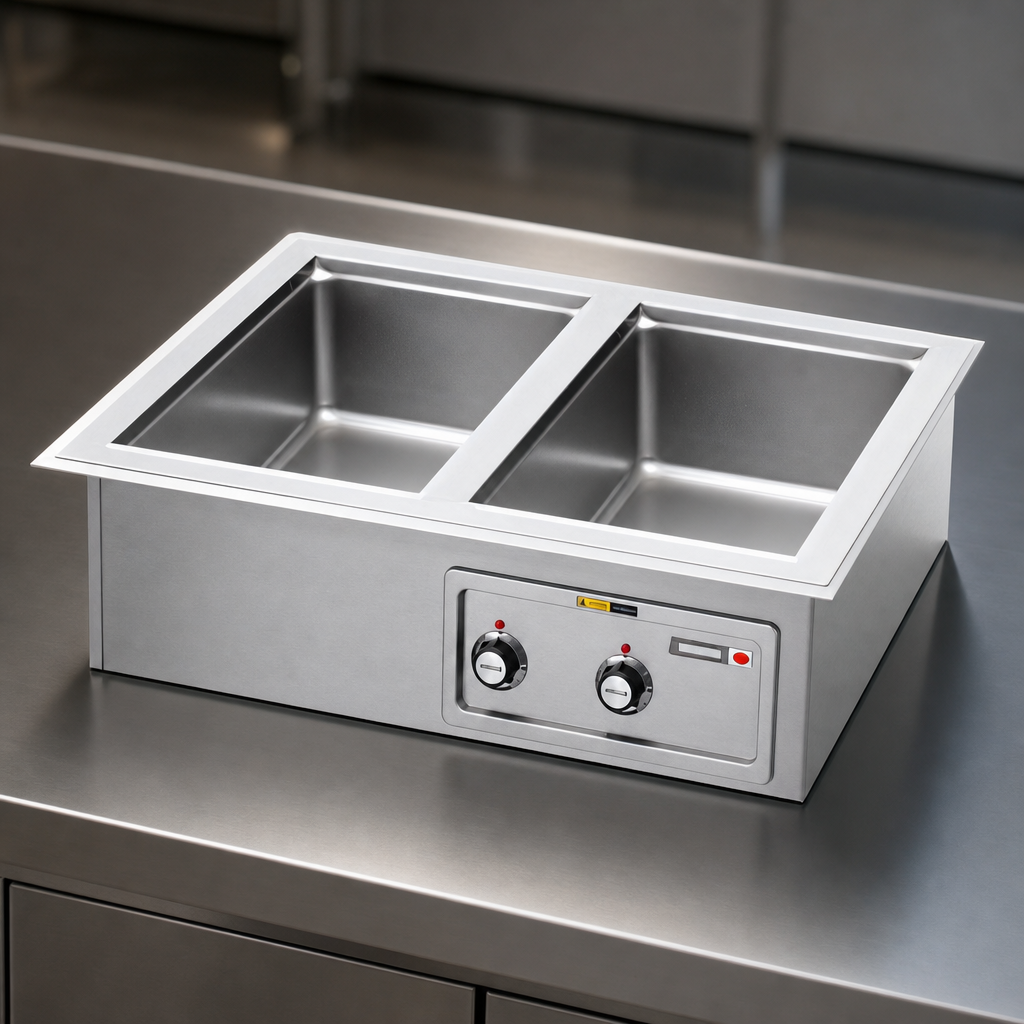

Wells MOD200DM Two-Well Drop-In Food Warmer

Top-mount | Infinite controls | Manifold drain system

Keep entrées, sides, sauces — and your service line — at peak performance. The MOD200DM delivers reliable wet or dry holding for two full-size food pans, complete with independent controls and a single-valve manifold drain that makes cleanup effortless.

Key Features & Benefits
  • Accommodates (2) standard 12" × 20" pans or fractional equivalents.
  • ½" manifold drain with one front-mounted valve quickly empties both wells.
  • Separate infinite switch controls provide precise temperature adjustment for each well.
  • Wet or dry operation—water bath recommended for optimum food quality.
  • Deep-drawn stainless steel wells and one-piece top flange resist corrosion and simplify cleaning.
  • Fully insulated aluminized-steel housing conserves energy and protects surrounding countertops.
  • High-limit safety shuts off heat to prevent overheating.
  • Powerful tubular elements deliver fast preheat and even heat distribution.
  • Factory-installed WellsLok™ tabs speed up secure, drop-in installation.
  • cULus & NSF listed for sanitation and electrical safety.
Specifications
Model MOD200DM
Capacity (2) full-size 12" × 20" wells
Operation Wet or Dry
Controls (2) infinite controls – one per well, remote panel
Drainage ½" NPT manifold drain with single valve
Voltage / Phase 208 V or 240 V, 1 Ph
Wattage 900 W per well @ 208 V (1.8 kW total)
1,200 W per well @ 240 V (2.4 kW total)
Power Connection NEMA 6-15P cord & plug (supplied)
Overall Dimensions 29-1/2" W × 23-5/8" D × 9-3/4" H
Control Panel Size 14" W × 6-1/4" H
Shipping Weight ≈ 51 lb / 23 kg
Certifications cULus, NSF
Warranty 1-year limited parts & labor
Perfect For
  • Buffet and carving stations
  • Quick-service and cafeteria lines
  • Convenience stores & grab-and-go counters
  • Catering and banquet holding
Popular Options & Accessories
  • Adaptor tops for round insets
  • Inset pans & lids
  • Drain extension kit & drain screens
  • Auto water-fill kit (requires water connection)
Installation note: Verify counter cut-out dimensions and electrical specifications prior to purchase. Auto-fill and manifold drain connections must meet local plumbing codes.

Ask about Middleby Equipment Financing for fast approvals and affordable monthly payments.

Features & Specs

Manufacturer

Wells (Middleby)

Certifications

cULus

Height

9.75in

Width

29.5in

Depth

23.63in

Shipping Weight

51.0lbs

Controls

infinite controls

Style

individual pans

Wet or Dry operation

wet or dry

Construction

stainless steel top, corrosion resistant steel exterior

Insulated or Non-Insulated

insulated

Drain

with drain

Pan Capacity

(2) full size (12" x 20")

Specifications

Food Warmer, top-mount, built-in, electric, (2) 12" x 20" openings with manifold drains with one valve, wet/dry operation, infinite controls, stainless steel interior, insulated aluminum steel housing, cULus
