Wells (Middleby) MOD-200 Steam Tables & Food Wells
Wells (Middleby) MOD-200 Steam Tables & Food Wells is backordered and will ship as soon as it is back in stock.
Documents
Related Searches
Reach out via chat, email, or phone—we're here to help make sure it's the right fit for your kitchen. Contact us for more information.
Description

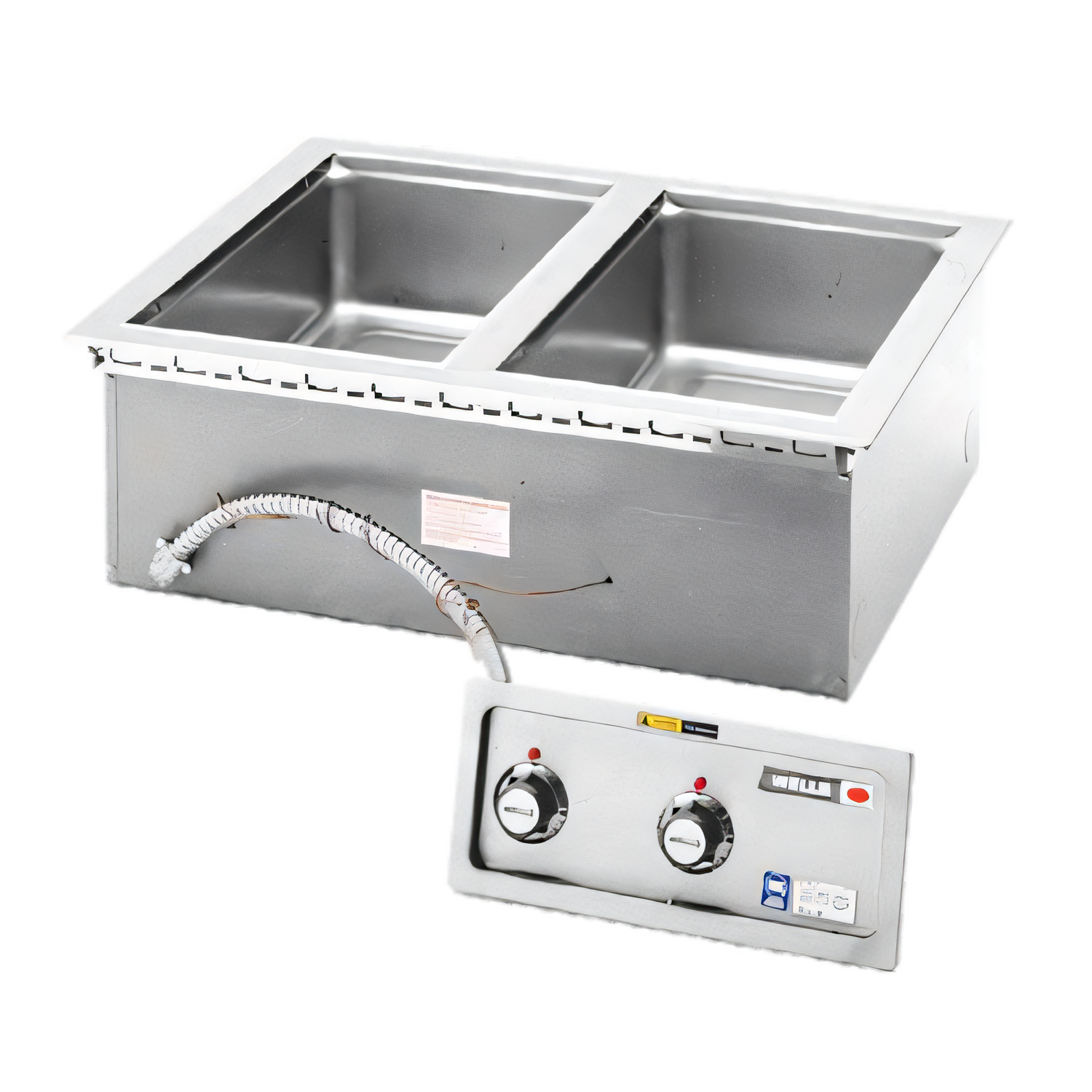

Wells MOD200 Dual-Well Drop-In Food Warmer

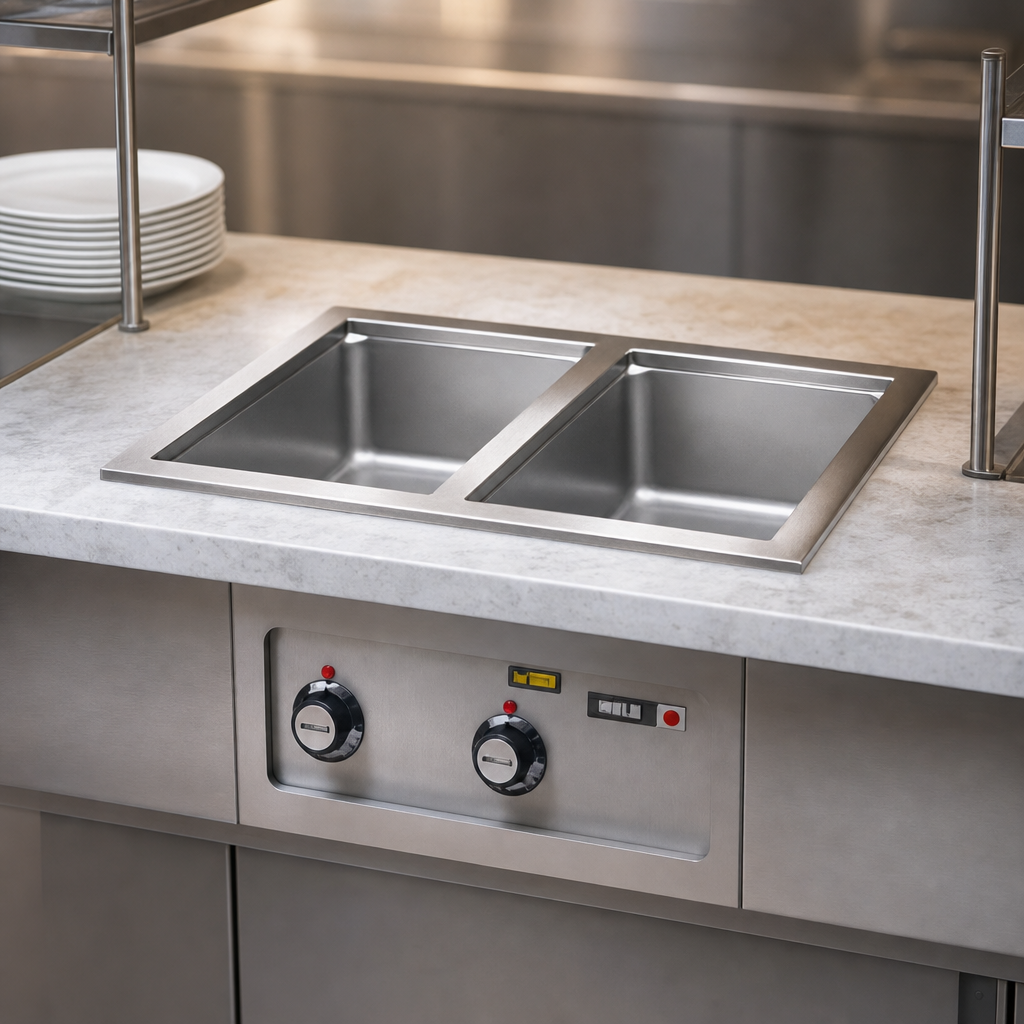

Top-mount • 2 × 12" × 20" wells • Infinite controls • 208/240 V electricKeep entrées, sides and sauces at safe, appetizing temperatures right on the service line. The Wells MOD200 installs flush in virtually any counter, delivering reliable wet or dry heat in two independent wells—all in a rugged, fully-insulated package built for demanding commercial kitchens.
Key Features
- Versatile wet or dry operation—add water for gentle moisture or run dry for peak speed and flexibility.
- Dual infinite controls let you fine-tune holding temperatures for each well independently.
- Deep-drawn stainless steel wells with one-piece stainless top flange for durability and easy cleanup.
- WellsLok® mounting system secures the unit in place in minutes—no special tools required.
- Powerful tubular heating elements deliver quick pre-heat and even heat distribution.
- Energy-saving, fully-insulated aluminized-steel housing—ideal for wood, stone or other non-metal counters.
- Built-in high-limit protection and “power on” indicator lights safeguard against overheating.
- NSF & cULus listed for safe, code-compliant operation.
Perfect For
- Buffets, salad bars & carving stations
- Quick-serve & fast-casual lines
- Catering and banquet setups
- Any kitchen needing a compact, built-in holding solution
Technical Specifications
Model | MOD200 (Infinite controls, no drains) |
---|---|
Pan Capacity | (2) full-size 12" × 20" pans or fractional equivalents |
Overall Width | 29 ½ in / 749 mm |
Overall Depth | 23 5⁄8 in / 600 mm |
Well Depth | 9 ¾ in / 248 mm |
Electrical | 208 V, 1 ph, 1 800 W • 240 V, 1 ph, 2 400 W (900/1 200 W per well) – hard-wired |
Control Type | Manual infinite switches (one per well) |
Interior | Stainless steel wells & flange |
Exterior Housing | Fully insulated aluminized steel |
Shipping Weight | 51 lb / 23.2 kg |
Certifications | NSF, cULus |
Warranty | 1-year limited parts & labor |
Included With Your Purchase
- Factory-installed WellsLok® clips for quick drop-in mounting
- Pre-wired heating elements and control panel
- Owner’s manual & installation guide
Need adaptor rings, drains or auto-fill? Ask us about factory options before ordering.
