Wells (Middleby)  |  SKU: MOD-100TD/AF

Wells (Middleby) MOD-100TD/AF Steam Tables & Food Wells

$2,163.00
Expected delivery date of , to your door
if ordered within hours and minutes
Not Shipping to ?
More Delivery Options
Documents
Cutsheet Owner's manual Middleby financial flyer Warranty sheet
Related Searches
Food Holding & Warming Equipment Steam Tables & Food Wells

Reach out via chat, email, or phone—we're here to help make sure it's the right fit for your kitchen. Contact us for more information.

Description

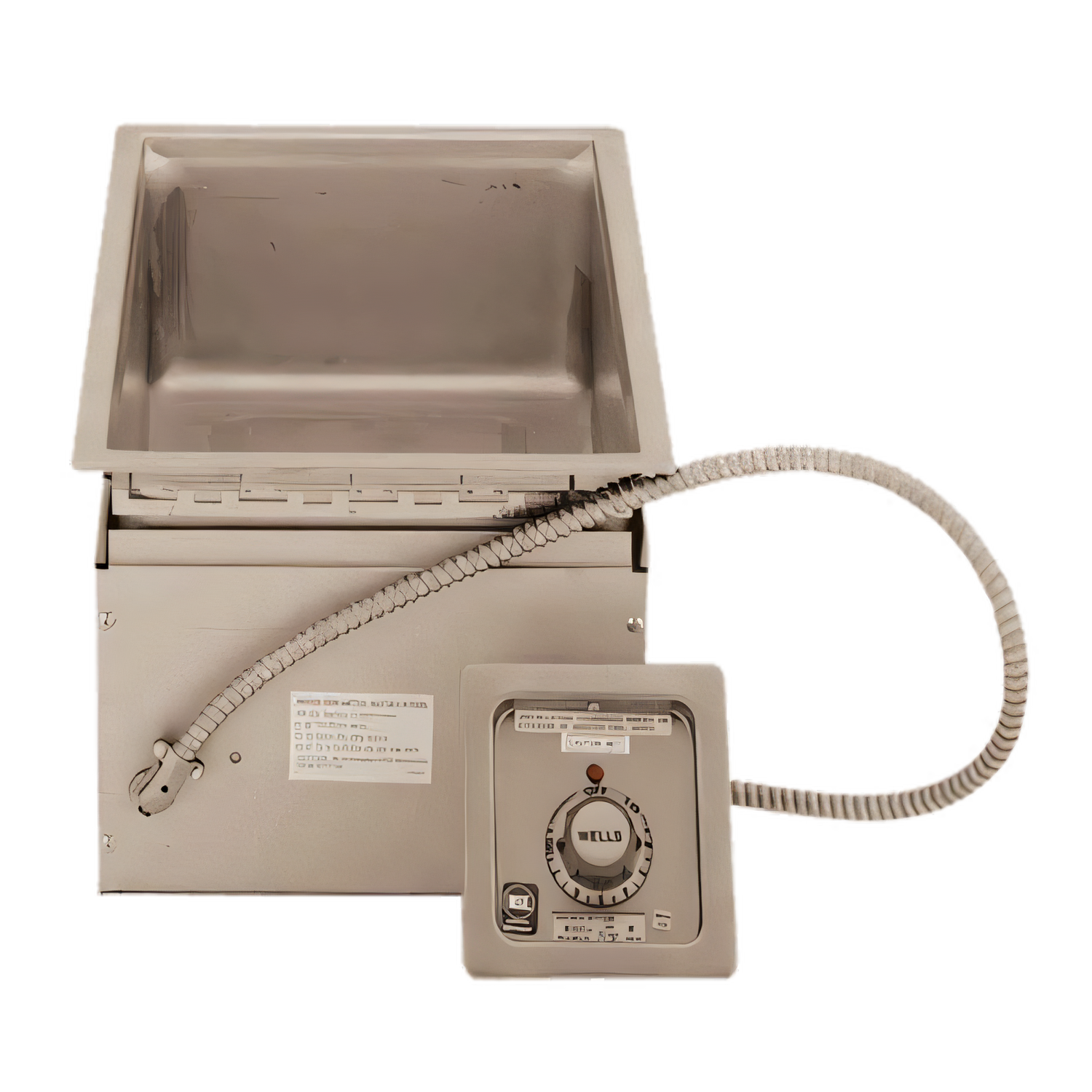

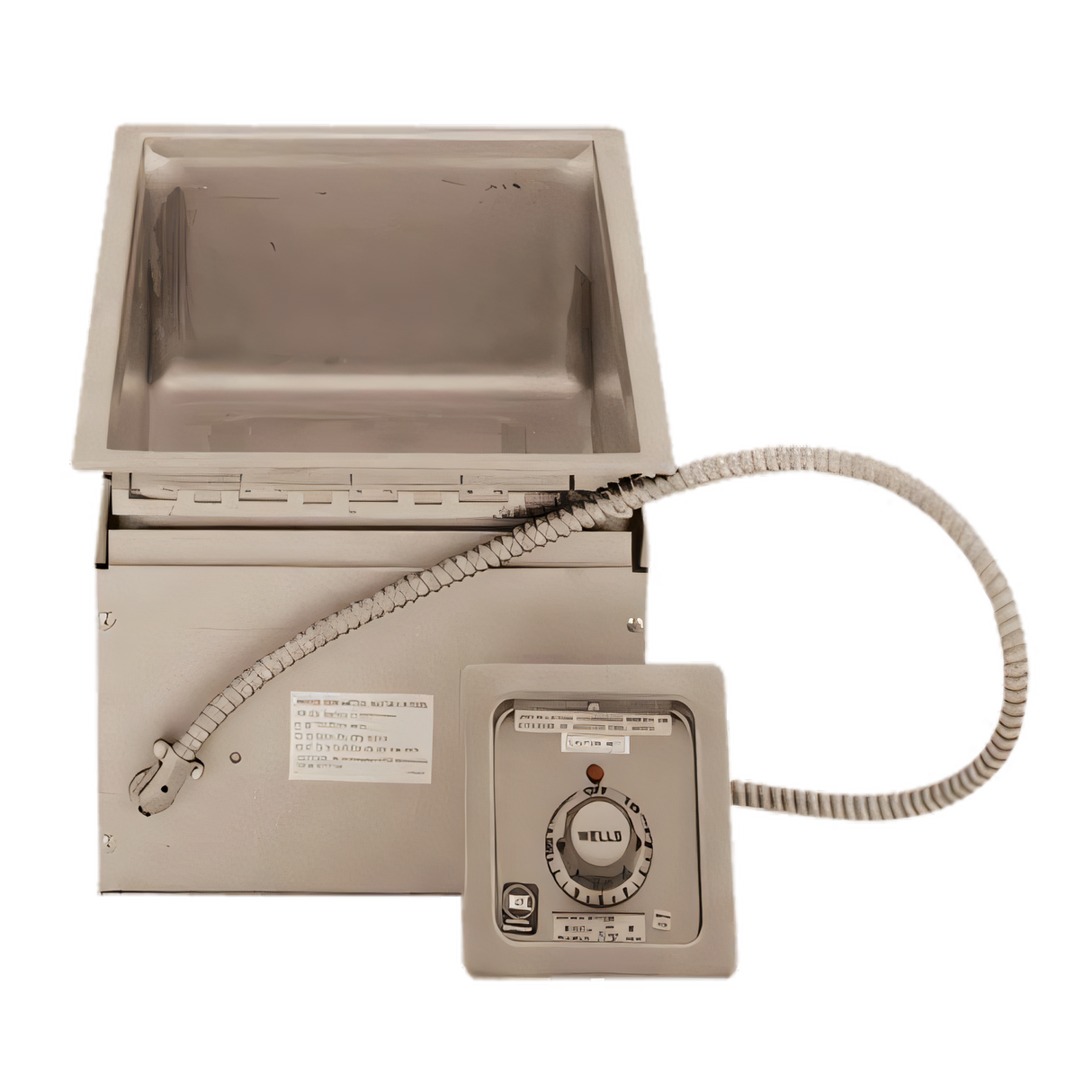

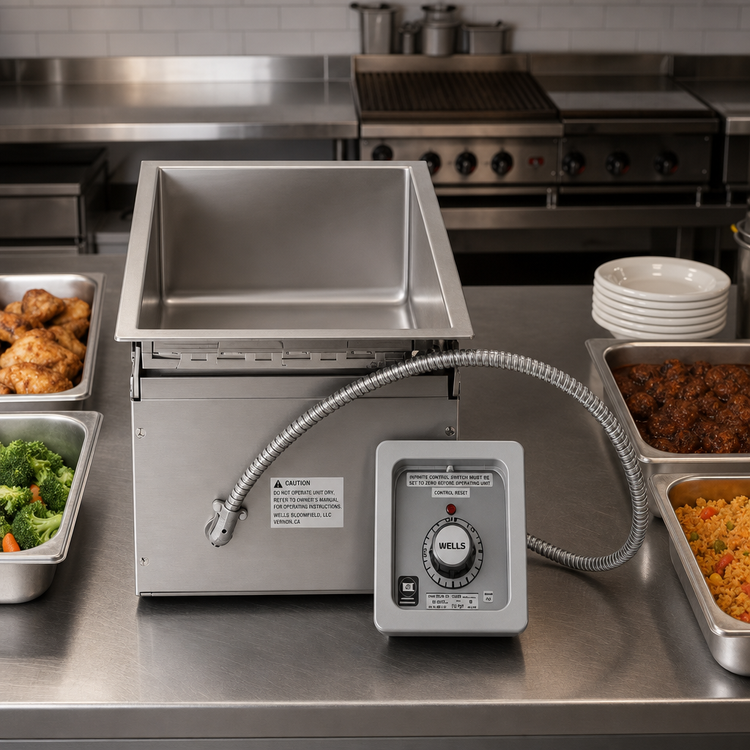

Wells MOD100TDAF Drop-In Auto-Fill Food Warmer

12" × 20" Single Well | Thermostatic Control | Wet or Dry

Keep entrées, sauces and sides at the perfect serving temperature with the heavy-duty MOD100TDAF from Wells. Engineered for busy commercial kitchens, this top-mount, drop-in warmer pairs an automatic water-fill system with precise thermostatic control—delivering consistent, energy-efficient holding performance in a compact, single-well footprint.

Key Features

  • Accepts one 12" × 20" full-size steam table pan or fractional equivalents.

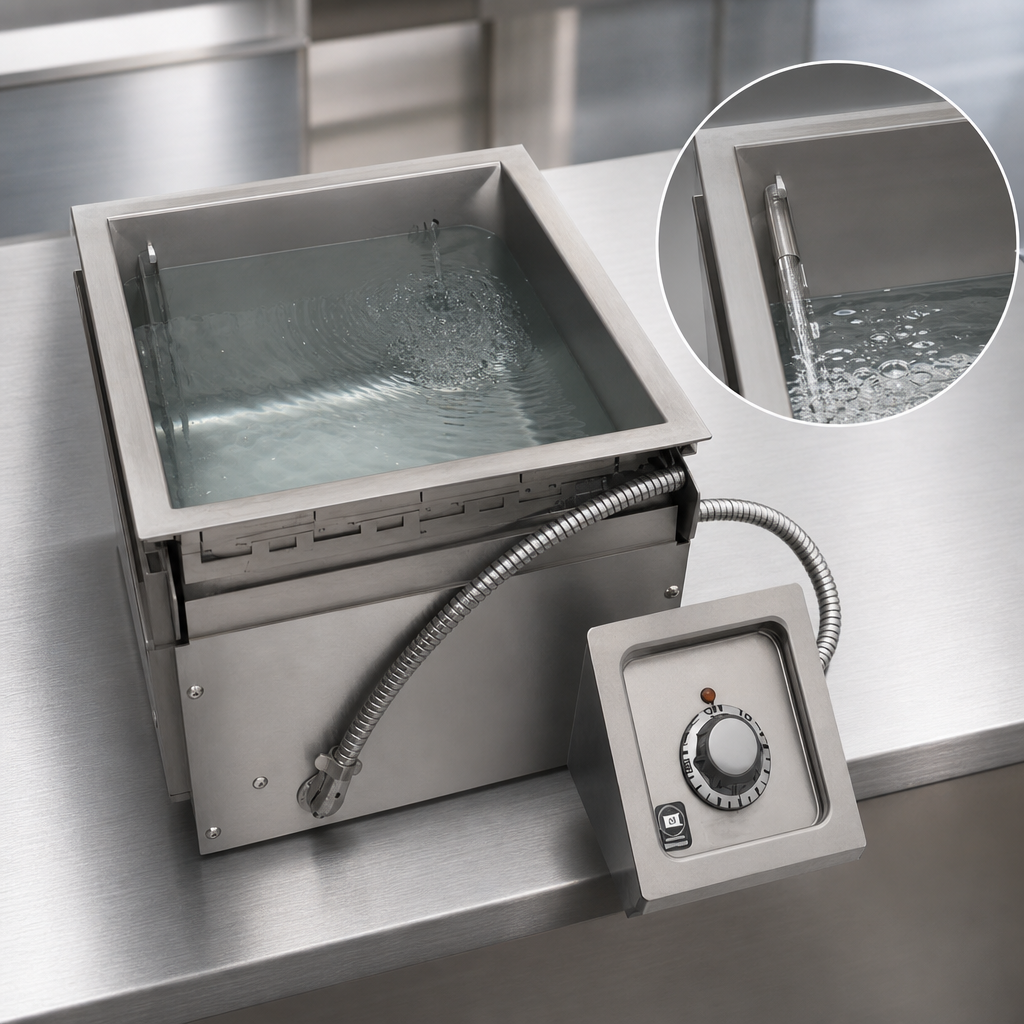

  • Auto-fill system maintains the ideal water level and includes integrated back-flow prevention.
  • Large 14" × 14" recessed front control panel with easy-read temperature dial.
  • True wet or dry operation—wet mode recommended for quickest heat transfer.
  • Powerful tubular heating element for rapid pre-heat and even heat distribution.
  • High-limit safety thermostat guards against overheating.
  • Fully insulated aluminized-steel housing reduces energy loss and keeps surrounding surfaces cool.
  • One-piece stainless steel top flange & deep-drawn well for a seamless, easy-clean food zone.
  • WellsLok™ mounting system simplifies installation in stainless or non-metal counters.
  • ½" NPT internal drain speeds end-of-day cleanup.
  • NSF & UL certified for food-safe, code-compliant operation.

Specifications

Model MOD100TDAF
Capacity (1) 12" × 20" pan (or equivalent fractional pans)
Operation Wet or dry with automatic water fill
Control Type Thermostatic, front-mounted
Well Material Deep-drawn stainless steel
Housing Insulated aluminized steel
Control Panel Size 14" W × 14" H
Drain ½" NPT internal with manifold
Voltage 208/240 V, 1-phase
Wattage 1,240 W @ 208 V | 1,650 W @ 240 V
Top Flange Dimensions 23-1/4" D × 14-3/4" W
Certifications NSF, UL
Warranty 1-year limited parts & labor
Installation Note: Auto-fill models require a dedicated cold-water connection. Follow Wells installation instructions for proper back-flow prevention and minimum clearances.

Optional Accessories

  • Adaptor tops for round soup insets
  • Inset with lid & 8 oz. soup ladle
  • Drain valve extension kit & drain screens
  • WellsLok™ extension kit for wood countertops
  • 6' or 72" factory-installed cords & plugs (120 V or 208/240 V models)

Need flexible payment options? Middleby Equipment Financing can turn this essential purchase into easy monthly payments. Learn more ›

Features & Specs

Manufacturer

Wells (Middleby)

Certifications

NSF, UL

Height

9.75in

Width

14.75in

Depth

23.25in

Shipping Weight

30.0lbs

Pan Capacity

(1) full size (12" x 20")

Style

individual pans

Insulated or Non-Insulated

insulated

Construction

stainless steel top, corrosion resistant steel exterior

Controls

thermostatic controls

Drain

with drain

Wet or Dry operation

wet or dry

Specifications

Food Warmer, top-mount, drop-in, electric, auto-fill, (1) 12" x 20" pan opening with drain, wet/dry operation, thermostatic controls, 14" x 14" control panel, stainless steel interior, insulated aluminized steel housing, NSF, UL
