Wells (Middleby)  |  SKU: MOD-100T

Wells (Middleby) MOD-100T Steam Tables & Food Wells

$1,144.00
Expected delivery date of , to your door
if ordered within hours and minutes
Not Shipping to ?
More Delivery Options
Documents
Cutsheet Owner's manual Installation manual Middleby financial flyer Warranty sheet
Related Searches
Food Holding & Warming Equipment Steam Tables & Food Wells

Reach out via chat, email, or phone—we're here to help make sure it's the right fit for your kitchen. Contact us for more information.

Description

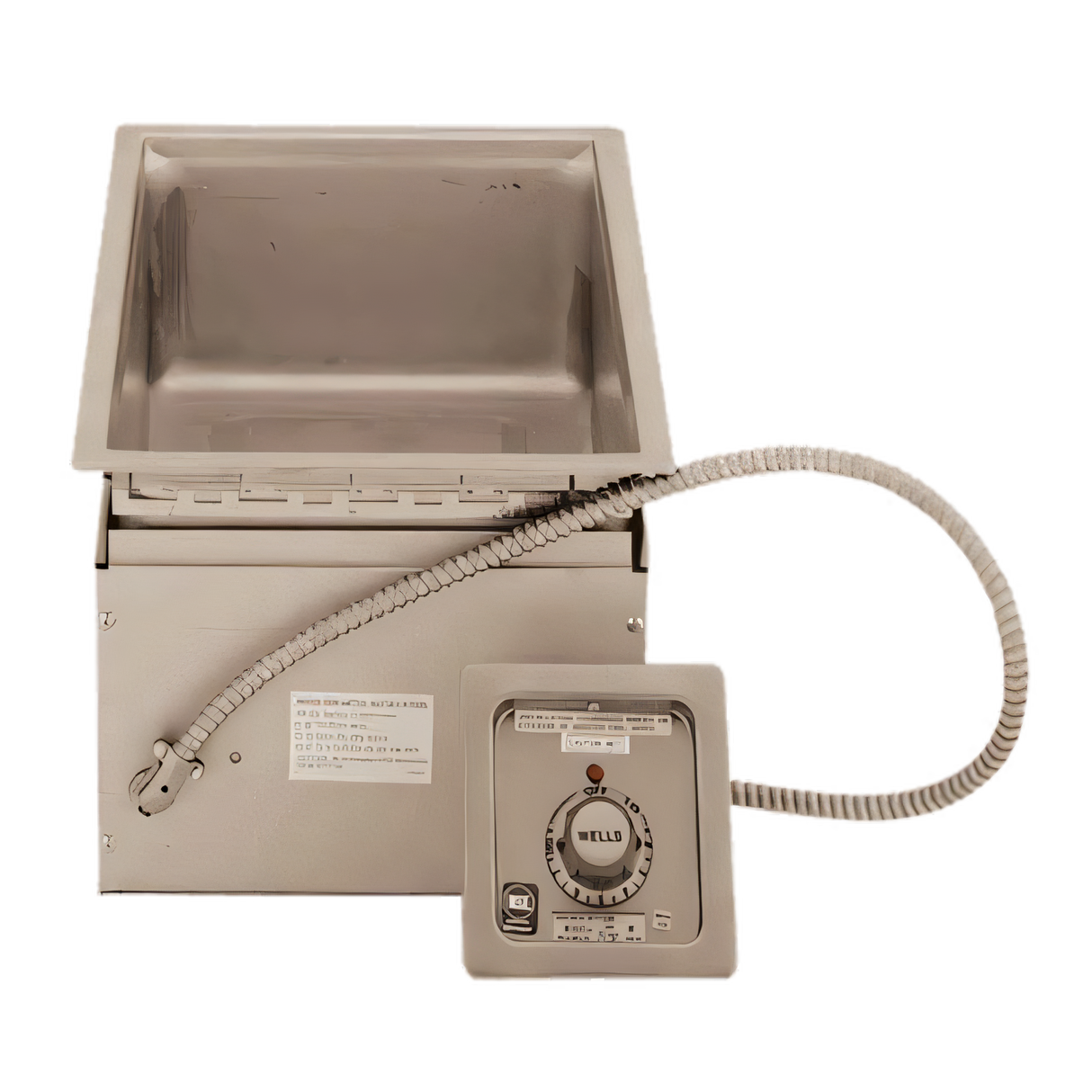

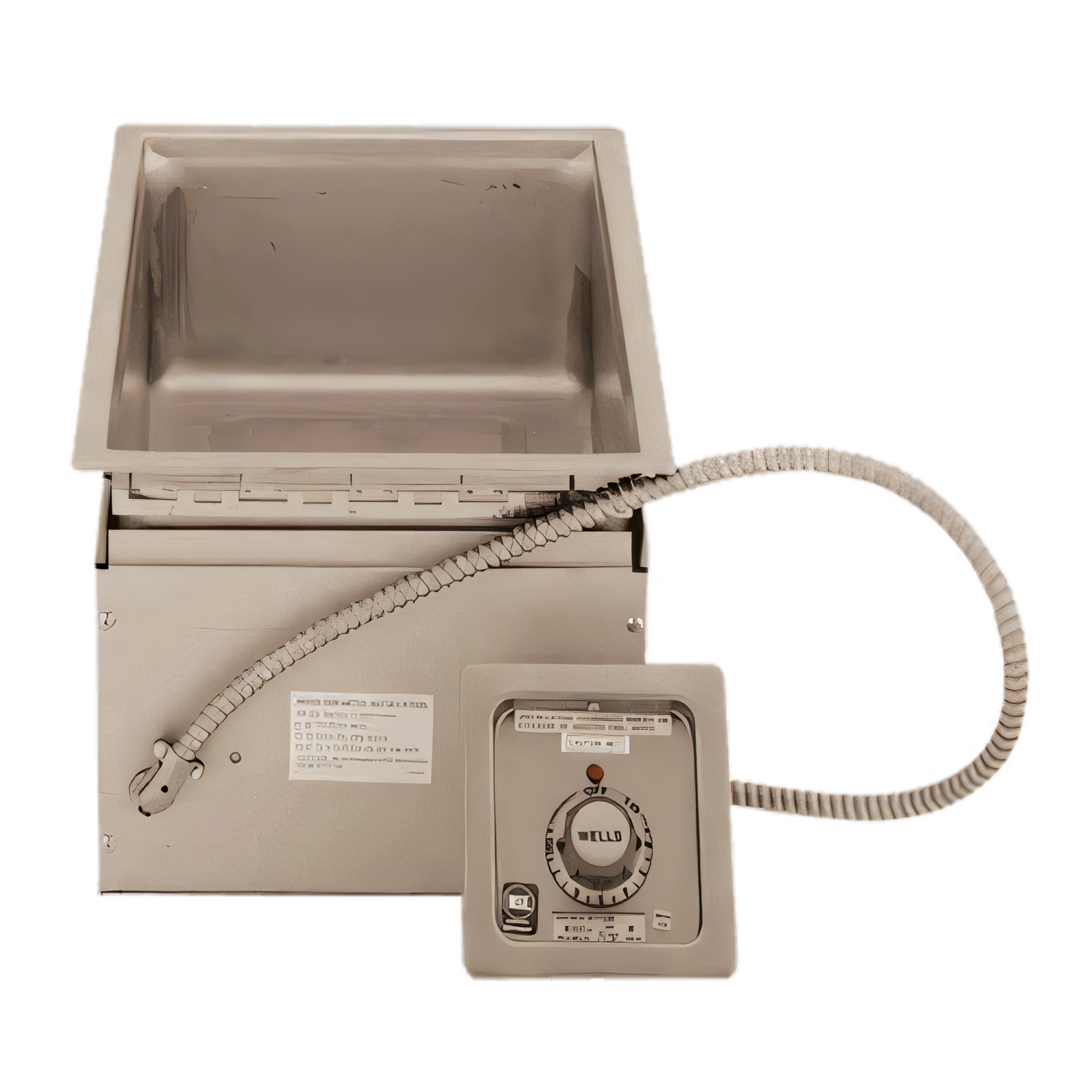

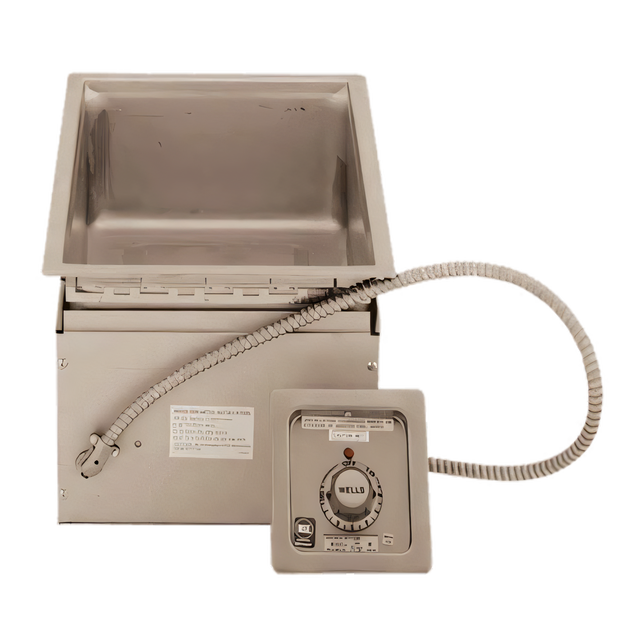

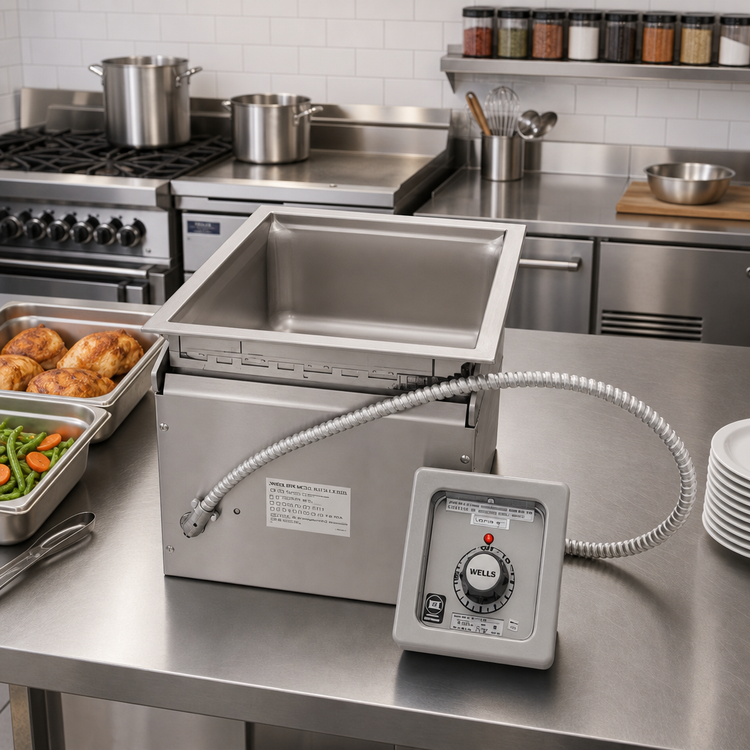

Wells MOD100T Drop-In 12" x 20" Electric Food Warmer

Single well • Top-mount • Wet/Dry • Thermostatic Control

Keep entrées, sauces and sides at precise serving temperatures with the heavy-duty Wells MOD100T. Designed for seamless drop-in installation, this fully-insulated 12" x 20" well delivers consistent, energy-efficient warming in both wet and dry applications—perfect for buffet lines, cafeterias and catering stations.

Key Features

  • Holds one full-size 12" x 20" steam-table pan or fractional equivalents.
  • Thermostatic dial with recessed 5-7/8" W × 6-1/4" H front panel for easy, protected control.
  • Wet or dry operation—add water for gentle steaming or run dry for fast holding.
  • Deep-drawn stainless steel well and one-piece top flange for superior durability & easy cleaning.
  • Fully-insulated aluminized-steel housing cuts heat loss and is safe for non-metal counters.
  • Powerful tubular element mounted beneath the pan ensures even heat distribution.
  • Built-in high-limit safety shuts off power to prevent overheating.

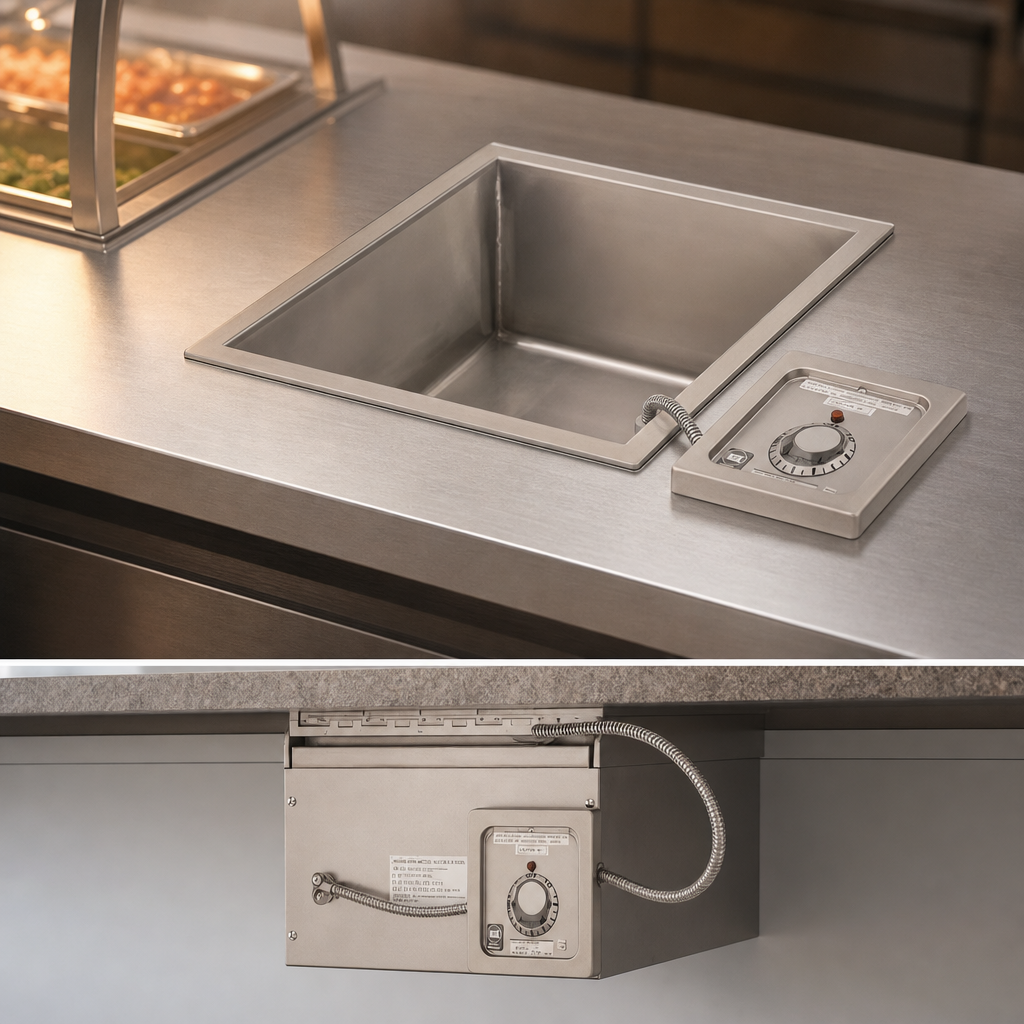

  • WellsLok™ mounting hardware speeds up installation and locks the unit firmly in place.
  • NSF & UL certified and backed by a 1-year limited parts-and-labor warranty.

Specifications

Model MOD100T (no-drain)
Pan Capacity (1) 12" × 20" full-size pan or fractional pans
Operation Wet or Dry
Controls Thermostatic with indicator light
Electrical 120 V / 1,650 W / 13.8 A  •  208 V / 1,240 W / 6 A  •  240 V / 1,650 W / 6.9 A (single-phase)
Plug Type NEMA 5-15P (120 V) or NEMA 6-15P (208/240 V)
Overall Dimensions 13-3/4" W × 21-3/4" D × 9-3/4" H
Well Depth 6-7/8"
Control Panel Size 5-7/8" W × 6-1/4" H
Shipping Weight 24 lb (10.9 kg)
Certifications NSF, UL
Warranty 1-year limited parts & labor

Need a drain, auto-fill or extended wiring? Other MOD100 configurations are available—ask us for details.

Features & Specs

Manufacturer

Wells (Middleby)

Certifications

NSF, UL

Height

9.75in

Width

13.75in

Depth

21.75in

Shipping Weight

24.0lbs

Pan Capacity

(1) full size (12" x 20")

Drain

without drain

Controls

thermostatic controls

Style

individual pans

Insulated or Non-Insulated

insulated

Construction

stainless steel top, corrosion resistant steel exterior

Wet or Dry operation

wet or dry

Specifications

Food Warmer, top-mount, drop-in, electric, (1) 12" x 20" opening, wet/dry operation, thermostatic controls, 5-7/8" x 6-1/4" control panel, stainless steel interior, insulated aluminized steel housing, NSF, UL
