Wells (Middleby) MOD-100D Steam Tables & Food Wells
Description

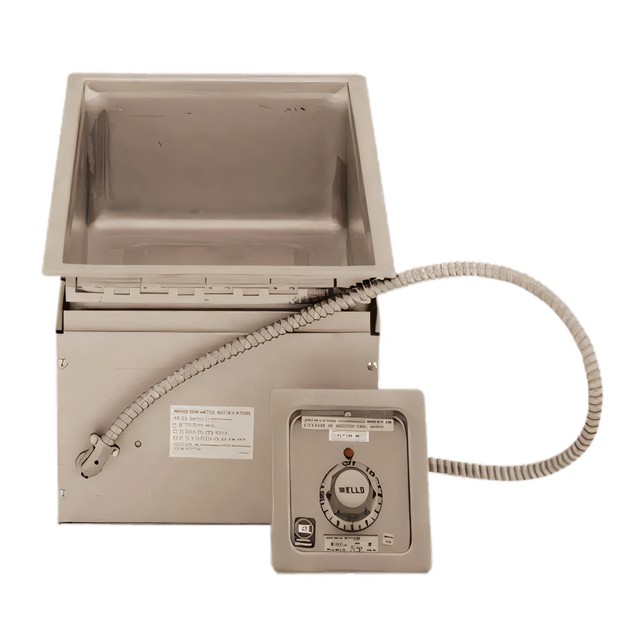

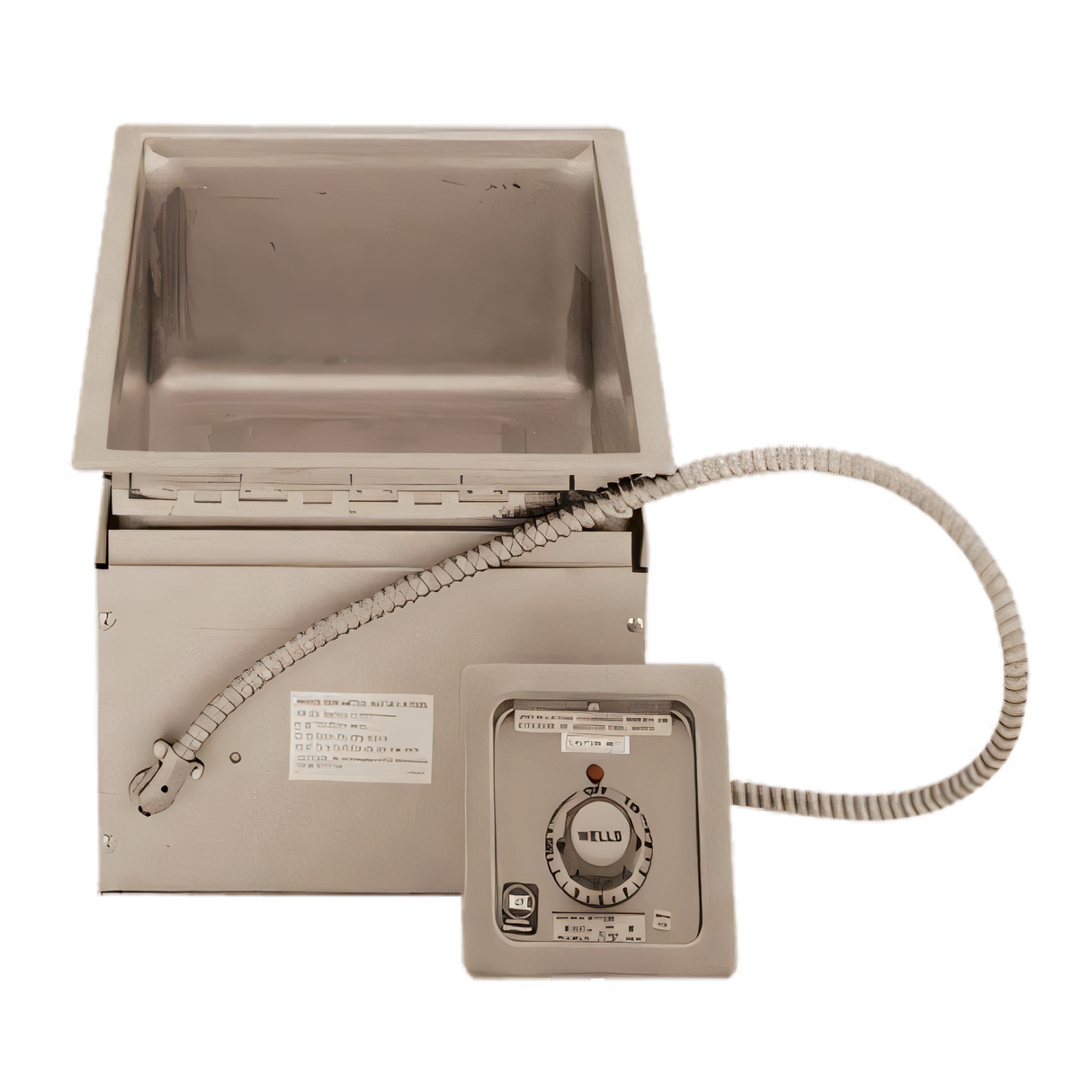

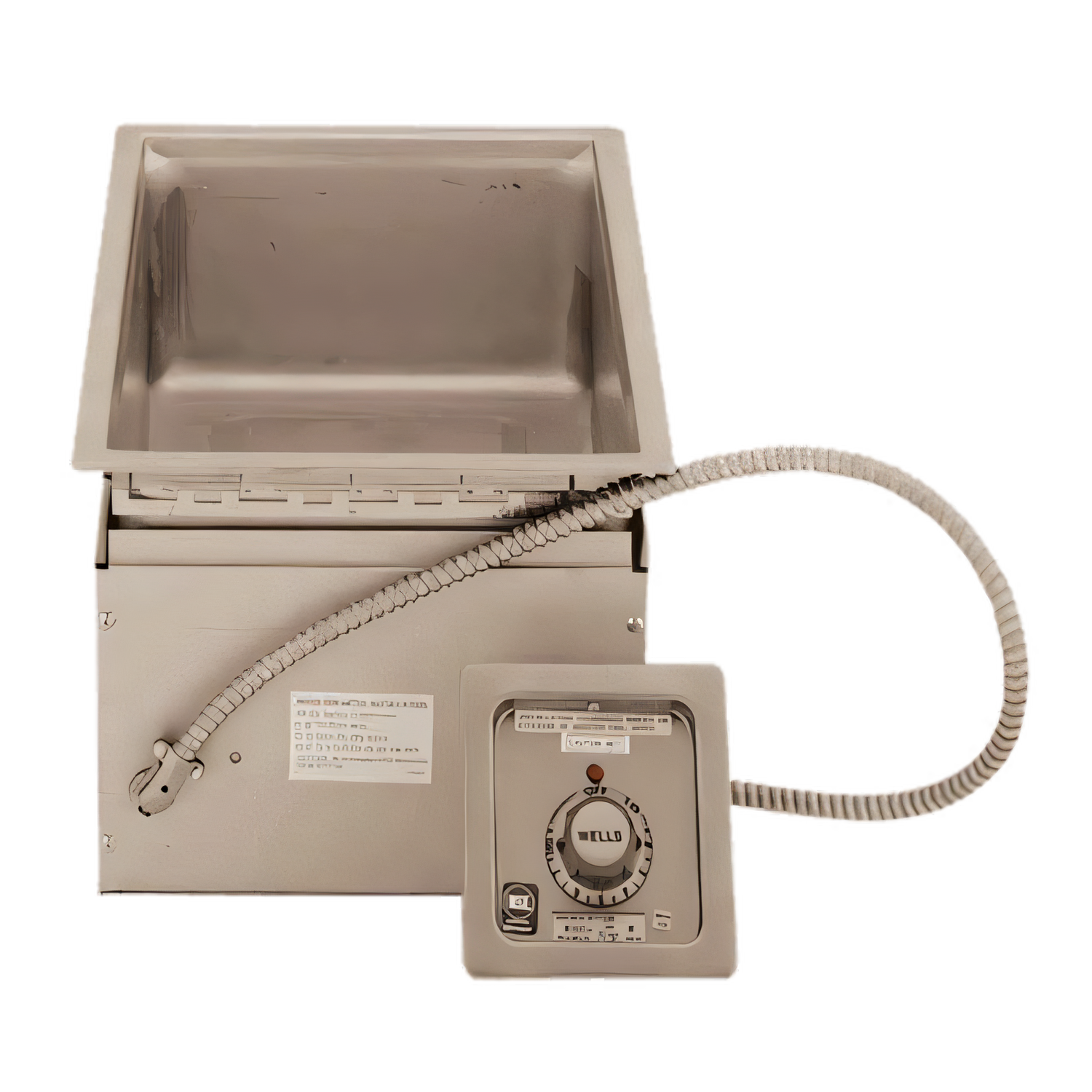

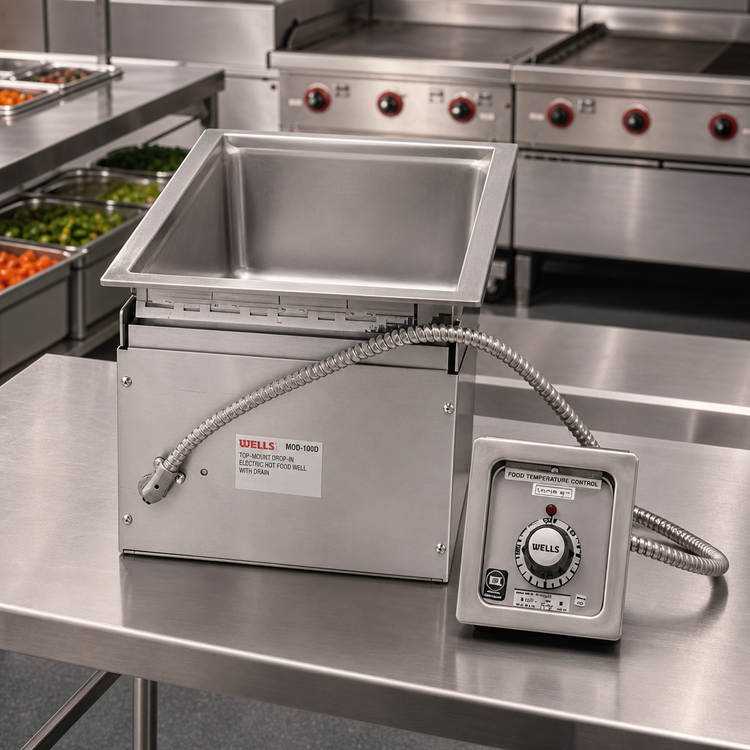

Wells MOD100D Drop-In 12" x 20" Food Warmer – Infinite Control, With Drain
Top-mount electric wet/dry well · single rectangular pan capacityBuilt for heavy-duty commercial use, the Wells MOD100D keeps entrées, sides and sauces at safe, appetizing temperatures right in your countertop. The fully-insulated stainless-steel well accepts one full-size 12" x 20" pan (or fractional equivalents) and can run wet or dry, giving operators the flexibility they need for any service style.
Why You’ll Love It
- Wet or dry operation – water bath recommended for quickest heat-up and recovery
- Infinite manual control knob with indicator light for intuitive temperature adjustment
- Deep-drawn stainless-steel well & one-piece top flange simplify cleaning and resist corrosion
- Fully insulated aluminized-steel housing protects non-metal counters and saves energy
- ½" NPT drain speeds water removal and change-overs
- High-limit safety shuts off heat to prevent overheating

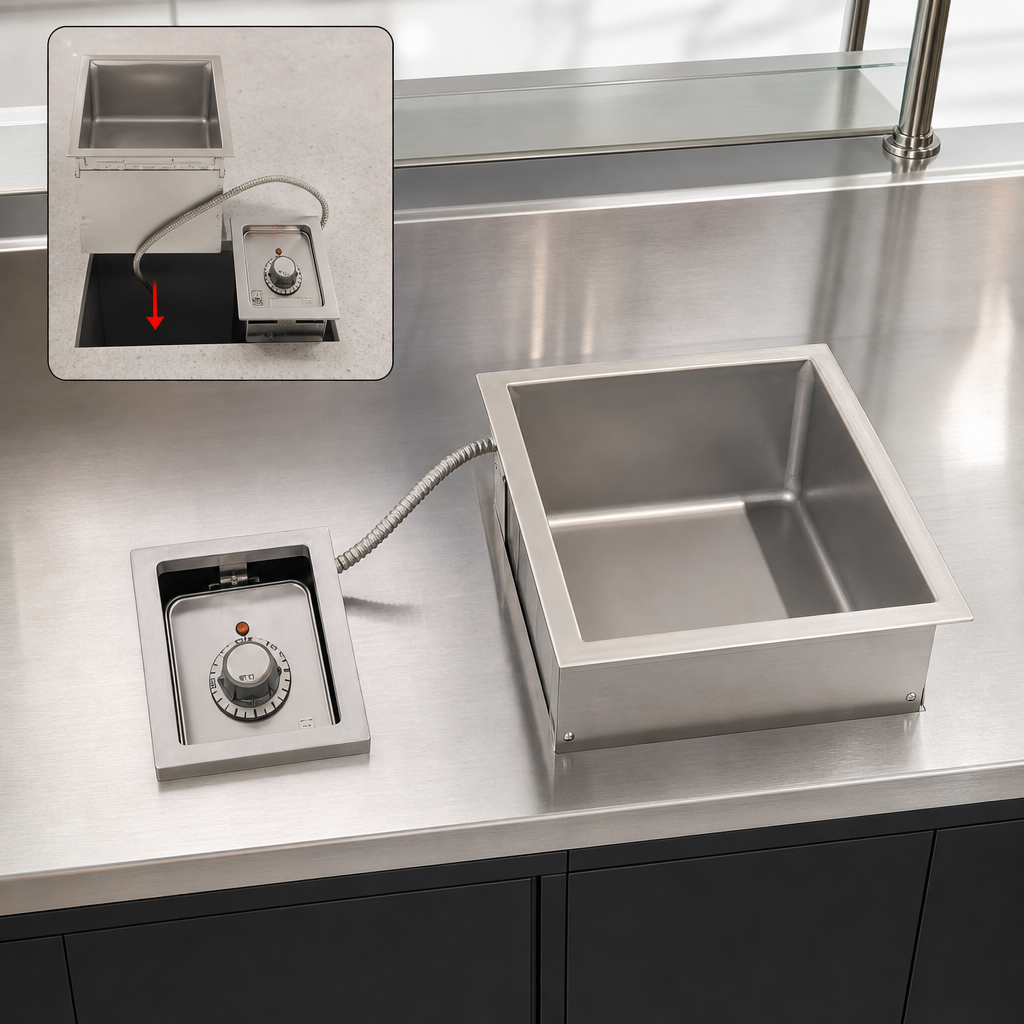

- WellsLok™ mounting system ensures fast, secure drop-in installation
- Powerful tubular heating element delivers even heat distribution
- NSF & UL certified for sanitation and electrical safety
- Backed by a 1-year limited parts & labor warranty
At-a-Glance Specs
| Pan capacity | 1 × full-size 12" × 20" (or fractional pans) |
|---|---|
| Operation | Wet or dry |
| Control type | Infinite manual dial |
| Drain | ½" internal NPT with external valve |
| Overall dimensions | 13-3/4" W × 21-3/4" L × 9-3/4" H (349 × 552 × 248 mm) |
| Control panel size | 5-7/8" W × 6-1/4" H (149 × 159 mm) |
| Electrical | 120 V / 1200 W / 1-ph or 208/240 V / 900-1200 W / 1-ph |
| Shipping weight | 24 lb (10.9 kg) |
| Construction | Stainless-steel well & flange, aluminized-steel insulated housing |
| Certifications | NSF, UL |
| Warranty | 1-year limited parts & labor |
Perfect For
- Buffet lines & cafeterias
- QSR holding stations
- Convenience stores & self-serve counters
- Catering and banquet service
Looking for multiple wells or thermostatic controls? Ask us about other Wells MOD-Series configurations.
