Wells (Middleby)  |  SKU: MOD-100

Wells (Middleby) MOD-100 Steam Tables & Food Wells

$1,074.00
Expected delivery date of , to your door
if ordered within hours and minutes
Not Shipping to ?
More Delivery Options
Documents
Cutsheet Owner's manual Middleby financial flyer Installation manual Warranty sheet
Related Searches
Food Holding & Warming Equipment Steam Tables & Food Wells

Reach out via chat, email, or phone—we're here to help make sure it's the right fit for your kitchen. Contact us for more information.

Description

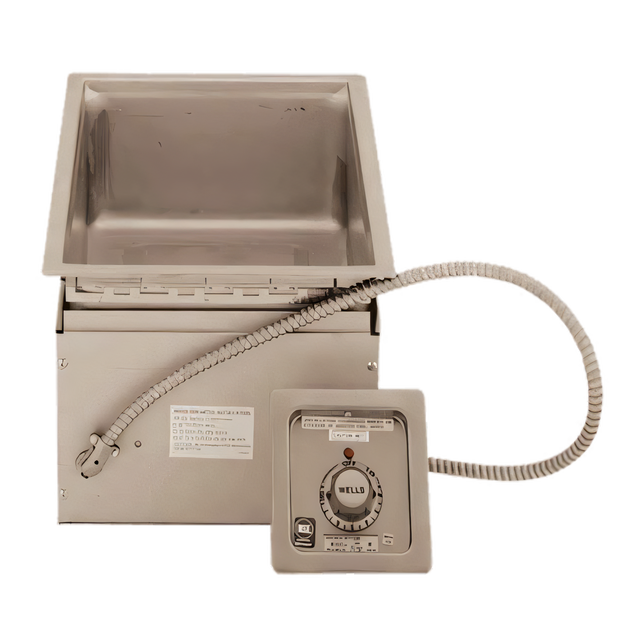

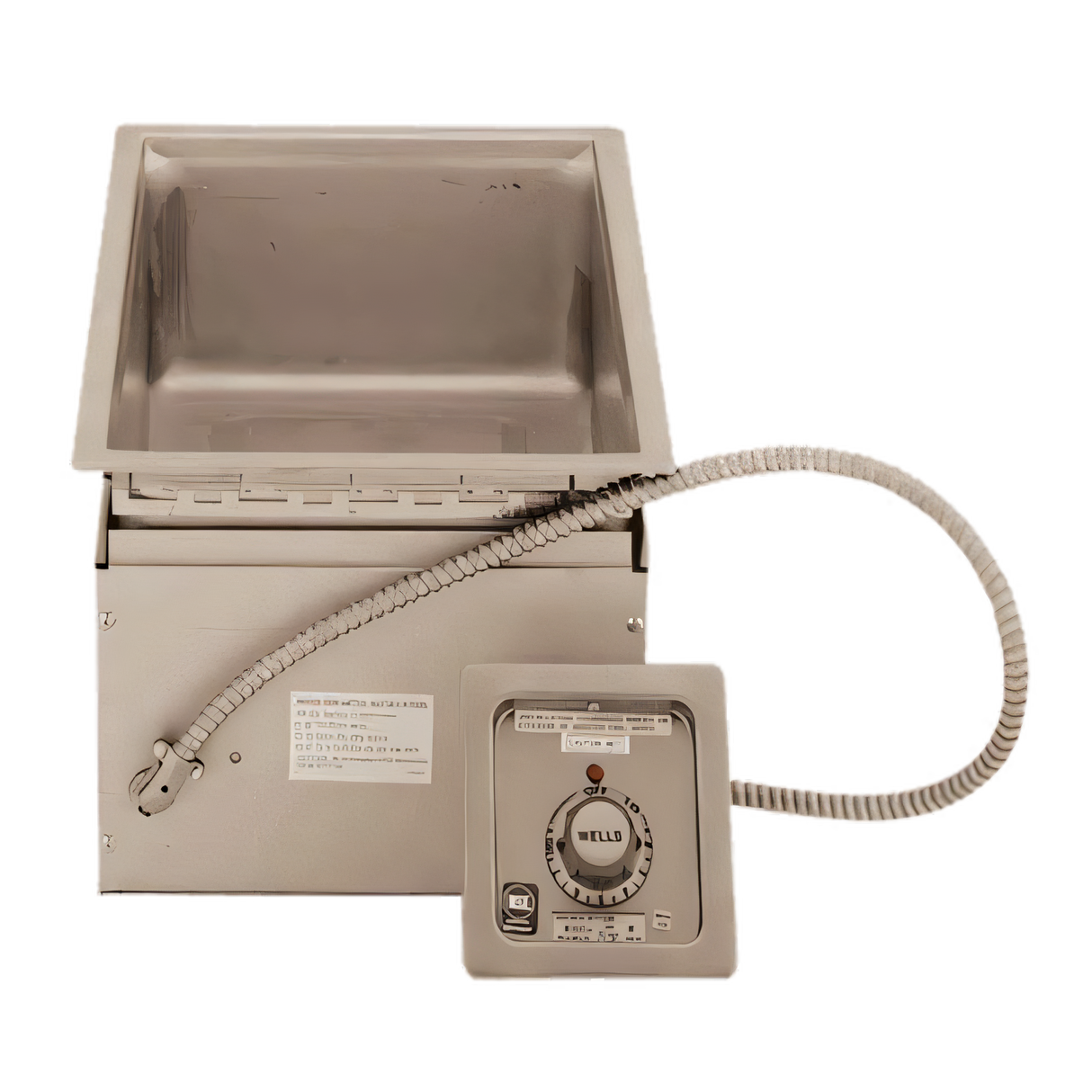

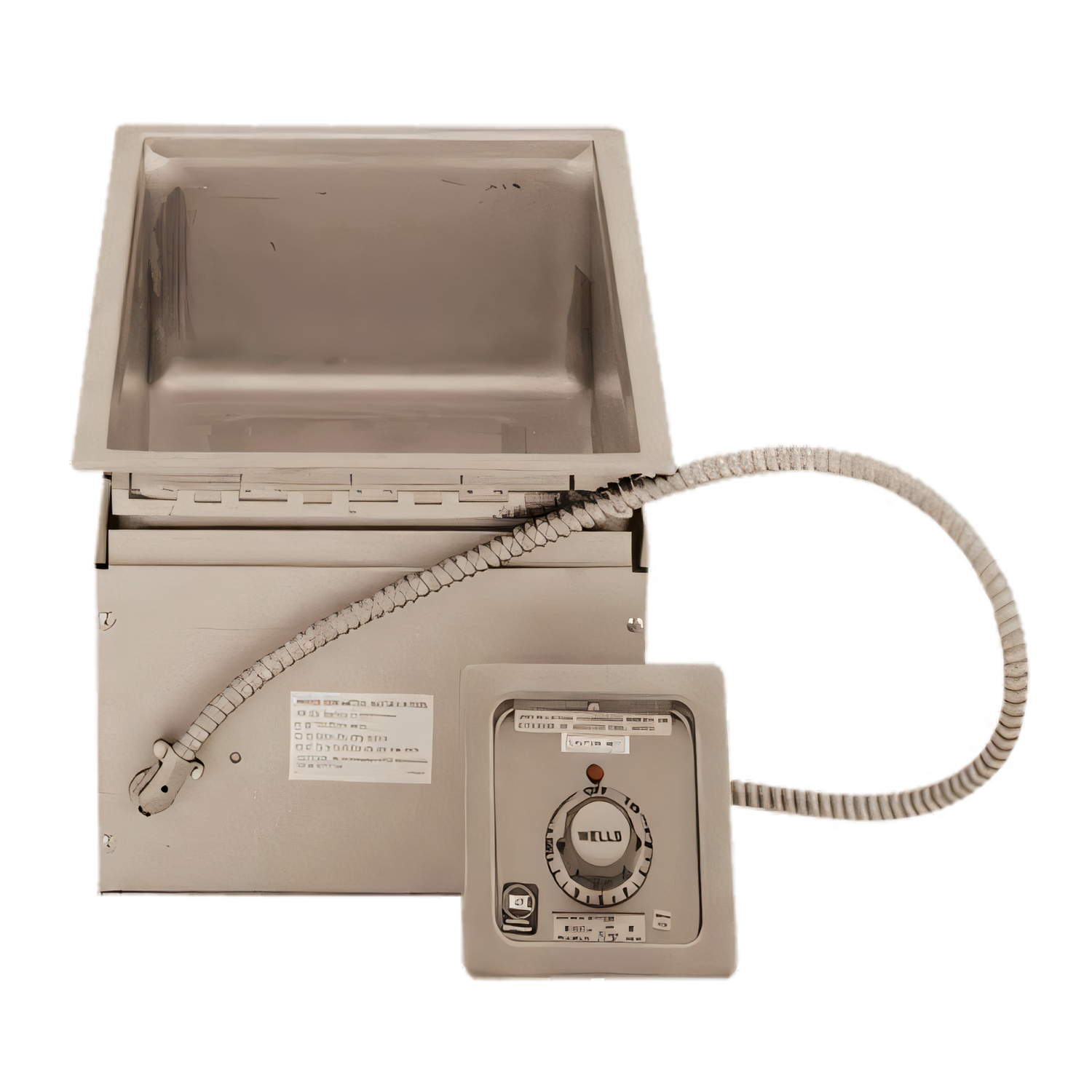

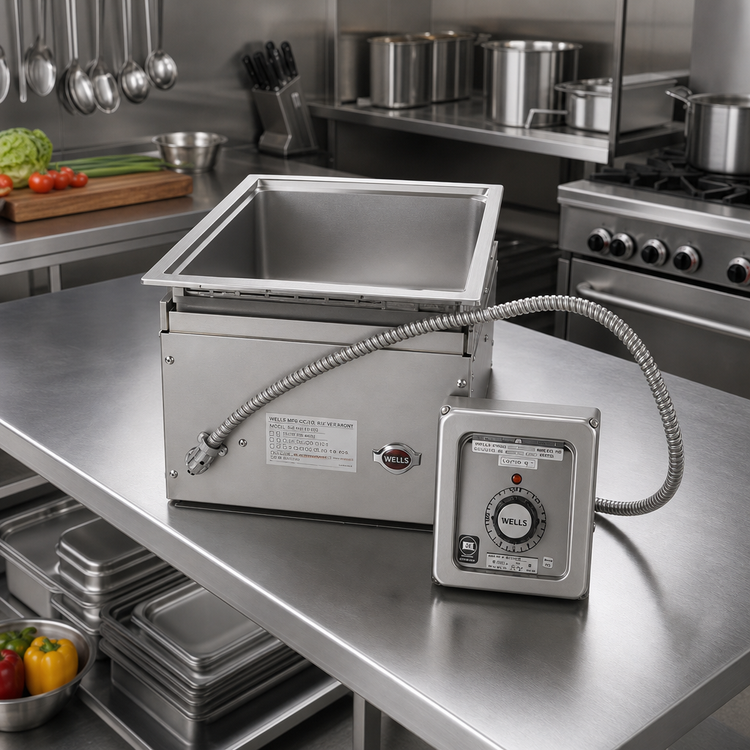

Wells MOD100 Series 12" × 20" Drop-In Food Warmer

Heavy-Duty Top-Mount • Single Well • Infinite Controls

Keep menu items hot, fresh, and ready to serve with Wells’ flagship MOD100 Series drop-in warmer. This rugged, space-saving unit accepts one full-size pan, operates wet or dry, and installs flush in virtually any counter—making it the perfect holding solution for buffets, cafeterias, concessions, and catering lines.

Performance & Construction Highlights

  • Accommodates one full-size 12" × 20" pan or the equivalent in fractional pans.
  • Wet or dry operation—add water for gentle steam heat or run dry for rapid service flexibility.
  • One-piece 18-gauge stainless steel well & top flange for superior durability and easy cleaning.
  • Fully insulated aluminized steel housing improves energy efficiency and protects surrounding surfaces.
  • Smooth infinite control knob housed in a 5-7/8" W × 6-1/4" H front-mounted panel for quick, precise adjustments.
  • High-limit safety thermostat guards against overheating.
  • Powerful tubular heating element delivers even, responsive heat.
  • WellsLok™ mounting system speeds installation—no visible screws or bolts.
  • NSF & UL certified for worry-free code compliance.
  • Backed by Wells’ 1-year limited parts & labor warranty.

Key Specifications

Well Capacity (1) 12" × 20" full-size pan (or fractional equivalents)
Operation Wet or dry (wet recommended for best results)
Control Type Infinite (manual) temperature control
Interior / Top Flange One-piece stainless steel
Housing Fully insulated aluminized steel
Overall Dimensions 13-3/4" W × 21-3/4" D × 9-3/4" H (349 × 552 × 248 mm)
Control Panel Size 5-7/8" W × 6-1/4" H (149 × 159 mm)
Electrical 120 V / 1.2 kW / 1-Ph (standard)
208 V / 0.9 kW / 1-Ph (optional)
240 V / 1.2 kW / 1-Ph (optional)

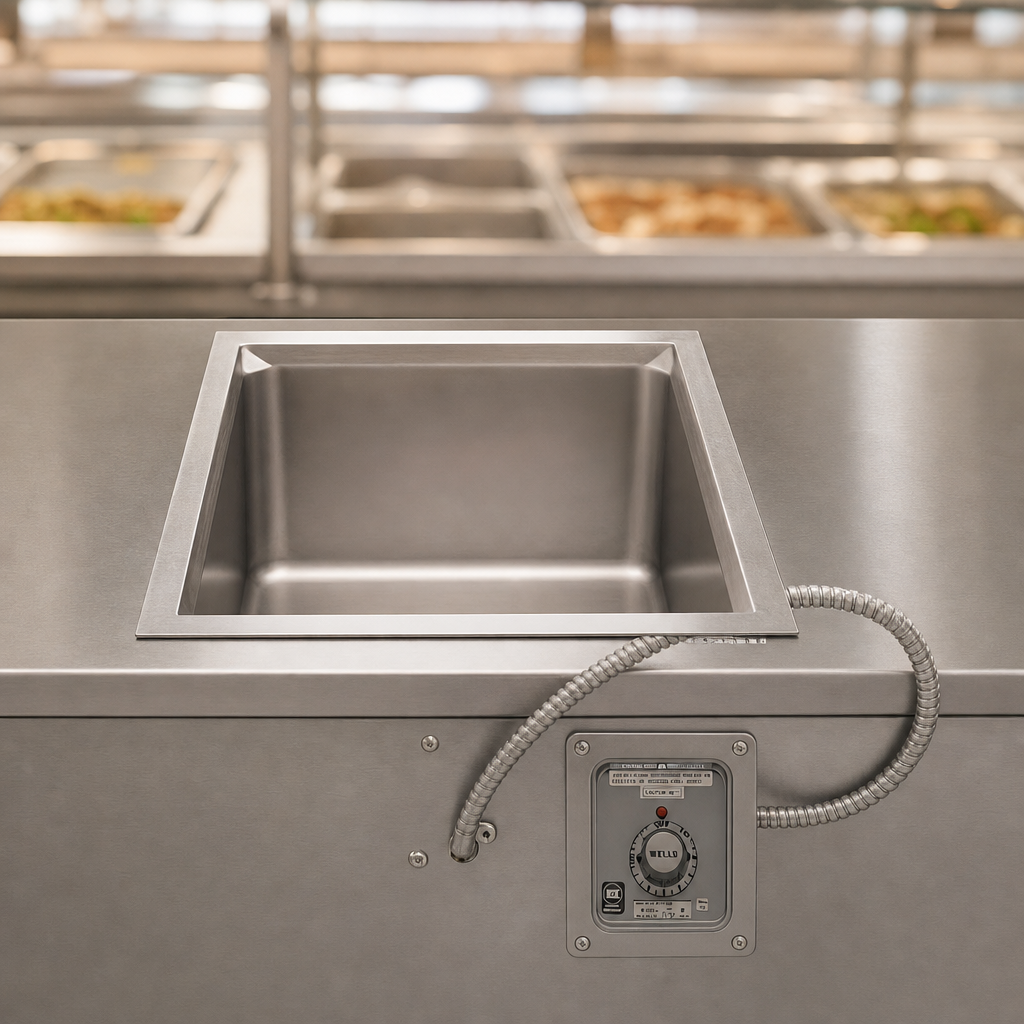

Mounting Top-mount, drop-in with WellsLok™ clamps
Certifications NSF, UL
Warranty 1-year limited parts & labor

Looking for drains, auto-fill, or thermostatic controls? Custom MOD100 configurations and accessories are available—ask us for details.

Installation Reminder: Allow a minimum of 6 3/4" clearance beneath the unit and 4 1/8" at the front for service access. All electrical connections must be performed by a qualified technician.

Features & Specs

Manufacturer

Wells (Middleby)

Certifications

NSF, UL

Height

9.75in

Width

13.75in

Depth

21.75in

Shipping Weight

24.0lbs

Pan Capacity

(1) full size (12" x 20")

Drain

without drain

Controls

infinite controls

Insulated or Non-Insulated

insulated

Style

individual pans

Wet or Dry operation

wet or dry

Construction

stainless steel top, corrosion resistant steel exterior

Specifications

Food Warmer, top-mount, drop-in, electric, (1) 12" x 20" opening, wet/dry operation, infinite controls, 5-7/8" x 6-1/4" control panel, stainless steel interior, insulated aluminized steel housing, NSF, UL
