Wells (Middleby) MDW200 Steam Tables & Food Wells
Description

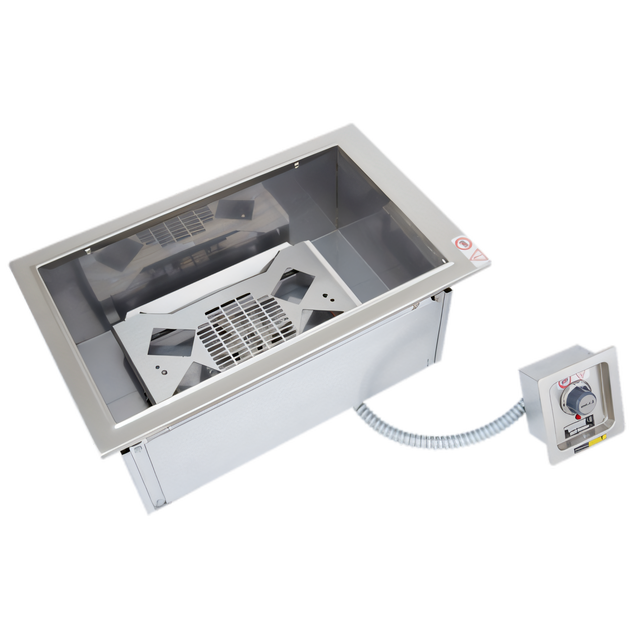

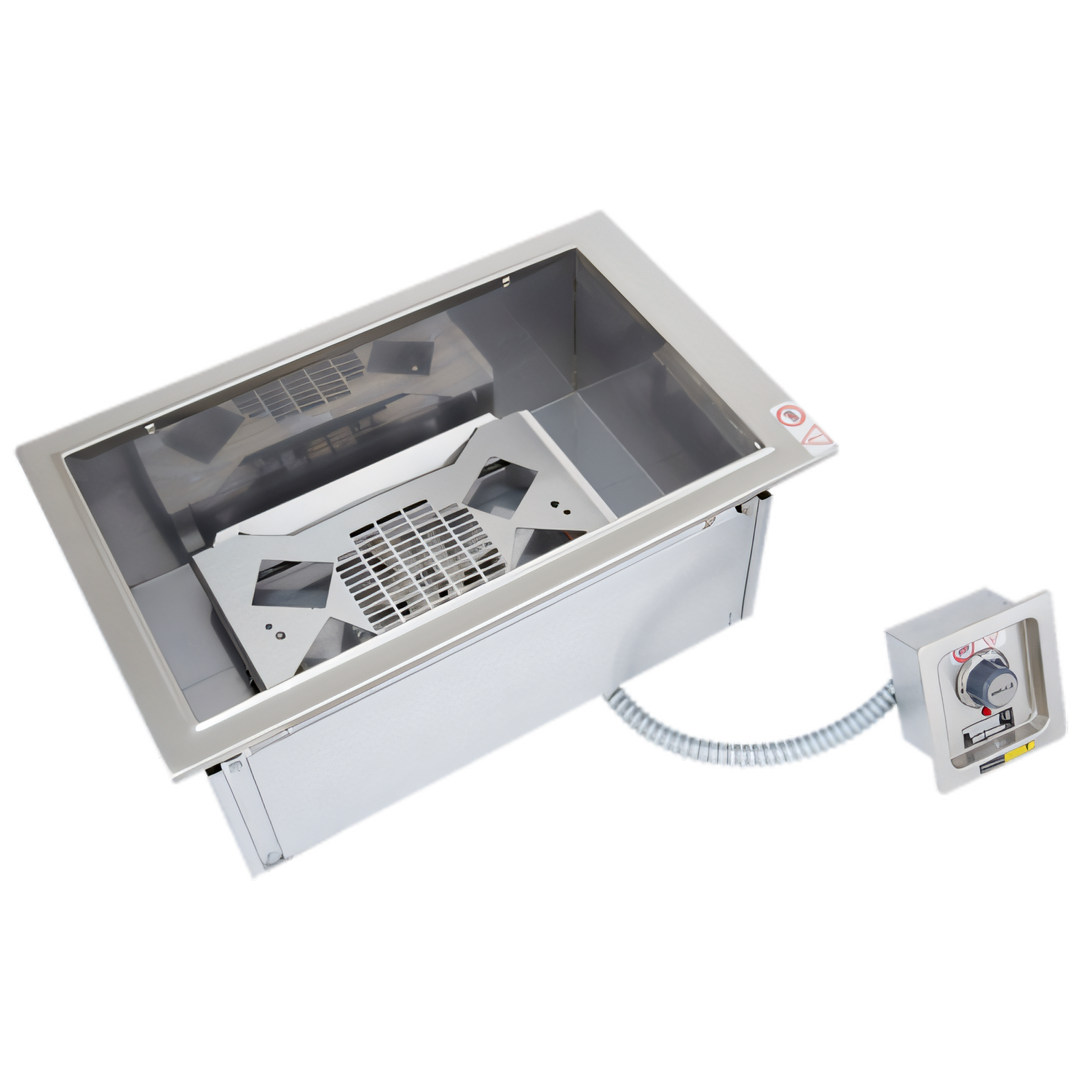

Wells MDW200 Modular Dry Well Food Warmer
2-Well • 12" × 20" pan openings • Top-mount, electric, water-lessKeep entrées, sides and sauces hot, fresh and ready for service—without a single drop of water. The Wells MDW200 is a patent-pending, built-in dry well that replaces traditional wet wells, slashing energy, water and labor costs while delivering consistent holding temperatures across two full-size steam table pans.
Why choose the MDW200?
- No plumbing, drains or fill faucets required—ideal for new builds or MOD series retrofits.
- Energy-efficient tubular elements and a stainless-steel fan use ≈33 % less power than standard wet wells.
- Independent infinite controls let you fine-tune each well for different menu items.
- All top-side serviceable components—no crawling under the counter for maintenance.
- Wellslok™ fastening system secures the unit to metal counters up to 0.25" (6 mm) thick in minutes.
- Corrosion-resistant 430 stainless-steel construction, built-in high-limit protection and UL EPH sanitation compliance.
- Made in the USA and backed by a 1-year parts & labor warranty.
Technical specifications
| Model | MDW200 (two wells) |
|---|---|
| Pan capacity | (2) full-size 12" × 20" pans up to 6" deep or fractional equivalents |

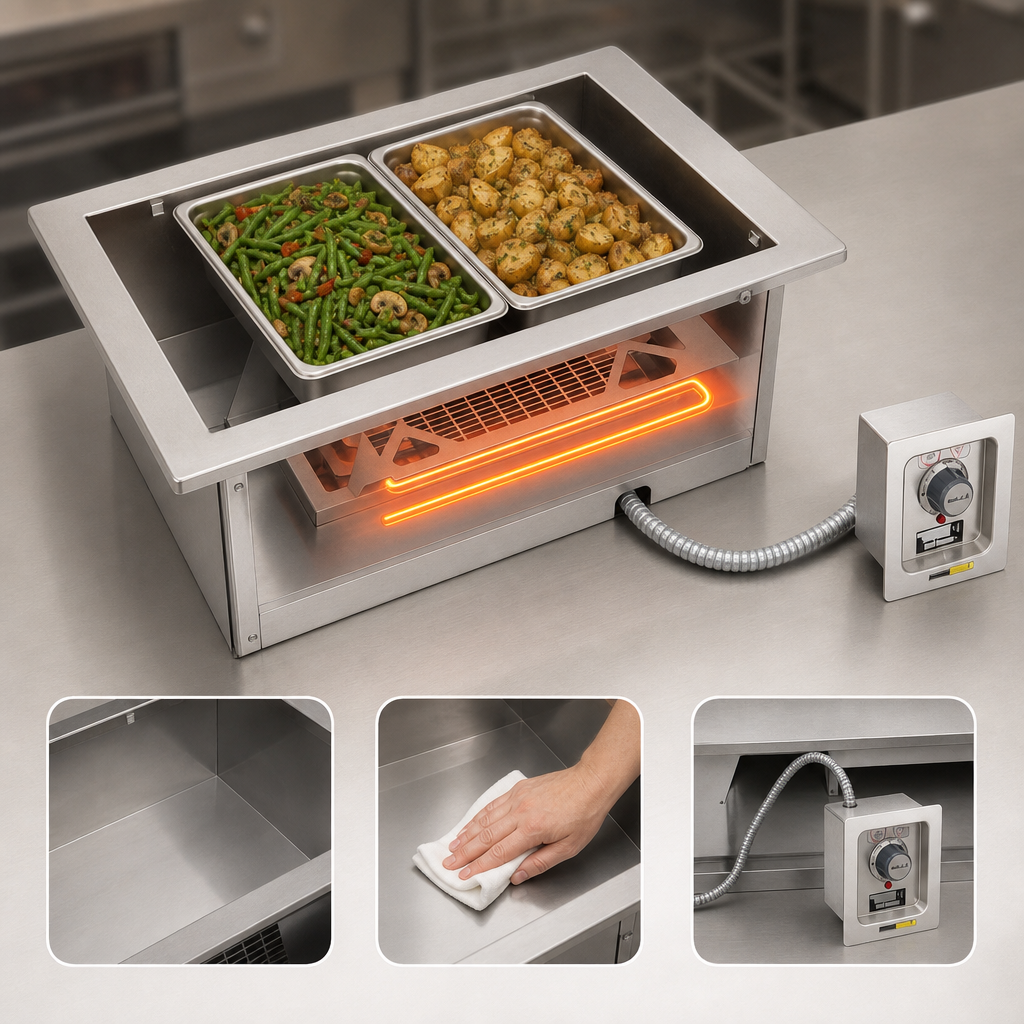

| Operation | Dry (water-less) with fan-assisted tubular heating element |
| Controls | (2) individual infinite knobs, remote-mounted control box |
| Voltage / phase | 208 V , 1 Φ – 5.9 A / 1.22 kW | 240 V , 1 Φ – 6.7 A / 1.6 kW (field-convertible to 3-phase) |
| Exterior material | 430 series stainless steel |
| Top flange (W × D) | 29.5" × 20" (749 mm × 508 mm) |
| Cutout / bottom width | 27.6" (701 mm) |
| Height below counter | 11.9" (302 mm) |
| Shipping / net weight | 63 lb (28.6 kg) / 55 lb (24.9 kg) |
| Certifications | UL EPH Classified, cULus Listed |
| Origin | Made in USA |
What’s included
- Factory-installed Wellslok™ hardware for quick metal-counter installation
- Remote control box with (2) knob controls & front panel
- Owner’s manual & cleaning guard
Popular accessories (sold separately)
- Extension kit for mounting to wood or plastic countertops
- Adapter tops for fractional round insets & soup wells
- 4 qt, 7 qt and 11 qt stainless insets with lids
Specifications are based on information available at the time of publication and are subject to change without notice. Always refer to the installation manual for cut-out dimensions, clearances and wiring details.
