Description

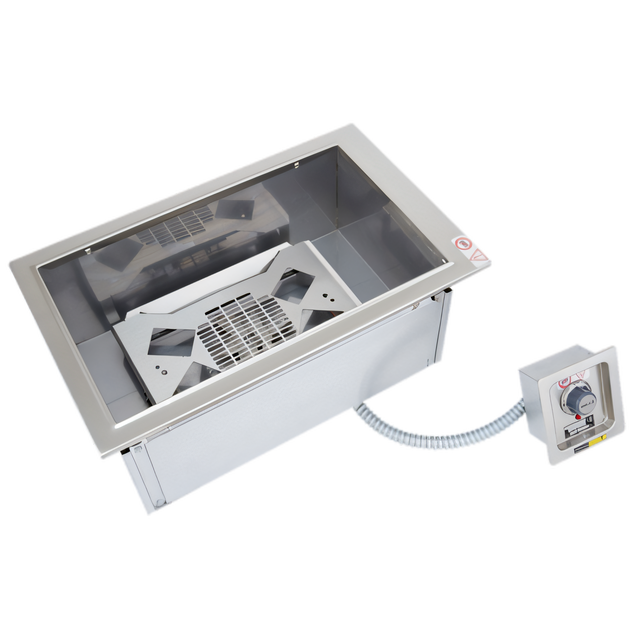

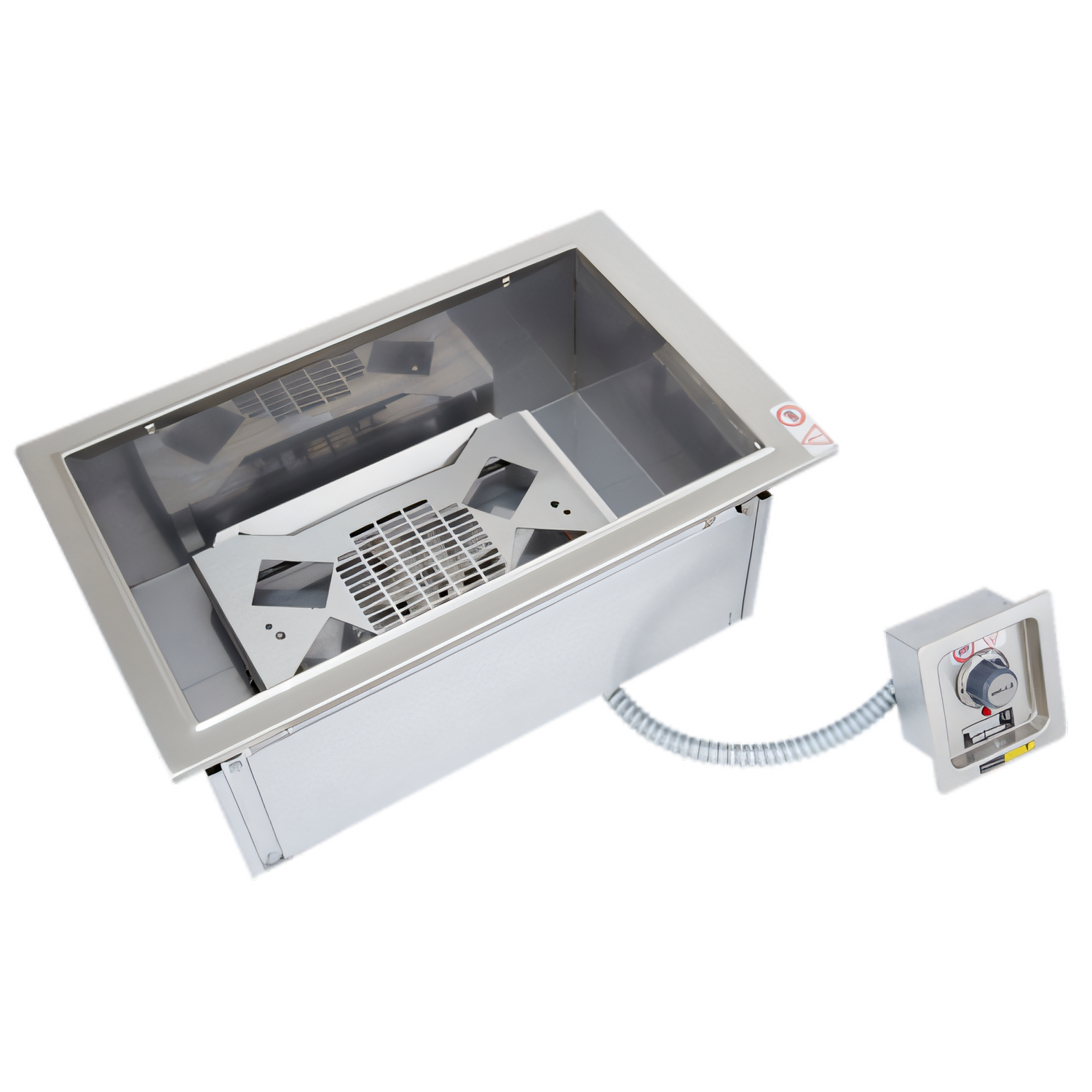

Wells MDW100 Modular Dry Well

Single 12" × 20" Top-Mounted Electric Food Warmer

Hold hot food safely—no water, no plumbing, no headaches. The Wells MDW100 is a stainless-steel, dry-operation well that drops into your counter, locks in place with the patented Wellslok system, and keeps a full-size steam pan at perfect serving temperature using up to 33 % less energy than traditional wet wells.

Why Choose the MDW100?

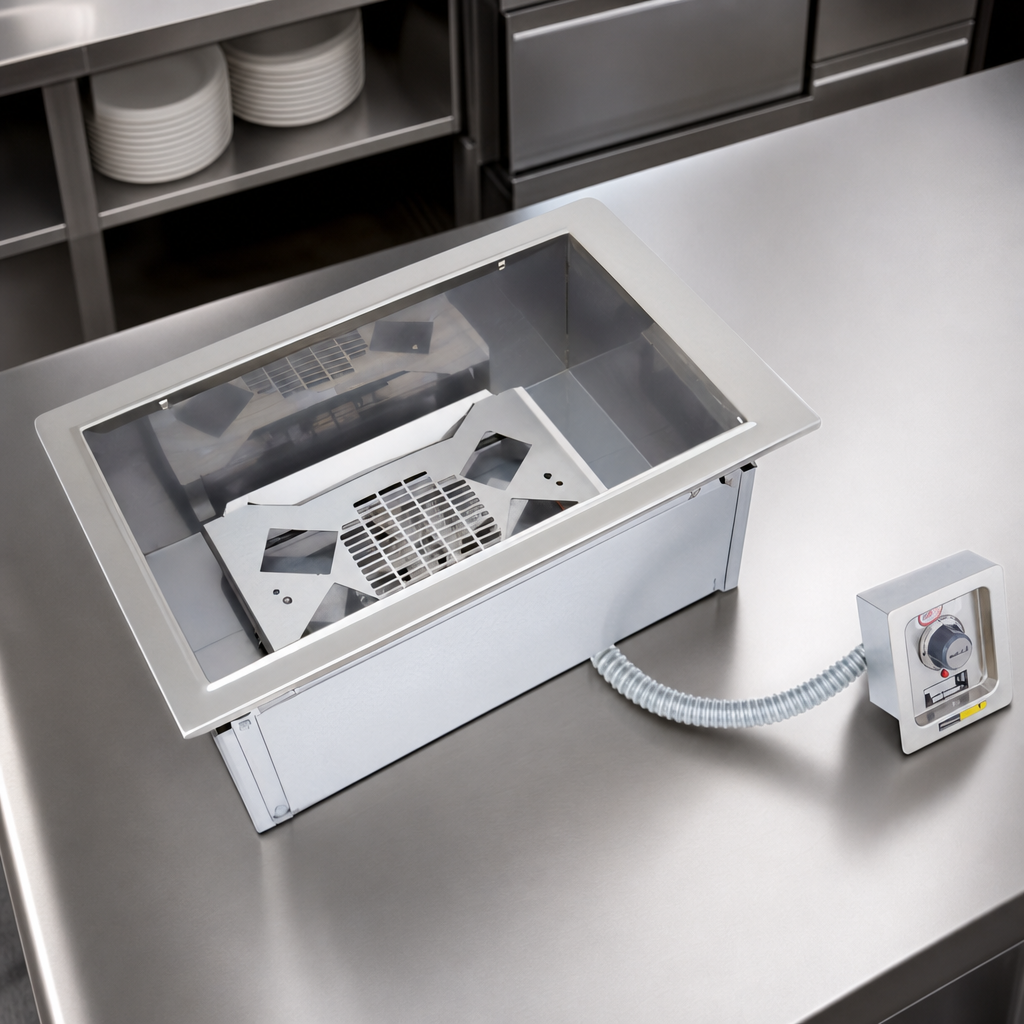

  • Dry operation—eliminates water, drains, steam and related sanitation issues.
  • Uses only 0.61 kW (208 V) / 0.8 kW (240 V) per well—cuts utility costs.
  • Individual infinite control knob for precise temperature management.
  • Tubular heating element with stainless-steel fan provides even heat distribution.
  • Full top-side serviceability after installation—no crawling under the counter.
  • Built-in high-limit safety switch guards against overheating.
  • Type 430 stainless-steel construction resists corrosion and wipes clean quickly.
  • Wellslok mounting clamps secure to metal countertops up to 0.25" thick; extension kits available for wood or thicker tops.
  • UL EPH Classified, cULus listed, and proudly Made in the USA.

Pan Capacity

  • 1 × full-size 12" × 20" steam table pan, up to 6" deep
  • or fractional pans/insets with optional adapter tops

Specifications

Model MDW100 (single well)
Operation Electric, dry, top-mount built-in
Exterior Material 430 stainless steel
Heating Power 0.61 kW @ 208 V | 0.8 kW @ 240 V
Voltage / Phase 208 V or 240 V, 1-phase standard (field-convertible to 3-phase)
Amperage 2.9 A @ 208 V | 3.3 A @ 240 V
Top Flange (W × D) 14.8" × 20" (376 × 508 mm)
Cutout (W × D) Approx. 13.5" × 22.5" (343 × 572 mm) – see installation manual
Height Below Counter 11.9" (302 mm)
Unit / Ship Weight 30 lb (13.6 kg) / 34 lb (15.4 kg)
Certifications UL EPH Classified, cULus
Warranty 1-year parts & labor

Optional Accessories

  • Wellslok extension kit for wood or plastic countertops (up to 1.5" thick)
  • Adapter tops to convert the well for round insets or fractional pans
  • Round insets with lids: 4 qt, 7 qt, 11 qt (hinged lid option)
Need more capacity? 2-, 3-, 4- and 5-well MDW models are also available.

Daily Cleaning (No Water Needed!)

  • Switch unit off and allow to cool completely.
  • Remove pans and fan/element guard for separate washing.
  • Wipe interior with a non-scratch pad & mild detergent – keep element dry.
  • Rinse with a damp cloth, sanitize, air-dry, then reinstall guard and pans.
Installation Note: This unit is hard-wired. A licensed electrician must connect it to a dedicated circuit and maintain the clearances specified in the manual.

Features & Specs

Manufacturer

Wells (Middleby)

Certifications

cULus, UL EPH Classified, Made in USA

Height

11.9in

Width

14.8in

Depth

20.0in

Shipping Weight

34.0lbs

Wet or Dry operation

dry

Controls

infinite controls

Drain

without drain

Size

12" x 20"

Exterior Finish

all stainless steel exterior

Insulated or Non-Insulated

insulated

Specifications

Food Warmer, top-mount, built-in, electric, (1) 12" x 20" pan opening, dry operation, individual infinite control, stainless steel construction, Wellslok system, UL EPH Classified, cULus, MADE in USA
