Wells (Middleby)  |  SKU: HW-106D

Wells (Middleby) HW-106D Steam Tables & Food Wells

$1,423.00
Expected delivery date of , to your door
if ordered within hours and minutes
Not Shipping to ?
More Delivery Options
Documents
Cutsheet Middleby financial flyer Owner's manual Warranty sheet
Related Searches
Food Holding & Warming Equipment Steam Tables & Food Wells

Reach out via chat, email, or phone—we're here to help make sure it's the right fit for your kitchen. Contact us for more information.

Description

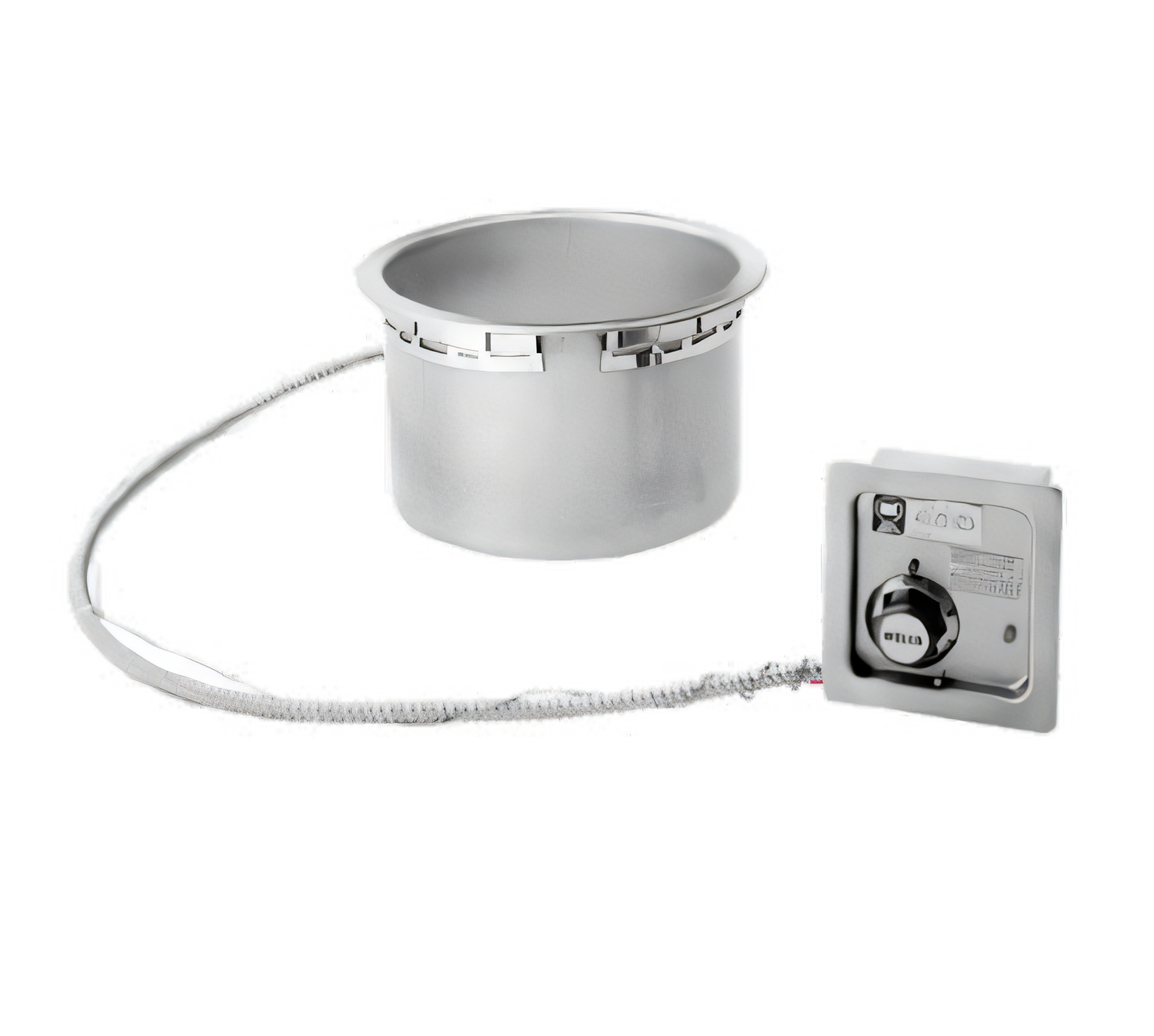

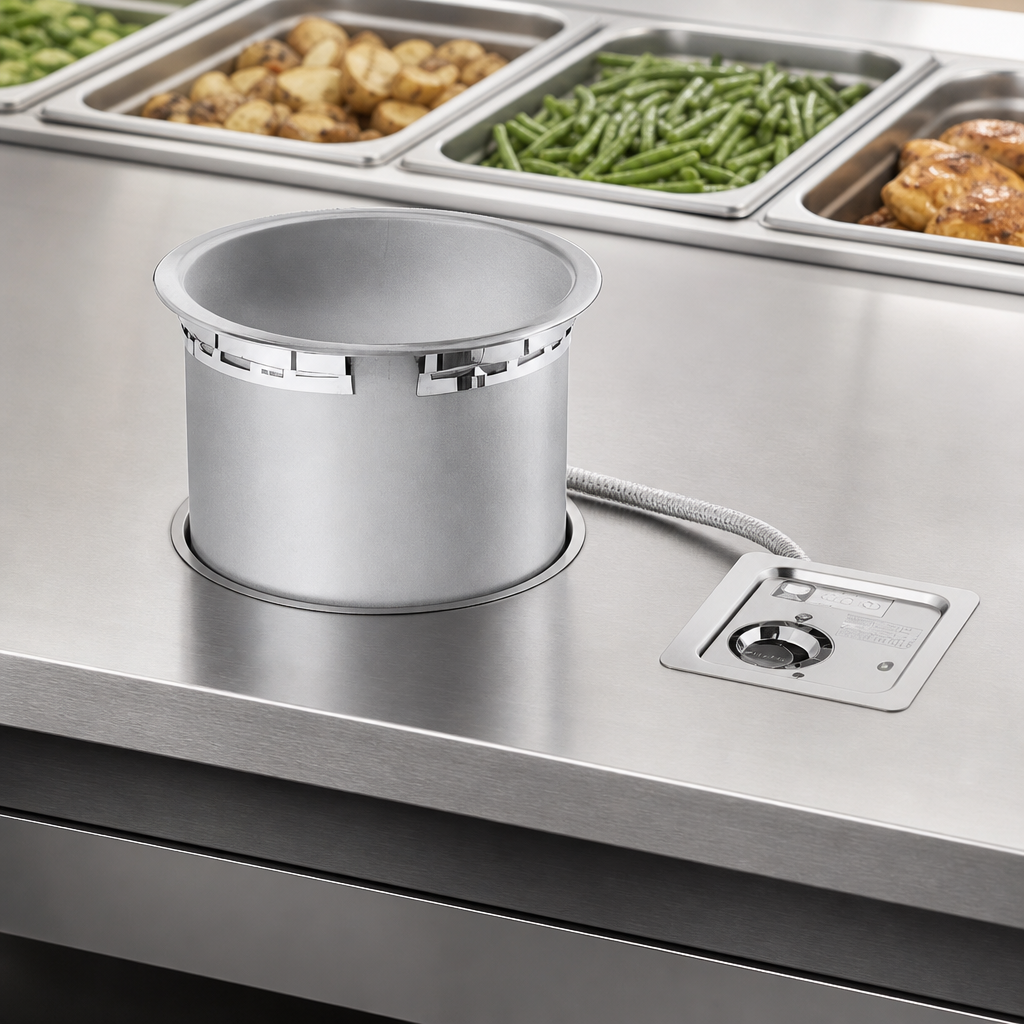

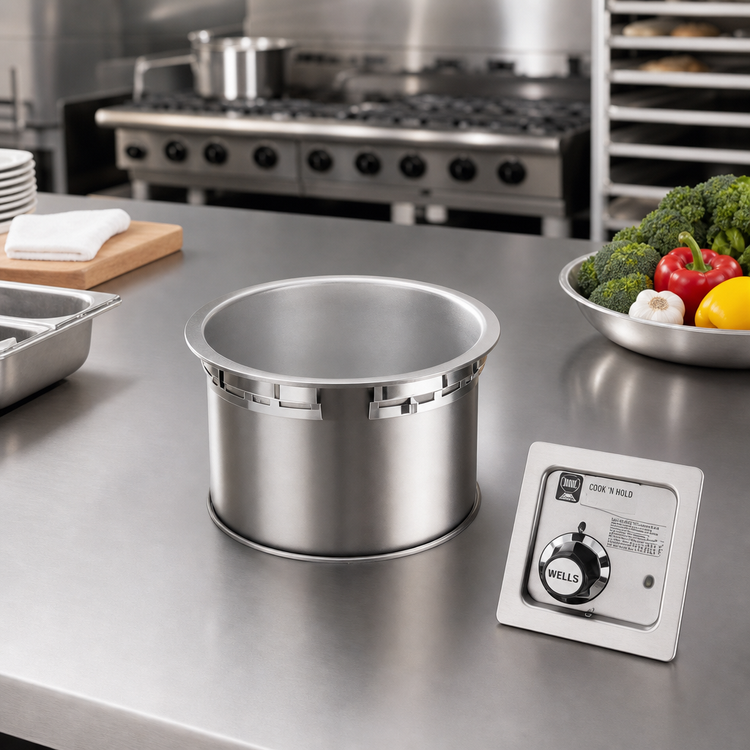

Wells HW106D Cook 'N Hold Built-In Round Warmer

11-Quart • Wet Operation with Drain • Thermostatic Control • UL Listed

Give soups, sauces and signature sides the perfect serving temperature—and keep them there—without sacrificing counter space. The Wells HW106D is a top-mounted, stainless-steel cook & hold warmer designed specifically for a single 11 qt round inset pan (sold separately). Powerful immersed elements, precise thermostatic control and an integral drain make daily operation fast, safe and simple.

Key Features & Benefits
  • Accepts one standard 11 qt (10.5 L) round inset—ideal for soups, chili, gravies & more
  • Wet-operation design evenly transfers heat and prevents scorching
  • Precision thermostatic dial with temperature-ready indicator light
  • High-limit safety automatically guards against overheating
  • Heavy-gauge, deep-drawn stainless warming pan and one-piece top flange for maximum durability
  • Factory-installed ½" NPT drain for quick water changes and cleanup
  • Wellslok® mounting system speeds installation—no additional hardware required
  • Separate, recessed control panel keeps settings protected from spills
  • UL, cULus & NSF certified; proudly made in the USA
Wet operation only: Always keep water in the well during use to ensure proper heating and to protect the elements.
Specifications
Model HW106D (with drain)
Capacity 11 qt round inset (10.5 L) — pan not included
Construction One-piece stainless steel top flange & deep-drawn pan, fully insulated sides & bottom
Control Type Thermostatic, recessed, with ready light & high-limit protection
Electrical 120 V / 1-phase / 1650 W / 13.75 A (Model HW106D-120)
208 V / 1-phase / 1240 W / 6 A   |   240 V / 1-phase / 1660 W / 7 A
Overall Dimensions 12"W × 12"D × 8 1⁄8"H (305 × 305 × 206 mm)
Control Panel 5 7⁄8"W × 6 1⁄4"H (149 × 159 mm)
Shipping Weight 12 lb (5.5 kg)
Drain ½" NPT female, factory installed
Certifications UL, cULus, NSF
Warranty 2 years parts & labor (Cook 'N Hold equipment)
Popular Accessories (sold separately)
  • 11 qt inset pans with lift-off or hinged lids
  • 4 qt & 7 qt adapter tops for smaller batches
  • Drain valve extension kit for front-of-counter access

Minimum installation clearances: 3" back & sides, 1" bottom, 4" front.

Features & Specs

Manufacturer

Wells (Middleby)

Certifications

UL

Width

12.0in

Shipping Weight

12.0lbs

Pan Capacity

(1) 11 qt round

Style

individual pans

Controls

thermostatic controls

Drain

with drain

Construction

stainless steel construction

Wet or Dry operation

wet

Insulated or Non-Insulated

non-insulated

Specifications

Cook 'N Hold Warmer, built-in, electric, for 11 quart round inserts, wet operation with drain, stainless steel construction, with Wellslok, UL
