Wells (Middleby)  |  SKU: HT-500AF

Wells (Middleby) HT-500AF Steam Tables & Food Wells

$5,995.00
Expected delivery date of , to your door
if ordered within hours and minutes
Not Shipping to ?
More Delivery Options
Documents
Cutsheet Owner's manual Middleby financial flyer Warranty sheet
Related Searches
Food Holding & Warming Equipment Steam Tables & Food Wells

Reach out via chat, email, or phone—we're here to help make sure it's the right fit for your kitchen. Contact us for more information.

Description

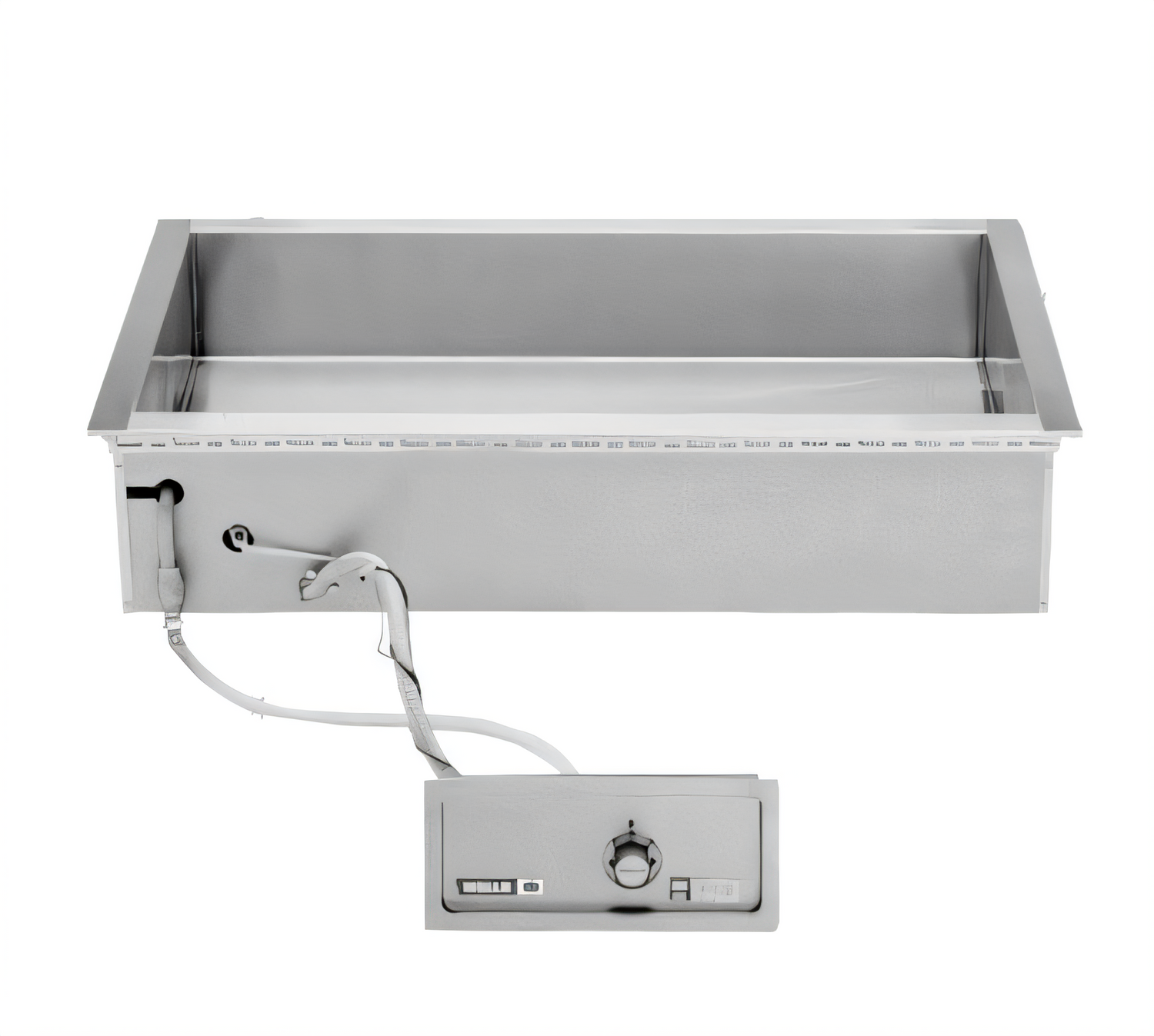

Wells HT500AF Bain Marie Style Drop-In Hot Well

5-Pan | Auto Water-Fill | 67 ¾" x 19 ⅞" Opening

Keep side dishes, sauces and entrées at a consistent, safe serving temperature with the Wells HT500AF – a heavy-duty, 5-well Bain Marie style heated tank engineered for demanding commercial kitchens. Designed exclusively for wet operation, its automatic water-fill system, positive-off thermostatic control and fully insulated stainless-steel tank give you worry-free, energy-efficient performance shift after shift.

Why You’ll Love It

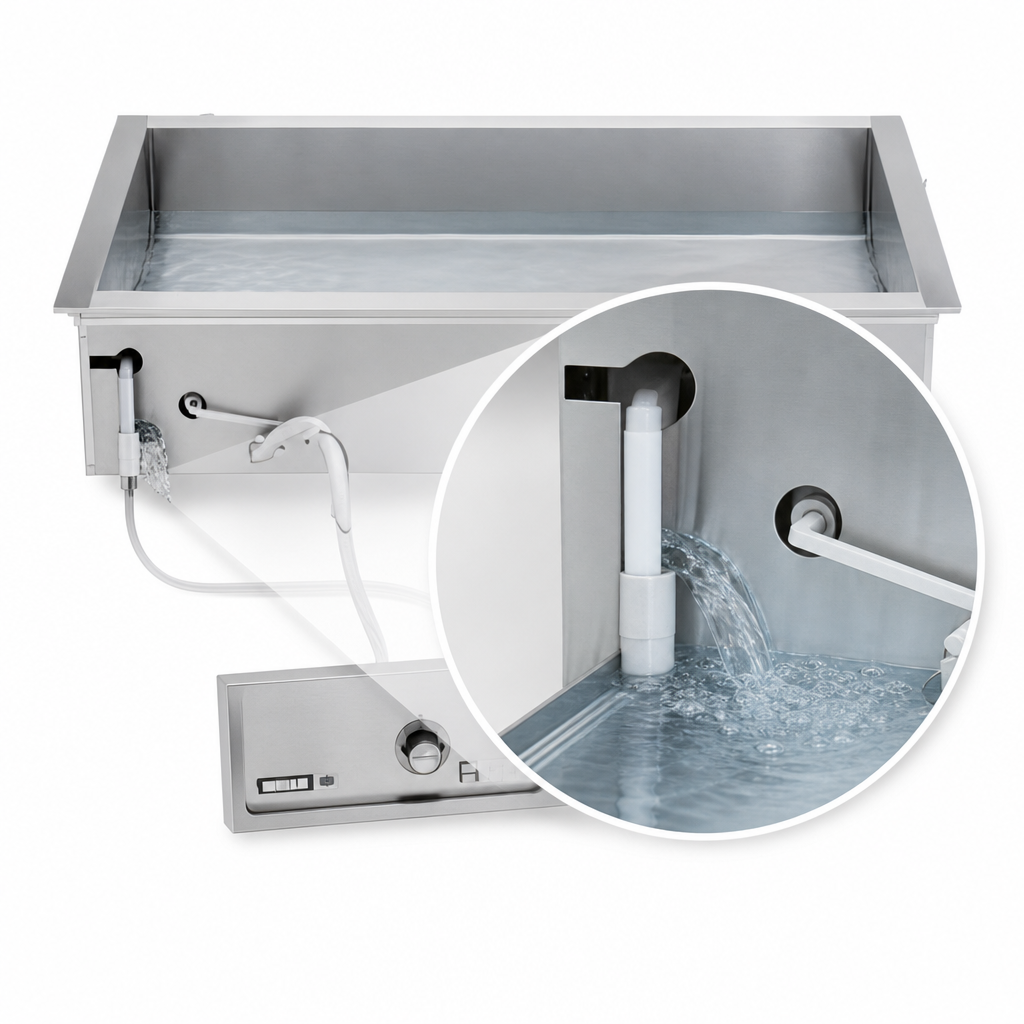

  • Auto Water-Fill maintains the correct level automatically – no more babysitting the wells.
  • Full-size Capacity – holds five standard 12" x 20" hotel pans (or a mix of round/rectangular insets) with adapter bars included.
  • Powerful & Even Heat from tubular elements mounted below the pan for fast recovery.
  • Positive-Off Thermostat gives precise temperature control and prevents accidental activation.
  • Energy-Saving Insulation along sides, bottom, front and back keeps heat in and utility costs down – perfect for wood, solid-surface or stone counters.
  • Stainless-Steel Construction with one-piece top flange for a flush, professional installation.
  • Wellslok™ Mounting hardware speeds drop-in installation and creates a snug seal.
  • ½" Drain & Ball Valve standard for easy cleaning and quick water changes.
  • cULus & NSF listed for electrical and sanitation compliance.

Specifications

Model HT500AF
Wells / Capacity 5 – fits five 12 × 20 full-size pans
Opening (W × D) 67 ¾" × 19 ⅞"  (1 724 mm × 505 mm)
Overall Dimensions (W × L × H) 71 ½" × 23 ⅝" × 9 ¾"  (1 816 mm × 600 mm × 248 mm)
Electrical 208/240 V, 4 500/6 000 W, 1-Phase (field convertible to 3-Phase)
Control Panel Width 18" (457 mm) – remote-mount with flexible conduit
Water Feed ¼" NPT auto-fill connection (wet operation only)
Drain ½" NPT with ball valve
Shipping Weight Approx. 117 lb (53 kg)
Certifications cULus, NSF
Warranty 2-Year limited parts  /  1-Year limited labor

What’s Included

  • HT500AF drop-in hot well with integral auto-fill
  • Adapter bars for fractional & round insets (pans sold separately)
  • Wellslok™ mounting hardware
  • ½" drain ball valve assembly
  • Owner’s / installation manual
Installation Requirements: Unit must be connected to a potable cold-water supply for auto-fill operation and hard-wired to a dedicated electrical circuit by a qualified technician. Wet operation only – do not run dry.

Need easy monthly payments? Ask about Middleby Equipment Financing – fast approvals and potential Section 179 tax advantages.

Features & Specs

Manufacturer

Wells (Middleby)

Certifications

cULus

Height

9.75in

Width

71.5in

Depth

23.63in

Shipping Weight

117.0lbs

Style

bain-marie

Pan Capacity

(5) full size (12" x 20")

Controls

thermostatic controls

Insulated or Non-Insulated

insulated

Construction

stainless steel construction

Drain

with drain

Wet or Dry operation

wet

Specifications

Bain Marie Style Heated Tank, built-in, electric, automatic water fill, opening 67 3/4" x 19 7/8", wet operation, thermostatic control, fully insulated, stainless steel construction, adapter bars provided, cULus
