Wells (Middleby)  |  SKU: HT-400AF

Wells (Middleby) HT-400AF Steam Tables & Food Wells

$5,071.00
Expected delivery date of , to your door
if ordered within hours and minutes
Not Shipping to ?
More Delivery Options
Documents
Cutsheet Owner's manual Middleby financial flyer Warranty sheet
Related Searches
Food Holding & Warming Equipment Steam Tables & Food Wells

Reach out via chat, email, or phone—we're here to help make sure it's the right fit for your kitchen. Contact us for more information.

Description

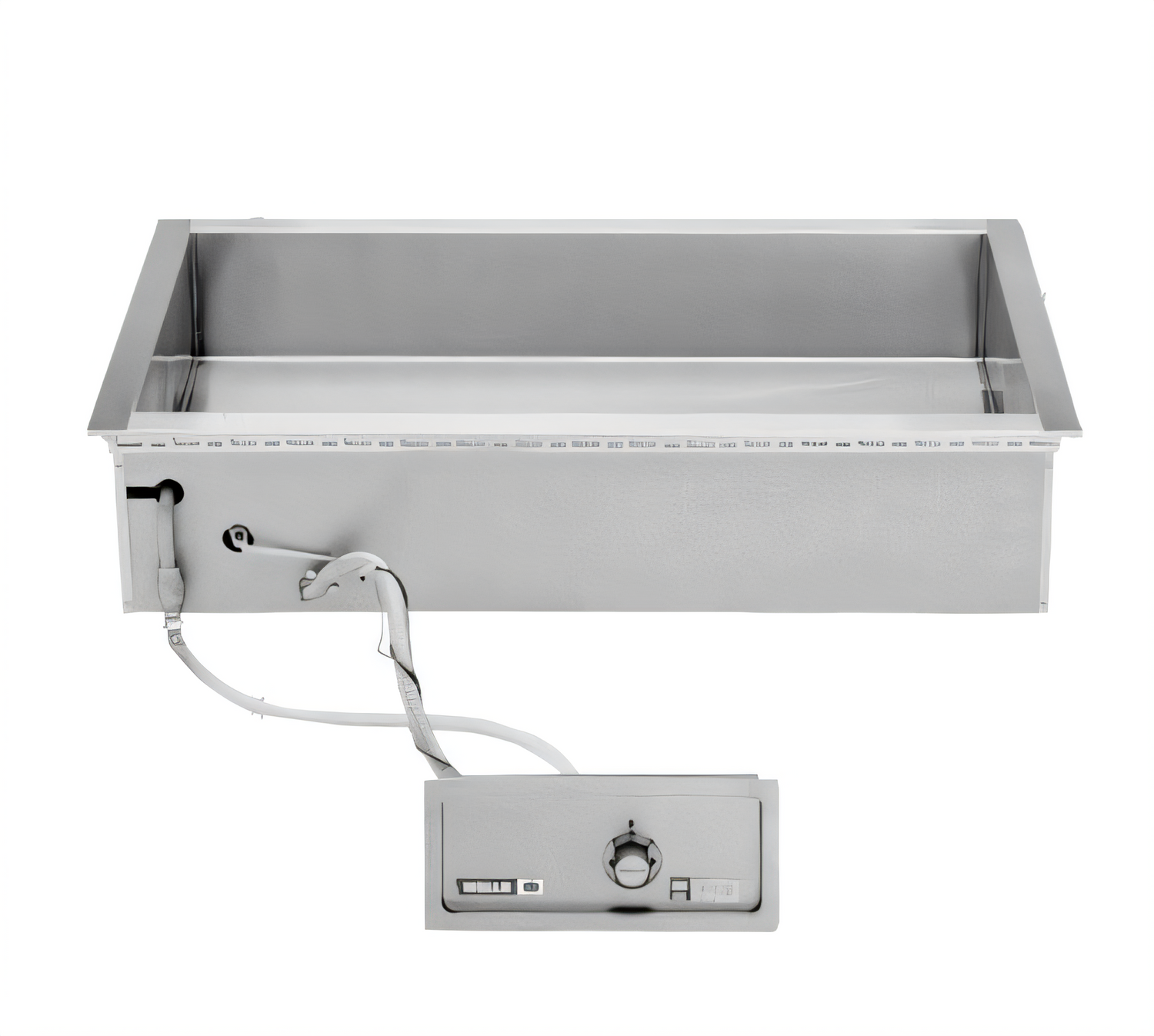

Wells HT400AF Bain Marie Style Heated Tank

4-Well • Drop-In • Auto-Fill • Electric • 53-3/4″ × 19-7/8″ Opening

Keep soups, sauces, and sides hot, fresh, and food-safe with the Wells HT400AF. This heavy-duty, top-mount Bain Marie warmer features automatic water-fill and a fully-insulated stainless-steel tank to deliver consistent heat and reduce labor in high-volume kitchens.

Key Features

  • Four full-size (12″ × 20″) pan capacity—or mix fractional pans with the included adapter bars.

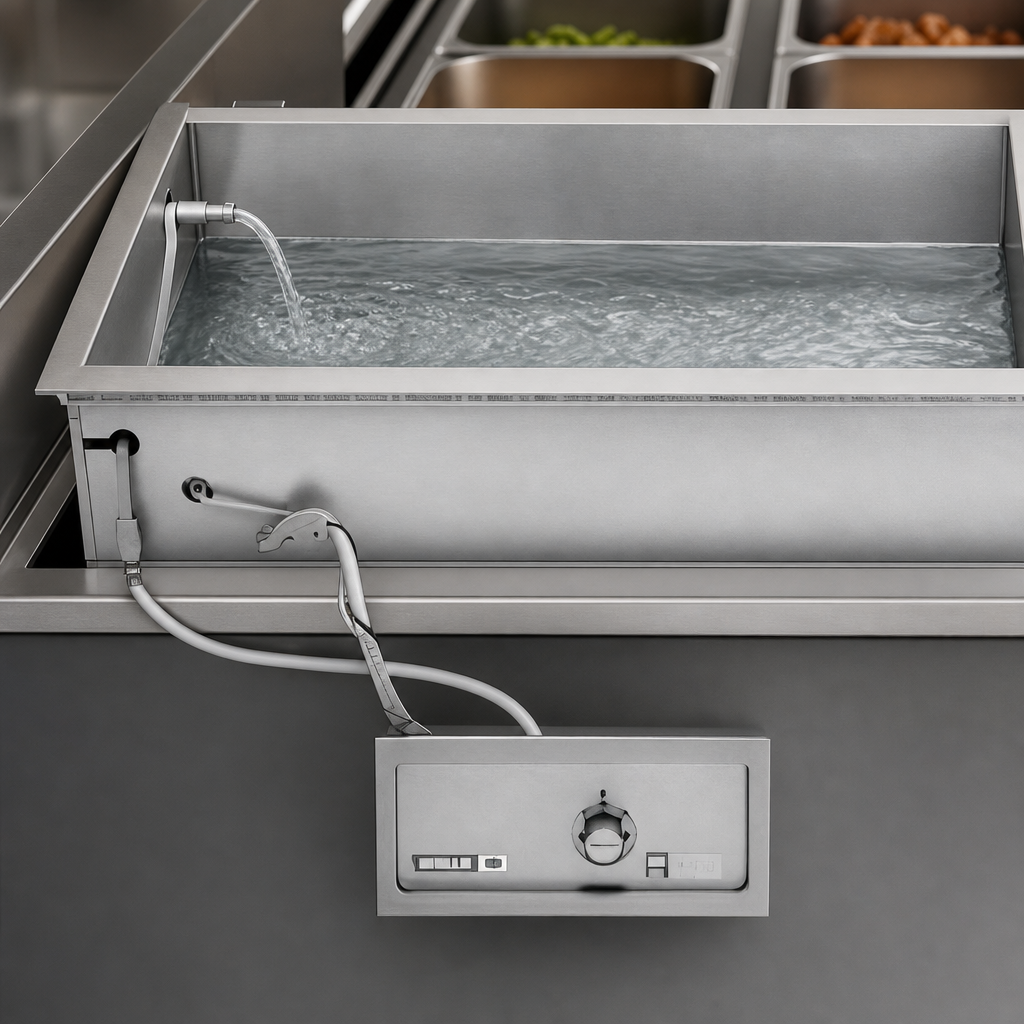

  • Automatic water-fill maintains proper water level and protects elements from running dry (¼″ water connection required).
  • Positive-off thermostatic control with indicator light for precise holding temperatures.
  • High-limit safety shuts off heat if the tank runs low, preventing overheating.
  • Powerful tubular elements under the pan for fast pre-heat and even heat distribution.
  • One-piece stainless-steel flange and heavy-gauge, deep-drawn tank built for years of commercial use.
  • Fully insulated sides, back, and bottom for quicker recovery and cooler counter surfaces—ideal for non-metal counters.
  • ½″ NPT drain with ball valve speeds end-of-day cleanup.
  • Wellslok™ mounting system for quick, secure drop-in installation.

Specifications

Model HT400AF
Pan Capacity 4 × full-size 12″ × 20″ (or fractional equivalent)
Operation Wet only, automatic water-fill
Cut-Out / Opening 53 3/4″ × 19 7/8″ (1365 mm × 505 mm)
Overall Dimensions 57 1/2″ L × 23 5/8″ W × 9 3/4″ H
Voltage / Phase 208/240 V, 1 Ø (field-convertible to 3 Ø)
Wattage 3,600 W @ 208 V • 4,800 W @ 240 V
Amperage ≈ 17 A @ 208 V • ≈ 20 A @ 240 V
Drain ½″ NPT with ball valve
Shipping Weight 98 lb (44 kg)
Certifications cULus, NSF
Warranty 2-year limited parts • 1-year limited labor

What’s Included

  • Stainless-steel drop-in tank with integrated auto-fill & drain
  • Recessed control panel with positive-off thermostat
  • Adapter bars for fractional pans
  • Wellslok™ installation hardware

Popular Accessories (Sold Separately)

  • Round-inset adaptor tops & inset pans with lids
  • Drain extension kit & drain screens
  • 72″ remote-mount control-panel wiring harness
  • Wellslok™ extension kits for wood counter installations
Installation Note: Auto-fill models require a plumbed ¼″ water line and must be installed in accordance with the manufacturer’s instructions. Always verify cut-out dimensions before cutting your counter.

Need flexible financing? Ask us about Middleby Equipment Financing to turn your purchase into manageable monthly payments.

Features & Specs

Manufacturer

Wells (Middleby)

Certifications

cULus

Height

9.75in

Width

57.5in

Depth

23.63in

Shipping Weight

98.0lbs

Style

bain-marie

Controls

thermostatic controls

Insulated or Non-Insulated

insulated

Construction

stainless steel construction

Pan Capacity

(4) full size (12" x 20")

Drain

with drain

Wet or Dry operation

wet

Specifications

Bain Marie Style Heated Tank, built-in, electric, automatic water fill, opening 53 3/4" x 19 7/8", wet operation, thermostatic control, fully insulated, stainless steel construction, adapter bars provided, cULus
