Wells (Middleby) HT-300AF Steam Tables & Food Wells
Wells (Middleby) HT-300AF Steam Tables & Food Wells is backordered and will ship as soon as it is back in stock.
Documents
Related Searches
Reach out via chat, email, or phone—we're here to help make sure it's the right fit for your kitchen. Contact us for more information.
Wells (Middleby) HT-300AF Steam Tables & Food Wells
Description

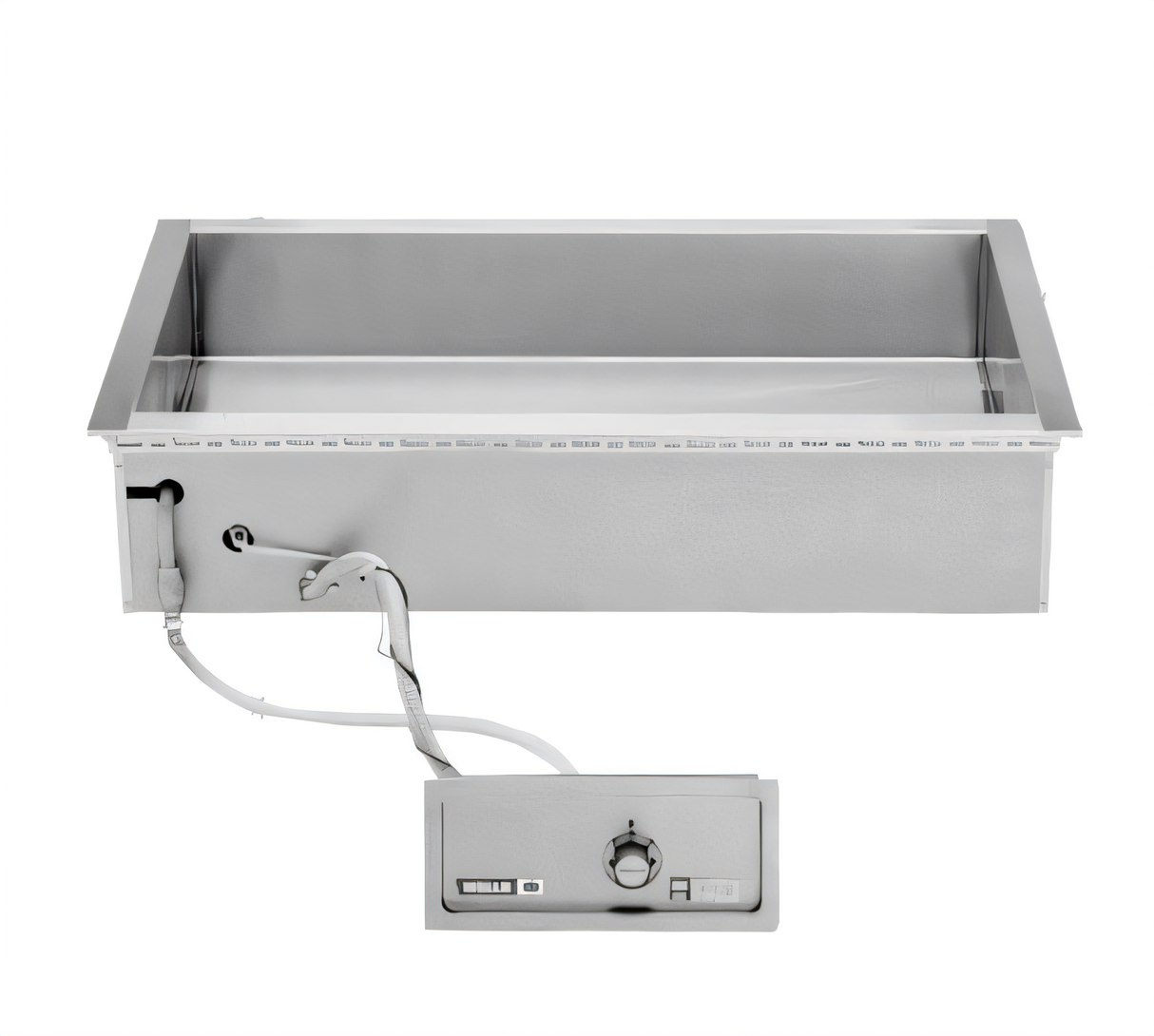

Wells HT300AF Bain Marie Style Heated Tank
3-Pan, Built-In Rectangular Drop-In | Automatic Water Fill | cULus & NSFKeep soups, sauces, gravies and sides at safe serving temperatures without babysitting the water level. The Wells HT300AF is a heavy-duty, top-mounted Bain Marie warmer that fits three full-size 12" × 20" pans in a single 39 ¾" opening and automatically maintains the correct water depth for worry-free, wet operation.
Why You’ll Love It

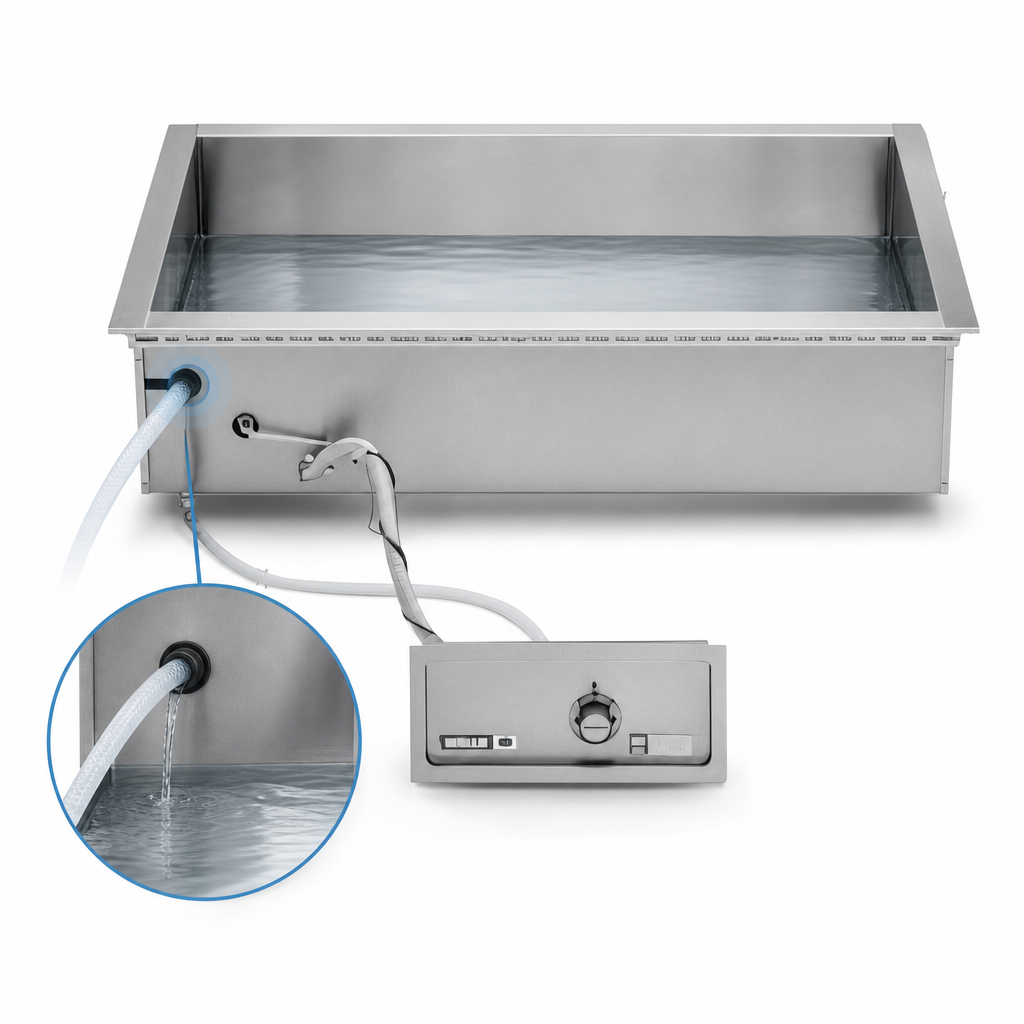

- Automatic water-fill system keeps wells properly flooded, reduces labor and prevents dry-fire damage.

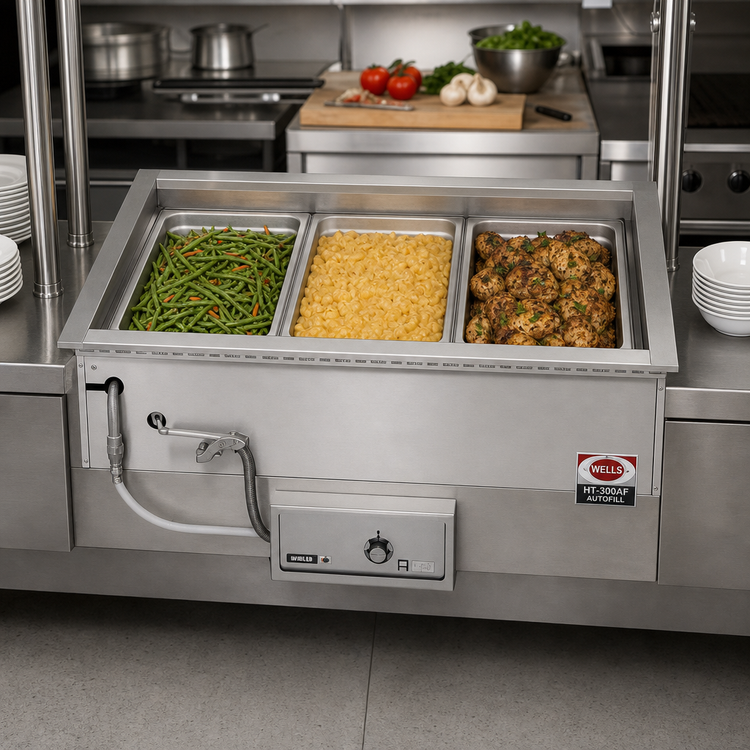

- Accommodates three full-size (12" × 20") hotel pans or fractional/round insets with the included adapter bars.
- Positive-off thermostatic control with indicator light and high-limit safety for precise, reliable holding.
- Powerful tubular elements mounted beneath the pan deliver fast pre-heat and even heat distribution.
- Fully insulated stainless-steel tank and flange improve energy efficiency and protect non-metal counters.
- Wellslok™ mounting system makes drop-in installation fast and secure.
- 1" NPT ball-valve drain simplifies end-of-shift cleanup.
- Built for the long haul—heavy-gauge, deep-drawn stainless construction and a 2-year parts warranty.
At-A-Glance Specs
| Model | HT300AF |
|---|---|
| Pan Capacity | 3 × 12" × 20" full-size hotel pans (or fractional equivalents) |
| Cut-Out / Opening | 39 ¾" W × 19 ⅞" D (1010 × 505 mm) |
| Overall Dimensions | 43 ½" W × 23 ⅝" D × 9 ¾" H (1105 × 600 × 248 mm) |
| Operation | Wet only – Auto water-fill with ¼" NPT connection |
| Drain | 1" NPT drain with ball valve (bottom exit) |
| Electrical | 208/240 V, 1 Ø, 2.7 kW @ 208 V (13 A) / 3.6 kW @ 240 V (15 A) |
| Controls | Recessed thermostatic dial, “Heat On” indicator lamp |
| Construction | One-piece stainless top flange & deep-drawn tank, fully insulated |
| Ship Weight | 77 lb (35 kg) |
| Certifications | cULus, NSF |
| Warranty | 2-year limited parts | 1-year labor |
What’s in the Box
- HT300AF drop-in heated tank with integral water-fill solenoid
- Adapter bars for fractional and round insets
- 1" ball-valve drain assembly
- Remote control panel with flexible conduit
- Owner’s & installation manual
