Wells (Middleby) HT-227AF Steam Tables & Food Wells
Description

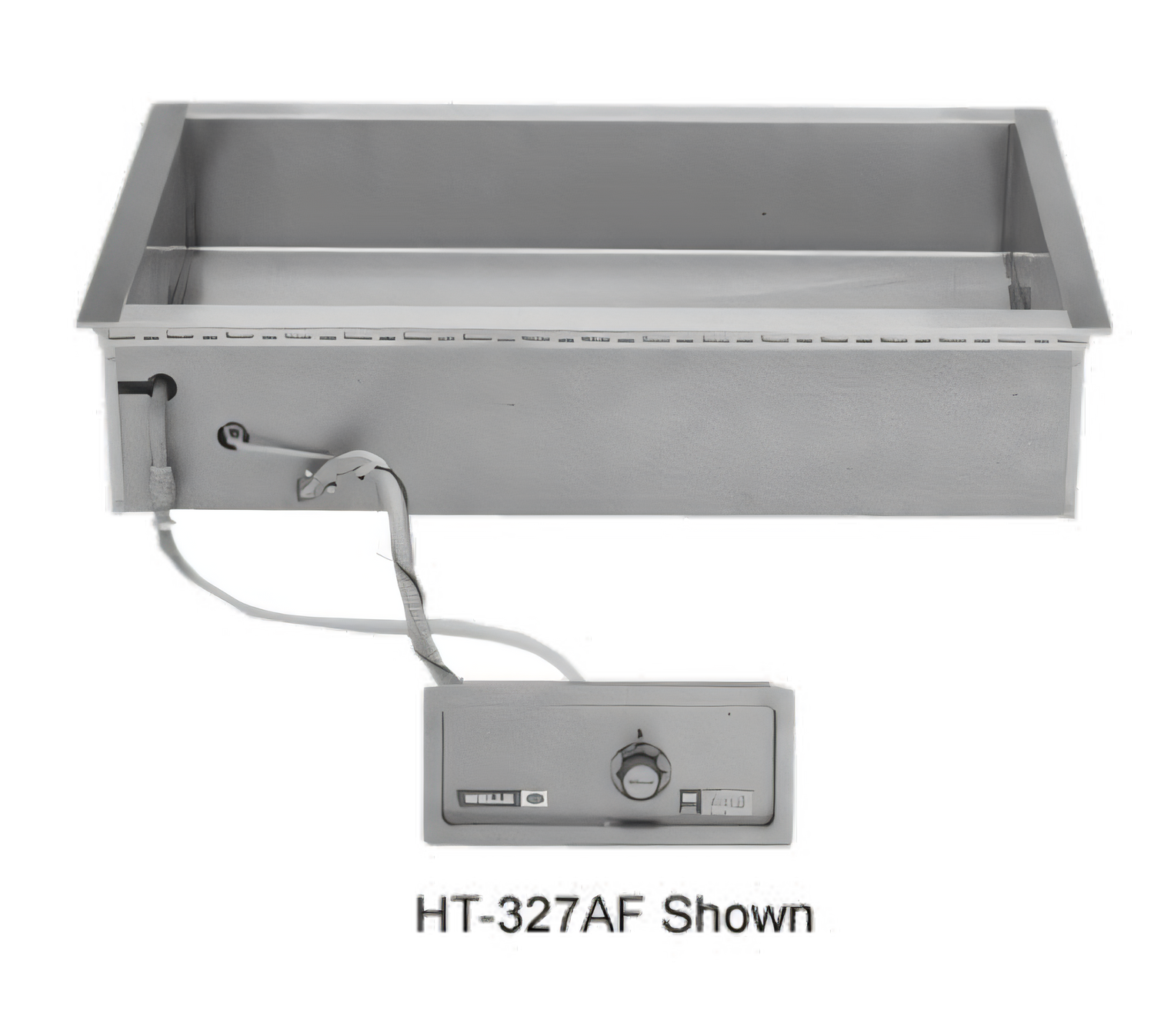

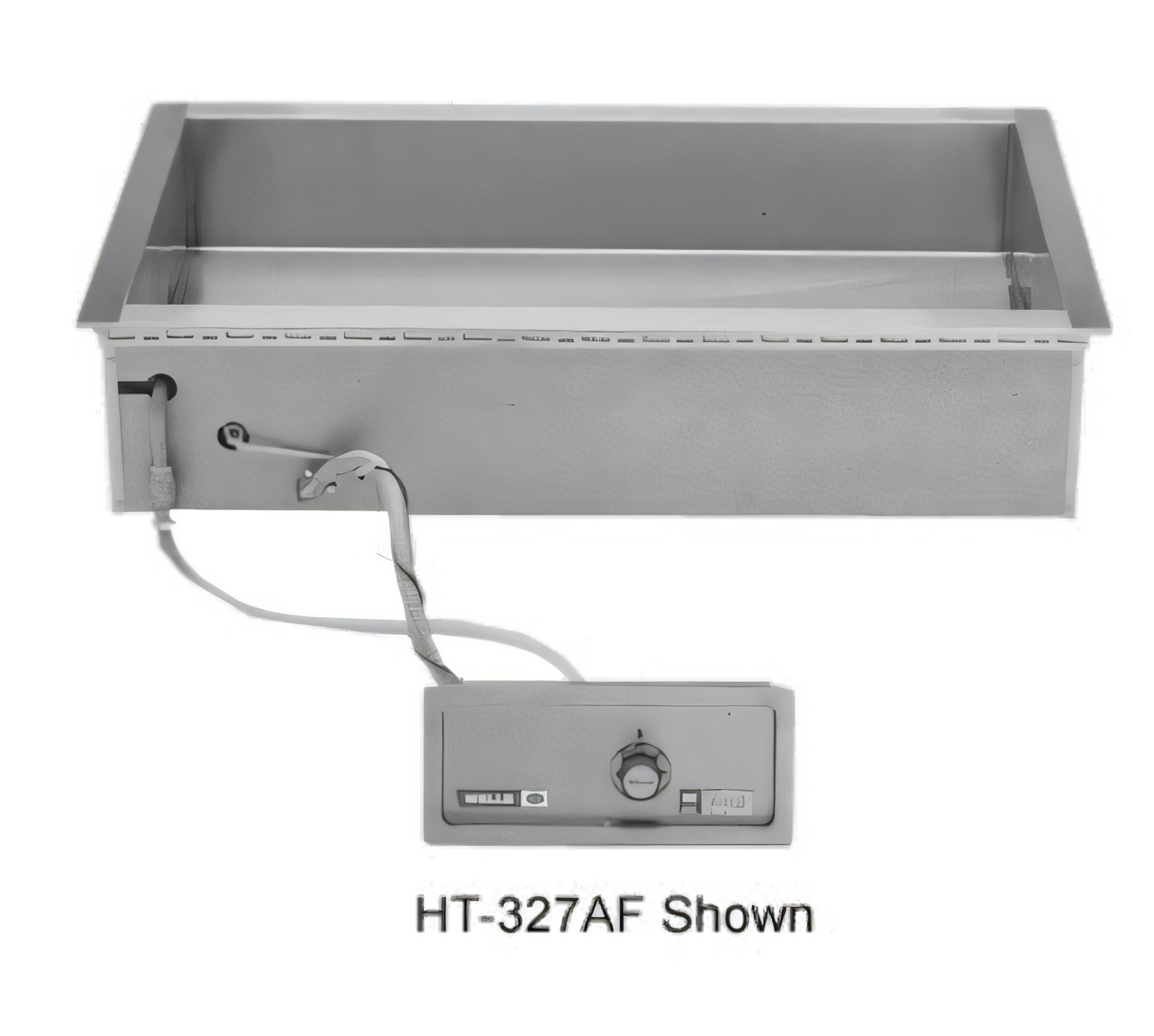

Wells HT227AF Bain Marie Drop-In Hot Food Well
25 3/4" × 26 7/8" opening • Auto-Fill • Electric • 2-Well, Large-CapacityKeep soups, sauces and entrées at food-safe temperatures all service long with the Wells HT227AF. This heavy-duty, built-in Bain Marie features an automatic water-fill system, deep-drawn 4/3-size tank, and fully insulated stainless-steel construction—delivering consistent, moist heat while saving labor and energy.
Why You’ll Love It

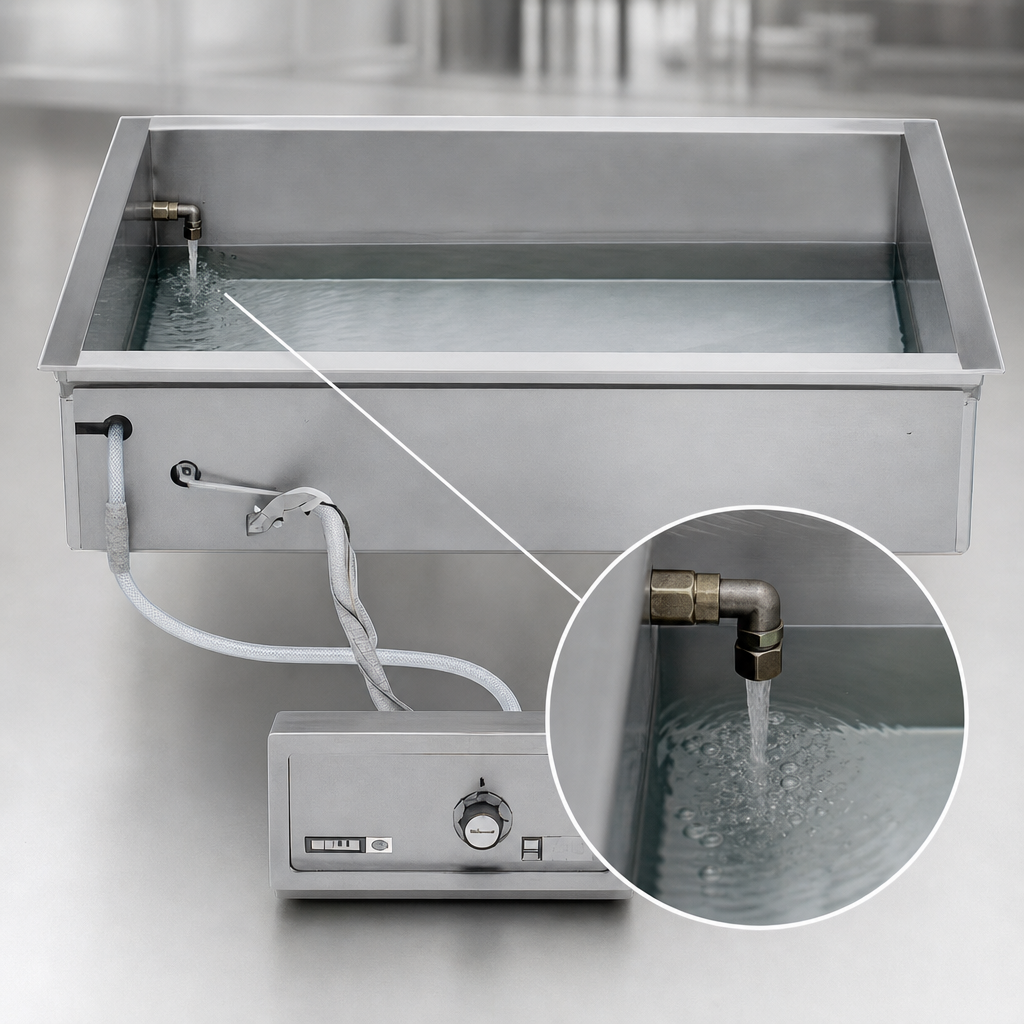

- Auto Water-Fill maintains the ideal water level automatically—no more manual refills.

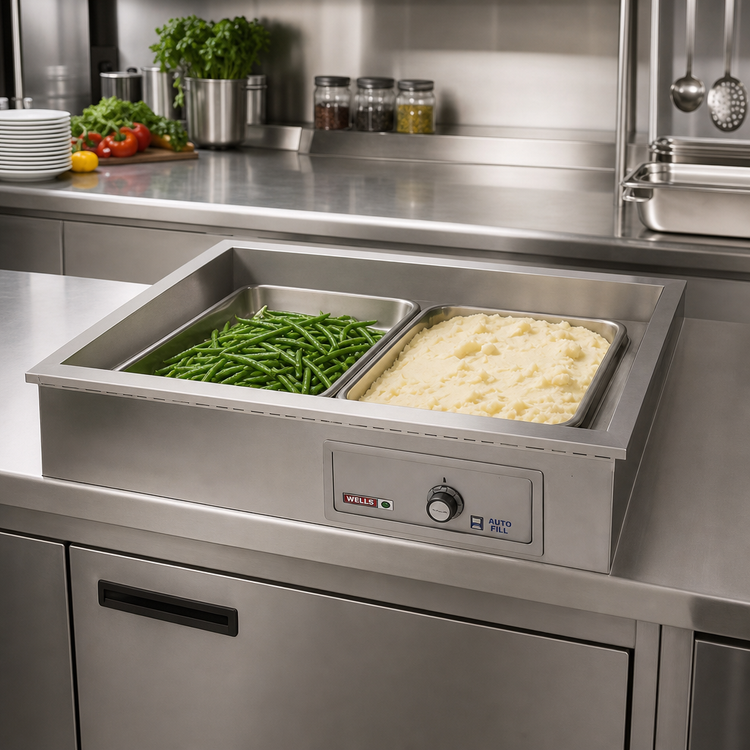

- Large-capacity 4/3 opening (25 3/4" × 26 7/8") fits two 4/3 pans or assorted fractional pans with the included adapter bars.
- Wet-heat design keeps foods moist and appetizing for extended holding times.
- Positive-off thermostatic control with indicator light provides precise temperature regulation.
- Fully insulated sides, front, back and bottom for quicker pre-heat, faster recovery and reduced energy costs—ideal for non-metal counters.
- Stainless-steel build with one-piece top flange resists corrosion and simplifies cleanup.
- Powerful tubular elements deliver even heat across the entire well.
- High-limit safety guards against overheating.
- ½" drain & ball valve speed end-of-day cleanup.
- WellsLok™ installation clamps included for fast, secure drop-in mounting.
- cULus & NSF listed for sanitation and safety compliance.
Technical Specifications
| Model | HT227AF |
|---|---|
| Opening Size | 25 3/4" W × 26 7/8" L (654 mm × 683 mm) |
| Overall Dimensions | 29 1/2" W × 30 5/8" L × 9 3/4" H (749 × 779 × 248 mm) |
| Capacity | Two 4/3-size pans or fractional equivalents |
| Operation | Wet heat only • Automatic water-fill (water connection required) |
| Electrical | 208/240 V, 1-phase, 2480/3300 W, 13.8 A (field wired) |
| Drain | ½" NPT with ball valve |
| Shipping Weight | 65 lb (30 kg) |
| Certifications | cULus, NSF |
| Warranty | 2-year limited parts • 1-year limited labor |
What’s Included
- HT227AF drop-in Bain Marie tank
- Recessed thermostat control panel with indicator light
- Adapter bars for fractional pans
- WellsLok™ installation hardware
- Owner’s & installation manual
Need assistance? Wells’ U.S.-based technical service team is just a phone call away at 800-264-7827.
