Wells (Middleby)  |  SKU: HT-200AF

Wells (Middleby) HT-200AF Steam Tables & Food Wells

$3,936.00
Expected delivery date of , to your door
if ordered within hours and minutes
Not Shipping to ?
More Delivery Options
Documents
Cutsheet Middleby financial flyer Installation manual Owner's manual Warranty sheet
Related Searches
Food Holding & Warming Equipment Steam Tables & Food Wells

Reach out via chat, email, or phone—we're here to help make sure it's the right fit for your kitchen. Contact us for more information.

Description

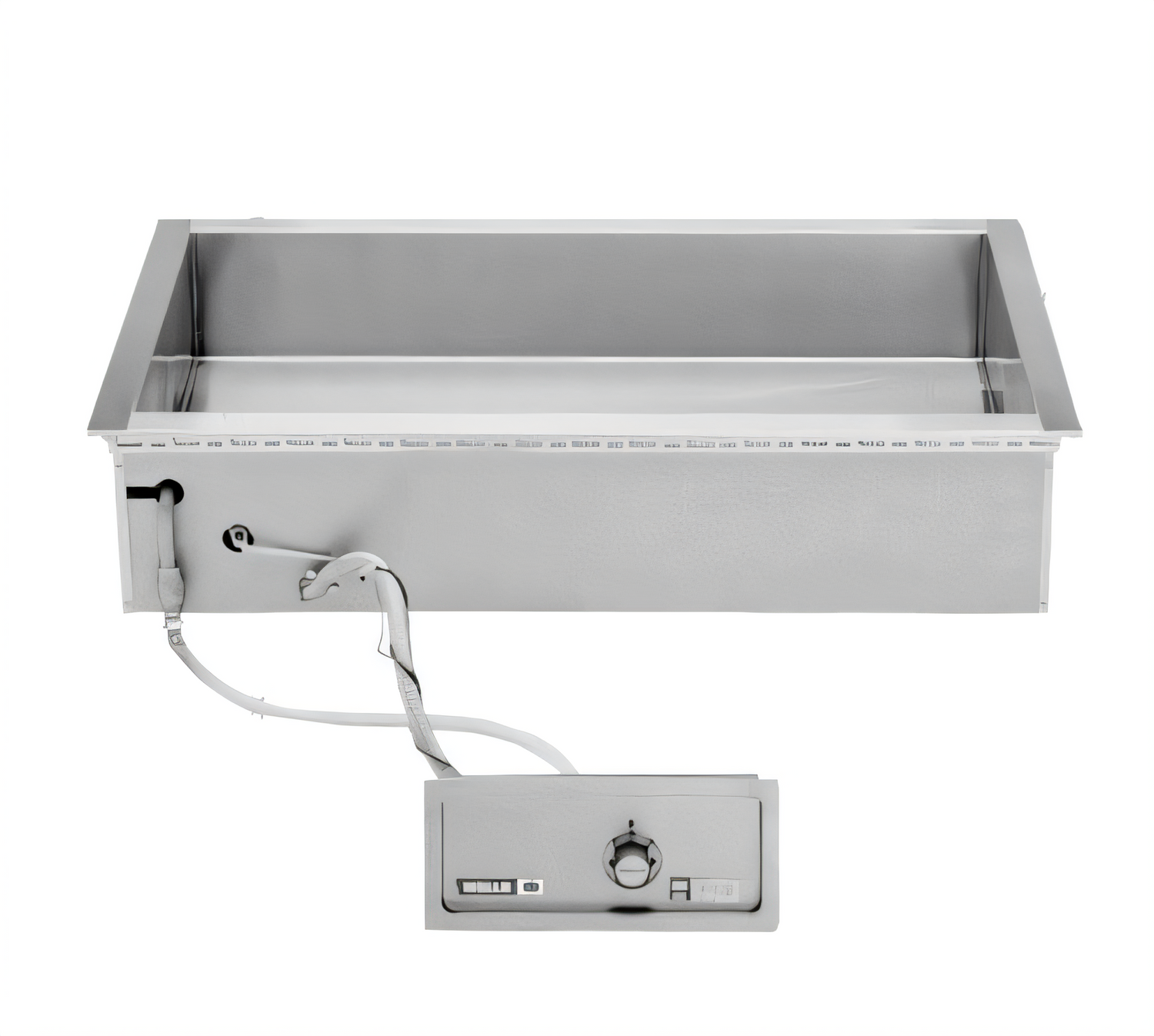

Wells HT200AF Bain Marie Drop-In Heated Tank

25 3/4" × 19 7/8" opening • Auto-Fill • Electric • cULus

Keep soups, sauces and sides at ideal serving temperatures without constant monitoring. The Wells HT200AF drop-in Bain Marie automatically maintains water level, delivers even, energy-efficient heat and installs flush for a clean, professional presentation.

Why you’ll love it

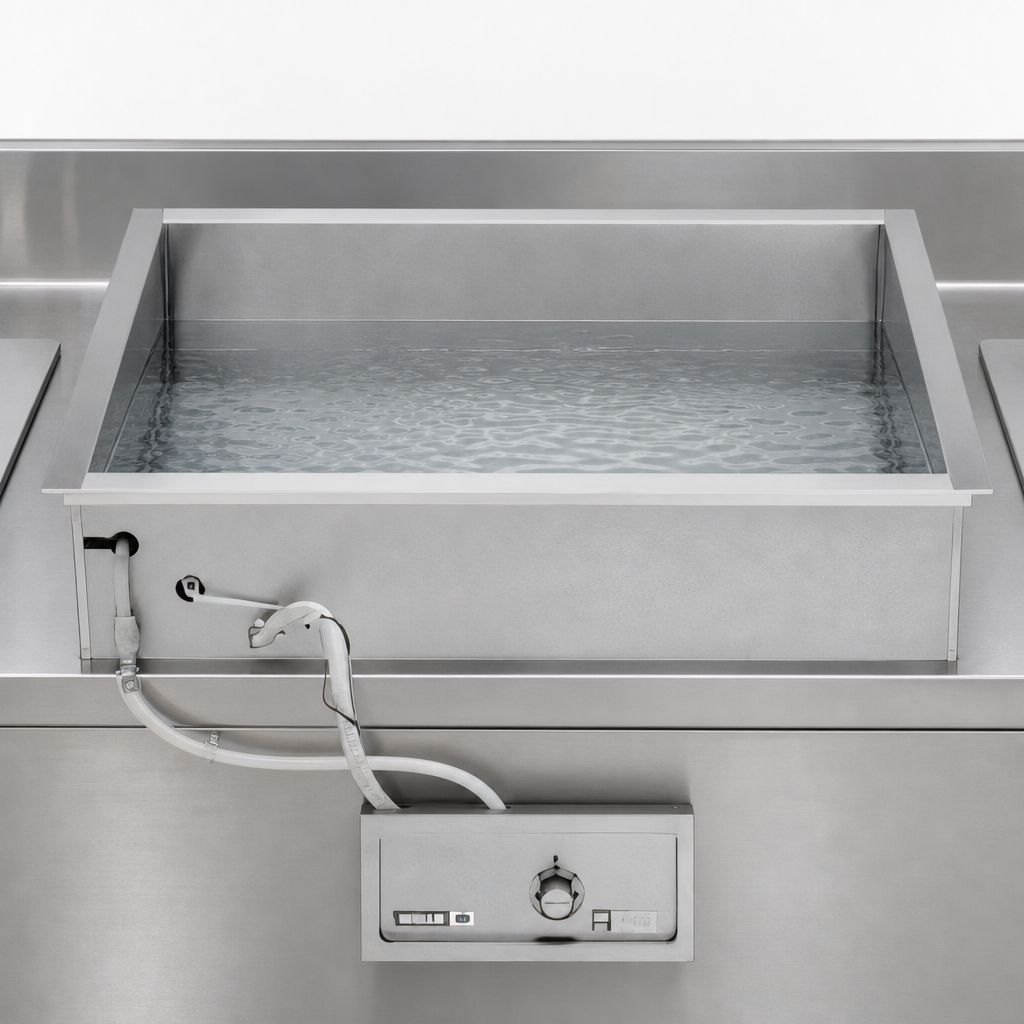

  • Automatic water-fill system prevents dry-fire and labor-intensive refills.
  • Fully insulated stainless-steel tank conserves energy and speeds recovery.
  • Positive-off thermostatic control with high-limit safeguard for precise, safe temperatures.
  • Holds two full-size 12" × 20" pans or fractional equivalents—adapter bars included.
  • One-piece stainless top flange and deep-drawn pan create a seamless, sanitary surface.
  • WellsLok™ mounting system makes drop-in installation fast and secure.
  • 1/2" NPT drain with integrated ball valve simplifies cleanup.
  • NSF & cULus certified for sanitation and safety.
  • Backed by a 2-year limited parts / 1-year labor warranty.

Product specifications

Model HT200AF
Opening size 25 3/4" W × 19 7/8" D (654 mm × 505 mm)
Pan capacity (2) full-size 12" × 20" pans or fractional insets
Operation Wet only, automatic water level control
Temperature control Thermostatic with indicator light
Power 208 / 240 V, 1-phase, 1,800 / 2,400 W (≈10 A @ 240 V)
Tank depth 9 3/4" (248 mm)
Overall dimensions 29 1/2" W × 23 5/8" D × 9 3/4" H
Water connection 1/4" NPT (auto-fill inlet)
Drain 1/2" NPT with ball valve
Certifications cULus, NSF
Shipping weight ≈57 lb (26 kg)

Designed for wet operation only. Electrical and plumbing connections must be completed by a qualified professional in accordance with local codes.

Features & Specs

Manufacturer

Wells (Middleby)

Certifications

cULus

Height

9.75in

Width

29.5in

Depth

23.63in

Shipping Weight

57.0lbs

Style

bain-marie

Controls

thermostatic controls

Insulated or Non-Insulated

insulated

Construction

stainless steel construction

Drain

with drain

Pan Capacity

(2) full size (12" x 20")

Wet or Dry operation

wet

Specifications

Bain Marie Style Heated Tank, built-in, electric, automatic water fill, opening 25 3/4" x 19 7/8", wet operation, thermostatic control, fully insulated, stainless steel construction, adapter bars provided, cULus
