Wells (Middleby)  |  SKU: HSW-6D

Wells (Middleby) HSW-6D Steam Tables & Food Wells

$1,639.00
Expected delivery date of , to your door
if ordered within hours and minutes
Not Shipping to ?
More Delivery Options
Documents
Cutsheet Owner's manual Middleby financial flyer Warranty sheet
Related Searches
Food Holding & Warming Equipment Steam Tables & Food Wells

Reach out via chat, email, or phone—we're here to help make sure it's the right fit for your kitchen. Contact us for more information.

Description

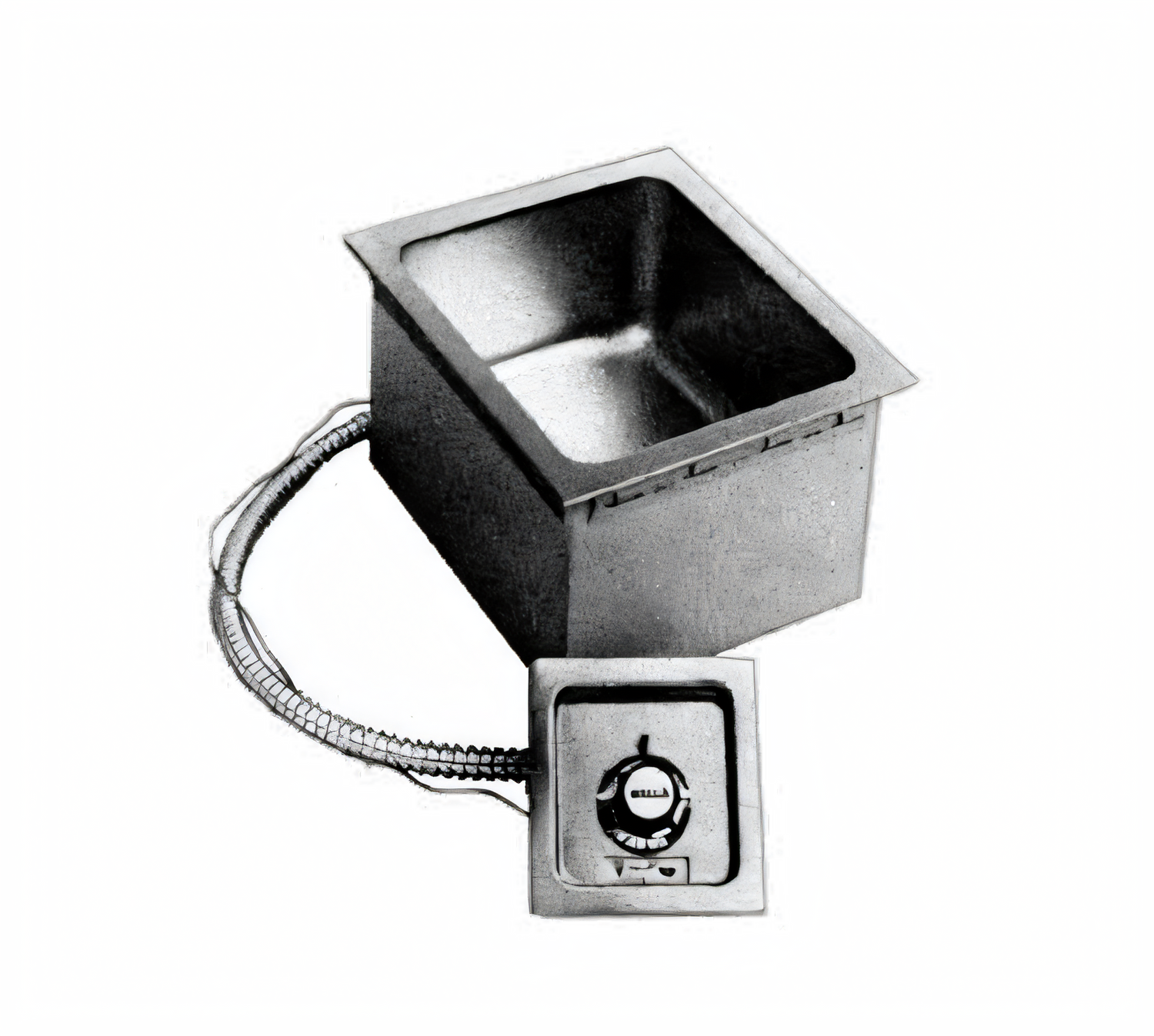

Wells HSW6D Drop-In Half-Size Food Warmer

12" × 10" pan opening • wet or dry • thermostatic control

Keep soups, sauces and sides at perfect serving temperature with the Wells HSW6D. This heavy-duty, top-mounted warmer drops flush into any non-combustible counter and locks in place with the patented Wellslok system—no tools, no fuss. Built for demanding food-service environments, it features a deep-drawn stainless-steel well, precise thermostatic control and a built-in drain for lightning-fast clean-up.

Key Features

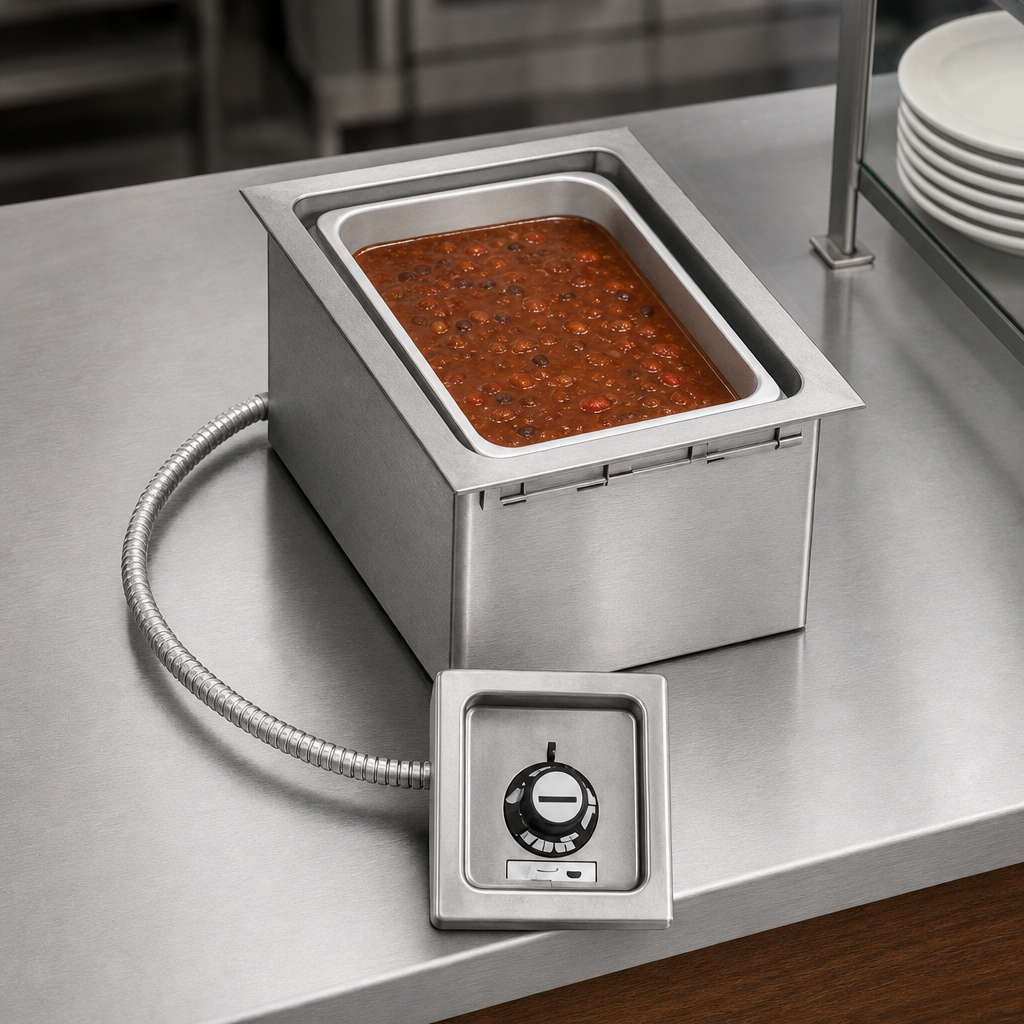

  • Accepts one 12" × 10" half-size pan (up to 6" deep) or equivalent fractional inserts
  • Wet or dry operation—wet use recommended for maximum food quality
  • Front-mounted, recessed thermostatic dial with temperature-ready indicator light
  • ½" NPT drain simplifies water removal and daily cleaning
  • One-piece stainless-steel top flange & heavy-gauge, deep-drawn well
  • Wellslok clips grip the countertop from below for quick, secure installation
  • Full fiberglass insulation on all four sides and bottom for faster pre-heat & energy savings
  • Tubular heating element with high-limit safety thermostat prevents overheating
  • cULus & CE listed for electrical safety; NSF compliant for sanitation
  • Backed by a 1-year limited parts & labor warranty

Optional accessories: drain screen, 72" cord set, remote drain-valve handle kit.

Specifications
Model HSW6D
Installation Top-mount, drop-in (Wellslok clips included)
Capacity One 12" × 10" half-size pan / 6 qt (approx.)
Operating Mode Wet or dry
Control Type Thermostatic with indicator light
Electrical 120 V / 450 W / 3.75 A (208/240 V models: 620 – 825 W)
Overall Dimensions 11-5/8" W × 13-7/8" L × 7-3/16" H
Counter Cut-Out 9-5/8" W × 12-17/32" L
Drain ½" NPT, centered in well bottom
Shipping Weight 18 lb (8 kg)
Certifications UL, CE, NSF
Perfect For
  • Buffet and cafeteria lines
  • QSR & full-service restaurants
  • C-stores, delis, grab-and-go counters
  • Catering & banquet service stations
Installation Note: Maintain the minimum clearances specified in the Wells installation manual (1" back, 2" side, 9" bottom, 2-5/8" front). Unit must be mounted in a non-combustible countertop and connected by a qualified electrician.

Need multiple wells or remote controls? Contact us for custom configurations and quantity pricing.

Features & Specs

Manufacturer

Wells (Middleby)

Certifications

UL

Width

11.63in

Depth

13.88in

Shipping Weight

18.0lbs

Style

individual pans

Insulated or Non-Insulated

insulated

Controls

thermostatic controls

Drain

with drain

Wet or Dry operation

wet or dry

Construction

stainless steel construction

Pan Capacity

(1) 1/2 size short (6" x 12")

Specifications

Half-Size Food Warmer, top-mount, built-in, electric, one 12" x 10" pan opening with drain, wet/dry operation, thermostatic control, stainless steel construction, Wellslok, UL
