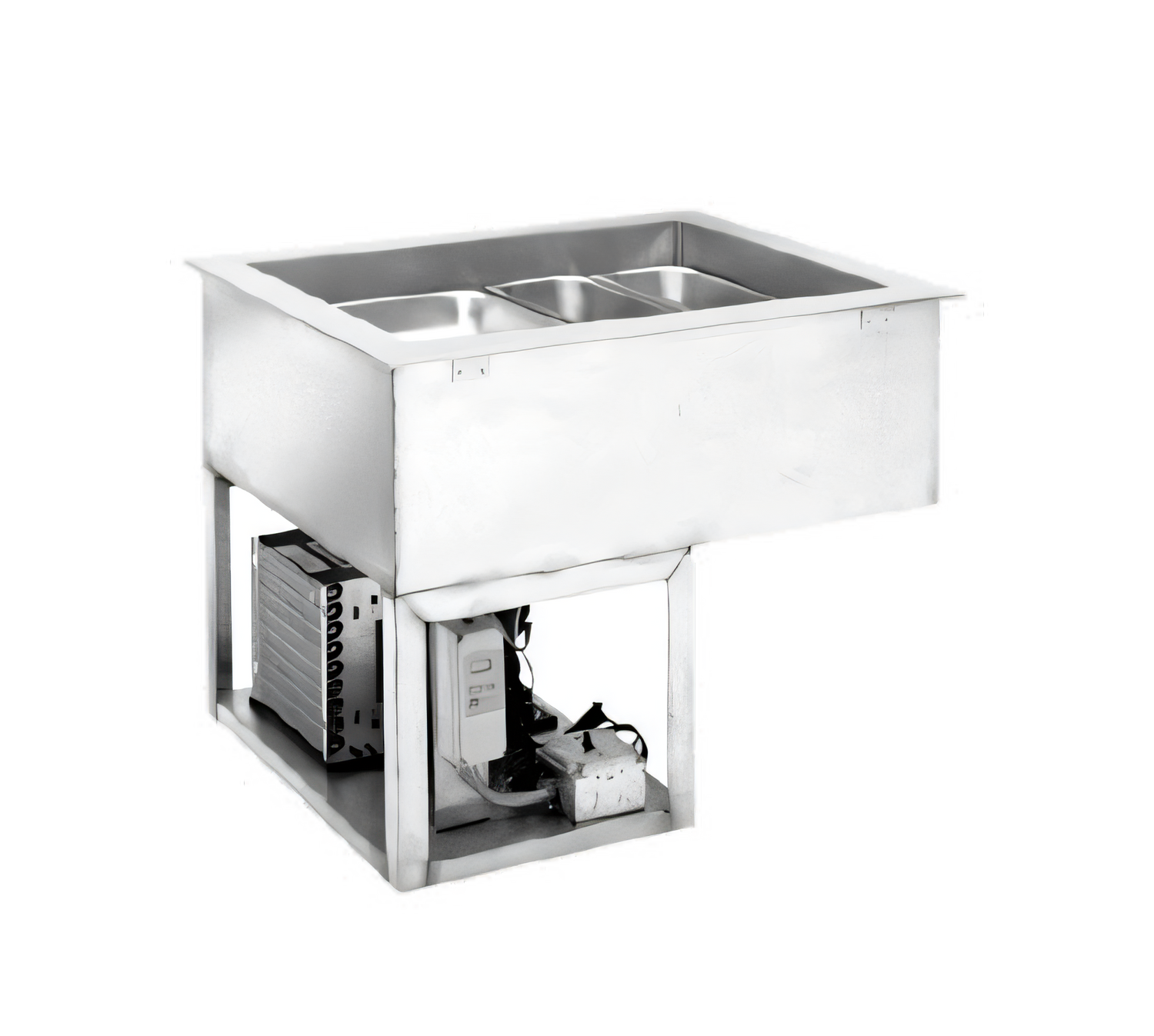

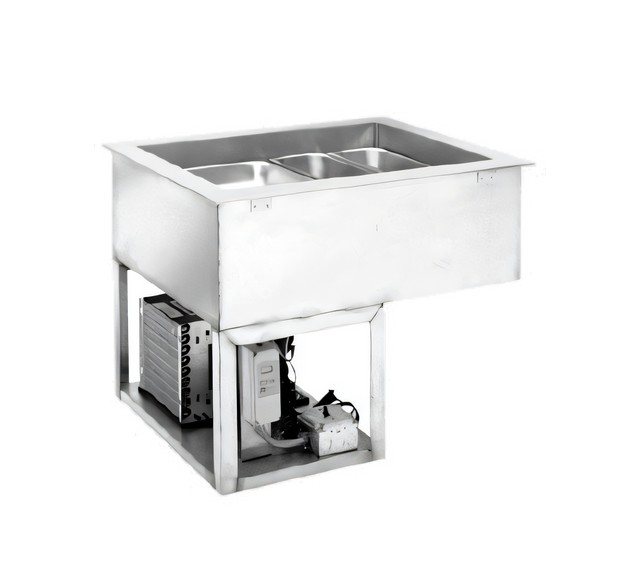

Wells HRCP-7500 Dual-Temperature 5-Pan Self-Contained Drop-In Hot/Cold Food Well

Single Tank, Automatic Water Fill, R-513A Refrigeration

Switch between hot and cold holding in one self-contained drop-in unit built for flexible 5-pan service line use.

  • Dual-temperature design provides hot holding or refrigerated cold service in one unit.
  • Self-contained drop-in construction is designed for countertop installation and service access.
  • Holds five standard 12 x 20 food pans and fractional pans; two pan dividers are included.
  • Automatic water fill and high-limit protection support wet hot operation.
  • Air-cooled R-513A refrigeration and insulated construction help maintain cold temperatures efficiently.
  • Stainless steel top and liner with a corrosion-resistant steel exterior are built for daily foodservice use.

Overall Dimensions:

74.0"W x 27.13"D x 25.13"H

Product Weight:

298.0 lb

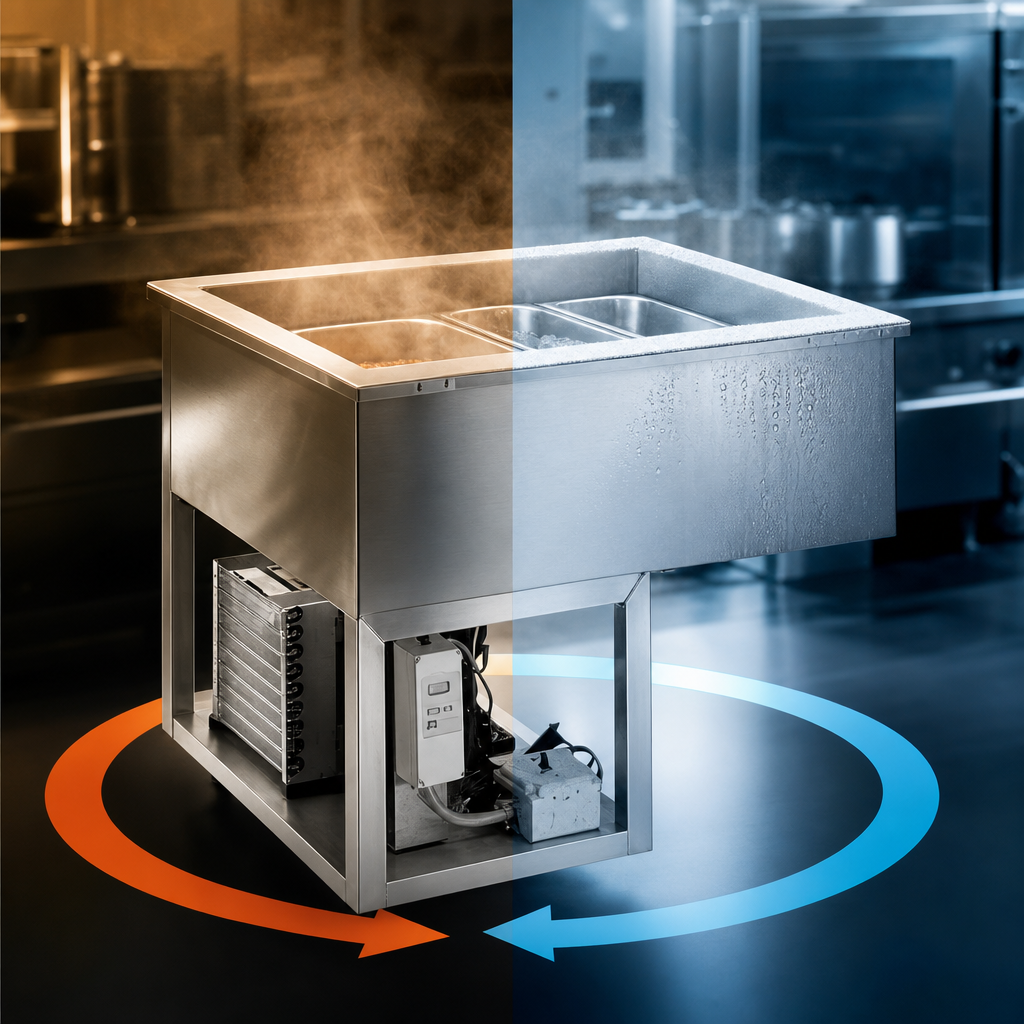

Dual Temperature Operation

Single control switches the unit between hot holding and refrigerated cold service.

Five-Pan Capacity

Sized for five standard 12 x 20 food pans and fractional pans; two pan dividers are included.

Automatic Water Fill

Water sensor and solenoid valve help maintain proper water levels during hot operation.

Self-Contained Refrigeration

Air-cooled R-513A refrigeration system includes a removable condensing unit for easier service.

Stainless Steel Construction

Stainless steel top and liner with a corrosion-resistant steel exterior for durability.

Flexible Control Panel Mounting

The control panel is attached to a 24-inch flexible conduit for optional remote mounting.

Service-Friendly Plumbing

Designed with a center drain and water fill assembly to support installation and cleaning.

Type Hot/Cold
Style Self-Contained
Installation Type Drop-In
Controls Single Control
Pan Capacity 5 Pans
Pan Size Standard 12 x 20 Inches and Fractional Pans
Refrigeration Type Mechanically Cooled
Refrigerant Type R-513A
Material Stainless Steel
Finish Stainless Steel Top and Liner; Corrosion Resistant Steel Exterior
Voltage 115 Volts (Refrigeration) / 208/240 Volts (Heating)
Watts 6.0 kW (208 Volts) / 8.0 kW (240 Volts)
Amps 8 Amps (Refrigeration) / 28.9-33.3 Amps (Heating)
Phase 1-Phase
Hertz 60 Hz
Water Connection Required
Drain Connection Required
Water Inlet Size 1/4 Inch NPT
Drain Connection Size 1 Inch NPT
Country of Origin USA
Selling Unit Each
Units Per Case 1
Shipping Width 74 Inches
Shipping Depth 28 Inches
Shipping Height 26 Inches
Shipping Weight 298 Pounds

Certifications & Compliance

Certified badge of NSF Certified
NSF Certified

Warranty & Protection

1-year parts and labor

Documents

PDF Cutsheet PDF Download PDF Install sheet PDF Download PDF Owner's manual PDF Download PDF Middleby financial flyer PDF Download PDF Warranty sheet PDF Download

Frequently Asked Questions

It holds five standard 12 x 20 food pans and fractional pans; two pan dividers are included.
Yes. A single control switches the unit between hot holding and refrigerated cold service.
The unit requires a 1/4-inch NPT water supply connection and a 1-inch drain connection.
Yes. The unit uses self-contained refrigeration with a removable condensing unit mounted below the pan.
Yes. The control panel is attached to a 24-inch flexible conduit for optional counter mounting.
