Wells HRCP-7400 60-Inch 4-Pan Hot/Cold Self-Contained Drop-In Food Well

Single control, automatic water fill, stainless steel construction

This dual-temperature drop-in well gives operators one unit that can hold food hot or cold, with self-contained refrigeration and automatic water fill for dependable service.

  • 4-pan drop-in design fits standard 12" x 20" food pans and fractional pans.
  • Single control switches the unit between hot and cold operation.
  • Self-contained, mechanically cooled refrigeration uses R-513A refrigerant.
  • Automatic water fill and high-limit protection support wet hot holding.
  • Stainless steel top and liner with a corrosion-resistant steel exterior.
  • Includes two pan dividers and a 1-inch drain for easier cleanup.

Overall Dimensions:

60.25"W x 27.13"D x 25.13"H

Product Weight:

275.0 lb

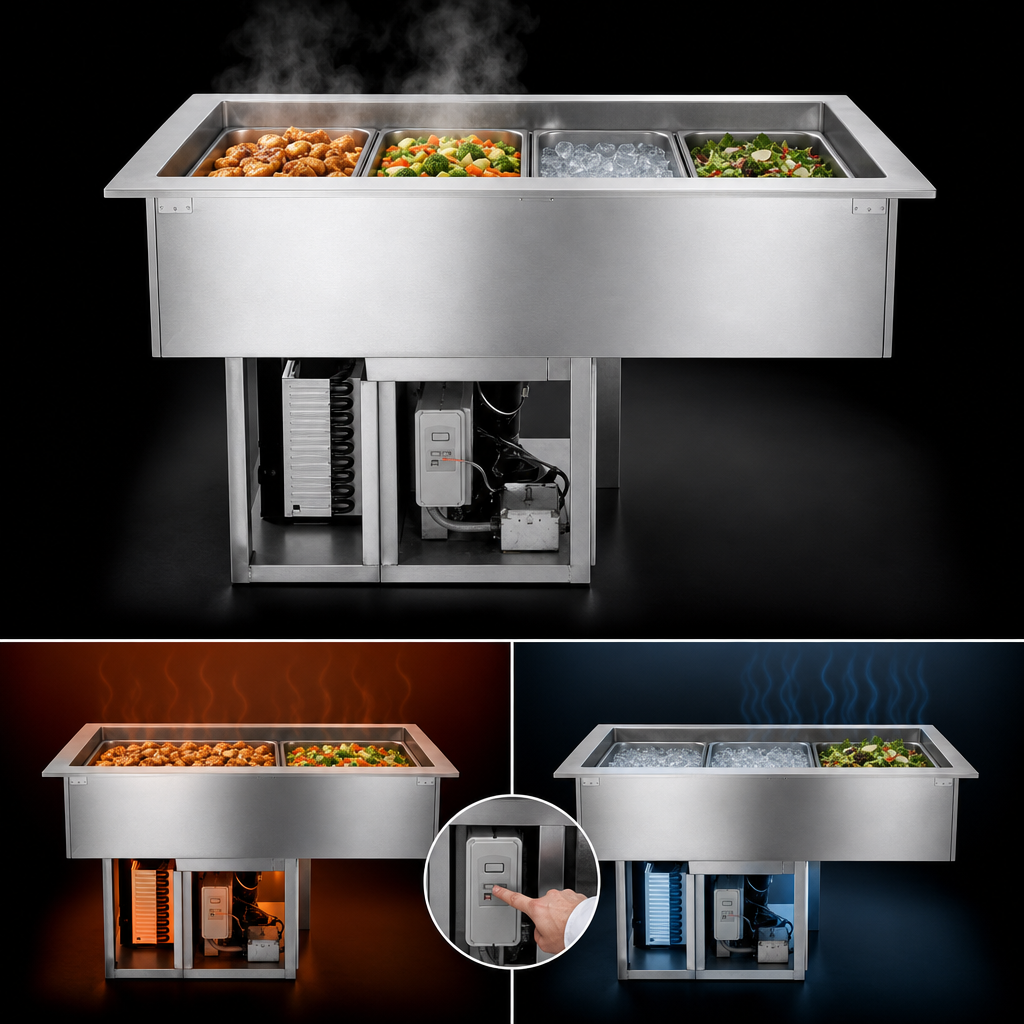

Dual-Temperature Operation

A single control lets the operator change the unit from hot holding to cold holding.

Self-Contained Refrigeration

Built-in refrigeration simplifies installation and uses R-513A refrigerant for cold operation.

Automatic Water Fill

Water sensor and solenoid valve help maintain proper water levels, with high-limit protection for wet hot operation.

Heavy-Duty Construction

Stainless steel top and liner pair with a corrosion-resistant steel exterior and insulated cabinet construction for durability.

Pan Support Flexibility

Holds standard 12" x 20" pans and fractional pans, and includes two pan dividers to help configure the well.

Service-Friendly Design

The control panel is attached to a 24-inch flexible conduit for optional remote mounting, and front access is required for service.

Type Hot/Cold
Style Dual Temperature
Installation Type Drop-In
Compartments 1
Pan Capacity 4 Pans
Pan Size Standard 12 x 20 Inch And Fractional Pans
Controls Single Control
Refrigeration Type Self-Contained
Refrigerant Type R-513A
Material Stainless Steel
Interior Finish Stainless Steel
Finish Corrosion Resistant Steel
Voltage 115 Volts / 208-240 Volts
Amps 6.4 Amps / 18.1-20.8 Amps
Hertz 60 Hz
Phase 1-Phase
Plug Type Direct Wire
Water Connection Required
Water Inlet Size 1/4 Inch NPT
Drain Connection Required
Drain Connection Size 1 Inch NPT
Shipping Width 61 Inches
Shipping Depth 28 Inches
Shipping Height 26 Inches
Shipping Weight 275 lb.
Country Of Origin USA
Selling Unit Each
Units Per Case 1

Certifications & Compliance

Certified badge of NSF Certified
NSF Certified

Warranty & Protection

Limited 1-year parts and labor.

Documents

PDF Cutsheet PDF Download PDF Owner's manual PDF Download PDF Install sheet PDF Download PDF Middleby financial flyer PDF Download PDF Warranty sheet PDF Download

Frequently Asked Questions

It holds standard 12" x 20" food pans and fractional pans, and this model is a 4-pan size.
Yes. A single control switches the unit between hot and cold operation.
The product data lists 115V refrigeration and 208/240V heating, and the installation instructions call for a 120/208-240V single-phase supply connection.
It requires a 1/4-inch NPT water supply connection and a 1-inch drain connection.
It uses a self-contained refrigeration system with R-513A refrigerant.
Yes. The temperature and function control panel is attached to a 24-inch flexible conduit for optional counter mounting.
