Wells (Middleby)

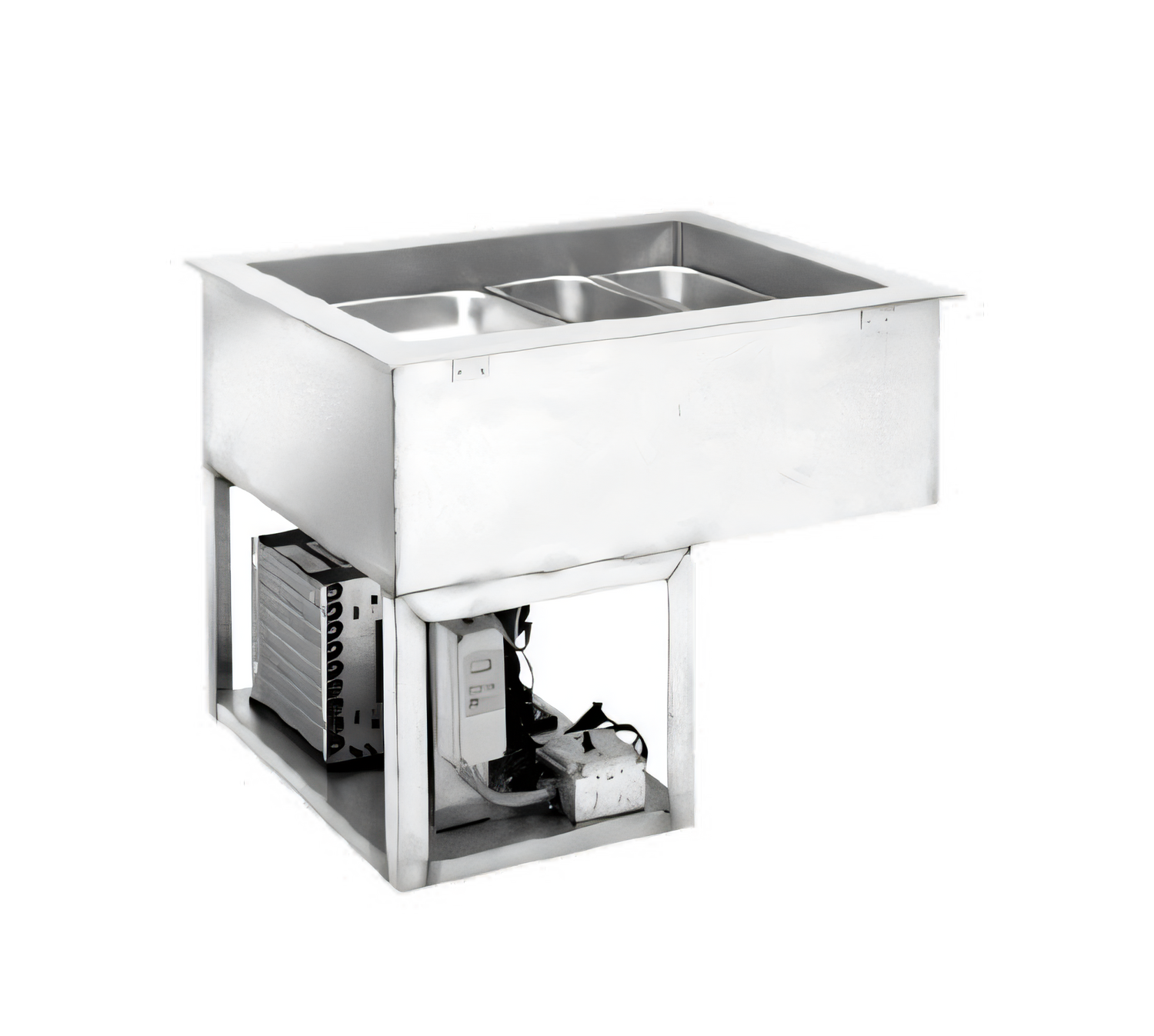

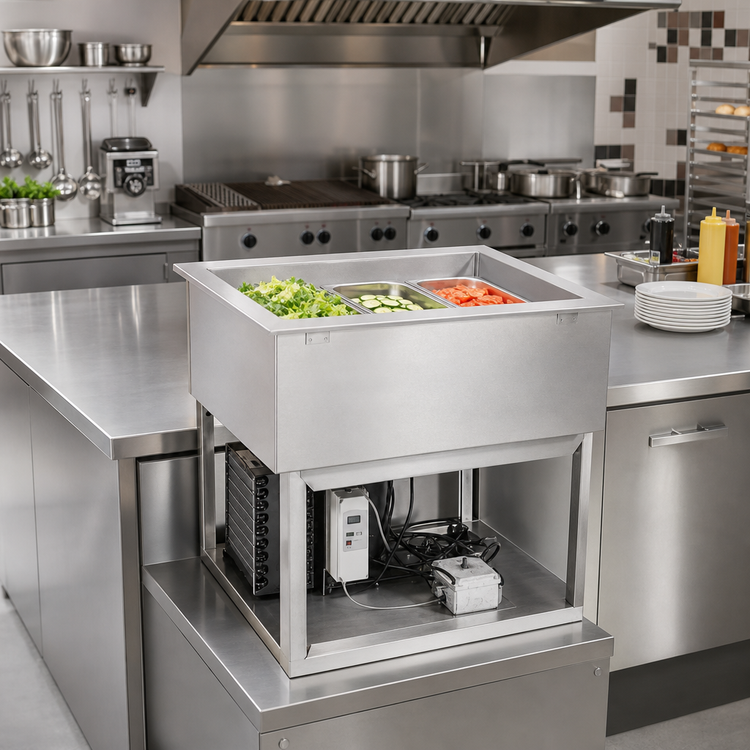

Wells HRCP-7300 Dual-Temperature 3-Pan Self-Contained Drop-In Hot/Cold Food Well

SKU: HRCP-7300
$15,934.00
/each
Free Shipping
Expected delivery date of ,
if ordered within hours and minutes
Not Shipping to ?
Want to speak to an expert?
(888) 307-5030
Chat
Bulk pricing available

Related Searches

Best Sellers Cold Well Food Bars & Buffets Food Holding & Warming Equipment Food Wells & Serving Lines New Arrivals Restaurant Equipment Steam Tables & Food Wells Wells (Middleby)

Wells HRCP-7300 Dual-Temperature 3-Pan Self-Contained Drop-In Hot/Cold Food Well

Air-Cooled Refrigeration, Automatic Water Fill

Switch between hot holding and refrigerated cold service in one self-contained drop-in unit built for busy buffet lines.

  • Dual-temperature design lets you switch between hot and cold operation with a single control.
  • Three-pan drop-in size fits standard 12 x 20 pans and supports fractional pans with adapter bars.
  • Automatic water fill and high-limit protection support safe wet hot operation.
  • Air-cooled R-513A refrigeration and insulated construction help maintain cold product temperatures.
  • Stainless steel food zone and corrosion-resistant exterior are built for commercial durability.
  • Includes two pan dividers for flexible pan organization.
  • NSF-7 compliant design features a recessed top edge for improved food holding performance.

Overall Dimensions:

46.5"W x 27.13"D x 25.13"H

Product Weight:

240.0 lb

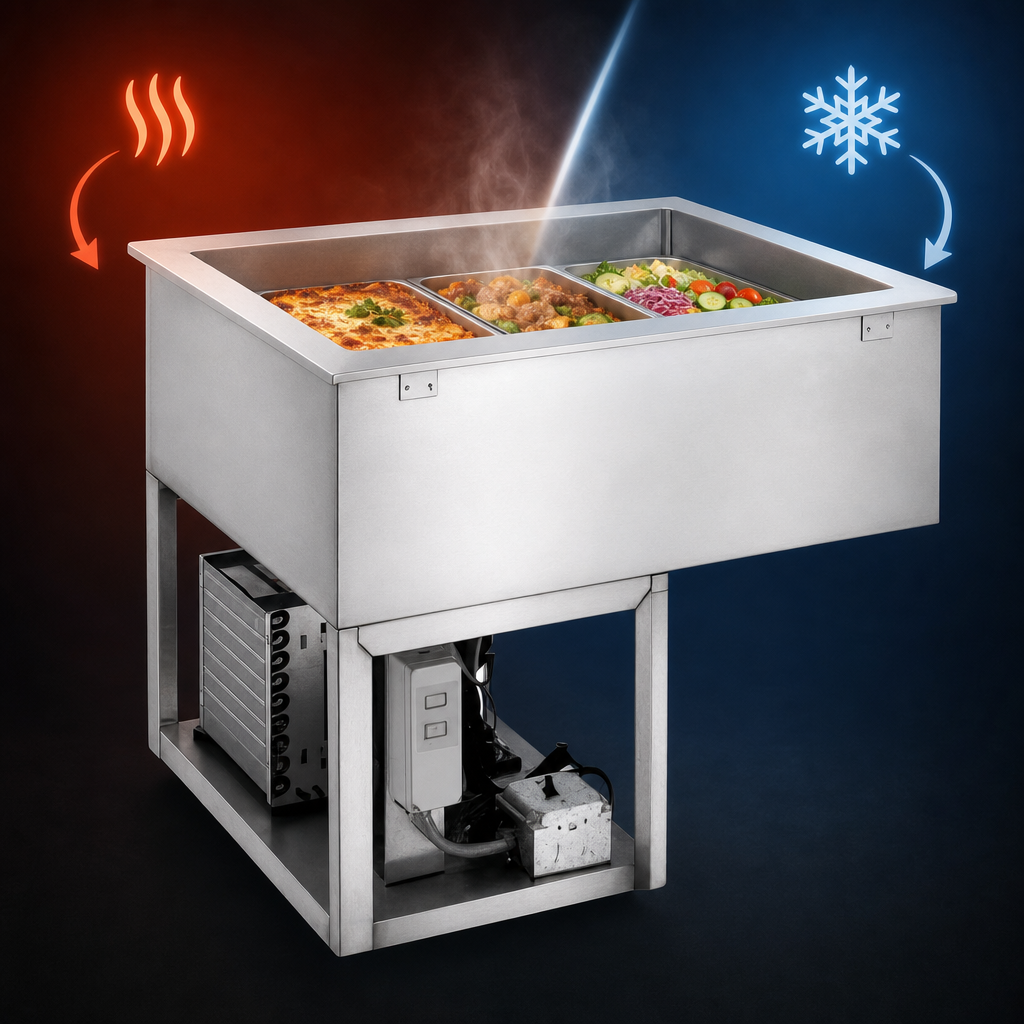

Dual-Temperature Operation

Switch from hot holding to refrigerated cold service with a single control.

Self-Contained Refrigeration

Built-in air-cooled refrigeration uses R-513A refrigerant, so no remote refrigeration system is required.

Automatic Water Fill

A water sensor and solenoid help maintain proper water levels during hot operation.

NSF-7 Compliant Top Design

The recessed top edge is designed to meet NSF-7 performance requirements.

Heavy-Duty Construction

Stainless steel top and liner with a corrosion-resistant steel exterior are built for commercial use.

Pan Support Accessories Included

Ships with two pan dividers and adapter bars for supporting standard and fractional food pans.

Easy Service Access

The control panel is attached to a flexible conduit for optional remote mounting and easier access.

Easy Cleaning Drain

A 1-inch drain helps simplify draining and cleanup.

Type Hot/Cold
Style Self-Contained
Installation Type Drop-In
Controls Single Control
Pan Capacity 3 Pans
Pan Size 12 x 20 Inches
Refrigeration Type Air Cooled
Refrigerant Type R-513A
Material Stainless Steel
Interior Finish Stainless Steel
Voltage 115 Volts (Cold); 208/240 Volts (Hot)
Amps 5.6 Amps (Cold); 14.4-16.7 Amps (Hot)
Watts 3.0 kW at 208 Volts; 4.0 kW at 240 Volts
Phase 1-Phase
Hertz 60 Hz
Water Inlet Size 1/4 Inch NPT
Drain Connection Size 1 Inch NPT
Country of Origin USA
Selling Unit Each
Units Per Case 1
Shipping Width 47 Inches
Shipping Depth 28 Inches
Shipping Height 26 Inches
Shipping Weight 240 Pounds

Certifications & Compliance

Certified badge of NSF Certified
NSF Certified

Warranty & Protection

Limited 1-year parts and labor

Documents

PDF Cutsheet PDF Download PDF Install sheet PDF Download PDF Owner's manual PDF Download PDF Middleby financial flyer PDF Download PDF Warranty sheet PDF Download

Frequently Asked Questions

It holds standard 12 x 20 food pans and supports fractional pans with adapter bars.
Yes. A single control lets you switch between hot and refrigerated cold operation.
Yes. The unit uses a self-contained, air-cooled refrigeration system with R-513A refrigerant.
The unit requires a 1/4 inch NPT water supply connection, a 1 inch drain connection, and 120/208-240V single-phase power.
Yes. The heating system is designed for wet operation only.
The unit includes a limited 1-year parts and labor warranty.
