Wells (Middleby)  |  SKU: HRCP-7200

Wells (Middleby) HRCP-7200 Steam Tables & Food Wells

$14,748.00
Expected delivery date of , to your door
if ordered within hours and minutes
Not Shipping to ?
More Delivery Options
Documents
Cutsheet Install sheet Owner's manual Middleby financial flyer Warranty sheet
Related Searches
Food Holding & Warming Equipment Steam Tables & Food Wells

Reach out via chat, email, or phone—we're here to help make sure it's the right fit for your kitchen. Contact us for more information.

Description

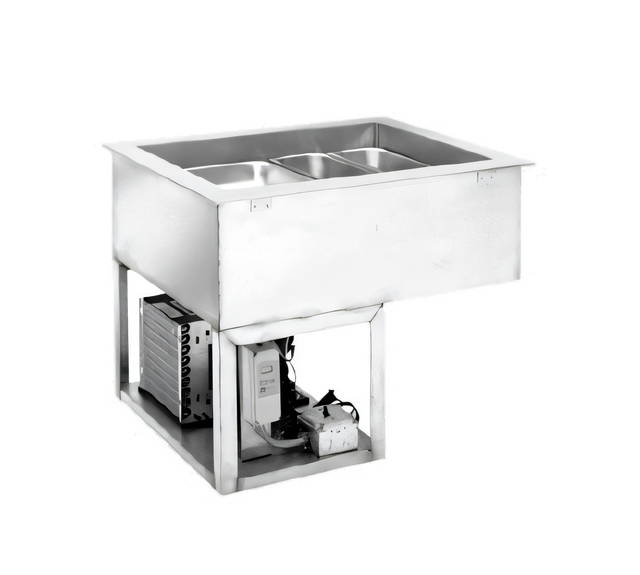

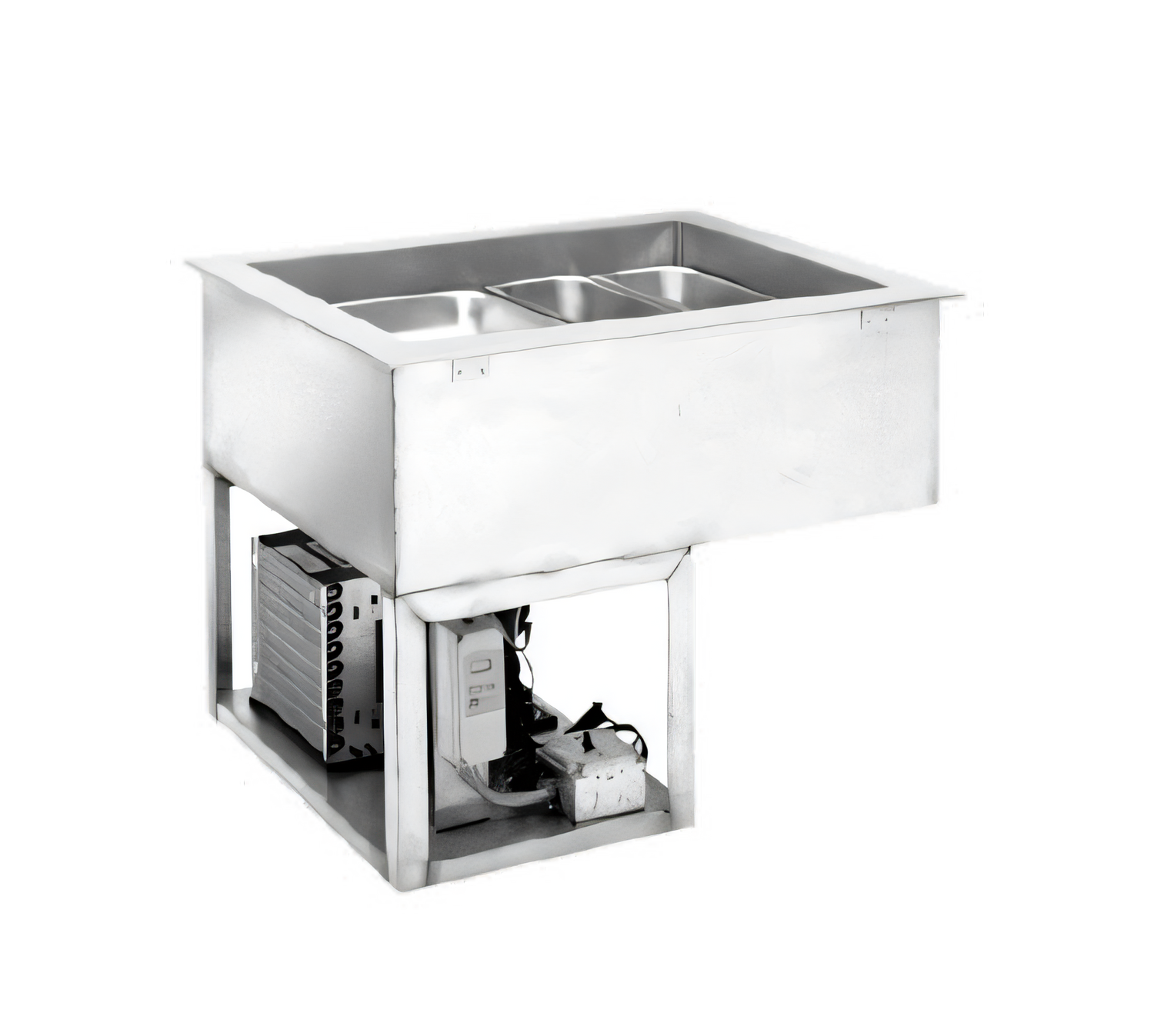

Wells HRCP-7200 Dual-Temperature Hot & Cold Drop-In Pan – 2 Pan

Self-contained versatility at the flip of a switch

Serve breakfast hot and lunch chilled from the very same well. The Wells HRCP-7200 lets you toggle between refrigerated and wet-heat modes instantly, giving you maximum menu flexibility without adding another piece of equipment to your counter.

Why you’ll love it

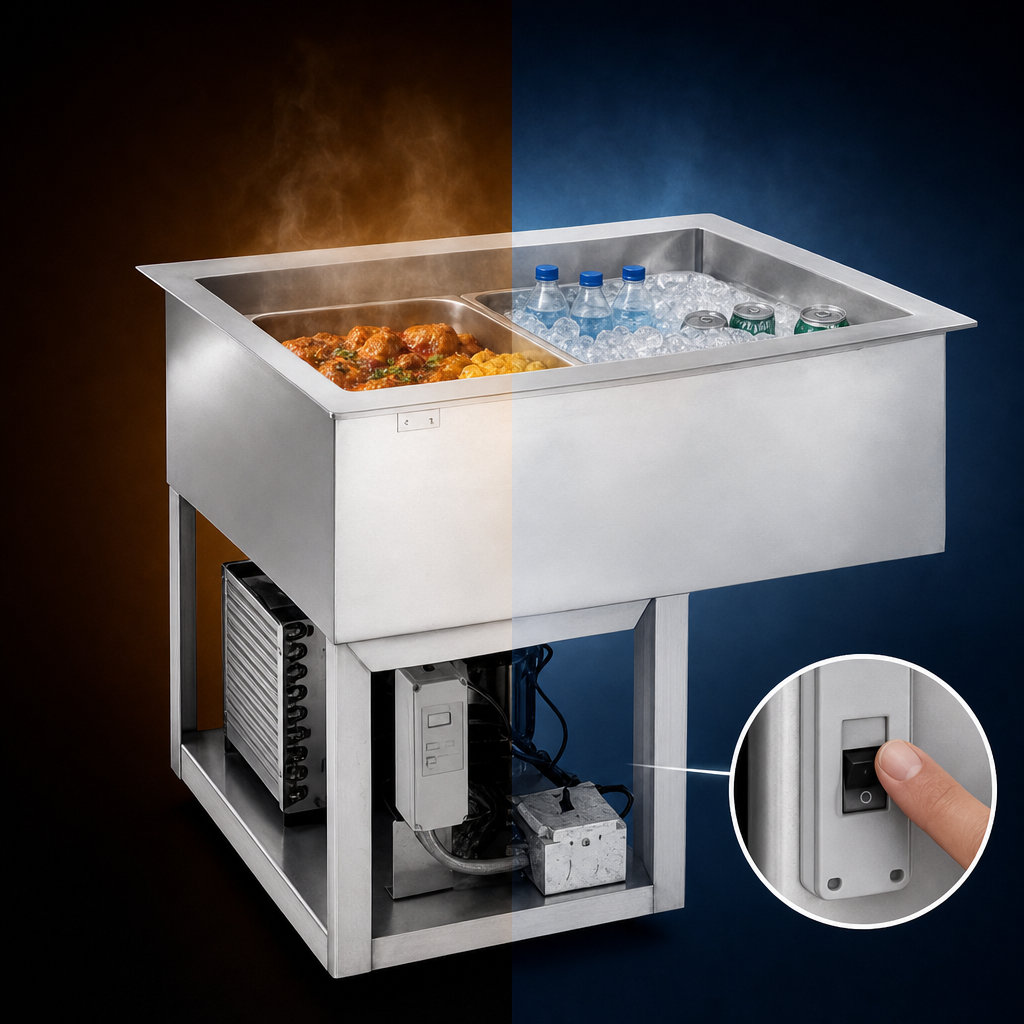

  • Two-in-one design: changes from hot bain-marie to cold pan with a single selector switch.
  • Holds (2) full-size 12 × 20 pans; fractional pans fit with the included dividers.
  • Built-in 1/4 HP refrigeration (R-134a) chills product to 33–41 °F—no ice required.
  • Automatic water-fill with level sensor keeps the hot well safely filled at all times.
  • Foamed-in-place insulation and 3 in. recessed top edge meet NSF-7 for colder holding.
  • Remote-mount control panel on a 24 in. flex conduit puts the controls where you want them.
  • Heavy-duty stainless-steel top & liner plus a 1 in. center drain for fast, hygienic cleanup.
  • Certified NSF & cULus; backed by a 1-year parts & labor warranty (5-year compressor optional).
Technical specifications
Model HRCP-7200
Pan capacity (2) 12 in. × 20 in. × 6 in. pans (or fractional)
Temperature modes Refrigerated cold • Wet-heat hot
Cold mode power 115 V - 1 ph - 4.9 A  | 1/4 HP compressor, R-134a
Hot mode power 208–240 V - 1 ph - 9.0–10.4 A (1.9–2.5 kW immersion element)
Overall size (W × D × H) 32 3/4 × 25 7/8 × 17 7/8 in.  (832 × 657 × 451 mm)
Counter cut-out 31 1/2 × 25 7/8 in.  (800 × 657 mm)
Drain 1 in. NPT (center)
Water connection 1/4 in. NPT (auto-fill)
Agency approvals NSF-7, cULus
Standard accessories (2) pan dividers, adapter bars, remote control panel
Warranty 1-year parts & labor (5-year compressor optional)
Installation note: Unit requires a permanent 120/208-240 V, 3-wire electrical connection, a potable water supply, and a drain. Hot mode is for wet operation only; operating dry will void warranty.

Need easy monthly payments? Ask us about Middleby Equipment Financing for fast credit decisions.

Features & Specs

Manufacturer

Wells (Middleby)

Certifications

NSF, cULus

Height

25.13in

Width

32.75in

Depth

27.13in

Shipping Weight

220.0lbs

Cooling Style

mechanically cooled

Pan Qty

2-pan

Type

hot/cold

Controls

single controls

Finish

stainless steel top & well, corrosion resistant steel exterior

Specifications

Hot/Cold Drop In Unit, 2-pan size, single tank with switch for hot or cold operation with self-contained refrig., automatic water fill, includes (2) pan dividers, R134a, (COLD) 1/4 HP, 115v/60/1-ph, 4.9 amps, (HOT) 208/240v/60/1-ph, 9.0-10.4 amps, direct, NSF, cULus
