Wells (Middleby)

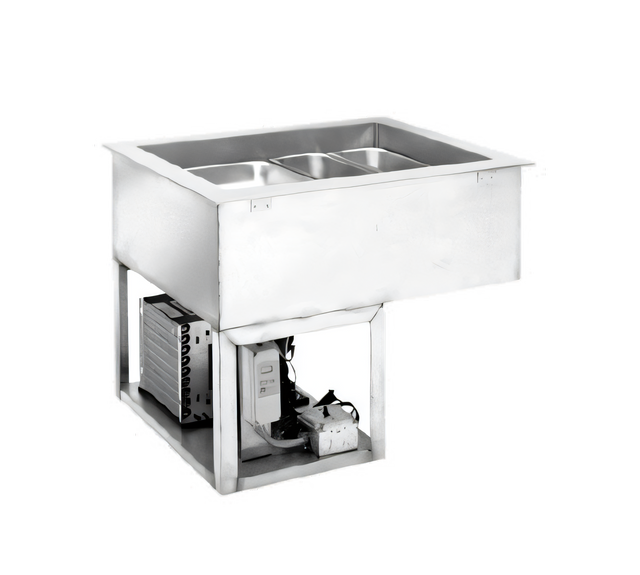

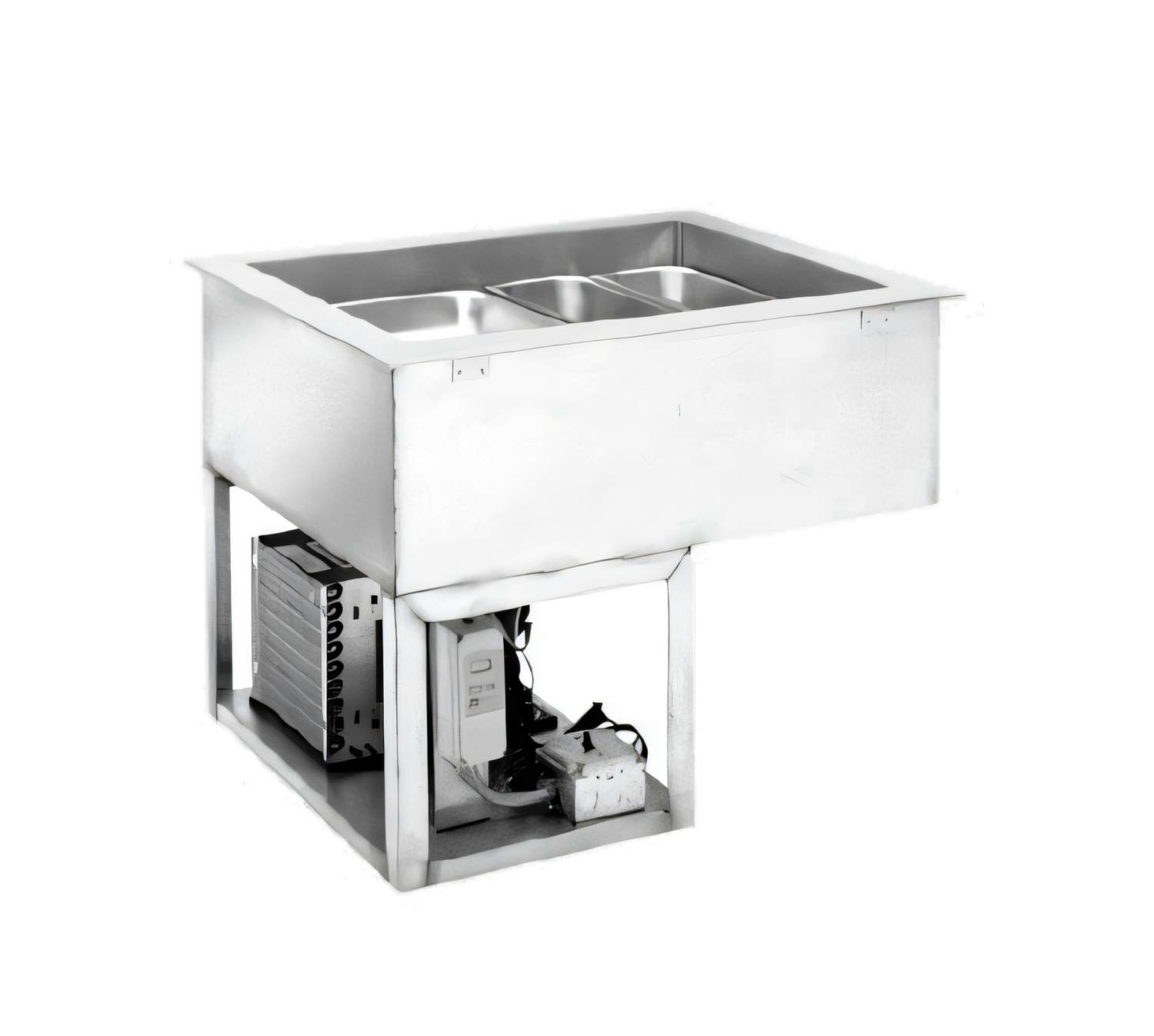

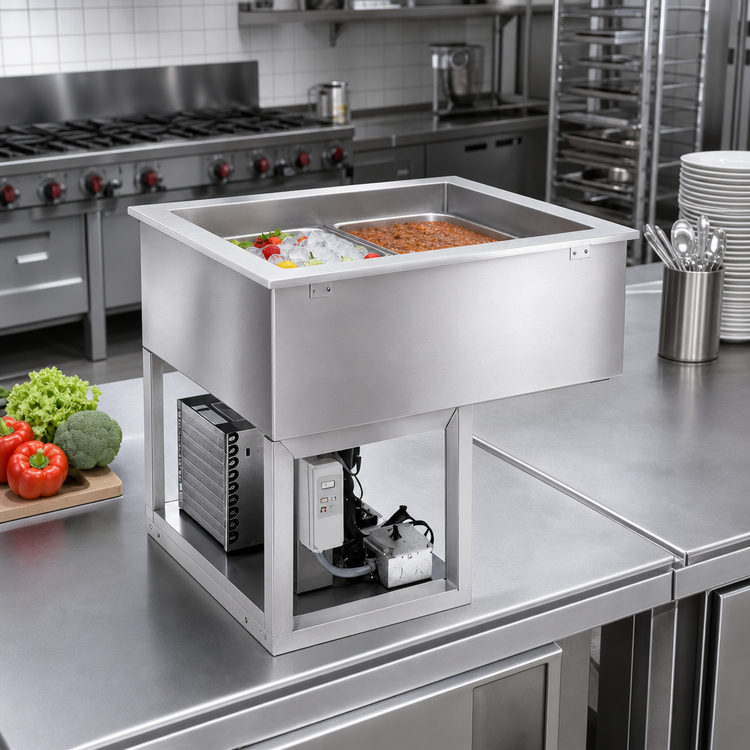

Dual-Temperature Self-Contained Drop-In Hot/Cold Food Well, 1-Pan

SKU: HRCP-7100
$14,557.00
/each
Free Shipping
Expected delivery date of ,
if ordered within hours and minutes
Not Shipping to ?
Want to speak to an expert?
(888) 307-5030
Chat
Bulk pricing available

Related Searches

Best Sellers Cold Well Food Bars & Buffets Food Holding & Warming Equipment Food Wells & Serving Lines New Arrivals Restaurant Equipment Steam Tables & Food Wells Wells (Middleby)

Dual-Temperature Self-Contained Drop-In Hot/Cold Food Well, 1-Pan

Automatic water fill, single-control changeover, air-cooled R-513A refrigeration

Switch between heated holding and refrigerated cold service in one compact, self-contained drop-in unit.

  • Dual hot/cold operation from a single drop-in unit.
  • Self-contained refrigeration and automatic water fill simplify installation and use.
  • Single-control changeover makes switching modes fast and easy.
  • Stainless steel top and well with a corrosion-resistant exterior support durability.
  • Supports standard 12 x 20 pans and includes two pan dividers.
  • NSF-7 compliant design with a 1-inch drain for easier cleaning.

Overall Dimensions:

19.13"W x 27.13"D x 25.13"H

Product Weight:

175.0 lb

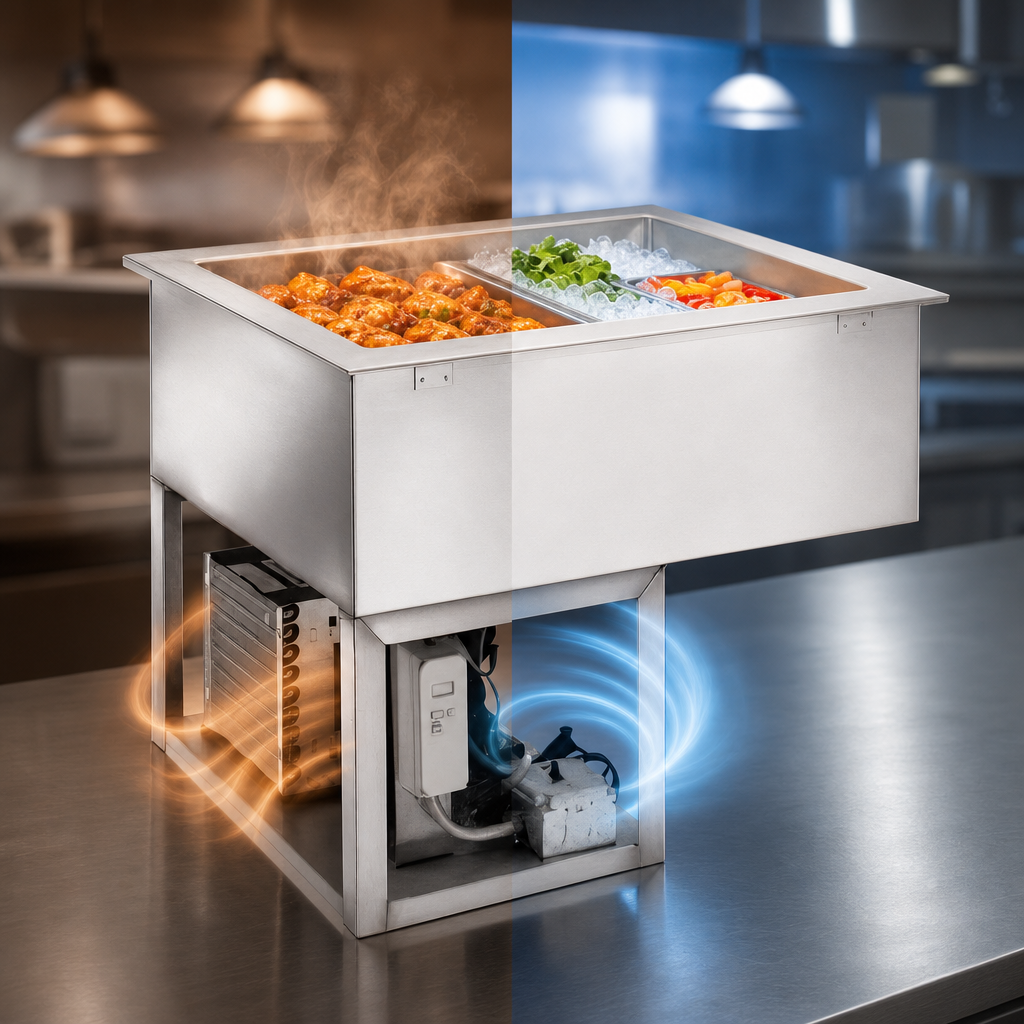

Dual Temperature Operation

Single control changes the unit from hot to cold service.

Self-Contained Drop-In Design

Built-in unit installs into a countertop cutout without remote refrigeration.

Automatic Water Fill

Water sensor and solenoid valve maintain proper water level during hot operation.

Air-Cooled R-513A Refrigeration

CFC-free refrigerant and self-contained cooling keep products cold efficiently.

NSF-7 Compliant

Designed to meet NSF Standard 7 performance requirements with a 3-inch recessed top edge.

Durable Stainless Construction

Stainless steel top and liner with a corrosion-resistant steel exterior and foamed-in-place insulation.

Includes Two Pan Dividers

Helps organize product in the well; adapter bars are available for fractional pans.

Easy Service Access

Front access is required for controls and service, and the control panel can be mounted remotely on a 24-inch flexible conduit.

Type Hot/Cold
Style Self-Contained
Installation Type Drop-In
Controls Single Control
Pan Capacity 1 Pan
Pan Size 12 x 20 Inches
Material Stainless Steel
Finish Corrosion Resistant Steel Exterior
Refrigeration Type Air Cooled
Refrigerant Type R-513A
Voltage 115 Volts (Cold) / 208/240 Volts (Hot)
Amps 4.9 Amps (Cold) / 9.0-10.4 Amps (Hot)
Hertz 60 Hz
Phase 1-Phase
Plug Type Hardwired
Water Connection Required
Water Inlet Size 1/4 Inch NPT
Drain Connection Required
Drain Connection Size 1 Inch NPT
Country of Origin USA
Selling Unit Each
Units Per Case 1
Shipping Width 20 Inches
Shipping Depth 28 Inches
Shipping Height 26 Inches
Shipping Weight 175 lb.

Certifications & Compliance

Certified badge of NSF Certified
NSF Certified

Warranty & Protection

Limited 1-year parts and labor

Documents

PDF Cutsheet PDF Download PDF Middleby financial flyer PDF Download PDF Install sheet PDF Download PDF Owner's manual PDF Download PDF Warranty sheet PDF Download

Frequently Asked Questions

A single control changes the unit from hot to cold operation.
It holds standard 12 x 20 food pans and fractional pans when used with adapter bars.
It requires a 1/4-inch NPT water connection, a 1-inch drain connection, and 120/208-240V single-phase power; the unit is hardwired.
Yes, the cold side uses a self-contained, air-cooled R-513A refrigeration system.
It is designed to meet NSF-7 requirements and is NSF and cULus listed.
Two pan dividers are included.
