Description

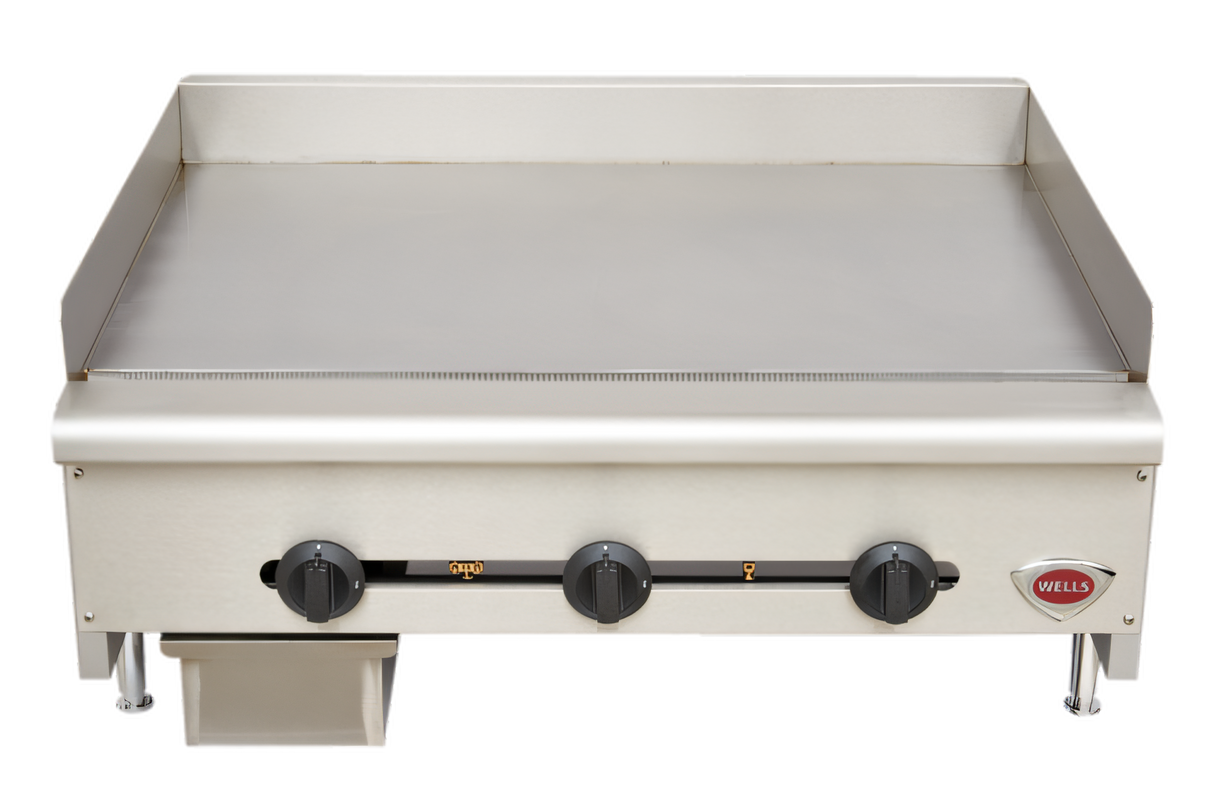

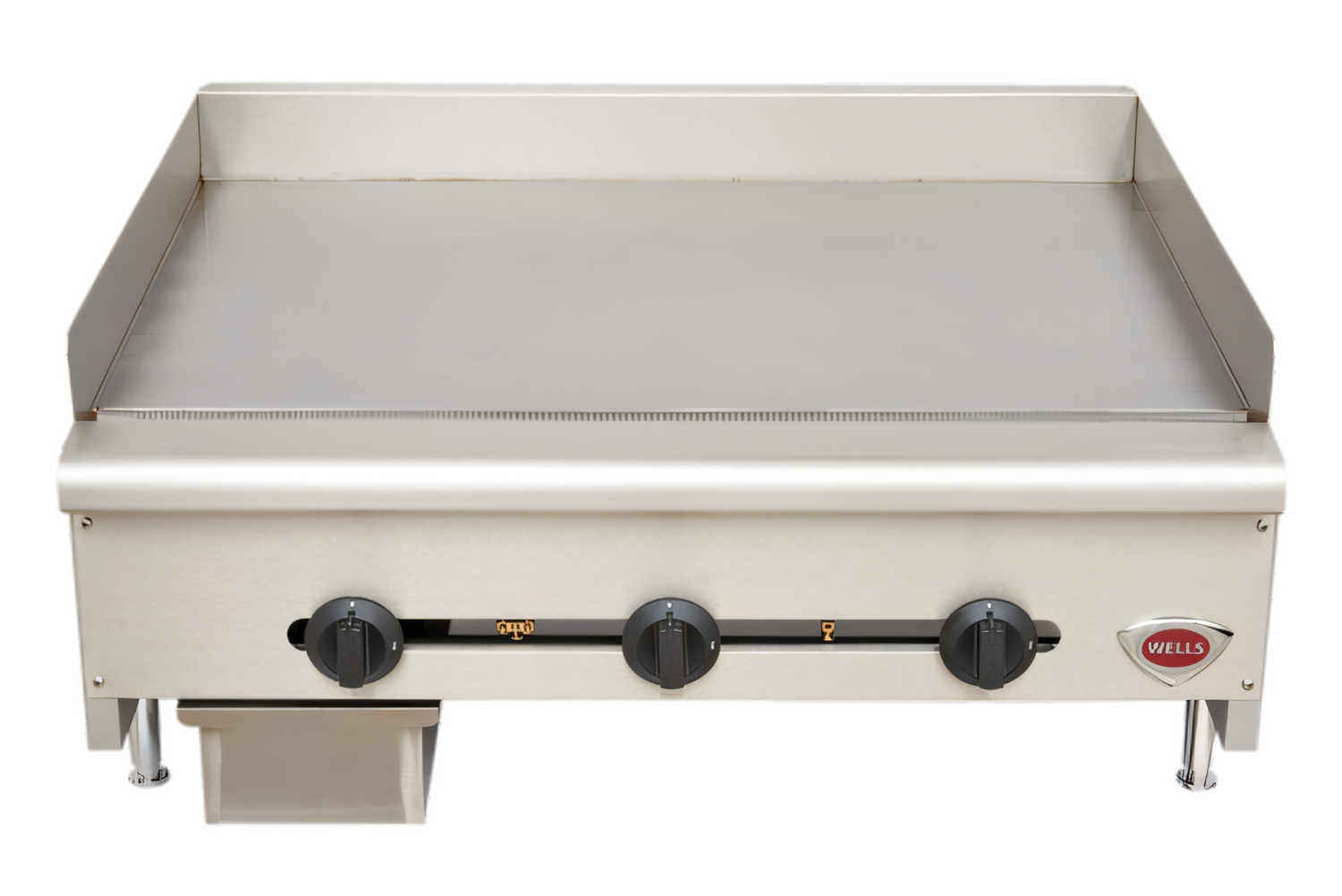

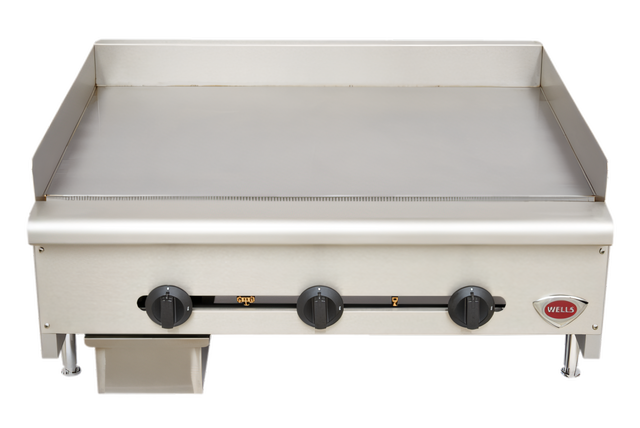

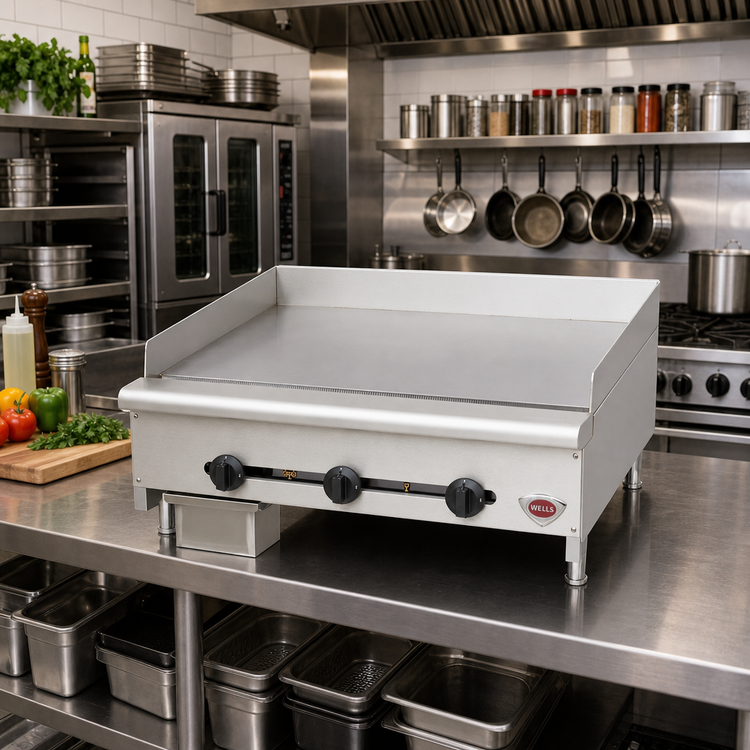

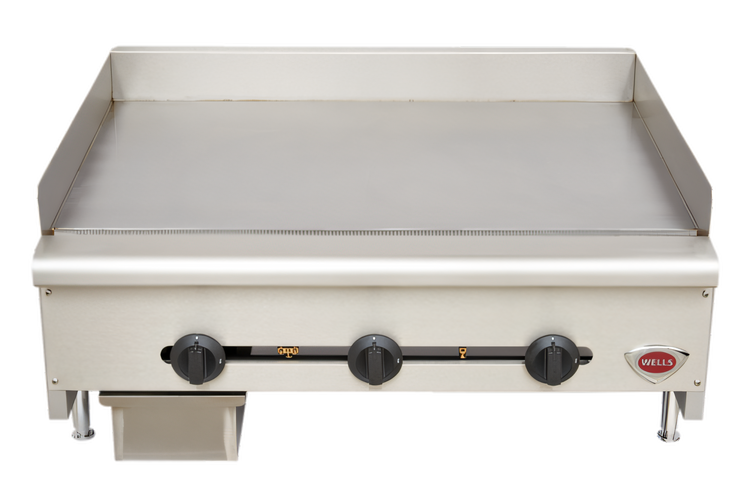

Wells HDG4830G Heavy-Duty 48" Gas Countertop Griddle – Manual Controls

Quick Ship • Ships in 5 Business Days • Max 2 Units Per Order

Power, precision, and legendary Wells durability come together in the HDG4830G. Delivering 120,000 BTU across a wide 47" × 23-9⁄16" cooking surface, this extra-heavy-duty griddle heats fast, recovers instantly, and stands up to punishing daily workloads—perfect for diners, QSRs, hotels, and high-volume concessions.

Key Features
  • Four independent manual burners with infinite heat adjustment and on/off valves for true multi-zone control.

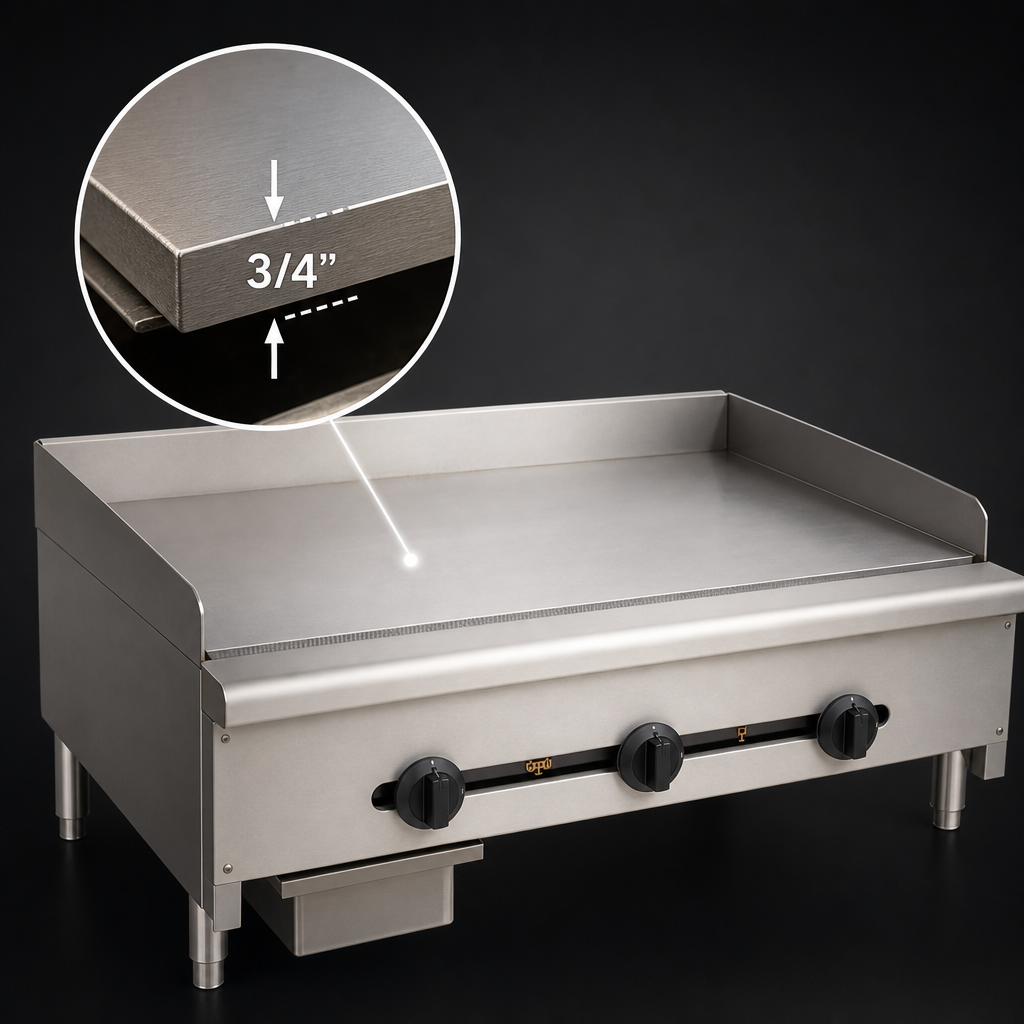

  • ¾" (19 mm) polished steel plate ensures superior heat retention and even temperature distribution.
  • 120,000 BTU /hr natural gas performance; field-convertible to LP (conversion kit included).
  • Stainless steel front, sides, and full 4-sided splashguard for fast, sanitary wipe-downs.
  • Full-width 3½" grease trough feeds an oversized, front-mounted drip drawer—less mess, faster cleanup.
  • Adjustable 4" heavy-duty steel legs for a level, rock-solid install on any cookline.
  • NSF & cULus certified; built in the USA for demanding commercial kitchens.
Specifications
Model HDG4830G
Controls 4 Manual, Infinite Adjustment
Cooking Surface (W × D) 47" × 23-9⁄16" (1194 × 598 mm)
Plate Thickness ¾" (19 mm) steel
Total BTU 120,000 BTU/hr (Natural Gas)
LP kit included (10" W.C.)
Overall Dimensions (W × D × H) 48-1⁄8" × 31-11⁄16" × 17" (1222 × 804 × 433 mm)
(height includes 4" legs)
Clearances – Non-Combustible Back 0" • Sides 0" • Front 0" • Bottom 4"
Ship / Installed Weight Approx. 507 lb / 393 lb
Certifications NSF, cULus
Warranty 1-Year Parts & Labor
Why Choose Wells HDG?

Purpose-built for the rush, Wells HD Gas Griddles pair rapid preheat with lightning-fast recovery, letting you crank out pancakes, burgers, veggies, and proteins without slowing down. Adjustable air shutters on every burner fine-tune combustion for peak efficiency and lower operating costs.

Installation & Utility
  • Ships natural gas (5" W.C.)—field convertible to LP in minutes.
  • ¾" NPT rear gas connection.
  • Minimal clearance requirements maximize valuable cookline real estate.
Quick-Ship Notice: This Middleby Essentials item leaves our warehouse within 5 business days. Limit 2 units per order.

Looking for flexible payment options? Ask about Middleby Equipment Financing for fast credit decisions and affordable monthly terms.

Features & Specs

Manufacturer

Wells (Middleby)

Certifications

NSF, cULus

Height

17.0in

Width

48.13in

Depth

31.69in

Shipping Weight

507.0lbs

Cooking Surface Width (side - side)

43" - 48"

Griddle Plate Finish

smooth steel

Cooking Surface Depth (front - back)

24" - 29"

Controls

manual controls

Exterior Finish

all stainless steel exterior

Plate Thickness

3/4"

Specifications

(QUICK SHIP) (MIDDLEBY ESSENTIALS ITEM) Griddle, countertop, natural gas, 47" W x 23-9/16" D cooking surface, 3/4" griddle plate, (4) manual controls, splashguard, stainless steel housing & grease drawer, 4" steel legs, 120,000 BTU, NSF, cULus (ships with LP conversion kit) (Ships within 5 days. Max qty - 2 per order)
