Wells (Middleby) HDCB-4830G Gas Charbroilers
Description
Wells HDCB-4830G 48" Heavy-Duty Gas Countertop Charbroiler
Natural Gas - field convertible to LP (kit included)Bring steakhouse-quality sear to your line with the largest model in Wells’ HDCB series. Eight cast-iron radiant burners pump out a blistering 160,000 BTU, while reversible grates let you choose flat or sloped presentation. Built for relentless commercial use, the HDCB-4830G delivers even heat, quick recovery and easy clean-up in a 48-inch footprint.
Key advantages

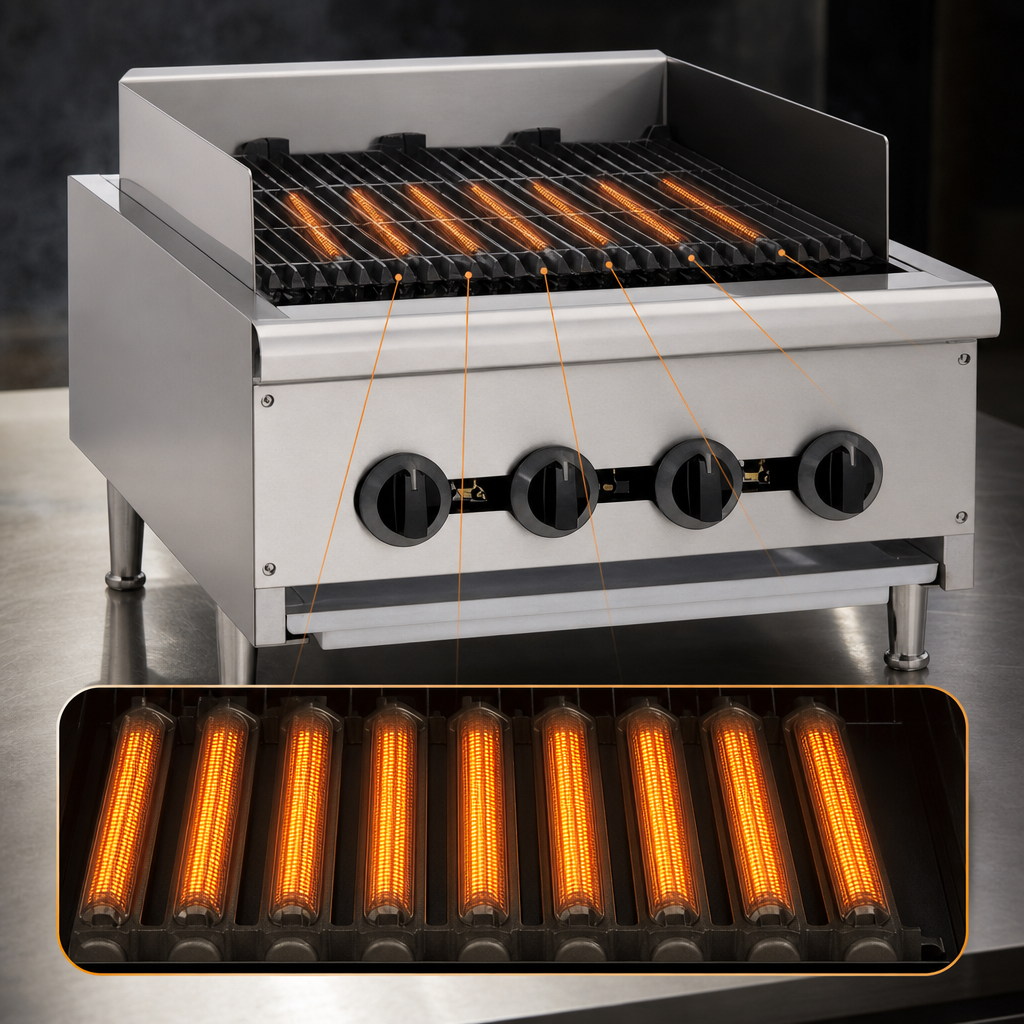

- 160,000 BTU of cooking power – 8 durable cast-iron burners with individual infinite valves.
- Reversible cast-iron grates – choose flat for delicate products or angled for classic char marks & grease drainage.
- Heavy-duty cast-iron radiants promote even heat and help tame flare-ups.
- Stainless steel housing with removable front panel for fast service access.
- Adjustable air shutters on every burner optimize combustion and fuel efficiency.
- Full-width, slide-out drip pan catches grease for quick nightly clean-up.
- Factory shipped for natural gas; propane conversion kit included for on-site changeover.
- 4" heavy-duty steel legs meet minimum clearance requirements and make counter cleaning easy.
- Certified NSF & cULus; complies with ANSI Z83.
- Backed by a 1-year parts & labor warranty from Wells Manufacturing.
At-a-glance specs
| Model | HDCB-4830G |
|---|---|
| Gas type (shipped) | Natural gas, 5" W.C. Field convertible to LP, 10" W.C. (kit included) |
| Total BTU | 160,000 BTU/hr |

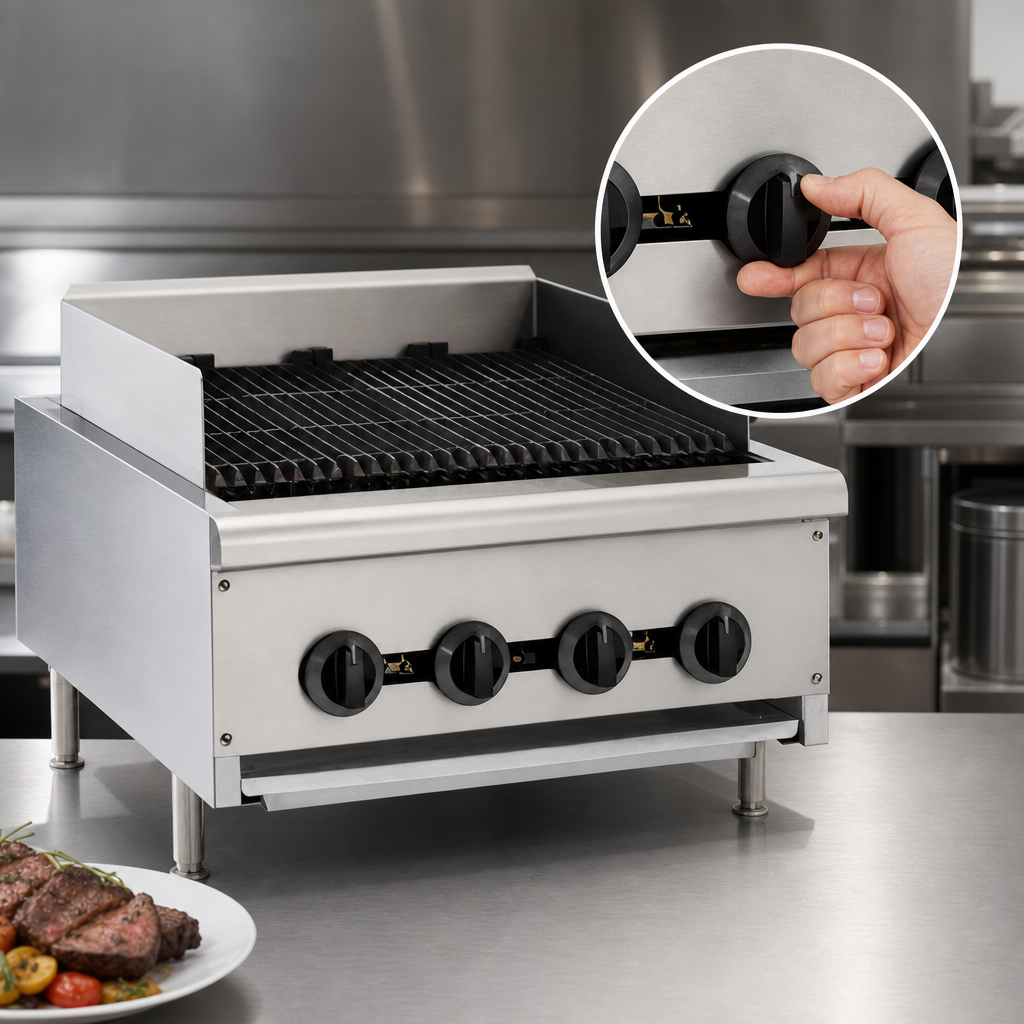

| Burners / Controls | 8 cast-iron radiant burners, manual ON/OFF infinite valves |
| Cooking surface | 48" W × 21 5/8" D (1,220 mm × 550 mm) |
| Overall dimensions (with 4" legs) | 48" W × 30 1/2" D × 18 1/8" H (1,220 mm × 775 mm × 461 mm) |
| Installed weight | 384 lb (174 kg) |
| Shipping weight | 514 lb (233 kg) |
| Gas connection | 3/4" NPT |
| Minimum clearances (non-combustible) |
Back 0" | Sides 0" | Front 0" | Bottom 4" (4" legs must be installed) |
| Certifications | NSF, cULus |
| Standard warranty | 1 year parts & labor |
What’s in the box
- Wells HDCB-4830G charbroiler (natural gas)
- LP conversion kit
- Removable drip pan
- Set of 4 adjustable 4" steel legs (pre-installed)
- Owner’s manual & warranty documentation
Need flexible payment options? Middleby Equipment Financing is available – ask us for details.
