Description

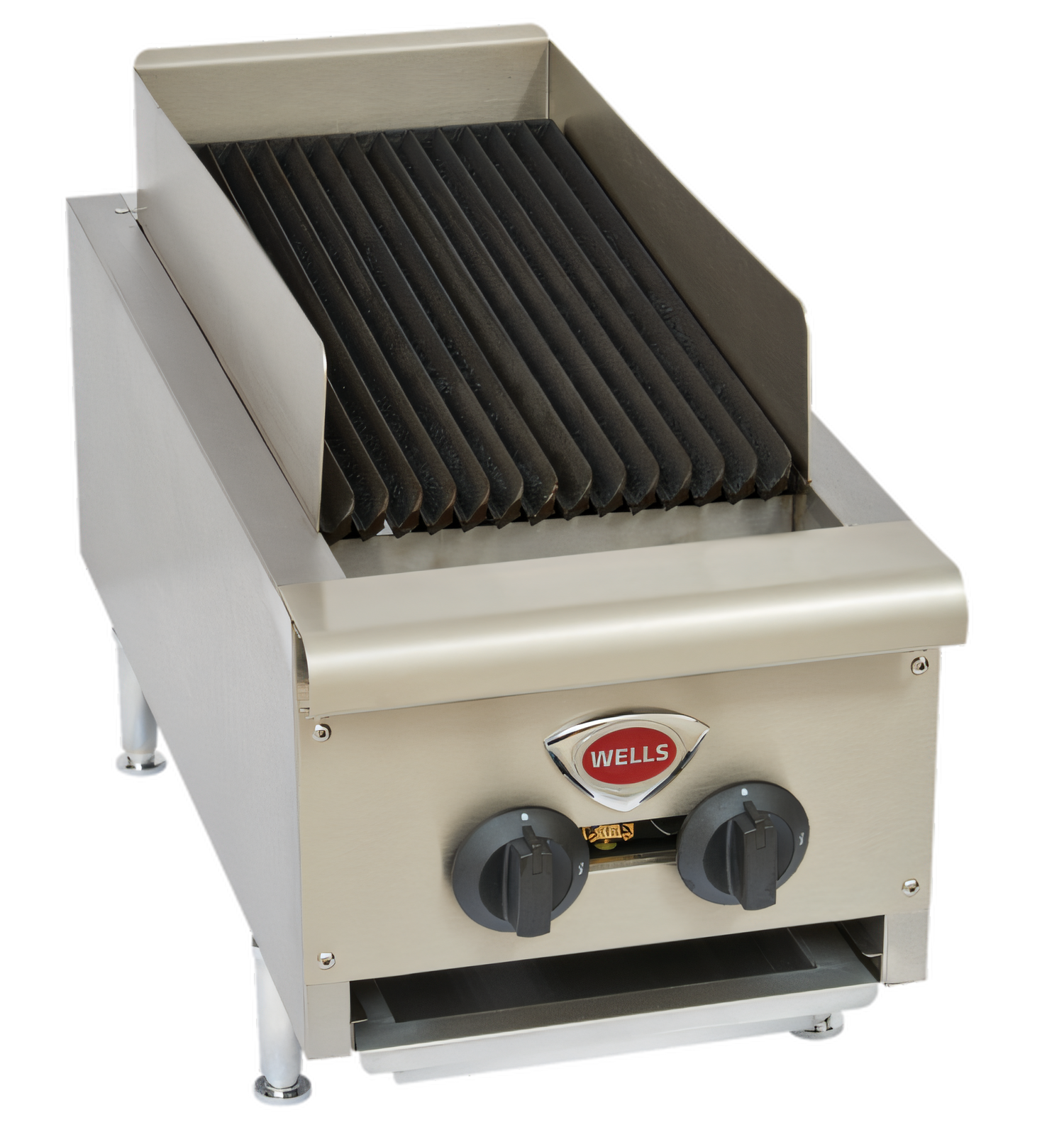

Wells HDCB-1230G 14" Heavy-Duty Countertop Gas Charbroiler
40,000 BTU • Natural Gas (field-convertible to LP)Get steak-house results without a full-size grill. The Wells HDCB-1230G packs powerful, even heat into a compact 14-inch footprint—ideal for restaurants, food trucks, and any kitchen that needs charbroiled flavor fast.
Quick-Ship: Leaves the factory within 5 business days.
Maximum 2 units per order.
Key Features
Maximum 2 units per order.

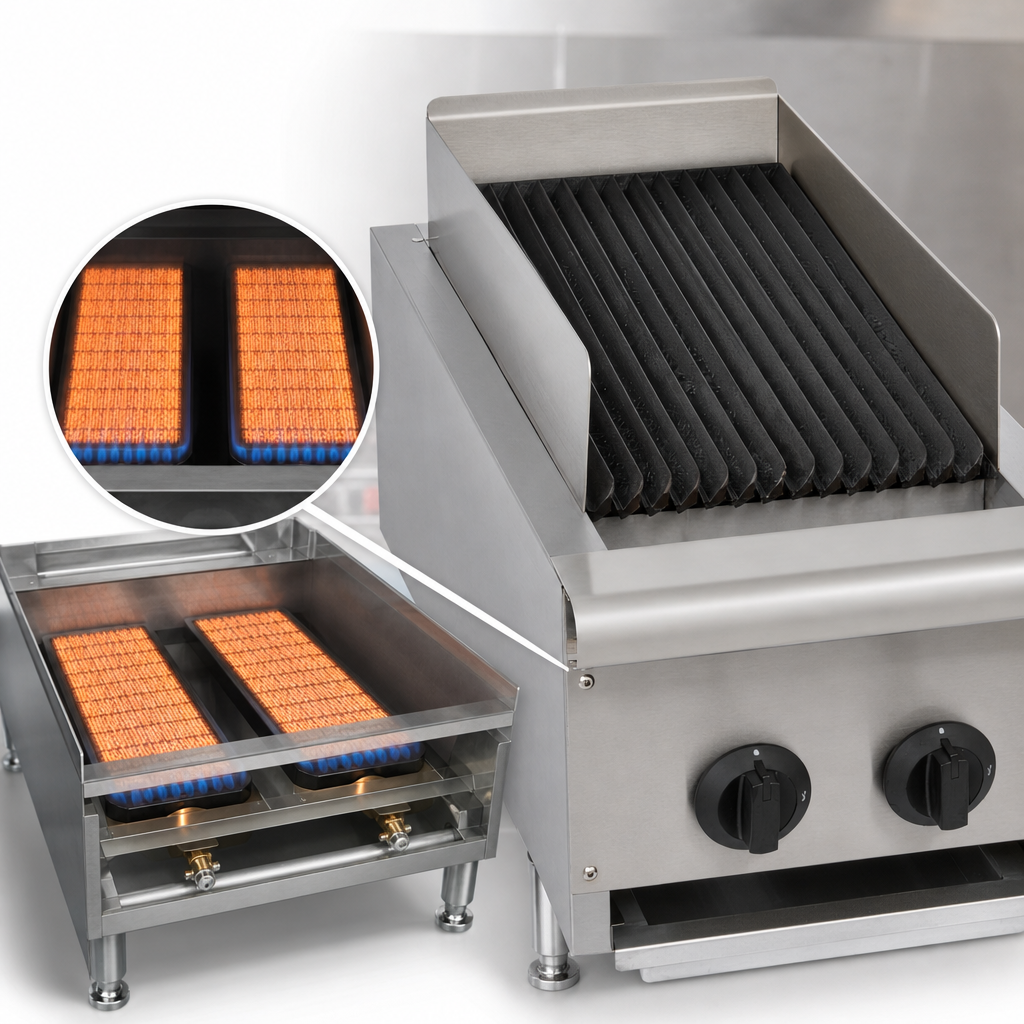

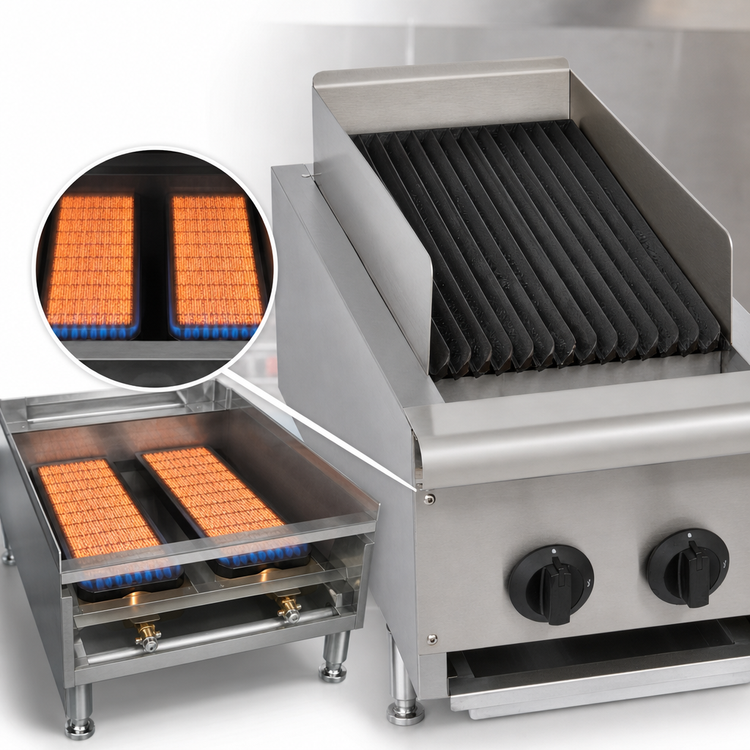

- Two heavy-duty 20,000 BTU cast-iron radiant burners (40,000 BTU total).
- Reversible cast-iron grates offer flat or sloped grilling surfaces.
- Stainless-steel housing with removable front panel for easy service access.
- Manual ON/OFF valves provide infinite heat adjustment from LO to HI.
- Adjustable primary-air shutters on each burner promote optimal combustion.
- Full-width removable drip pan for quick, mess-free cleanup.
- Includes 4" adjustable steel legs for proper countertop clearance.
- Factory-set for natural gas; LP conversion kit shipped with unit.
- NSF & cULus listed for commercial safety and sanitation.
- 1-year parts & labor warranty from Wells Manufacturing.
| Model | HDCB-1230G |
|---|---|
| Footprint (W × D × H) | 14" × 30 1/2" × 18 1/8" (with 4" legs) |
| Cooking Area | 12 3/4" × 24" |
| Total BTU | 40,000 BTU/hr |
| Burners | 2 cast-iron radiant |
| Controls | Manual valves, OFF/LO to HI |
| Gas Connection | 3/4" NPT (rear) |
| Gas Pressure | Natural 5" W.C. • LP 10" W.C. |
| Clearances (non-combustible) | Back 0" • Sides 0" • Bottom 4" • Front 0" |
| Installed Weight | 126 lb / 57 kg |
| Shipping Weight | 139 lb / 63 kg |
| Certifications | NSF, cULus |
| Warranty | 1 year parts & labor |
- Steakhouses & bistros seeking bold grill marks with minimal space.
- Food trucks and concessions where every inch of countertop counts.
- Hotels, resorts, and caterers needing extra à-la-minute grilling capacity.
Gas equipment must be installed by a licensed professional in accordance with local codes and the installation manual.
Features & Specs
Features & Specs
Manufacturer
Wells (Middleby)
Certifications
NSF, cULus
Height
18.13in
Width
14.0in
Depth
30.5in
Shipping Weight
139.0lbs
Heating Source
radiant
Control Type
manual controls
Width (side - side) OA
13 - 18"
Specifications
(QUICK SHIP) Charbroiler, natural gas, countertop, 14" W, manual controls, (2) cast iron radiant burners, reversible cast iron grates, removable drip pan, stainless steel construction, 4" steel legs, 40,000 BTU, NSF, cULus (field convertible to LP gas) (Ships within 5 days. Max qty - 2 per order)
