Wells (Middleby) H-706 Hot Plates
Description

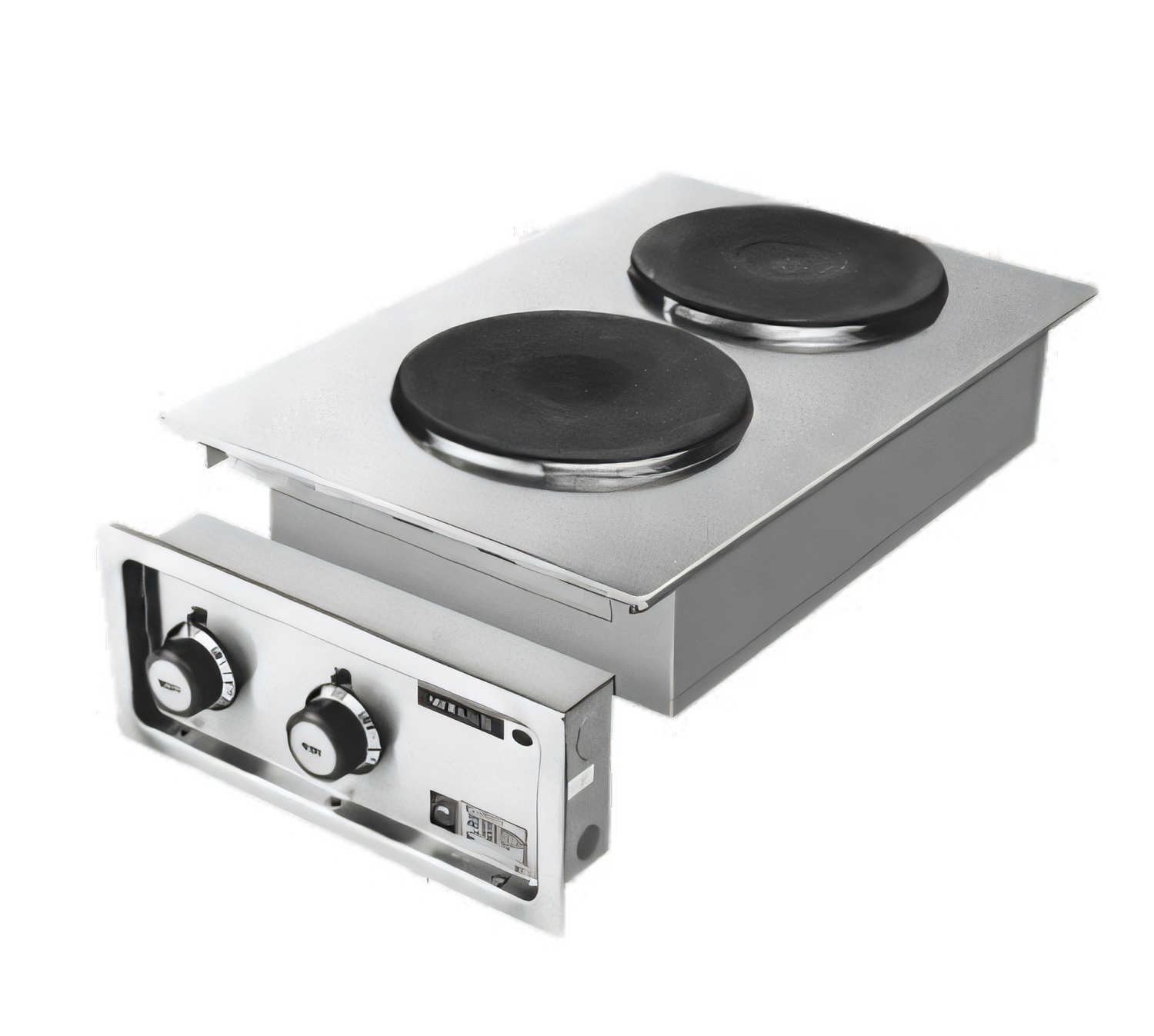

Wells H-706 Built-In Electric Hotplate
2 × 9" Solid Cast-Iron Burners • 3–4 kWAdd high-performance cooking power to any metal counter without sacrificing work space. The Wells H-706 drop-in hotplate combines rugged cast-iron elements, precise infinite controls, and the exclusive WellsLok mounting system for a fast, clean installation that’s built to handle the daily demands of a busy kitchen.
Key Features

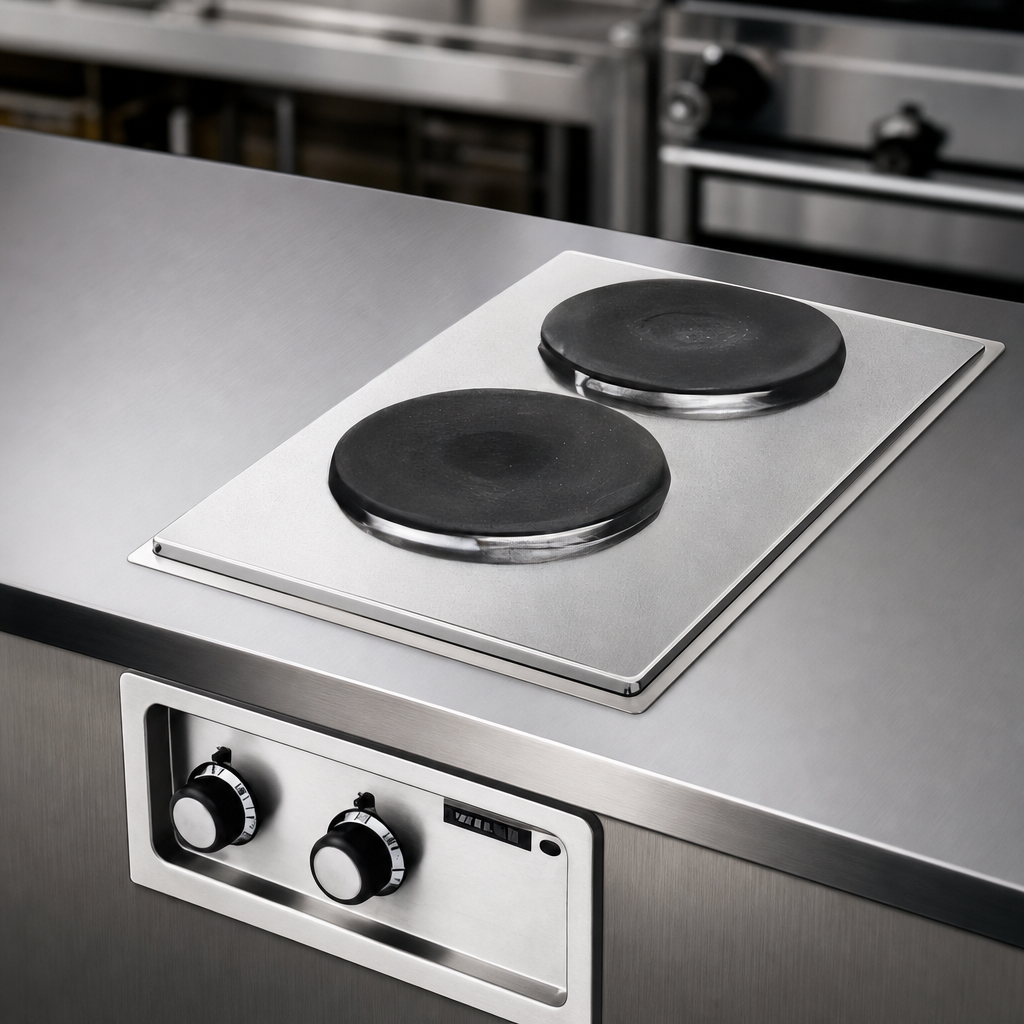

- Two 9" (229 mm) solid cast-iron “french plate” elements deliver even, consistent heat—ideal for stock pots, sauces, and sauté pans.
- High wattage for rapid heat-up: 3 kW @ 208 V or 4 kW @ 240 V single-phase.

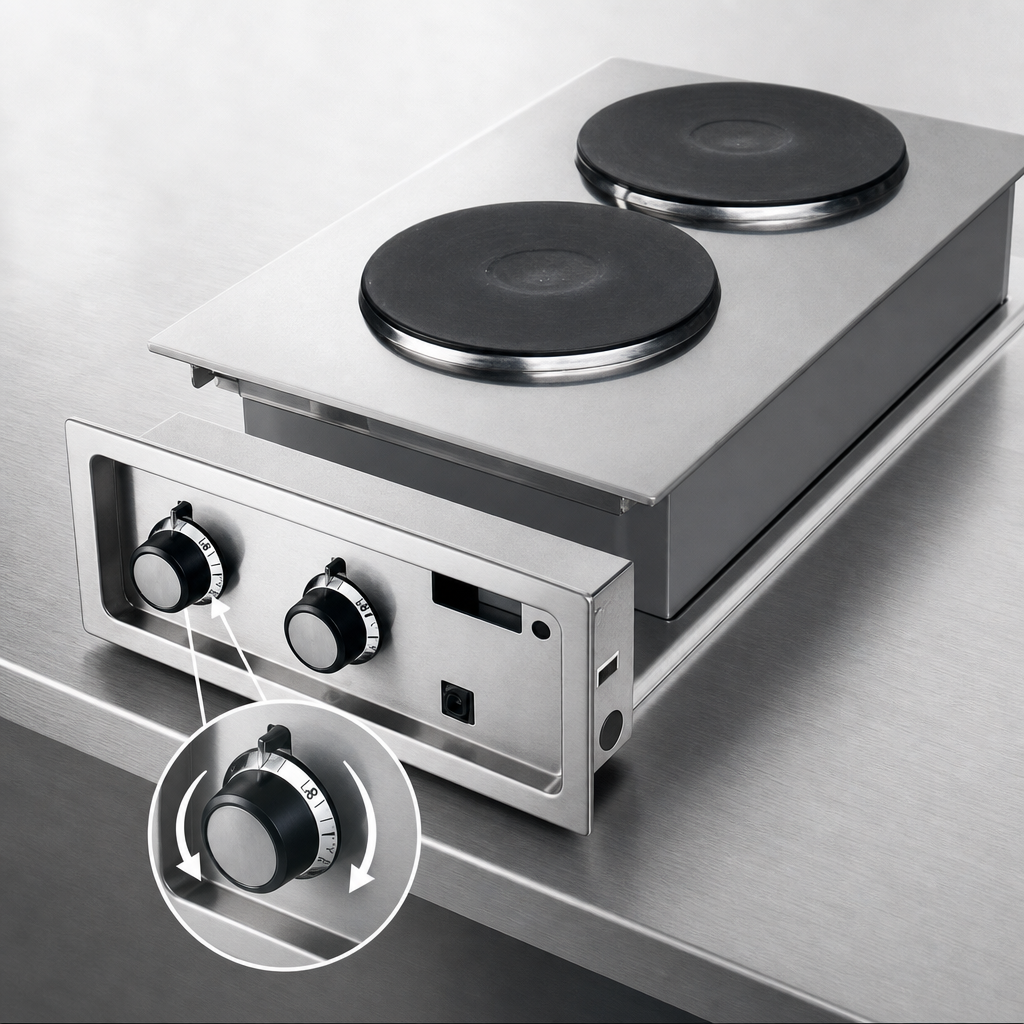

- Independent infinite heat controls with positive-OFF positions and individual power-on indicator lights.
- One-piece recessed stainless-steel control panel helps prevent accidental setting changes and shields controls from splatter.
- Removable stainless-steel drip tray makes cleanup quick and easy.
- Exclusive WellsLok system locks the unit securely into a countertop cut-out—no additional framing required.
- Terminal block provided for hard-wire connection; keeps the work area free of cords.
- Safety & sanitation certified—UL Recognized (RU) and NSF 4 listed.
- Backed by a full 1-year parts & labor warranty from Wells Manufacturing.
Perfect For
Cafés, cafeterias, hotels, resorts, ghost kitchens, concessions, and any operation that needs an extra burner bank without giving up valuable counter space.
Specifications
| Model | H-706 |
|---|---|
| Type | Drop-in electric hotplate, two burners |
| Burner Diameter | 9" (229 mm) solid cast-iron |
| Controls | (2) Infinite heat controls with indicator lights |
| Overall Dimensions (W × D × H) | 14 3/4" × 23 1/2" × 6 1/4" (375 × 597 × 159 mm) |
| Recommended Cut-out | 14 1/8" × 23 1/8" (359 × 587 mm) |
| Power | 3,000 W @ 208 V 1-Ph • 4,000 W @ 240 V 1-Ph |
| Amperage | 14.4 A @ 208 V • 16.7 A @ 240 V |
| Electrical Connection | Hard-wired; terminal block included (no cord) |
| Net Weight | 25 lb (11 kg) |
| Certifications | UL (E6070 RU) • NSF 4 |
| Warranty | 1-year parts & labor |
Installation requires a metal countertop and must maintain the clearances specified in the owner’s manual (1" back, 2" sides, 9" bottom, 1" top). All electrical work should be performed by a licensed electrician.
