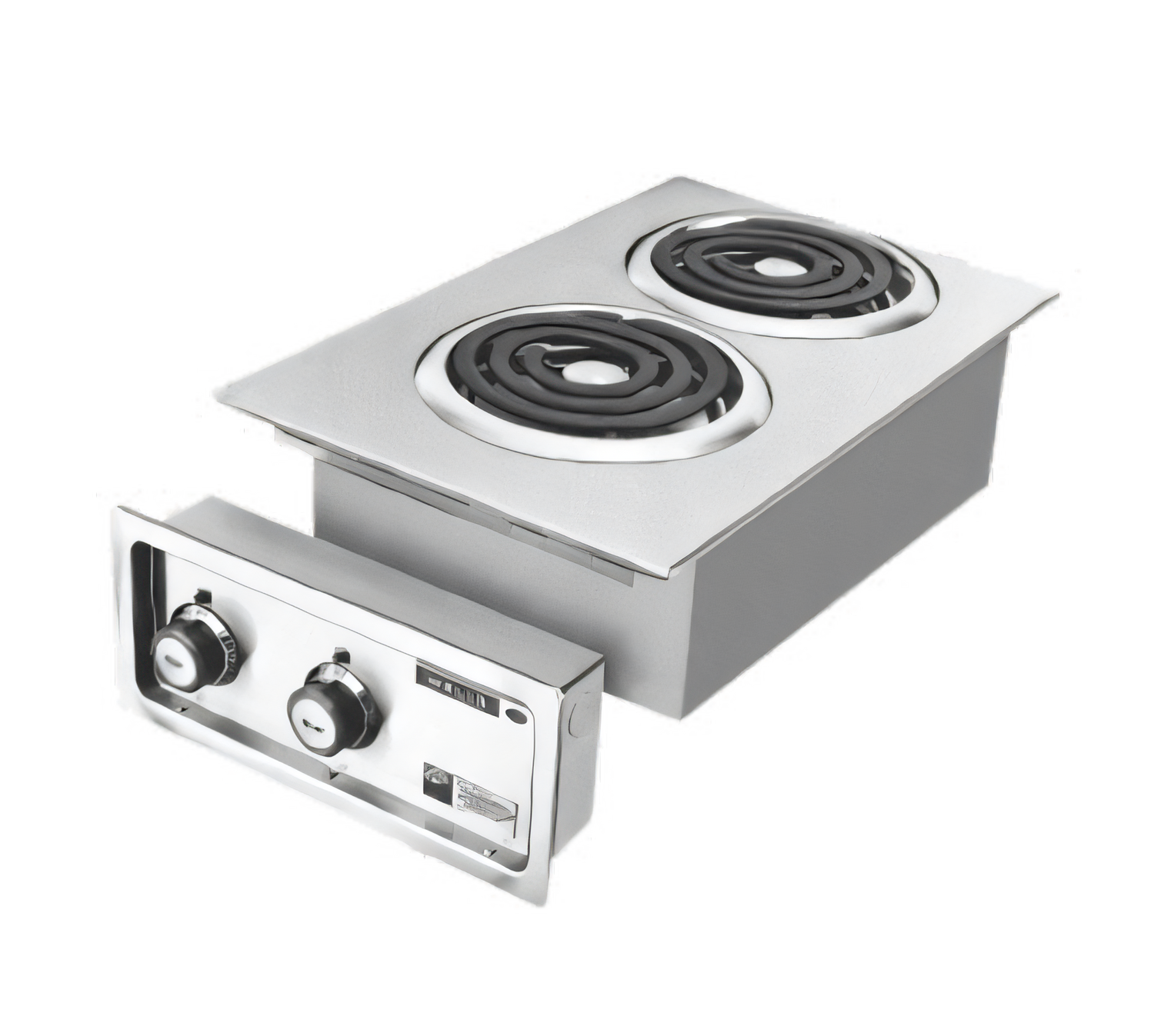

Wells H-636 Built-In Electric Hotplate – 2 Burners
14 3/4" wide drop-in cooktop with 8" spiral elements & infinite heat controlsEngineered for line stations, buffets and compact prep areas, the Wells H-636 delivers fast, even heat from two powerful 8-inch spiral elements. A patented Wellslok mounting flange drops straight into metal countertops, while a recessed stainless control panel keeps settings safe from bumps. When you need reliable, high-output performance in a small footprint, this built-in hotplate is the solution.
Why You’ll Love It

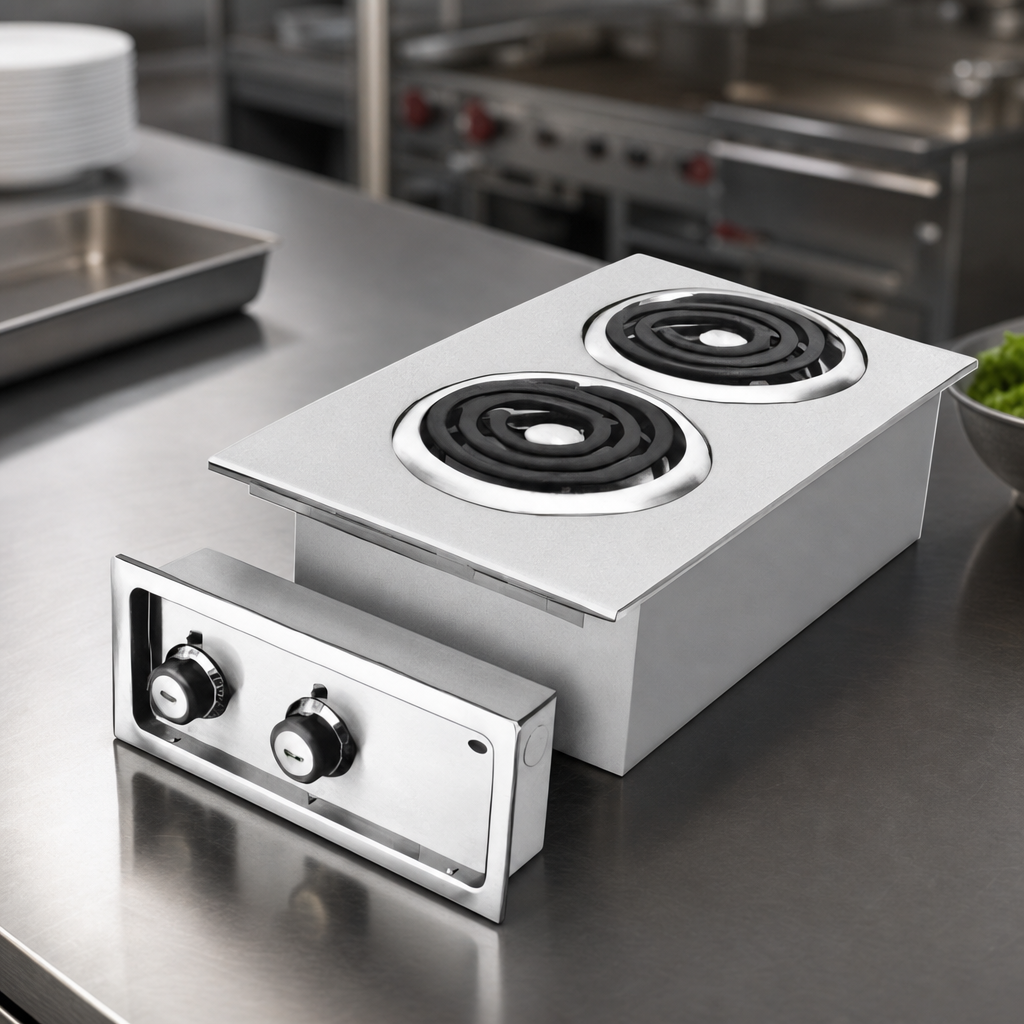

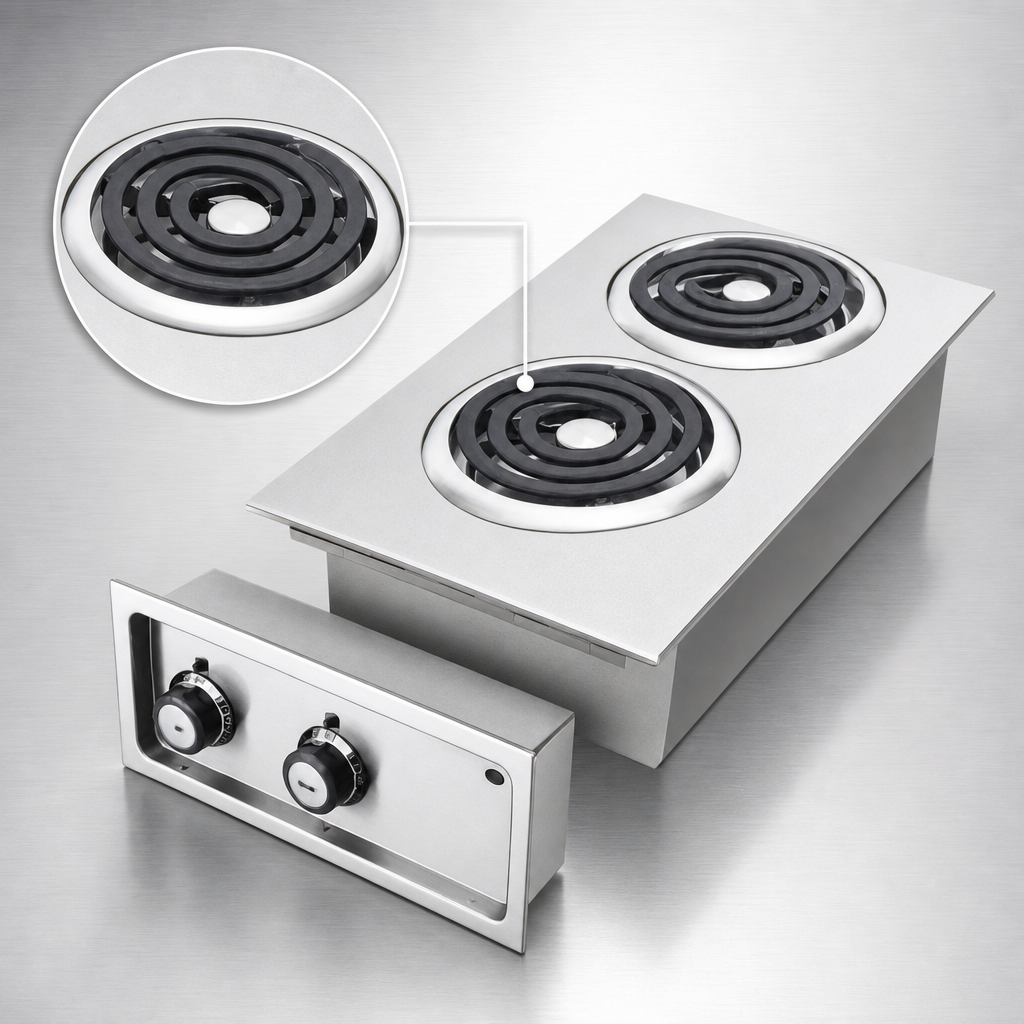

- Two 8" (203 mm) flat spiral tubular elements supply direct contact + radiant heat for versatile cooking.
- Independent infinite heat controls with positive-off positions and “power-on” indicator lights.
- Front-mounted, recessed stainless panel prevents accidental knob movement and shields controls from abuse.
- Self-cleaning elements paired with removable stainless drip trays simplify end-of-shift cleanup.
- Patented Wellslok system drops in quickly—no extra hardware, gasketing or sealants needed.
- Field-wiring terminal block lets you hard-wire to 208 V or 240 V service; no cord to replace.
- cRUus Recognized & NSF listed to meet stringent safety and sanitation standards.
Specifications
| Model | H-636 Built-In Hotplate |
|---|---|
| Elements | (2) 8" Ø flat spiral tubular |
| Overall Size (W × D) | 14 3/4" × 23 1/2" (375 × 597 mm) |
| Countertop Cut-out | 14 1/8" × 22 13/16" (359 × 580 mm) – verify with manual |
| Above-counter Height | 4 1/2" (114 mm) |
| Below-counter Depth | 6 1/4" (159 mm) |
| Electrical |
208 V / 1 ph / 3,900 W / 18.8 A 240 V / 1 ph / 5,200 W / 21.7 A |
| Controls | (2) infinite heat switches w/ indicator lights |
| Installation | Wellslok drop-in, metal counters only; terminal-block connection |
| Unit Weight | 20 lb (9 kg) |
| Shipping Weight | 24 lb (11 kg) |
| Clearances | Back 1" • Sides 2" • Bottom 9" • Top 1" |
| Certifications | cRUus, NSF |
| Warranty | 1-year parts & labor |
Installation Note: The H-636 is designed exclusively for metal countertops.
Follow all local electrical codes and the Wells installation manual for wiring, clearances and ventilation.
Have questions about cut-out dimensions, lead times or bulk pricing? Our food-service specialists are here to help.
$1,602.00
/each
Free Shipping
Expected delivery date of ,
if ordered within hours and minutes
Not Shipping to
?
Wells H-636 built-in electric hotplate, 2 stainless steel burners with 8" spiral elements, front controls, Wellslok drip tray, 3900/5200W, NSF-certified.
Manufacturer
Wells (Middleby)
Certifications
NSF
Height
4.5in
Width
14.75in
Depth
23.5in
Shipping Weight
24.0lbs
Burner Qty
2 burners
Controls
infinite controls
Burner Type
flat sprial element
Specifications
Hotplate, built-in, electric, 14-3/4" W, two burners, 8" Ø flat spiral tubular elements, with (2) infinite heat controls, front mounted, recessed control panel, stainless steel construction drip tray, Wellslok, 3900/5200w, RU, NSF
