Wells (Middleby) H-63 Hot Plates
Wells (Middleby) H-63 Hot Plates is backordered and will ship as soon as it is back in stock.
Documents
Related Searches
Reach out via chat, email, or phone—we're here to help make sure it's the right fit for your kitchen. Contact us for more information.
Wells (Middleby) H-63 Hot Plates
Description

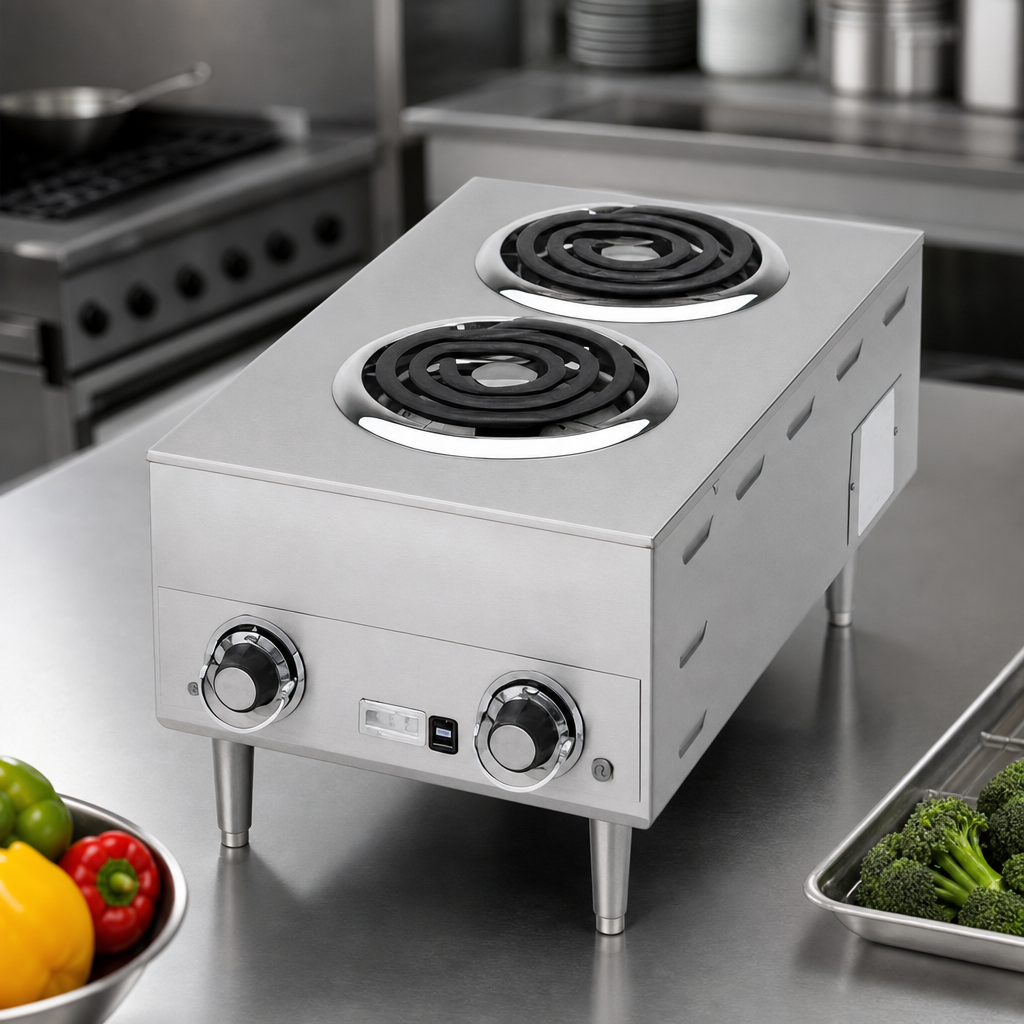

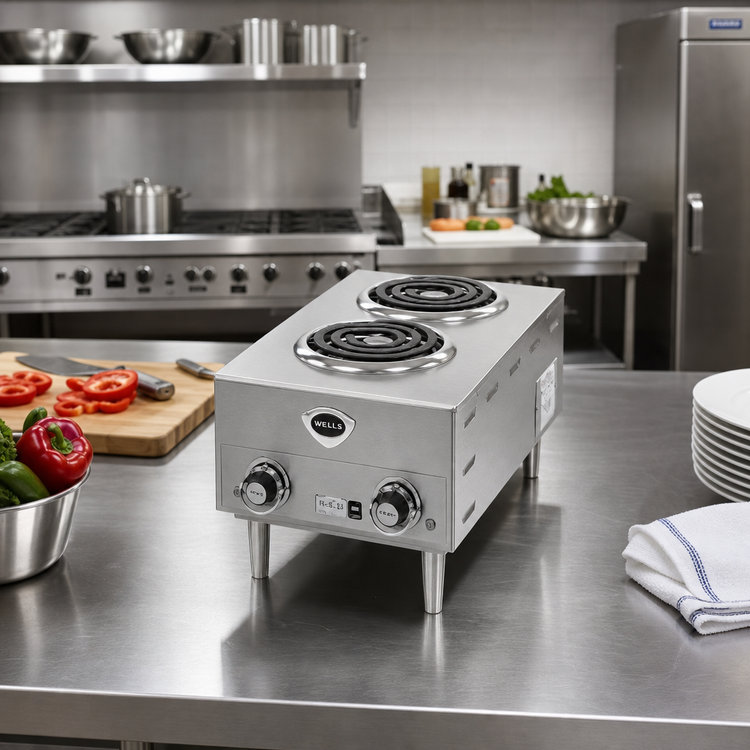

Wells H63 Dual-Element Electric Countertop Hotplate
14.75" W x 25.2" D • (2) 8" flat spiral burners • 208/240 VAdd reliable, high-output cooking power to any line with the Wells H63. Designed for cafés, concession stands, and full-service kitchens alike, this compact electric hotplate delivers the performance of a rangetop in less than 15 inches of counter space.
Why you’ll love it

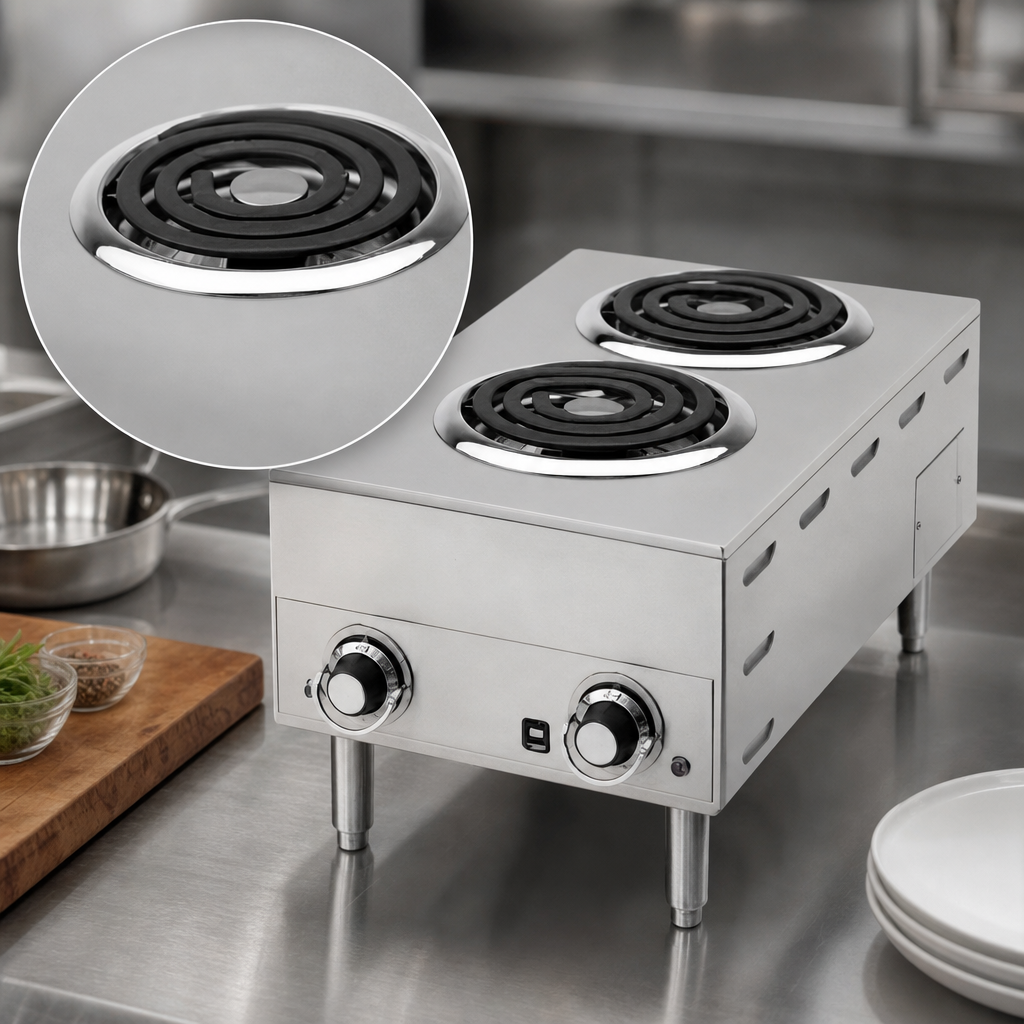

- Two independent heating zones – dual 8 in. (203 mm) flat spiral tubular elements provide even contact heat.
- Instant surface response – self-cleaning elements reach temperature quickly and recover fast between batches.
- Precise infinite controls – individual knobs with protective guard rings prevent accidental setting changes.
- Built for heavy, everyday use – rugged steel housing with removable stainless-steel drip tray makes clean-up effortless.
- 4" adjustable legs maintain NSF-required clearances and keep the work surface cool.
- ULus & NSF listed for safe, code-compliant installation.
Perfect for
- Finishing sauces, stocks, or soups while the main range is busy
- Made-to-order omelets, stir-fry, or sauté stations
- Portable event or catering lines that need extra burners
- Small kitchens looking to expand capacity without remodeling
At-a-glance specs
| Model | H63 |
|---|---|
| Number of burners | 2 spiral tubular elements |
| Element diameter | 8 in. / 203 mm |
| Cooking surface spacing | 10.5 in. between elements |
| Dimensions (H × W × D) | 12.6" × 14.75" × 25.2" (320 × 375 × 640 mm) |
| Leg height | 4 in. (adjustable) |
| Voltage / Phase | 208 V or 240 V, 1-phase (field convertible to 3-phase) |
| Total wattage | 3,900 W @ 208 V | 5,200 W @ 240 V |
| Amps (1-phase) | 18.75 A @ 208 V | 21.7 A @ 240 V |
| Power cord | Hard-wire connection (optional 6-30P cordset #20141) |
| Construction | Stainless-steel front & sides; removable stainless drip tray |
| Certifications | UL E6070, NSF/ANSI Std 4, CE, CSA |
| Warranty | 1 year parts & labor |
| Shipping / Installed weight | 30 lb (13.6 kg) / 26 lb (11.8 kg) |
Allow 1 in. (25 mm) clearance on both sides and rear, and 4 in. (102 mm) below the unit, from any combustible surface. Always follow the supplied owner’s manual for wiring and start-up.
