Wells (Middleby) H-115 Hot Plates
Description

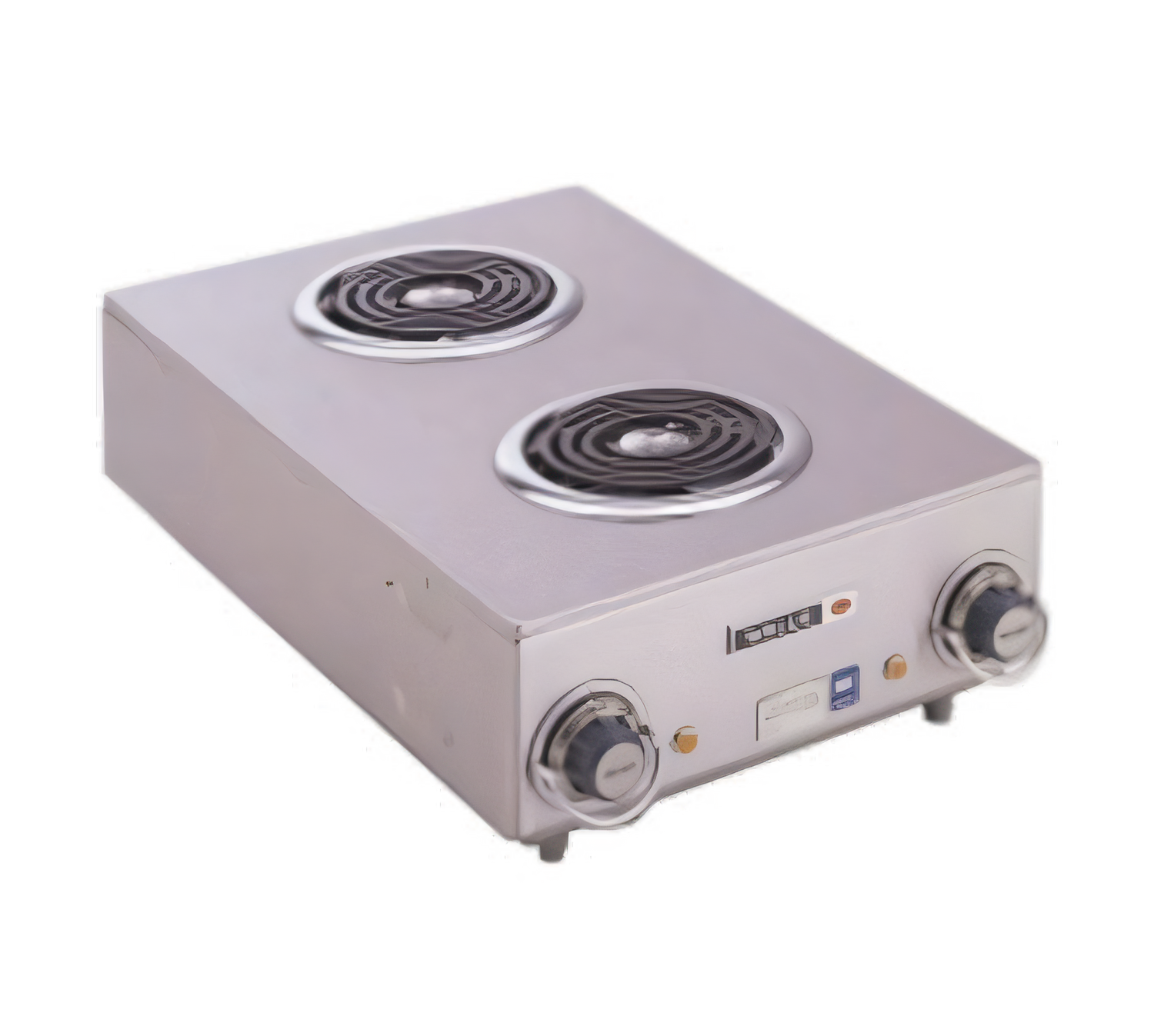

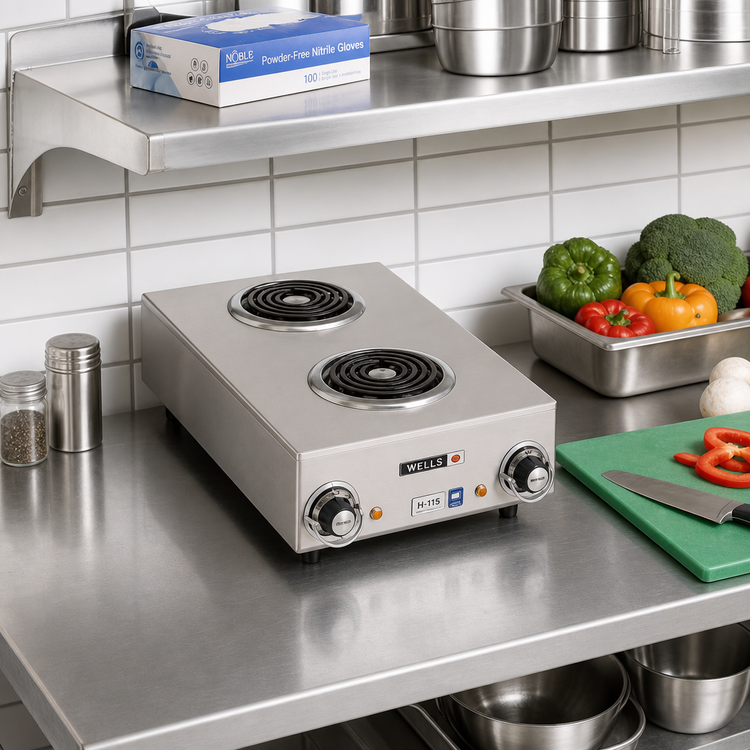

Wells H115 Dual-Burner Electric Countertop Hot Plate
Compact 14 ¾" wide platform with powerful 1,650 W performanceAdd reliable cooking power to any line, kiosk, concession, or back-up station with the Wells H115. This low-profile electric hot plate packs two flat 6" spiral elements into a rugged stainless-steel body, giving you the flexibility to boil, sauté, or keep menu items hot without surrendering valuable counter space.
Why You’ll Love It

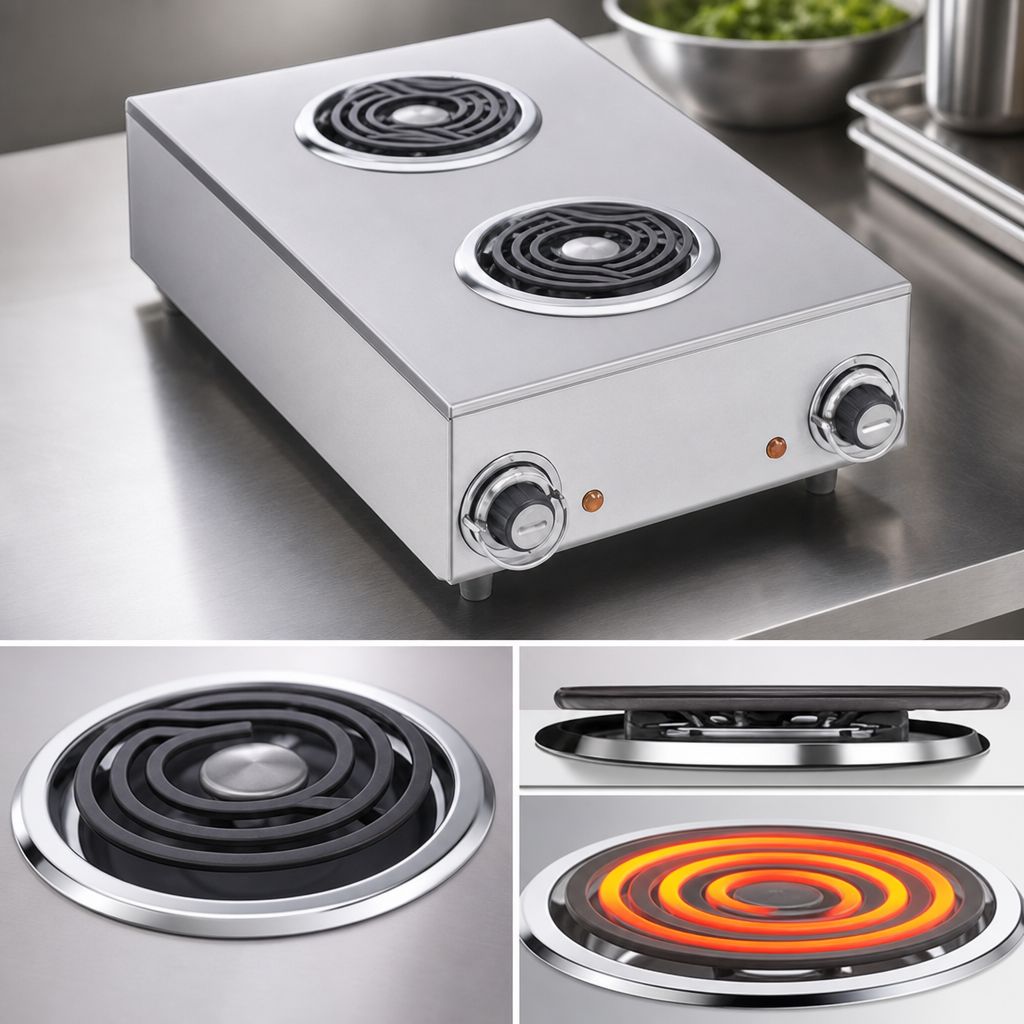

- Two 6" (152 mm) self-cleaning flat spiral tubular elements for quick, even heating

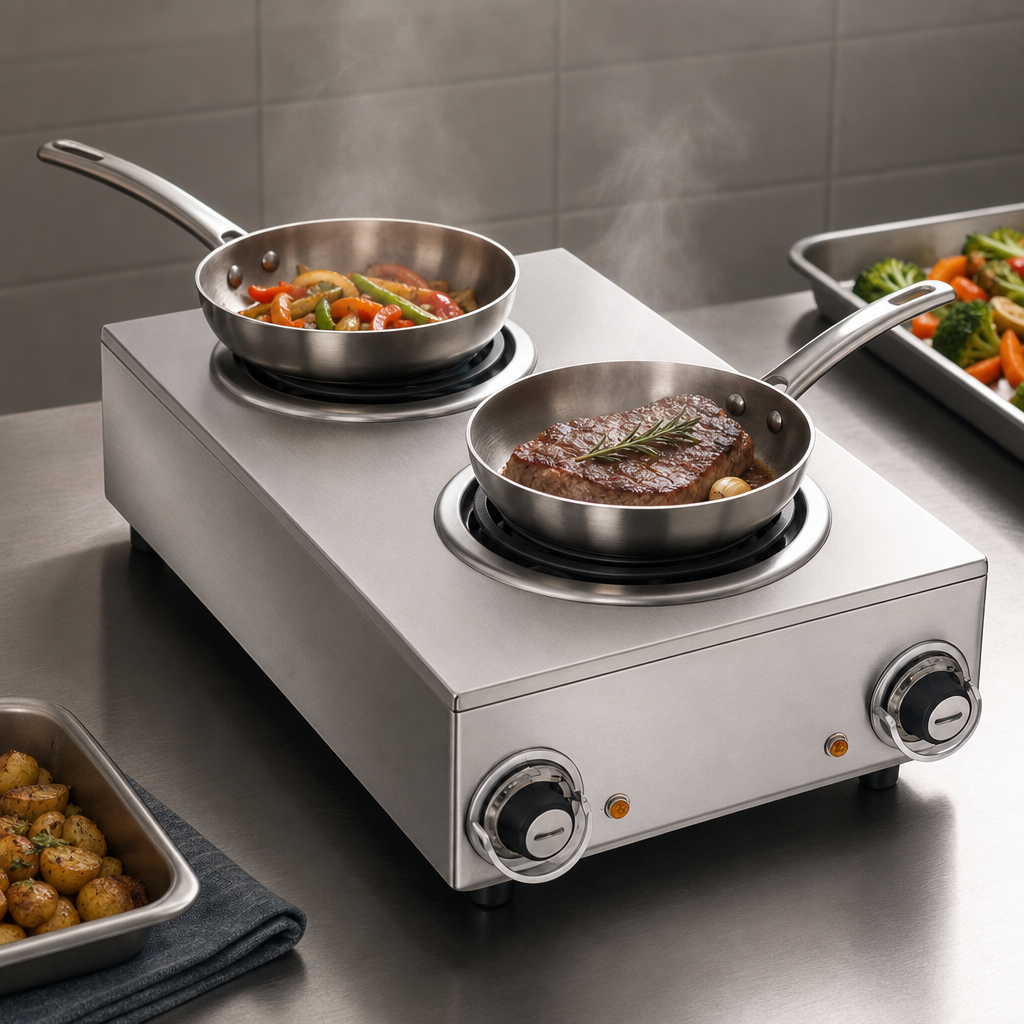

- Independent infinite-range controls with protective guard rings help prevent accidental adjustment
- Removable chrome-plated drip tray snaps out for fast cleaning and reduced mess
- Durable stainless-steel exterior stands up to daily commercial abuse
- Low-profile 1" (25 mm) legs keep the cooktop steady while maximizing hood clearance – optional 4" metal legs available
- Factory-wired 4 ft cord with NEMA 5-15P plug for simple 120 V connection
- cULus, CSA and NSF 4 listed for safe, sanitary operation
- Backed by a full 1-year parts & labor warranty from Wells
Technical Specifications
| Model | H115 |
|---|---|
| Type | Countertop dual spiral-element hot plate |
| Cooking Surface | Two 6" flat spiral tubular elements |
| Total Wattage | 1,650 W |
| Voltage / Phase | 120 V / 1-phase, 60 Hz |
| Amps | 13.8 A (dedicated 15 A circuit recommended) |
| Plug | NEMA 5-15P (factory installed cordset) |
| Controls | 2 × infinite heat dials, individually fused |
| Exterior Construction | Stainless steel body & control panel |
| Drip Tray | Removable, chrome-plated steel |
| Overall Dimensions (W × D × H) | 14.75" × 25.7" × 7.1" (375 × 653 × 180 mm) |
| Leg Height | 1" (25 mm) adjustable |
| Installed Weight | 18 lb (8.2 kg) |
| Certifications | cULus, CSA, NSF 4 |
| Warranty | 1-year parts & labor |
Clearance & Installation
- Provide 1" (25 mm) of space on both sides and rear from combustible surfaces.
- Maintain 4" (102 mm) between the unit’s bottom and any combustible surface.
- Electrical entry: rear, 1" (25 mm) from the left side and 5.5" (140 mm) above counter.
Optional Accessories (sold separately)
- 4" tall metal legs – part #20563
- Replacement 1" plastic legs – part #21109
Need a different voltage or burner style? Wells offers additional single and dual models to fit any application.
