Wells (Middleby)  |  SKU: G-24

Wells (Middleby) G-24 Electric Griddles

$9,341.00
Expected delivery date of , to your door
if ordered within hours and minutes
Not Shipping to ?
More Delivery Options
Documents
Cutsheet Owner's manual Middleby financial flyer Warranty sheet
Related Searches
Electric Griddles Griddles & Flat Tops

Reach out via chat, email, or phone—we're here to help make sure it's the right fit for your kitchen. Contact us for more information.

Description

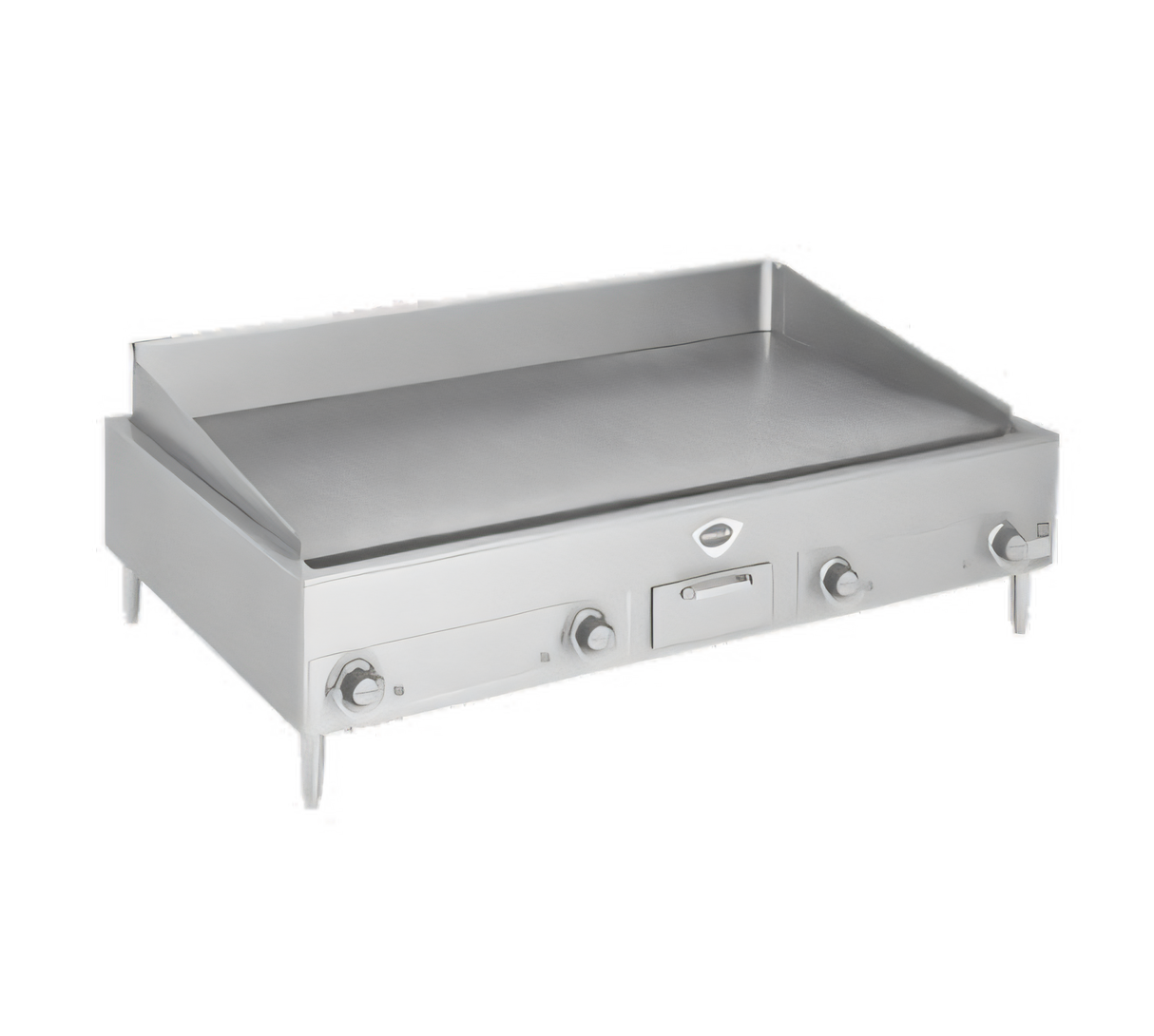

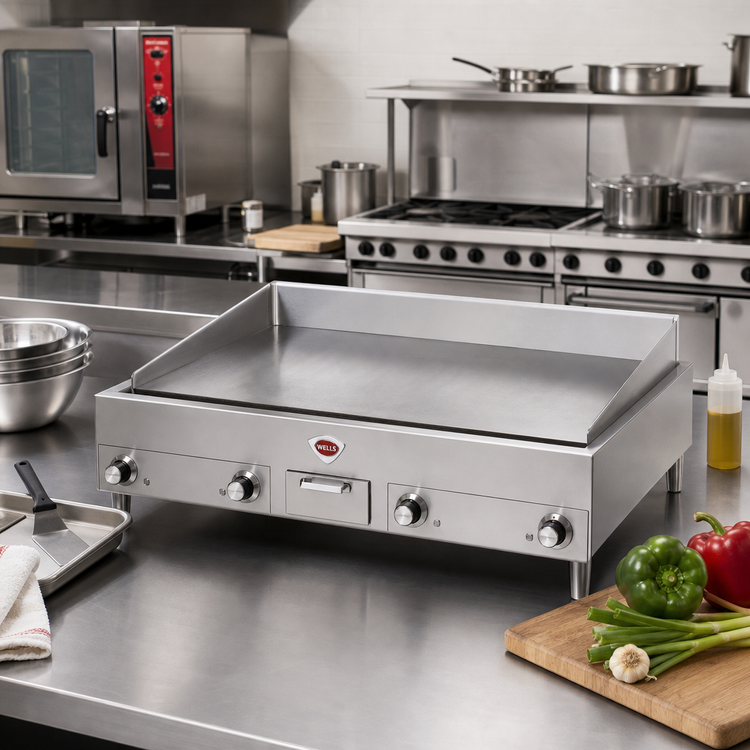

Wells G24 G-Series 48" Electric Countertop Griddle

46-7/8" W × 24-5/16" D polished-steel cooking surface

Maximize production without giving up floor space. The Wells G24 combines a massive 1,140 in² griddle plate with rapid pre-heat, zoned thermostatic control and rugged stainless construction—everything you need to bang out burgers at lunch, piles of pancakes at brunch or steaks during the dinner rush.

Key features

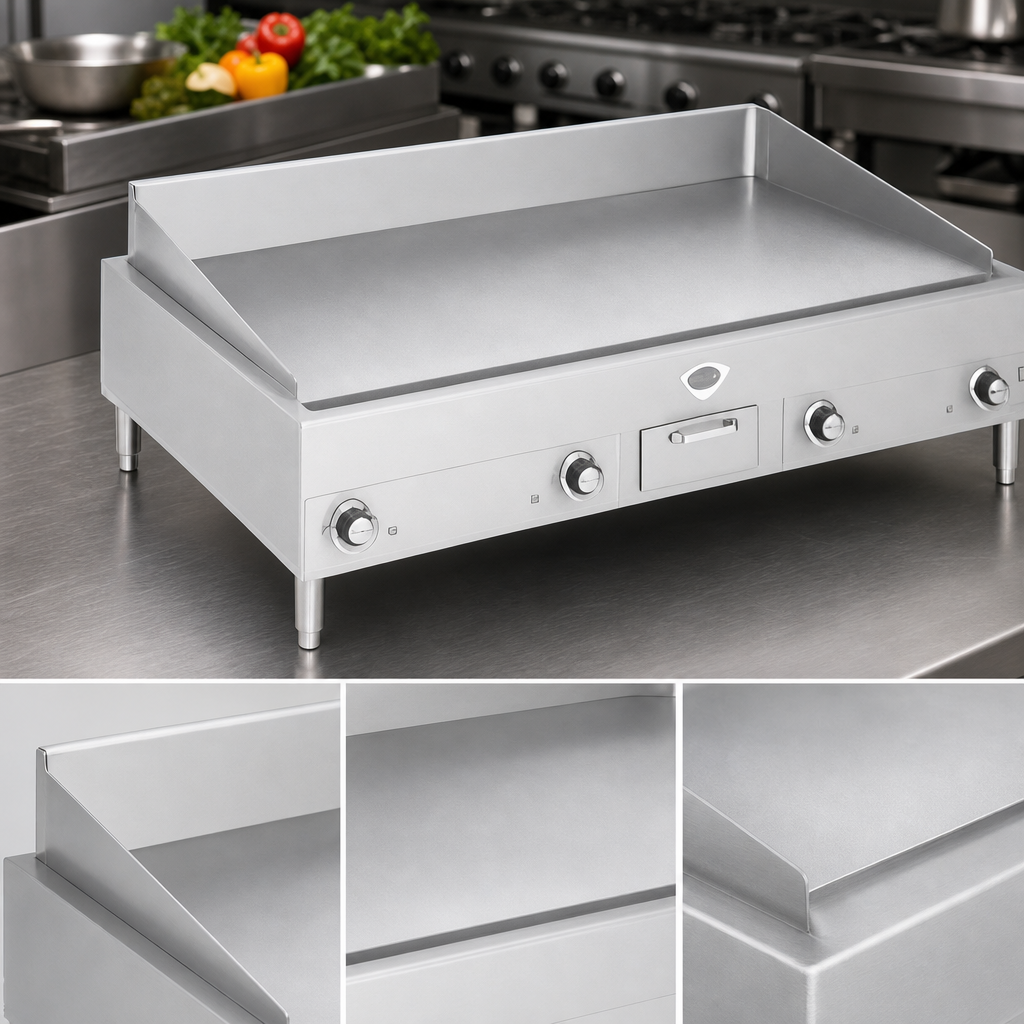

  • ½" thick smooth, polished-steel plate for even heat & quick recovery

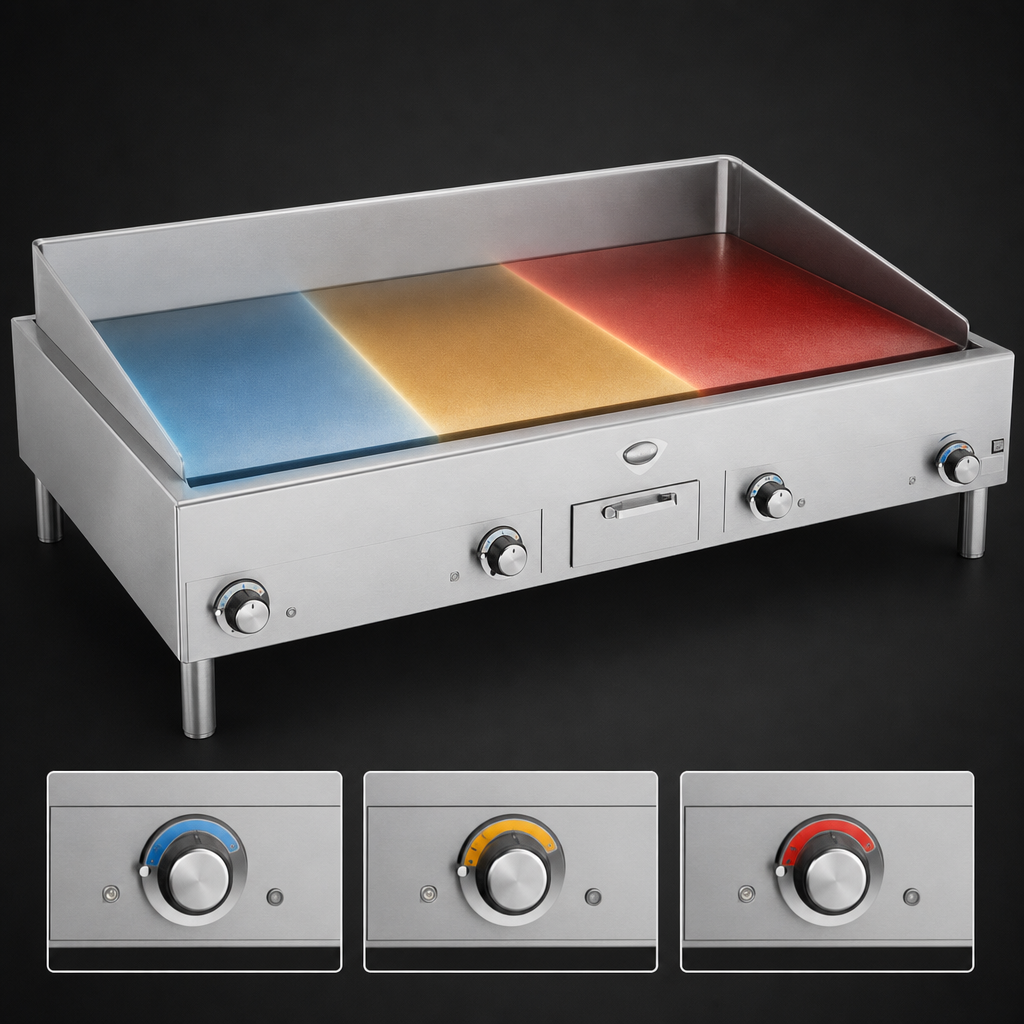

  • Two independent thermostatic zones (200 – 450 °F) with positive-off position
  • Enclosed tubular elements clamped to plate—400 °F in ≈9 minutes
  • Removable three-sided splashguard & extra-large 4 qt front grease drawer
  • Stainless-steel front, sides and control panel with protective guard rings
  • 4" adjustable stainless legs for level countertop installation
  • Field-wiring terminal block simplifies electrical connection
  • UL, NSF 4, CE & CSA listed for broad code compliance
Performance snapshot
Pre-heat to 400 °F ≈ 9 minutes
Watts to maintain 400 °F 2.9 kW per hour
Production capacity* 86 burgers • 32 steaks • 66 pancakes • 70 eggs / hr
Plate thickness 0.5" (13 mm) polished steel

*Fresh product—manufacturer data, actual results may vary.

Dimensions & utilities
Cooking surface 46-7/8" W × 24-5/16" D (1,140 in²)
Overall (W × D × H) 49" × 29.6" × 16.1" (1245 × 751 × 410 mm)
Installed / Ship weight 244 lb (111 kg) / 326 lb (148 kg)
Power output 21.5 kW
208 V, 3-ph L1 63.4 A • L2 67.1 A • L3 45.8 A
240 V, 3-ph L1 55.0 A • L2 57.0 A • L3 39.6 A
380-415 V, 3-ph L1 20.8 A • L2 41.7 A • L3 25.0 A
Grease drawer capacity 4 qt
Perfect for
  • Diners, cafés & breakfast houses
  • QSRs and burger concepts needing fast recovery
  • Commissaries, ghost kitchens and catering set-ups where gas isn’t an option
Installation note: Place on a non-combustible surface with 1" clearance on back & sides and 4" beneath the unit. Hard-wire connection by a qualified electrician is required.
Warranty

One-year parts & labor coverage through Wells’ nationwide service network gives you total peace of mind.

Features & Specs

Manufacturer

Wells (Middleby)

Certifications

NSF, CE, UL, CSA

Height

16.0in

Width

49.0in

Depth

29.56in

Shipping Weight

326.0lbs

Cooking Surface Depth (front - back)

24" - 30"

Cooking Surface Width (side - side)

37" - 48"

Control Type

thermostatic

Exterior Finish

all stainless steel exterior

Griddle Plate Finish

smooth steel

Specifications

Griddle, countertop, electric, smooth polished steel griddle plate, 46-7/8" W x 24-5/16" D cooking surface, stainless steel construction, zoned thermostatic heat control, removable splashguard and 4" adjustable legs, UL, NSF 4, CE, CSA
