Wells (Middleby) F-556 Electric Fryers
Wells (Middleby) F-556 Electric Fryers is backordered and will ship as soon as it is back in stock.
Documents
Related Searches
Reach out via chat, email, or phone—we're here to help make sure it's the right fit for your kitchen. Contact us for more information.
Wells (Middleby) F-556 Electric Fryers
Description

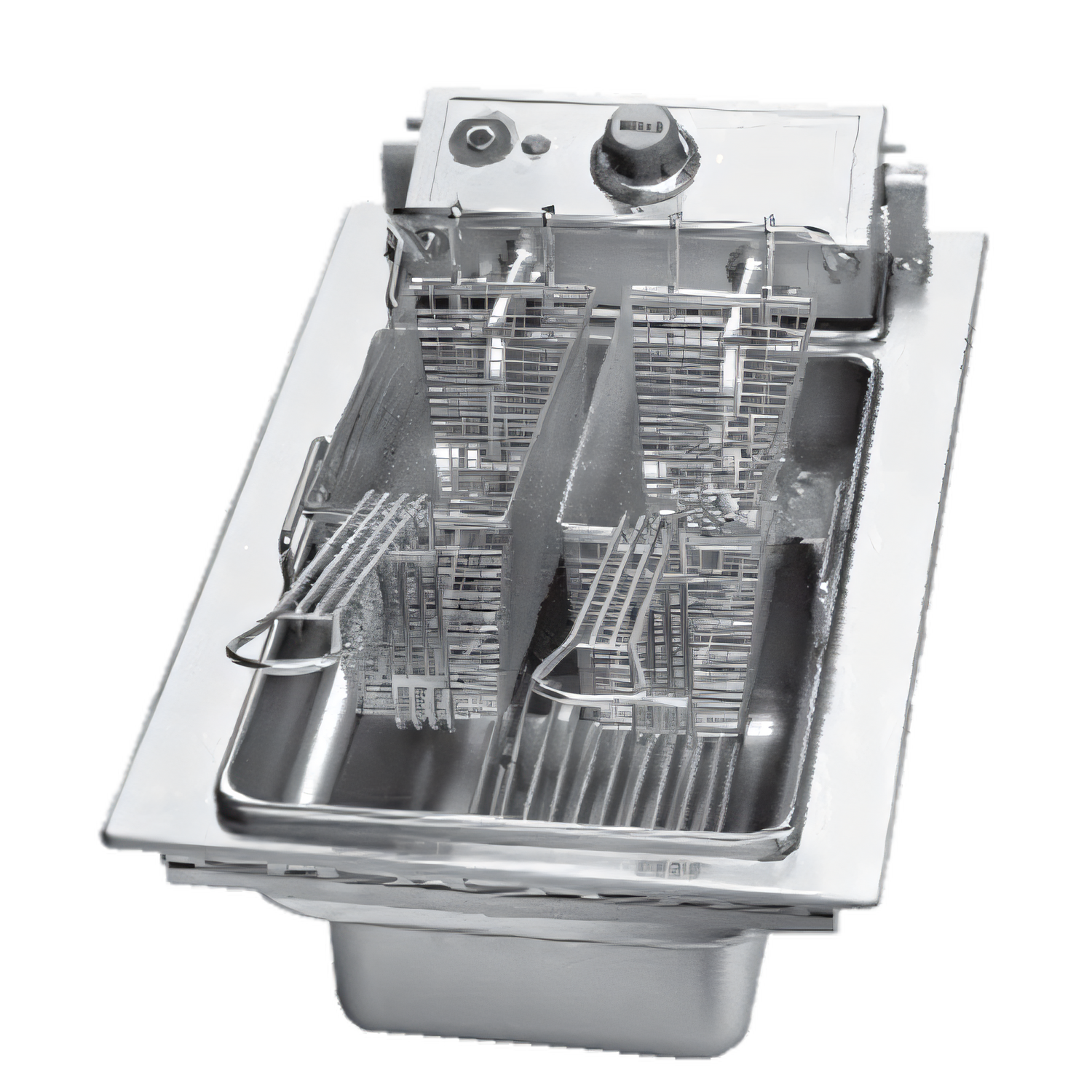

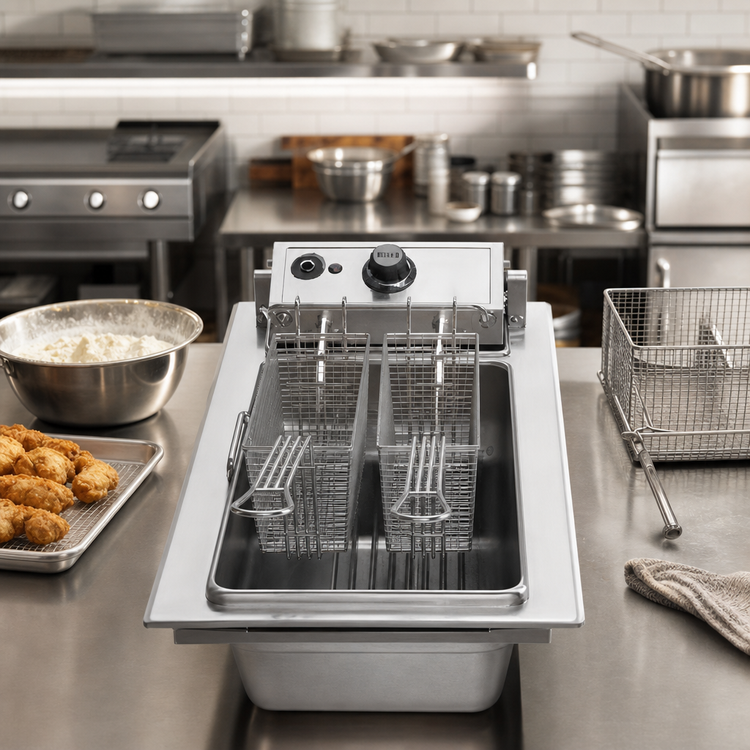

Wells F-556 Drop-In Electric Fryer — 15 lb Capacity
Compact, high-output frying power that disappears into your countertopPerfect for bars, concession stands and satellite kitchens, the Wells F-556 combines commercial-grade performance with a space-saving drop-in design. A stainless-steel fry pot delivers consistent results while the patented WellsLok™ system makes installation fast and fool-proof—simply lock, plug in and start serving crispy favorites in minutes.
Key Features

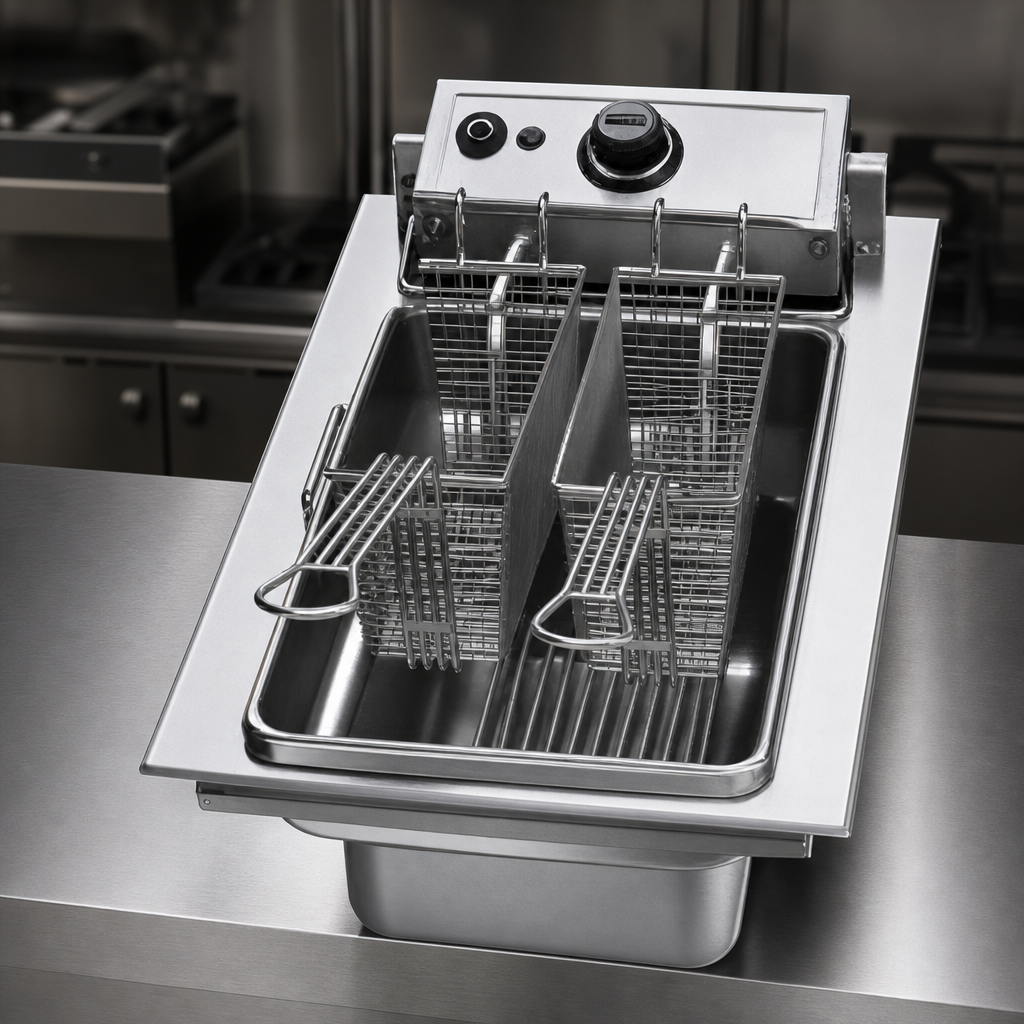

- 15 lb deep-drawn, removable stainless-steel fry pot for quick clean-ups.
- Two rear-hanging ½-size fry baskets included—flexibility for sides or entrées.
- 5,750 W swing-up, low-watt-density elements heat to 350 °F in just 4½ minutes and recover fast during rushes.
- Positive-off, snap-action thermostat adjusts from 275–375 °F for precise control.
- High-limit safety thermostat with indicator light and manual reset prevents overheating.

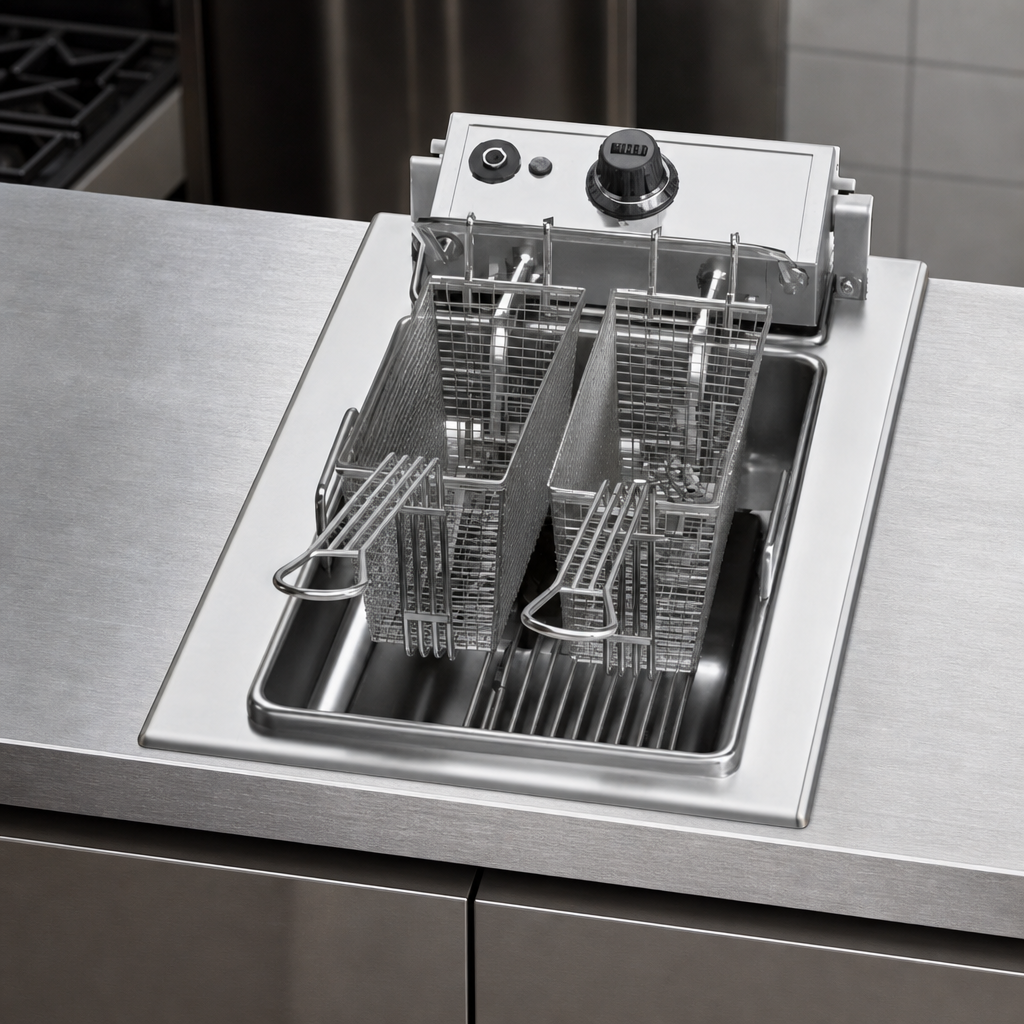

- WellsLok™ clamp system secures the fryer to the counter—no drilling or special tools required.
- One-piece stainless-steel top, flange & control housing built for heavy commercial use.
- 1-year parts & labor warranty backed by Wells’ nationwide service network.
Performance You Can Count On
- Throughput: up to 300 (2 oz) portions of fries or 20 lb of chicken per hour.
- Energy usage to hold 350 °F: just 450 W/hr—great for energy-conscious operations.
- Elements mounted below baskets for even heat distribution and longer oil life.
- Spring-loaded support rod locks elements in the raised position for safe cleaning.
What’s in the Box
- Wells F-556 drop-in electric fryer
- (2) ½-size fry baskets with rear hanging hooks
- Factory-installed WellsLok™ mounting hardware
- Owner’s & installation manual
Optional accessories: additional ½-size or full-size basket, replacement fry pot (sold separately).
Technical Specifications
| Oil capacity | 15 lb (6.8 kg) |
|---|---|
| Overall (top) dimensions | 14 ¾" W × 23 ½" D (375 mm × 597 mm) |
| Overall height | 17 ⅛" (435 mm) to element handle (elements raised) |
| Voltage (single phase) | 208 V or 240 V |
| Wattage | 5,750 W |
| Amps | 27.7 A @ 208 V | 24 A @ 240 V |
| Preheat time | 4 ½ min to 350 °F (177 °C) |
| Thermostat range | 275–375 °F (135–190 °C) |
| Shipping weight | 39 lb (18 kg) |
| Construction | Stainless-steel top, flange, control housing & removable fry pot |
Certifications & Warranty
- NSF listed for sanitation
- RU (UL Recognized) for electrical safety
- 1-year parts & labor warranty
Need financing? Ask about Middleby Equipment Financing to spread the cost over affordable monthly payments.
