Key specifications

Amps
30 Amps at 208 Volts (3-Phase); 26 Amps at 240 Volts (3-Phase); 45 Amps at 240 Volts (Single-Phase)
Phase
3-Phase; Single-Phase
Dimensions
36.0"W × 29.5"D × 15.4"H
Type
Charbroiler
Installation Type
Built-In
Material
Stainless Steel
Spec sheet
Wells SKU: B-506

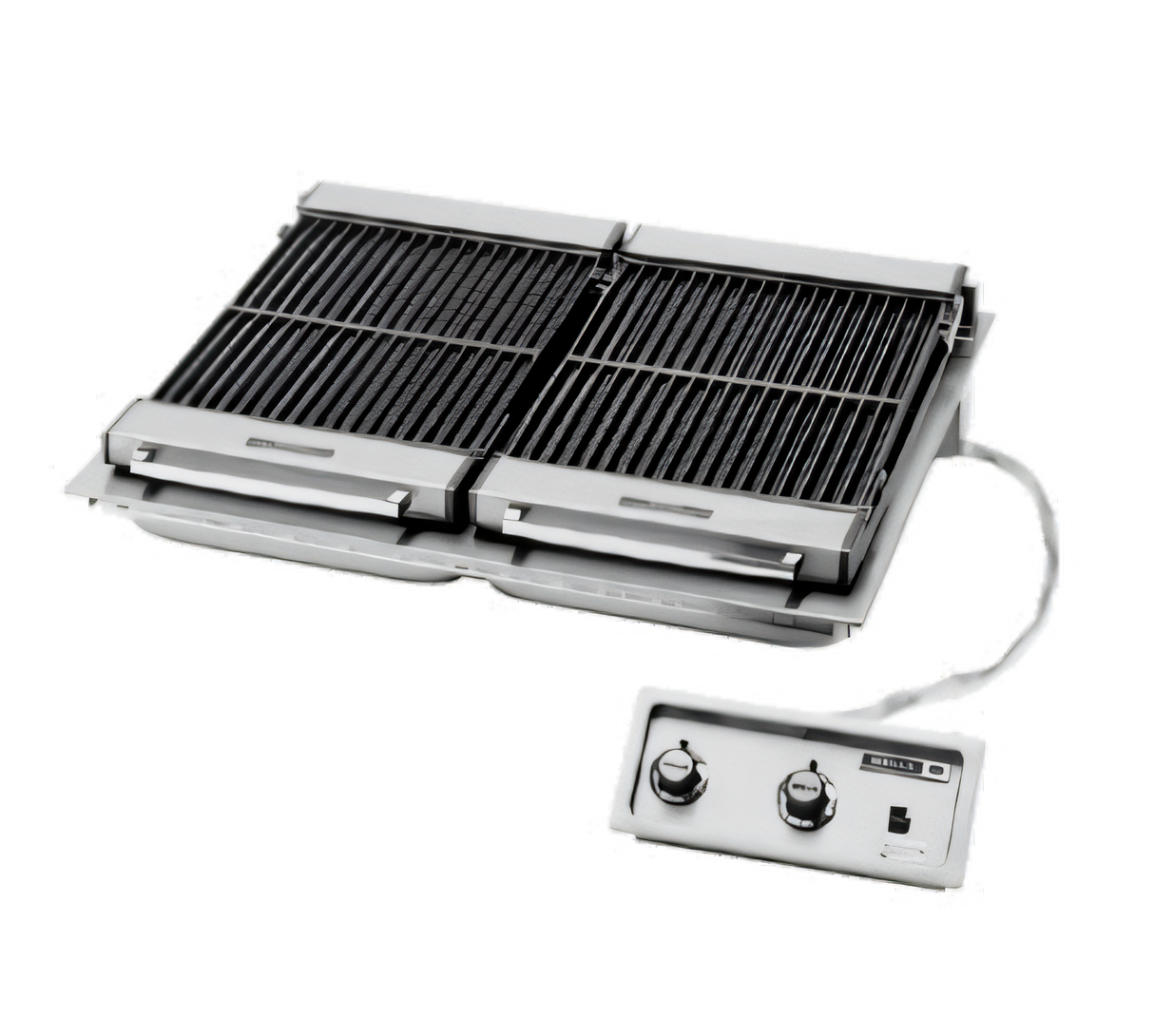

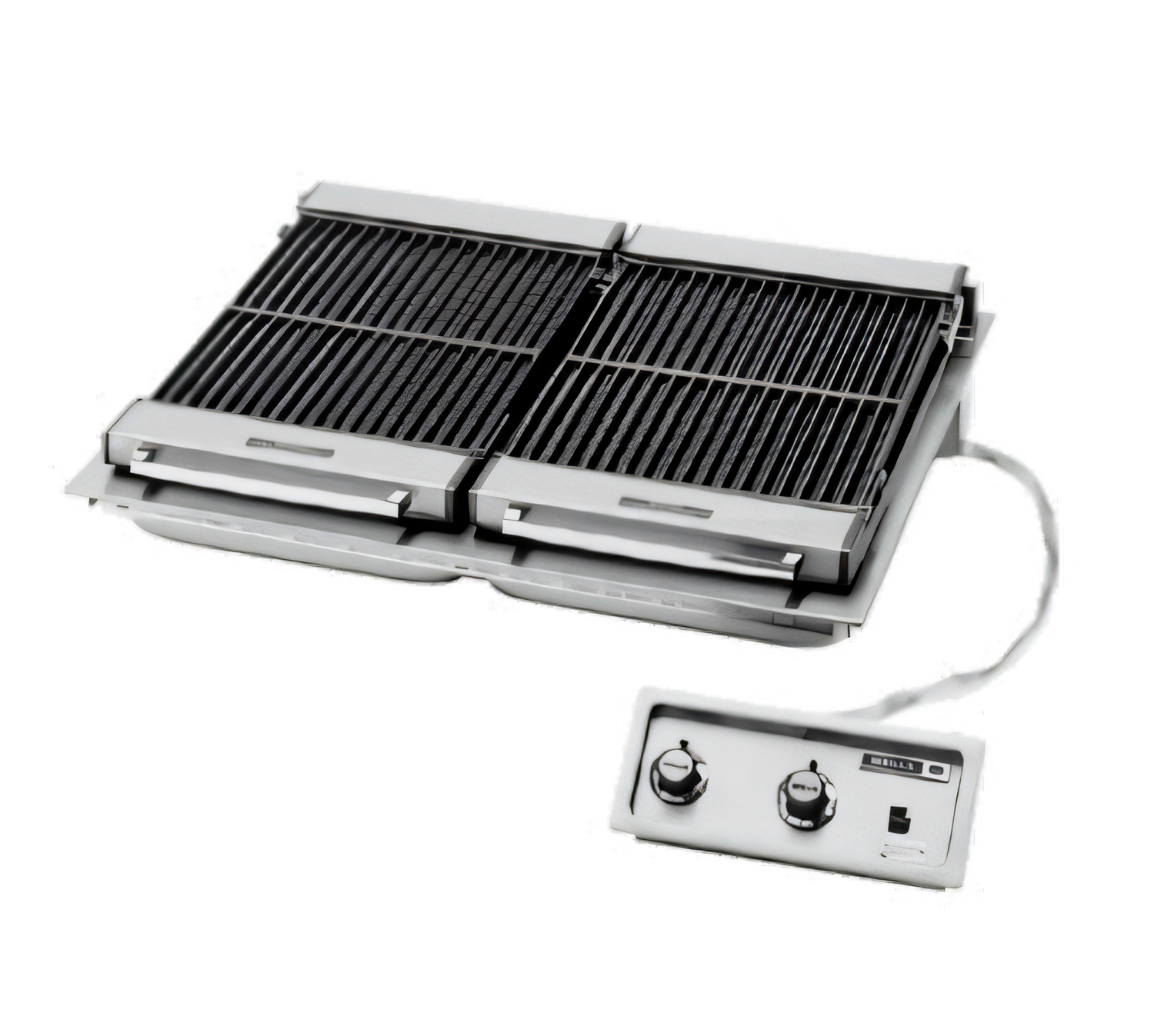

Wells B-506 36-Inch Built-In Electric Charbroiler

$10,758.00
/each
Estimated to ship in 29–32 business days
ElectricalRequired
Included: Wells warranty One-year limited warranty against defects in material or workmanship covering parts and labor

Get priority processing and free 1-year protection with PREMIUM Learn about Premium

As low as $995/mo with Credit Key Learn more

Questions before you buy?

Talk to a specialist — usually within 1 hour, 9am–6pm EST.

Questions before you buy?

Talk to an equipment specialist about voltage, installation or the right size for your kitchen.
Usually within 1 hour, 9am–6pm EST.

Specifications

Type Charbroiler
Installation Type Built-In
Material Stainless Steel
Finish All Stainless Steel Exterior
Grate Material Cast Iron
Radiants Double Lift-Up
Heating Zones 2
Grid Surface Dimensions 32 W x 20 D in
Cooking Surface Area 640 sq. in.
Controls 2 Infinite Controls
Temperature Range Off/Low to High
Preheat Time 10 minutes to 600°F
Voltage 208/240 Volts
Watts 10.8 kW
Amps 30 Amps at 208 Volts (3-Phase); 26 Amps at 240 Volts (3-Phase); 45 Amps at 240 Volts (Single-Phase)
Phase 3-Phase; Single-Phase
Connection Type Terminal Block
Plug Type None

Description

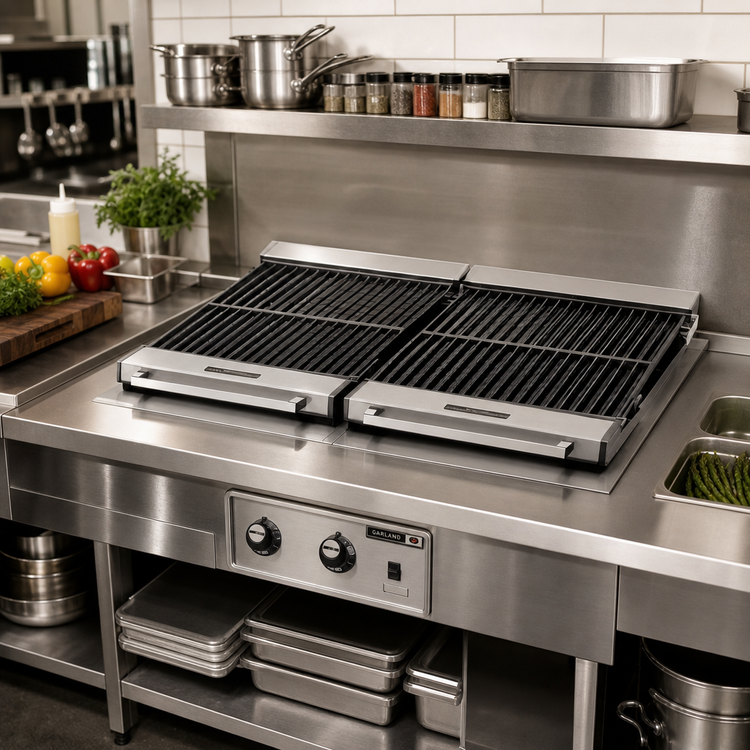

The Wells B-506 is a 36-inch-wide built-in electric charbroiler with stainless steel construction, cast iron grates, and two heat zones.

  • Self-cleaning elements provide conductive and radiant heating while positioned between the grate ribs.
  • Two infinite controls regulate each half of the cooking surface and include positive-off positions and signal lights.
  • Lift-out drip pans, removable grates, and an included grate scraper/brush support cleaning.

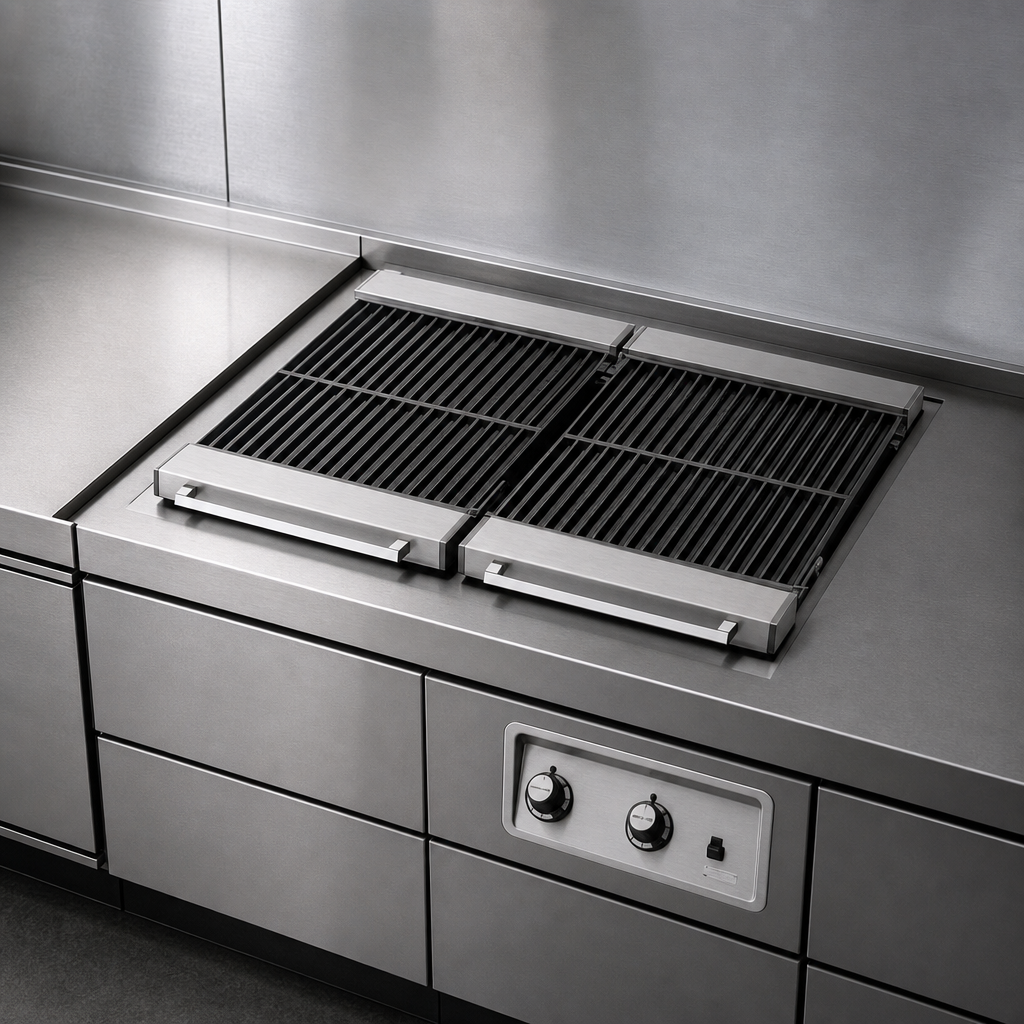

  • A terminal block is provided for field connection to the main power supply, and the unit is designed for installation in metal counters only.

The B-506 is Underwriters Laboratories, Inc. Recognized and meets NSF-4 standards.

Overall Dimensions:

36.0"W x 29.5"D x 15.4"H

Product Weight:

142.0 lb

Two Heat Zones

Each individual control regulates one half of the grid surface for cooking versatility.

Self-Cleaning Elements

Elements are positioned between the grate ribs to guard against direct food contact and spatula abrasion.

Cast Iron Grates

Removable cast iron grates protect the heating elements and support cleaning.

Recessed Infinite Controls

Two infinite controls include positive-off positions and signal lights indicating power-on status.

Lift-Out Drip Pans

Drawn drip pans with handles lift out for cleaning.

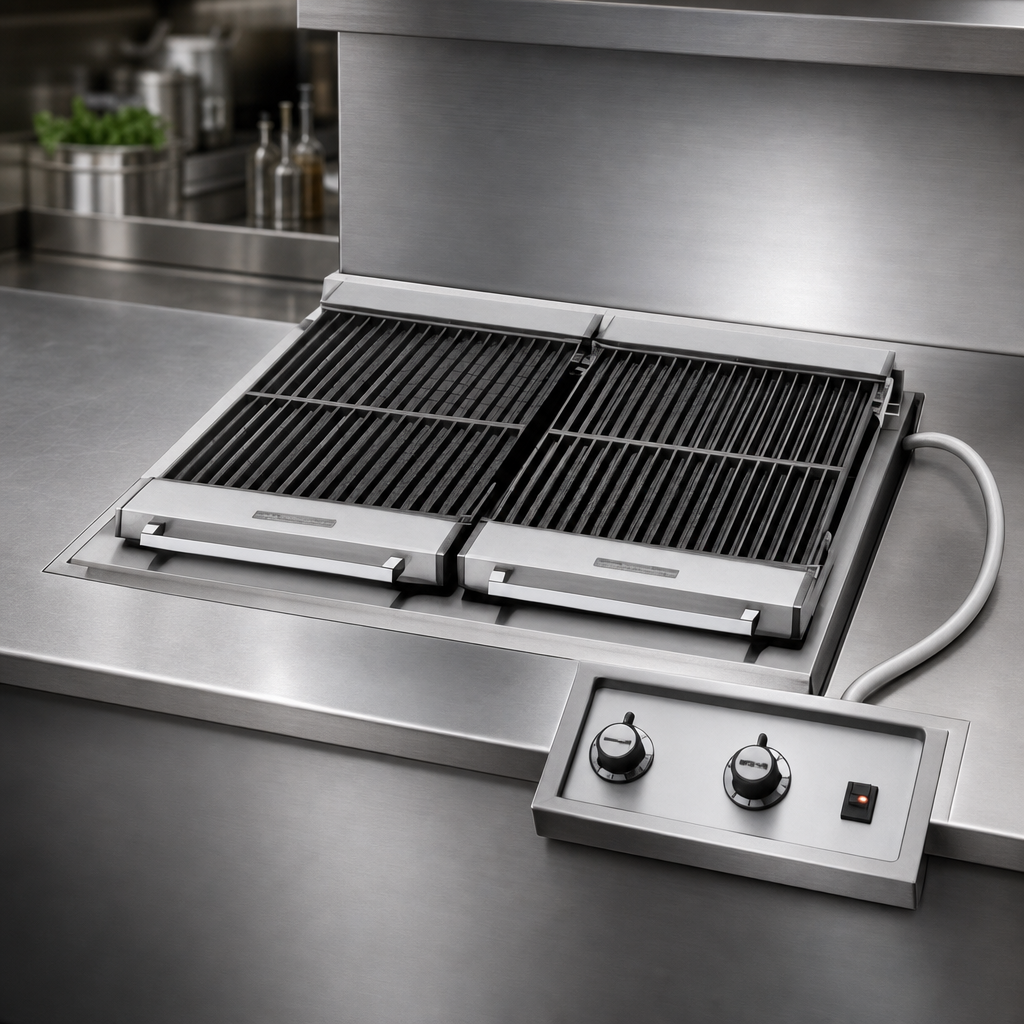

Field Electrical Connection

A terminal block is provided for connection to the main power supply.

Included Cleaning Tool

Each unit is provided with a grate scraper/brush.

Frequently Asked Questions

Yes. It is a built-in charbroiler designed to be installed in metal counters only.
It has two heat zones and two infinite controls, with each control regulating one half of the grid surface.
The unit is rated for 208 or 240 volts and 10.8 kW. It uses a terminal block for field connection and has no supply cord.
The unit includes removable cast iron grates, lift-out drip pans with handles, and a grate scraper/brush.
The listed dimensions are 36 inches wide by 29.5 inches deep by 15.4 inches high, with a listed weight of 142 pounds.
