Key specifications

Dimensions
19.44"W × 29.56"D × 15.38"H
Type
Charbroiler
Installation Type
Countertop
Material
Stainless Steel
Size
20 Inches
Grate Type
Cast Iron
Spec sheet
Wells SKU: B-44

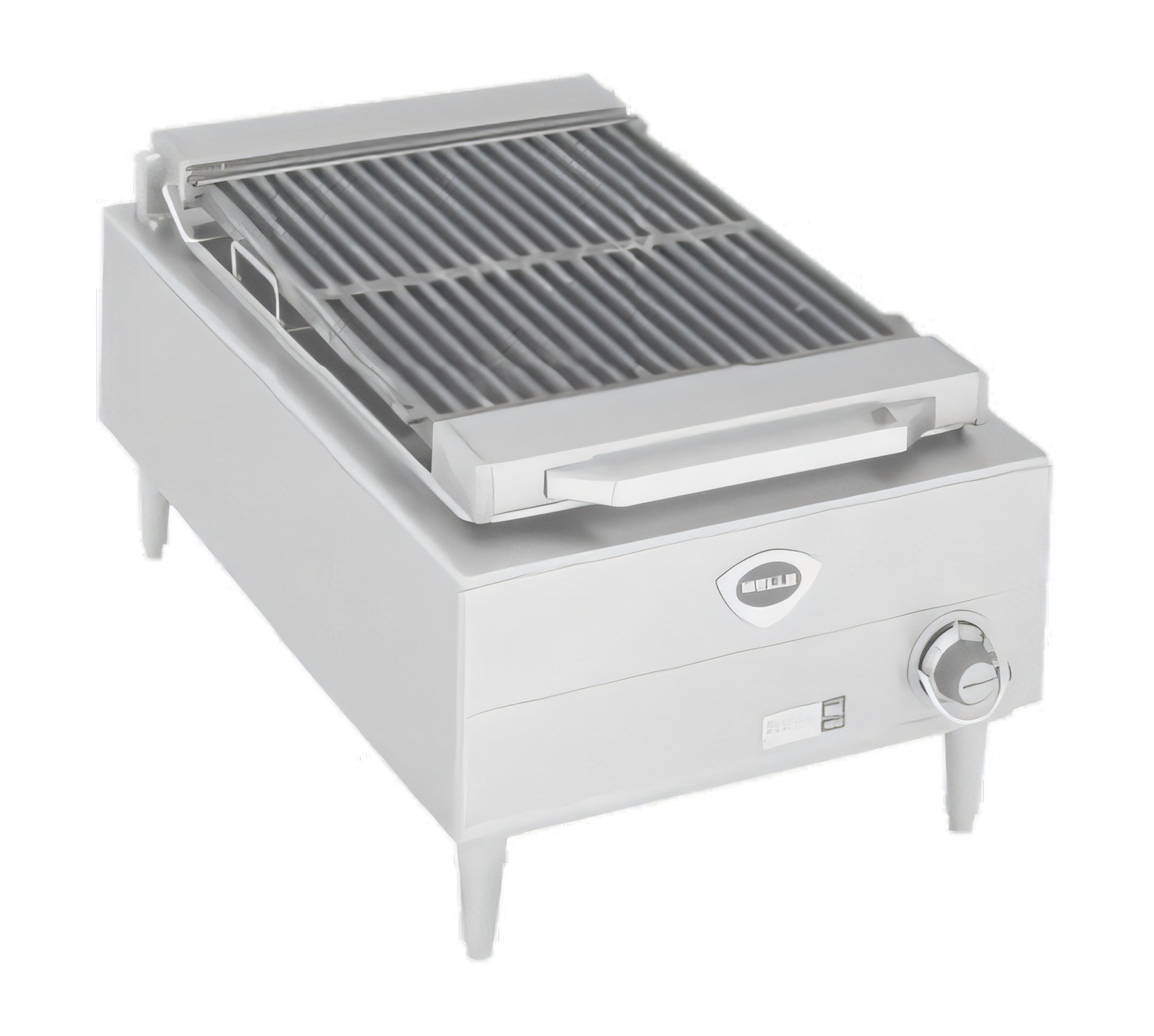

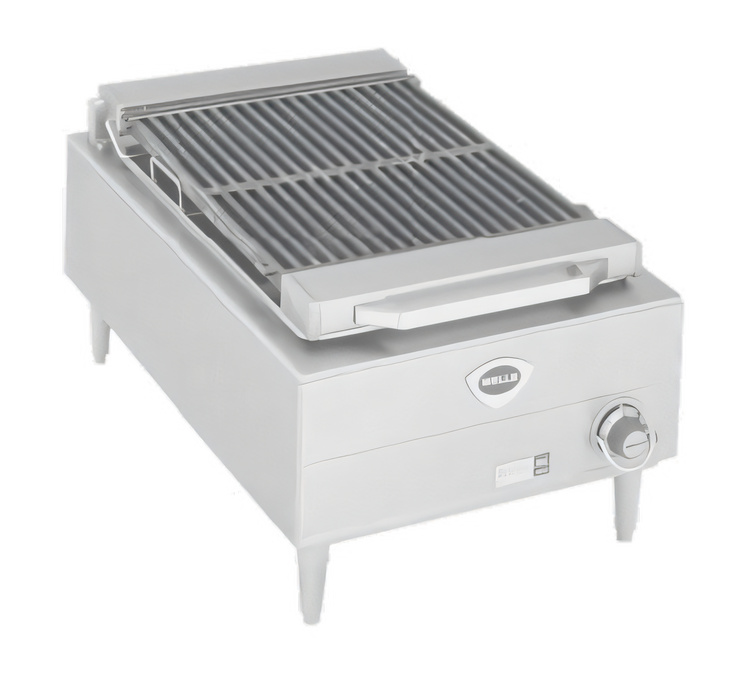

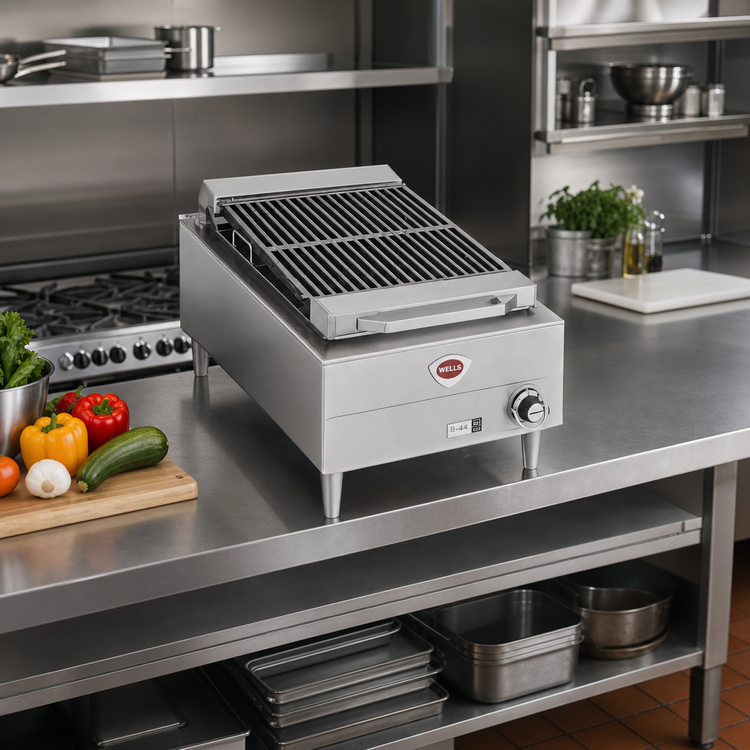

Wells B-44 20-Inch Electric Charbroiler with Cast-Iron Grate

$5,944.00
/each
Estimated to ship in 29–32 business days
ElectricalRequired
Cordsets
Included: Wells warranty One-year limited warranty covering parts and labor for defects in material or workmanship

Get priority processing and free 1-year protection with PREMIUM Learn about Premium

As low as $550/mo with Credit Key Learn more

Questions before you buy?

Talk to a specialist — usually within 1 hour, 9am–6pm EST.

Questions before you buy?

Talk to an equipment specialist about voltage, installation or the right size for your kitchen.
Usually within 1 hour, 9am–6pm EST.

Specifications

Type Charbroiler
Installation Type Countertop
Material Stainless Steel
Size 20 Inches
Grate Type Cast Iron
Grid Surface Dimensions 16 x 20 Inches
Grid Surface Area 320 Square Inches
Controls Infinite Control
Temperature Range OFF/LO to HI
Preheat Time 10 Minutes to 600°F
Leg Height 4 Inches
Voltage 208/240 Volts
Watts 5.4 kW
Connection Type Terminal Block

Description

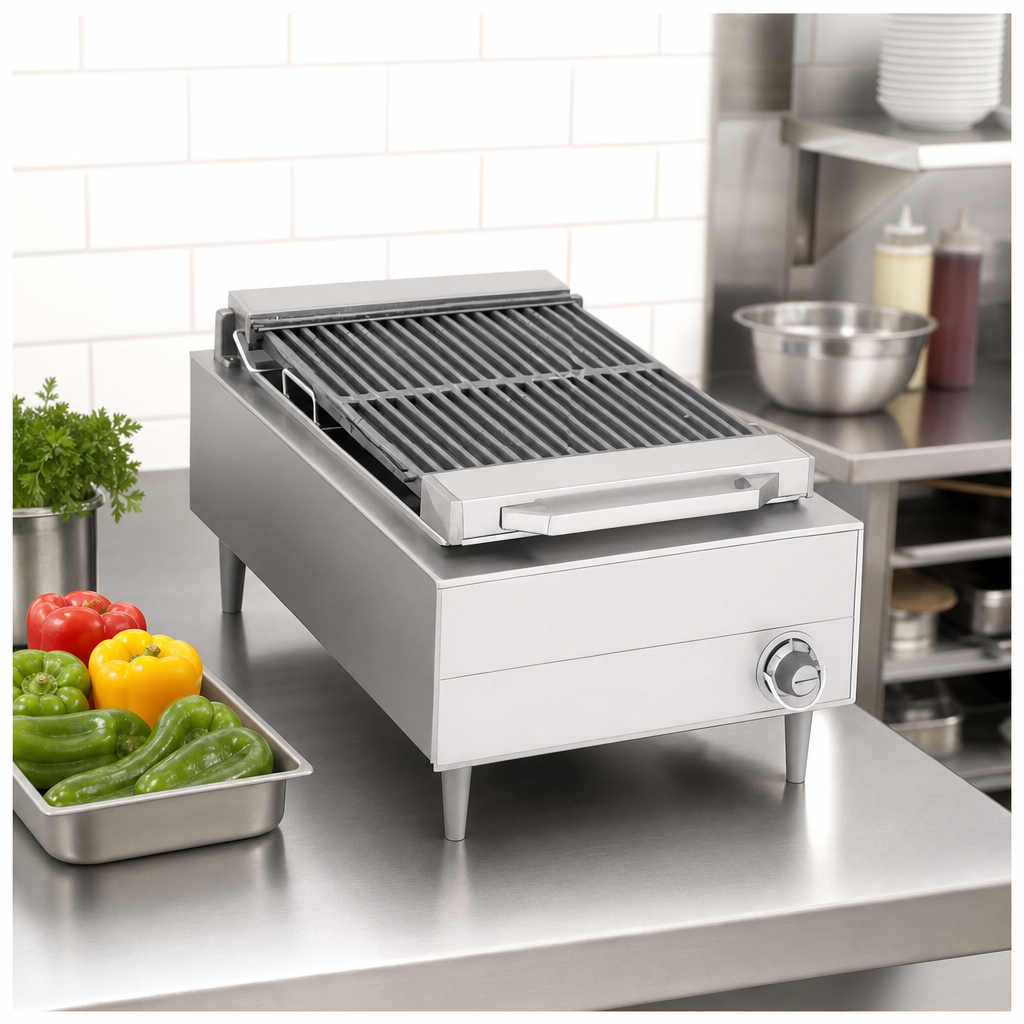

The Wells B-44 is a countertop electric charbroiler with stainless steel construction, a heavy-duty cast-iron grate, and a self-cleaning element. The element provides conductive and radiant heating, while the infinite control adjusts temperature from OFF/LO to HI.

  • 16 x 20-inch grid surface with 320 square inches of area.
  • Lift-out, drawn drip pan with handles and removable cast-iron grate.
  • Includes a grate scraper/brush and 4-inch adjustable metal legs.
  • Preheats to 600°F in 10 minutes.
  • Available in 208/240-volt, 5,400-watt electrical configurations.

Overall Dimensions:

19.44"W x 29.56"D x 15.38"H

Product Weight:

85.0 lb

Self-Cleaning Element

The element is positioned between the grate ribs to protect against direct food contact and spatula abrasion.

Dual Heating Action

Provides both conductive and radiant heating.

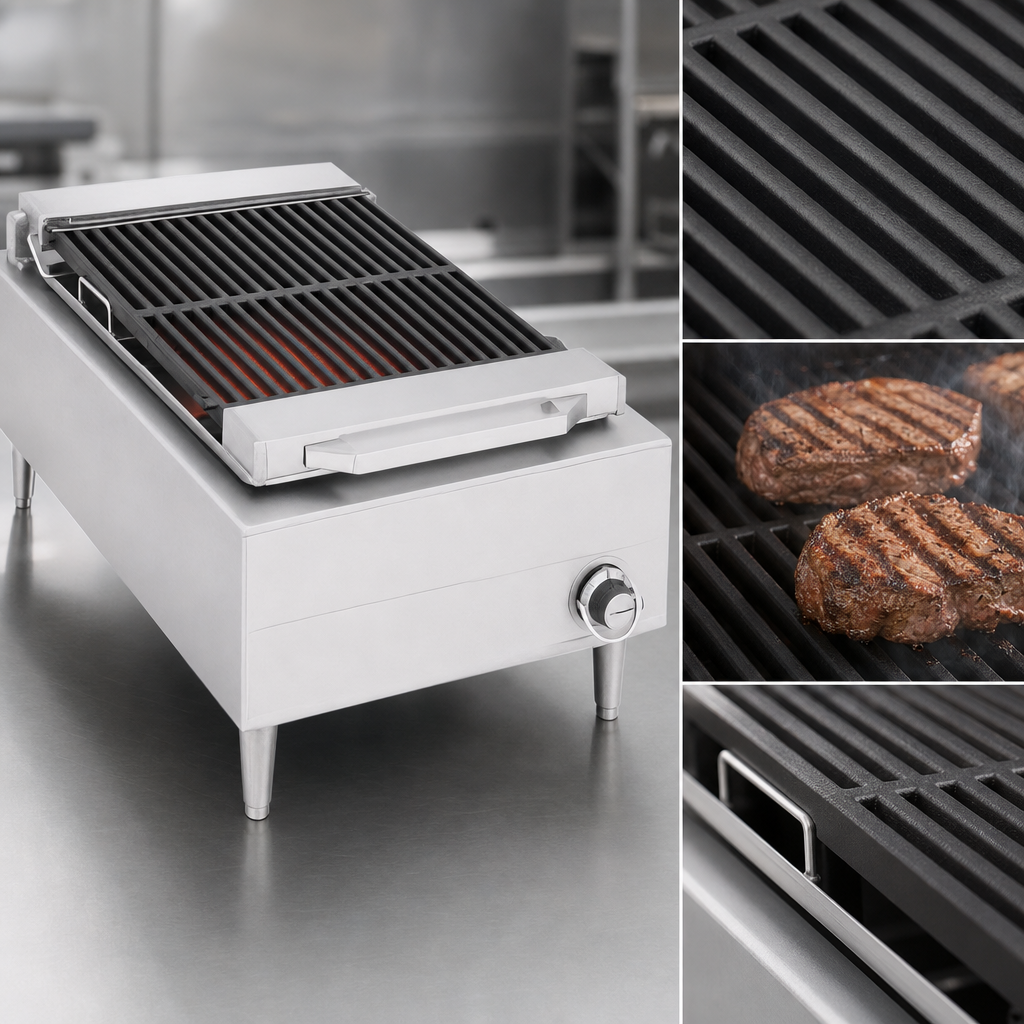

Cast-Iron Grate

The heavy-duty cast-iron grate is removable and protects the heating element.

Infinite Temperature Control

The control has a positive-off position and a signal light indicating power-on status.

Lift-Out Drip Pan

The drawn drip pan has handles for removal.

Adjustable Legs

Includes 4-inch adjustable metal legs.

Grate Scraper and Brush

Each unit is provided with a grate scraper/brush.

Frequently Asked Questions

Yes. The B-44 is a countertop electric charbroiler.
It uses a removable heavy-duty cast-iron grate.
The B-44 is listed for 208 or 240 volts at 5,400 watts. The cutsheet specifies a terminal block for field connection and no supply cord.
The overall dimensions are 19.44 inches wide, 29.56 inches deep, and 15.38 inches high.
The unit includes a lift-out drawn drip pan with handles, a removable grate, and a grate scraper/brush.
The documented preheat time is 10 minutes to 600°F.
