Key specifications

Phase
1-Phase / 3-Phase
Dimensions
23.75"W × 23.5"D
Type
Charbroiler
Installation Type
Built-In
Material
Stainless Steel
Finish
Stainless Steel
Spec sheet
Wells SKU: B-406

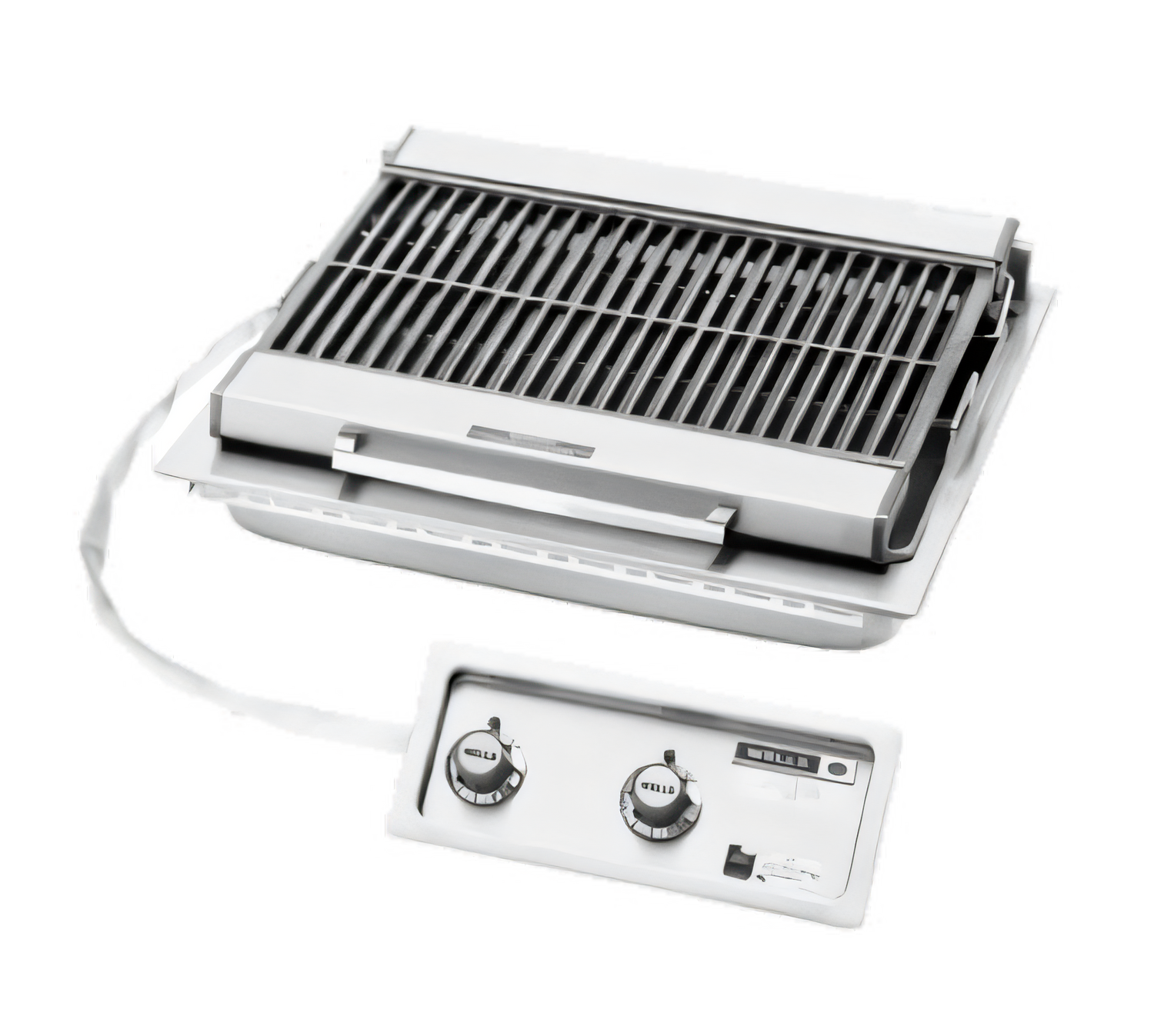

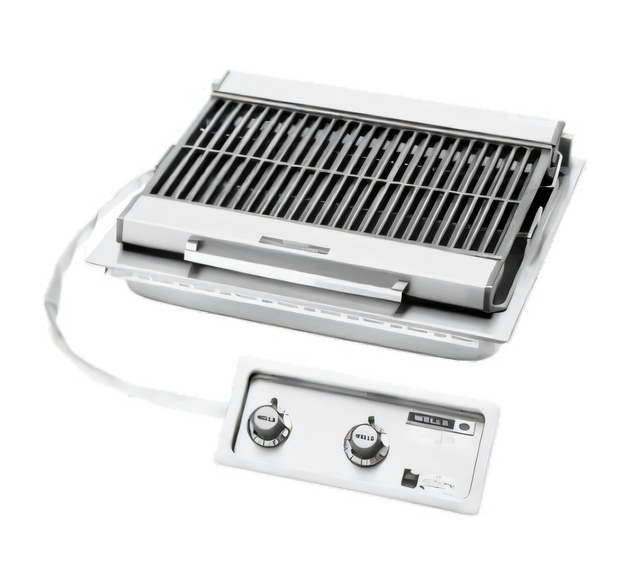

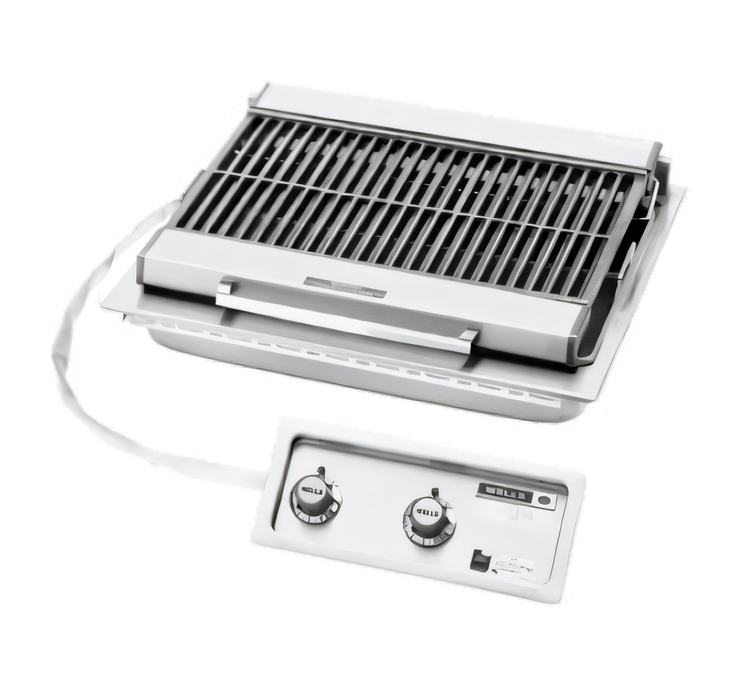

Wells B-406 25-Inch Built-In Charbroiler with Dual Heat Zones

$6,161.00
/each
Estimated to ship in 29–32 business days
ElectricalRequired
Accessories
Included: Wells warranty One-year limited warranty against defects in materials or workmanship, covering parts and labor

Get priority processing and free 1-year protection with PREMIUM Learn about Premium

As low as $570/mo with Credit Key Learn more

Questions before you buy?

Talk to a specialist — usually within 1 hour, 9am–6pm EST.

Questions before you buy?

Talk to an equipment specialist about voltage, installation or the right size for your kitchen.
Usually within 1 hour, 9am–6pm EST.

Specifications

Type Charbroiler
Installation Type Built-In
Material Stainless Steel
Finish Stainless Steel
Grate Material Cast Iron
Heat Zones 2
Heating Elements Self-Cleaning
Radiant Type Single Lift-Up
Controls 2 Infinite Controls
Temperature Range OFF/LO to HI
Cooking Surface Area 312 sq in
Grid Width 21.5 in
Grid Depth 14.5 in
Preheat Time 10 minutes to 600°F
Voltage 208/240 Volts
Watts 5.4 kW
Phase 1-Phase / 3-Phase
Plug Type None

Description

The Wells B-406 is a built-in electric charbroiler with stainless steel construction and a removable cast iron grate.

Two independently regulated heat zones provide conductive and radiant heating. Self-cleaning elements are positioned between the grate ribs, while the lift-out drip pan and removable grate simplify cleaning.

  • Two infinite controls with positive-off positions and power-on signal lights
  • Recessed controls help prevent accidental temperature changes
  • Includes a grate scraper/brush
  • Terminal block provided for field connection to the main power supply
  • Designed for installation in metal counters only

Overall Dimensions:

23.75"W x 23.5"D

Product Weight:

68.0 lb

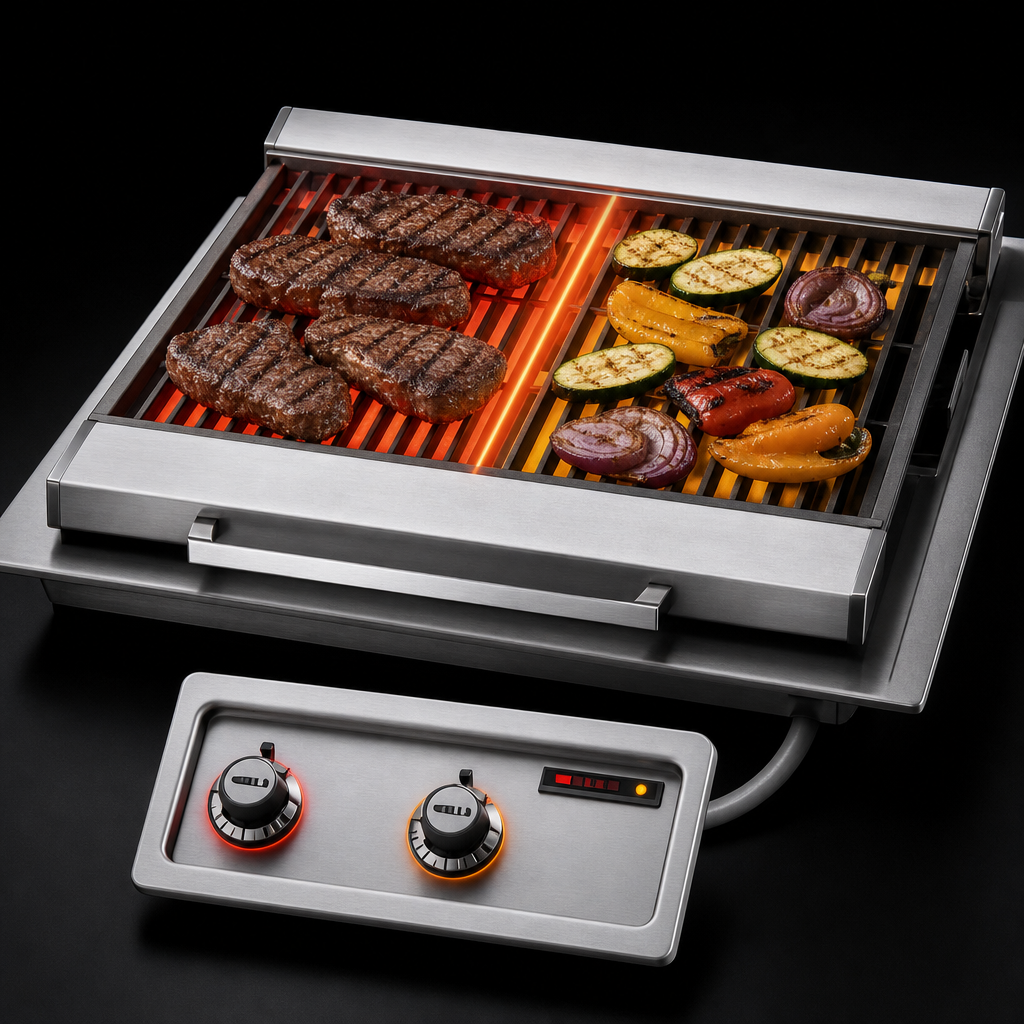

Dual Heat Zones

Two controls regulate separate halves of the cooking surface.

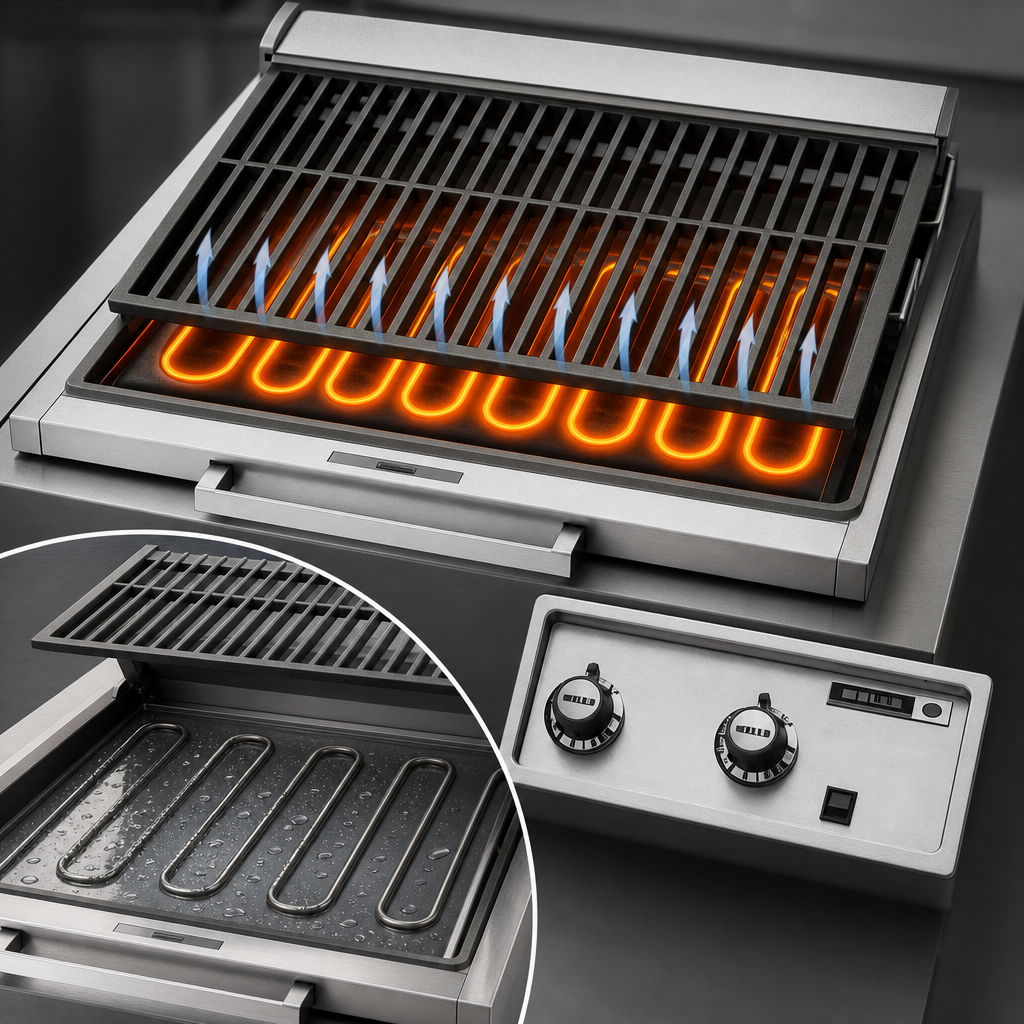

Self-Cleaning Elements

Heating elements are positioned between the grate ribs to help protect against direct food contact and spatula abrasion.

Cast Iron Grate

The removable cast iron grate provides the cooking surface and can be lifted out for cleaning.

Lift-Out Drip Pan

The drawn drip pan lifts out and includes handles for removal.

Recessed Controls

Two infinite controls are recessed in a one-piece stainless steel panel and include positive-off positions.

Power Connection

A terminal block is provided for field connection to the main power supply; no supply cord is included.

Wellslok Installation

Wellslok is provided for installation in stainless steel countertops.

Frequently Asked Questions

It is a built-in unit designed for installation in metal counters only.
The B-406 is rated for 208 or 240 volts at 5.4 kW and supports single-phase or three-phase connection. A terminal block is provided, and there is no supply cord.
It has two independently regulated heat zones, with each control regulating one half of the cooking surface.
The unit includes a lift-out drip pan, removable grate, and grate scraper/brush.
