Wells (Middleby)  |  SKU: B-40

Wells (Middleby) B-40 Electric Charbroilers

$5,740.00
Expected delivery date of , to your door
if ordered within hours and minutes
Not Shipping to ?
More Delivery Options
Documents
Cutsheet Owner's manual Middleby financial flyer Warranty sheet
Related Searches
Charbroilers & Grills Electric Charbroilers

Reach out via chat, email, or phone—we're here to help make sure it's the right fit for your kitchen. Contact us for more information.

Description

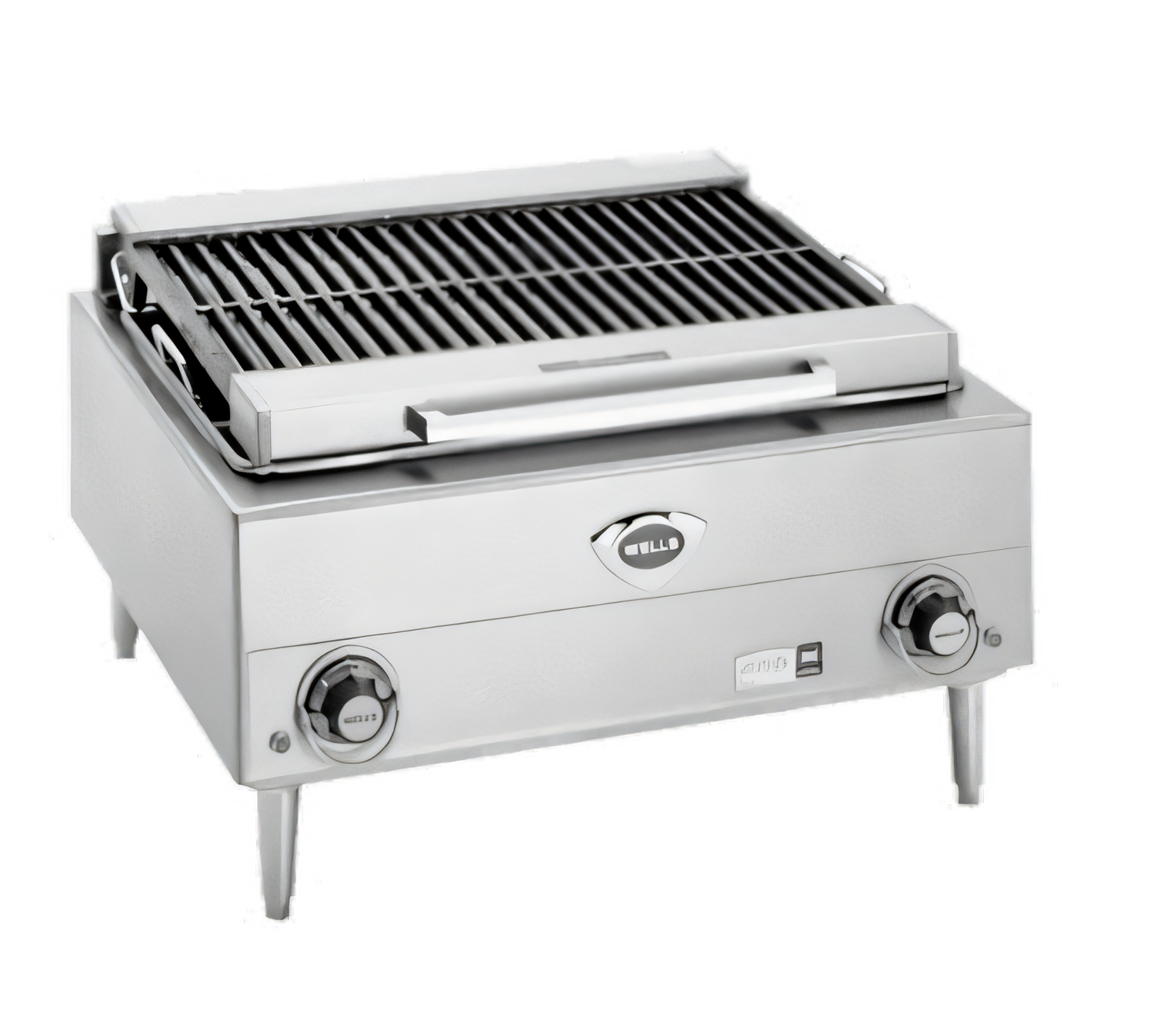

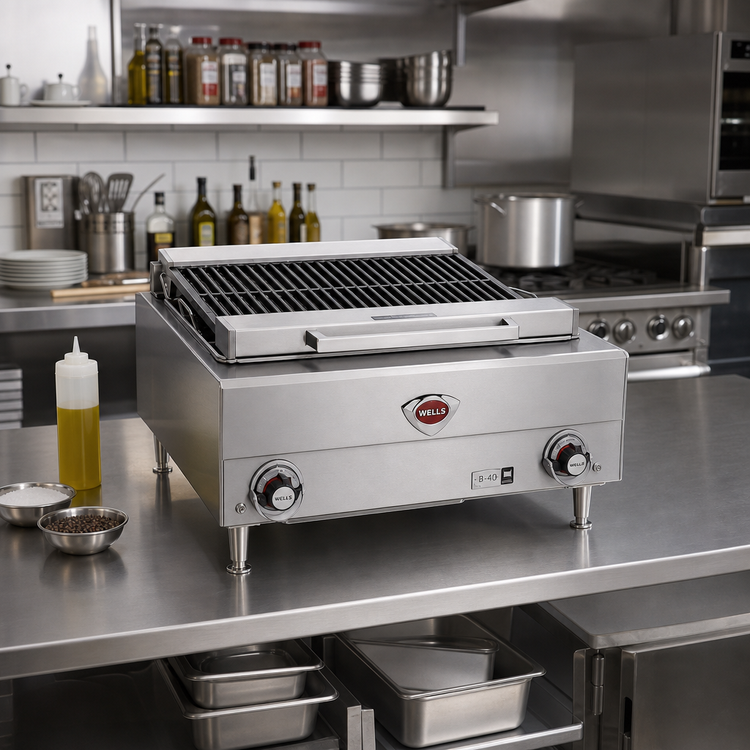

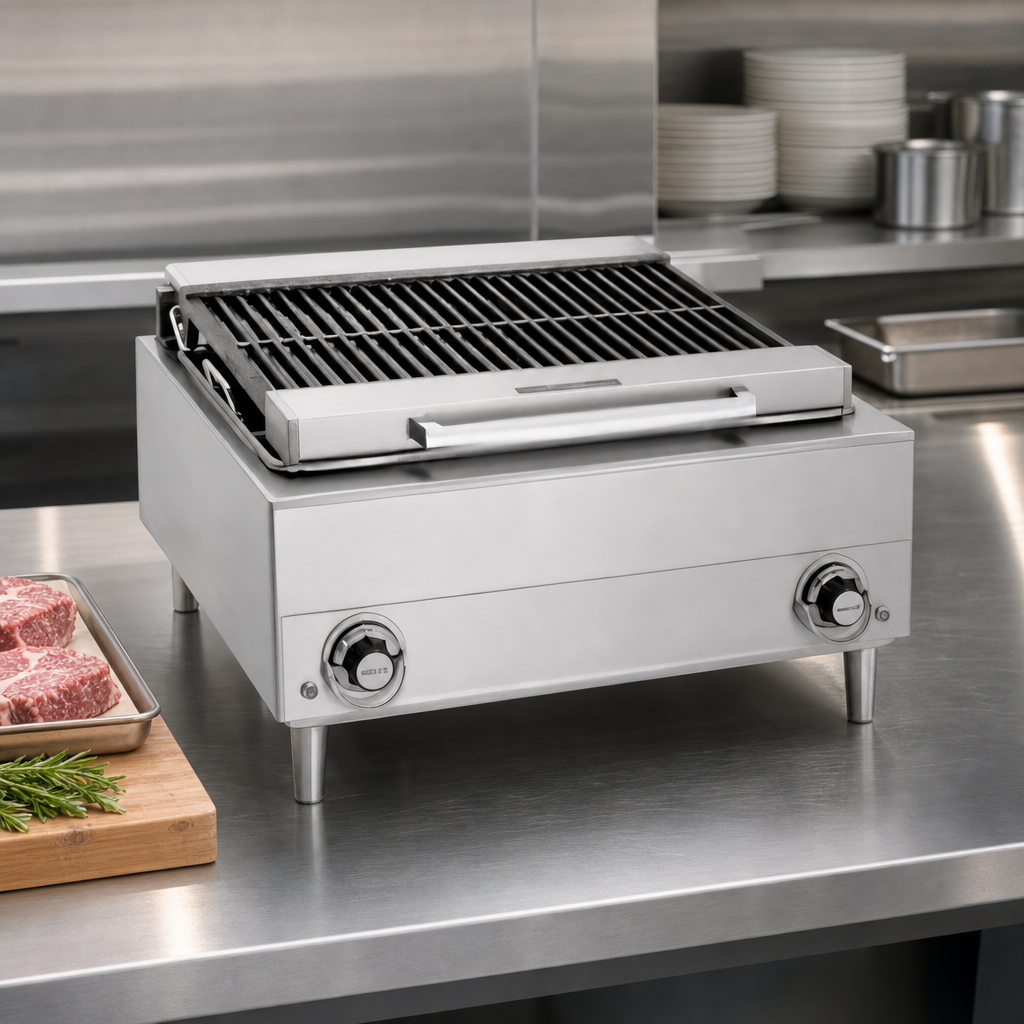

Wells B-40 Electric Countertop Charbroiler – 24″ Wide

5400 W • Dual Heat Zones • Cast Iron Grate

Bring true char-grilled flavor to your menu without giving up valuable floor space. The Wells B-40 combines heavy-duty stainless-steel construction, self-cleaning elements and a generous 21 ½″ × 14 ½″ cooking surface to deliver high-volume output, shift after shift.

Key Features

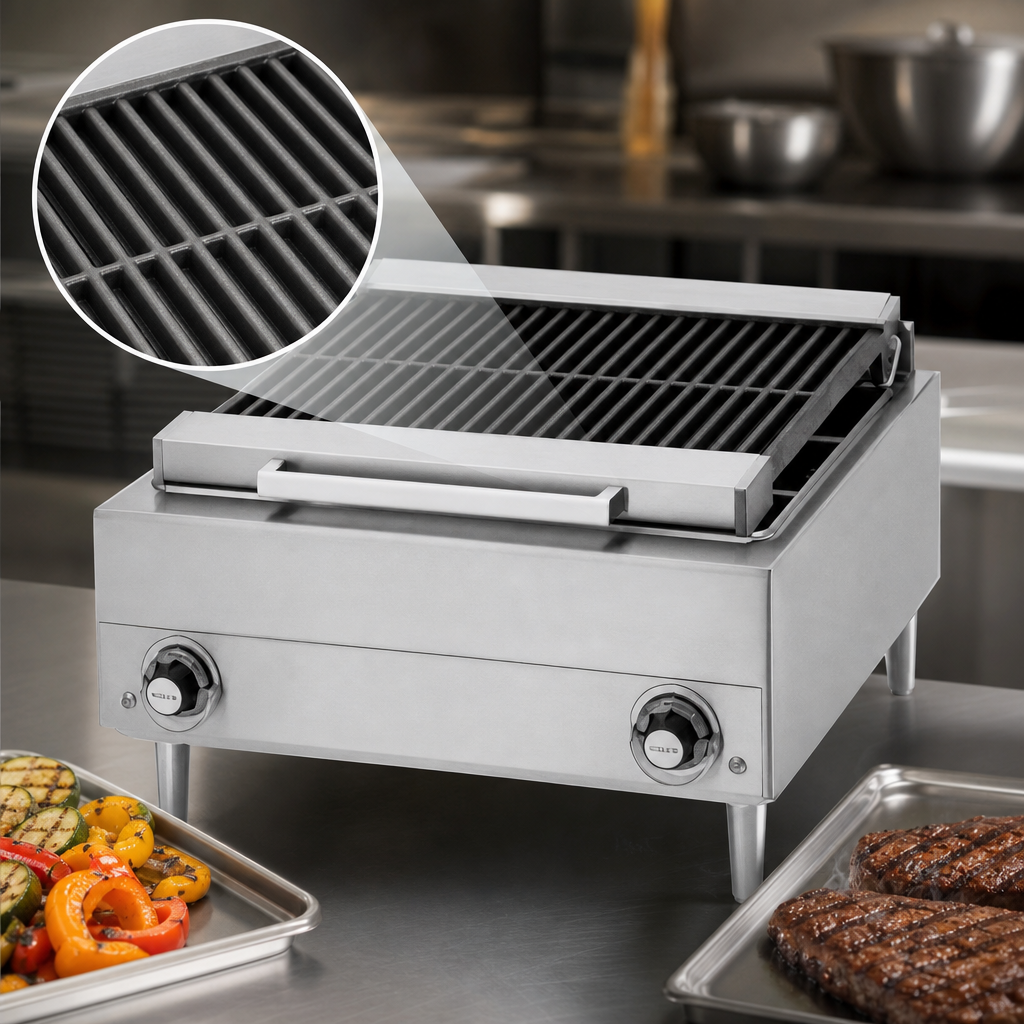

  • Heavy-duty cast-iron grate shields elements and produces authentic grill marks.
  • Self-cleaning sheathed elements provide both conductive & radiant heat for even cooking.
  • (2) infinite-control thermostats let you create independent left/right heat zones.
  • Rapid 10-min preheat to 600 °F keeps service moving at peak times.
  • Lift-out drip pans with handles and removable grate speed up daily clean-up.
  • Spring-loaded support rod locks elements in a raised position for safe access.
  • 4″ adjustable stainless-steel legs for perfect working height and easy counter sanitation.
  • Includes a convenient grate scraper/brush—start grilling right out of the box.
  • UL, CE & NSF listed; backed by a 1-year parts & labor warranty.

Performance at a Glance

Cooking surface 21 ½″ W × 14 ½″ D (312 in² / 0.20 m²)
Production* 24 / 336 hamburgers • 9 / 81 steaks
Preheat time Approx. 10 min to 600 °F
Temperature range OFF / LOW to HIGH (infinite adjustment)

*Based on 4 oz burgers and 1″ steaks cooked to 160 °F. Actual results may vary.

Specifications

Exterior dimensions 24 ¾″ W × 23 ½″ D × 15 ⅜″ H (with 4″ legs)
Construction Stainless-steel top & sides, cast-iron grate
Controls 2 infinite heat dials with power-on indicator lights
Electrical 5400 W; 208 V 26 A or 240 V 22.5 A, 1 - / 3-phase; terminal block connection (optional 240 V NEMA 6-30P cordset #20141)
Installed / shipping weight 76 lb / 80 lb (34 kg / 36 kg)
Certifications UL, NSF, CE
Warranty 1 year parts & labor

Minimum Clearances to Combustibles

Back 6″ (152 mm)
Sides 7″ (178 mm)
Bottom 4″ (102 mm)
Top 21″ (533 mm)
Electrical Notice: The B-40 ships without a cordset and must be hard-wired by a qualified electrician to the voltage and phase ordered. Always follow local codes and the Wells installation manual.

Features & Specs

Manufacturer

Wells (Middleby)

Certifications

CE, UL

Height

15.38in

Width

24.75in

Depth

23.5in

Shipping Weight

80.0lbs

Grate type

cast iron

Depth (front - back)

29"

Width (side - side) OA

24"

Specifications

Charbroiler, countertop, electric, 4" high legs, cast iron grate, 24" wide, stainless steel construction, with grease pan and scraper/brush, UL, CE
