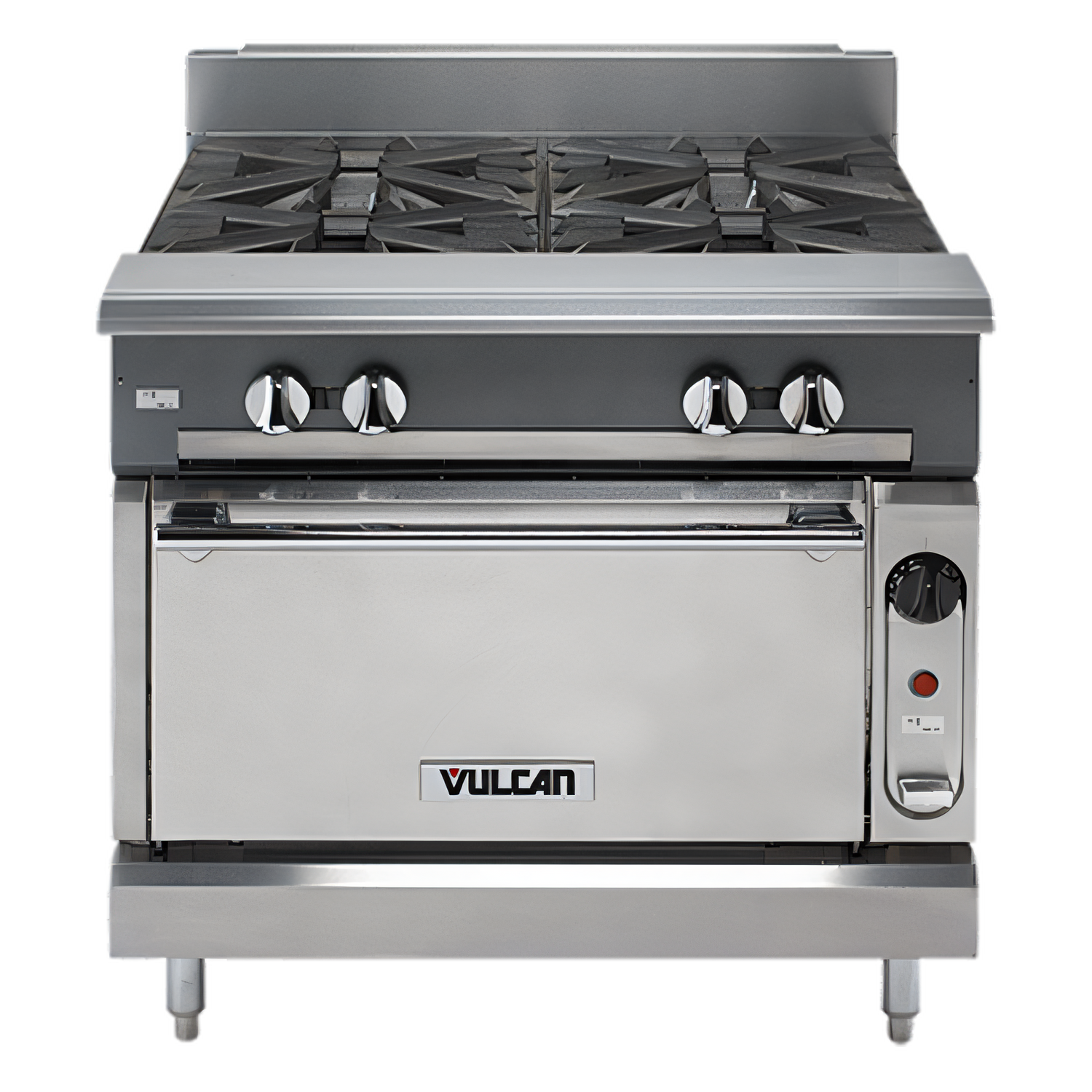

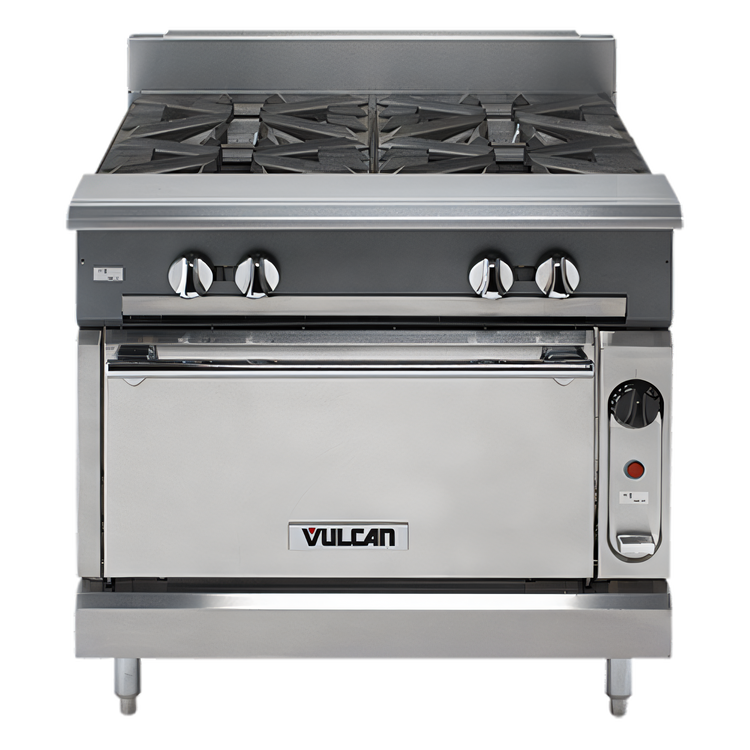

Vulcan VWT36C V Series 36-Inch Heavy Duty Gas Work Top Range with Convection Oven Base

SKU: VWT36C
$13,856.87
/each
Free Shipping
Expected delivery date of ,
if ordered within hours and minutes
Not Shipping to ?
Want to speak to an expert?
(888) 307-5030
Chat
Bulk pricing available

Related Searches

Best Sellers Commercial Gas Ranges Commercial Ranges Gas Ranges New Arrivals Ranges Restaurant Equipment Vulcan

Vulcan VWT36C V Series 36-Inch Heavy Duty Gas Work Top Range with Convection Oven Base

Stainless Steel, 32,000 BTU/hr Convection Oven, 115V Blower Motor

Built for demanding commercial kitchens, this 36-inch gas work top range pairs a durable stainless steel build with a convection oven base, 115V blower motor, and dependable millivolt safety system.

  • 36-inch heavy-duty gas work top range with a convection oven base.
  • Stainless steel work surface, front, top front ledge, sides, base, and stub back for lasting durability.
  • 32,000 BTU/hr convection oven burner with a 300°F to 650°F temperature range.
  • 115V, single-phase blower motor with 4-amp draw and 6-foot cord and plug.
  • Porcelain oven cavity, two racks, and three rack positions for flexible cooking.
  • Heavy-duty counterweight door hinges and 6-inch adjustable stainless steel legs.

Overall Dimensions:

36.0"W x 36.75"D x 36.0"H

Product Weight:

700.0 lb

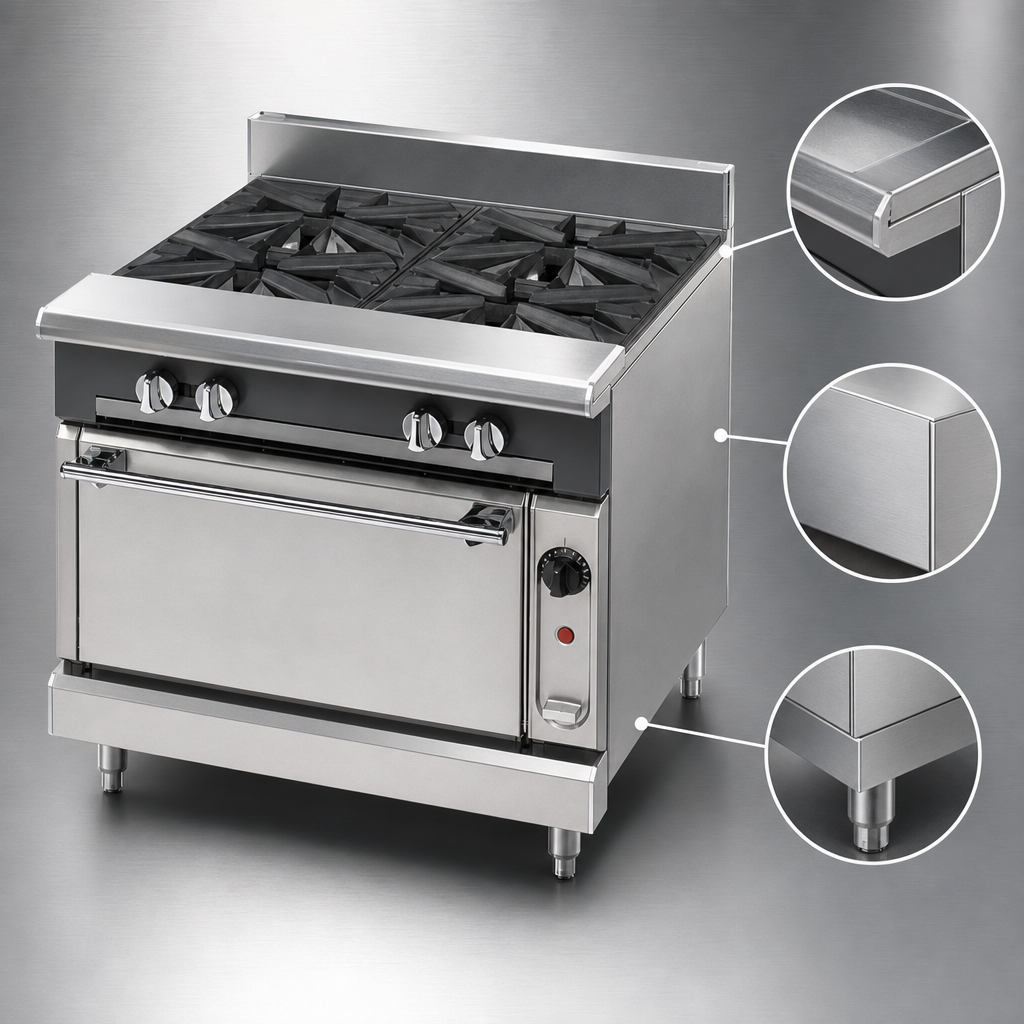

Heavy-Duty Stainless Steel Construction

20-gauge stainless steel body with a 16-gauge stainless steel work surface, front, top front ledge, sides, base, and stub back.

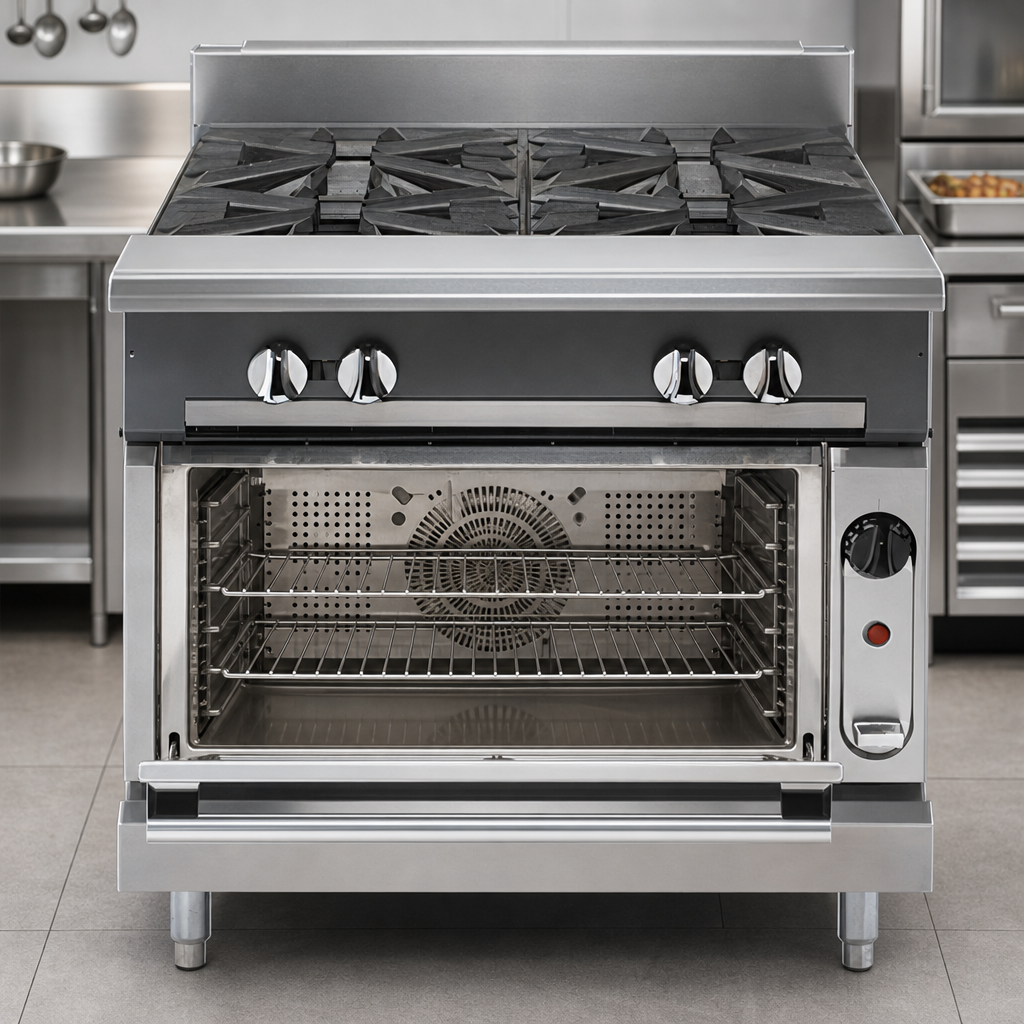

Convection Oven Base

36-inch convection oven base spreader design for commercial kitchen use.

32,000 BTU/hr Convection Oven Burner

Delivers consistent heat output for the convection oven base.

Porcelain Oven Cavity

Porcelain bottom, sides, and interior door panel support durability and easier cleaning.

115V Blower Motor

Single-phase blower motor with 4 amps and a 6-foot cord and plug.

Millivolt Safety Pilot

Pilot system with millivolt safety control for dependable operation.

Heavy-Duty Counterweight Door Hinges

Designed for smooth, reliable oven door operation in demanding use.

Oven Rack Setup

Convection oven includes two racks and three rack positions.

Adjustable Stainless Steel Legs

6-inch adjustable legs help level the unit during installation.

Gas Connection Points

Includes a 1-1/4-inch front gas manifold and a 1-1/4-inch rear gas connection (capped).

Warranty

Backed by a one-year limited parts and labor warranty.

Type Heavy Duty Gas Range
Style Work Top
Installation Type Floor Model
Material Stainless Steel
Interior Finish Porcelain
BTU 32,000 BTU/hr
Voltage 115 Volts
Amps 4 Amps
Phase 1-Phase
Cord Length 6 Feet
Gas Connection Size 1 1/4 Inches
Temperature Range 300°F to 650°F
Selling Unit Each
Units Per Case 1
Shipping Width 36 Inches
Shipping Depth 37 Inches
Shipping Height 36 Inches
Shipping Weight 700 lb.

Warranty & Protection

One-year limited parts and labor

Documents

PDF Cutsheet PDF Download PDF Sell sheet PDF Download PDF Video PDF Download PDF Installation & operation PDF Download PDF Parts manual PDF Download PDF Service manual PDF Download PDF Warranty sheet PDF Download

Frequently Asked Questions

Yes. This model is the convection oven base version and includes a 32,000 BTU/hr convection oven.
The convection oven blower motor requires 115V, single-phase power and draws 4 amps. A 6-foot cord and plug are included.
The convection oven adjusts from 300°F to 650°F.
Natural gas requires 6.0" W.C., and propane requires 10.0" W.C.; specify gas type when ordering.
The oven measures 27 inches wide by 27 inches deep by 13 inches high.
This unit includes a one-year limited parts and labor warranty.
